Home  »  Chassis and bodywork

Chassis and bodywork

TR4 Plate AJ - BODY AND FITTINGS: FRONT VALANCE, FRONT WINGS INNER AND OUTER AND BULKHEAD.

<< Return to Triumph Catalogue Plate List

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AJ1
850618

CLICK FOR
MORE INFO
FRONT UPPER VALANCE ASSEMBLY

 1

£633.24

Ex VAT @ 20%
£527.70


Available to order
AJ2
850435

CLICK FOR
MORE INFO
RADIATOR DUCT

 1

£45.72

Ex VAT @ 20%
£38.10


Available to order
AJ2A
YJ2544

CLICK FOR
MORE INFO
Screw Radiator duct to front upper valance panel

Triumph Catalogue Remarks: Fitted up to Commission No. CT15536 only
This item has been superceded by SS1100811 - see below

 7
SS1100811
SCREW ST No 10x1" PAN SLT BZP

Revington TR information: NOT CURRENTLY AVAILABLE

7

£0.36

Ex VAT @ 20%
£0.30


AJ2B
YJ2544

CLICK FOR
MORE INFO
Screw

Triumph Catalogue Remarks: Fitted from Commission No. CT15537 and future
This item has been superceded by SS1100811 - see below

 5
SS1100811
SCREW ST No 10x1" PAN SLT BZP

Revington TR information: NOT CURRENTLY AVAILABLE

5

£0.36

Ex VAT @ 20%
£0.30


AJ2C
YJ2546

CLICK FOR
MORE INFO
Screw Radiator duct to front upper valance panel

Triumph Catalogue Remarks: Fitted from Commission No. CT15537 and future
This item has been superceded by SS1100811 - see below

 2
SS1100811
SCREW ST No 10x1" PAN SLT BZP

Revington TR information: NOT CURRENTLY AVAILABLE

2

£0.36

Ex VAT @ 20%
£0.30


AJ2D
FJ2445

CLICK FOR
MORE INFO
Nut, fix Radiator duct to front upper valance panel

This item has been superceded by RTR5095 - see below

 7
RTR5095

RTR Upgrade
NUT SPIRE No10 J TYPE 20 X 13MM

 7

£0.47

Ex VAT @ 20%
£0.39


AJ2E
WP0138

CLICK FOR
MORE INFO
Washer, plain Radiator duct to front upper valance panel

This item has been superceded by WP10312020 - see below

 7
WP10312020
WASHER PLAIN 3/16" x 3/4" x 0.020"

 7

£0.24

Ex VAT @ 20%
£0.20


AJ2F
750206

CLICK FOR
MORE INFO
Rod, stay, front upper valance panel to horn bracket R. H.

Revington TR information: When not available new. Use 750206SH
This item has a secondhand part available - see below

 1

£17.70

Ex VAT @ 20%
£14.75


Available to order
750206SH
Second Hand ROD STAY FR. VAL TR4/4A RH

 1

£41.32

Ex VAT @ 20%
£34.43


Available to order
AJ3
750205

CLICK FOR
MORE INFO
Rod, stay, front upper valance panel to horn bracket L. H.

Revington TR information: Not available new. Use 750205SH
This item has a secondhand part available - see below

 1

£17.70

Ex VAT @ 20%
£14.75


Available to order
750205SH
Second Hand ROD STAY FRONT UPPER VAL.TR4 LH

 1

£41.32

Ex VAT @ 20%
£34.43


AJ3A
HU0704

CLICK FOR
MORE INFO
Screw, set Stay rods to front upper valance

This item has been superceded by SH604041 - see below

 2
SH604041

CLICK FOR
MORE INFO
SCREW 1/4 UNF X 1/2 INCH

 2

£0.58

Ex VAT @ 20%
£0.48


AJ3B
WQ0307

CLICK FOR
MORE INFO
Washer, lock Stay rods to front upper valance

This item has been superceded by WS104070643 - see below

 2
WS104070643
WASHER SPRING 1/4" RECT SECTION

 2

£0.20

Ex VAT @ 20%
£0.17


AJ3C
HN2007

CLICK FOR
MORE INFO
Nut Stay rods to front upper valance

This item has been superceded by NP604071 - see below

 2
NP604071
NUT PLAIN 1/4 UNF X 7/32

 2

£0.44

Ex VAT @ 20%
£0.37


AJ3D
HU0704

CLICK FOR
MORE INFO
Screw, set Stay rod to horn bracket

This item has been superceded by SH604041 - see below

 2
SH604041

CLICK FOR
MORE INFO
SCREW 1/4 UNF X 1/2 INCH

 2

£0.58

Ex VAT @ 20%
£0.48


AJ3E
WQ0307

CLICK FOR
MORE INFO
Washer, lock Stay rod to horn bracket

This item has been superceded by WS104070643 - see below

 2
WS104070643
WASHER SPRING 1/4" RECT SECTION

 2

£0.20

Ex VAT @ 20%
£0.17


AJ4
850406

CLICK FOR
MORE INFO
FRONT VALANCE PANEL

Revington TR information: TR5 uses 812030 which is not the same part. See 'More'

1

£163.36

Ex VAT @ 20%
£136.13


AJ5
950110

CLICK FOR
MORE INFO
FRONT WING ASSEMBLY R.H.

Revington TR information: Steel TR4, 4A, 250 and 5 Front Outer Wing right hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (TR4A, 250 and 5) and small side... READ MORE
This item has a secondhand part available - see below

 1

£1062.60

Ex VAT @ 20%
£885.50


Available to order
950110SH
TR4-5 RH FRONT WING SECOND HAND

 1

£1915.51

Ex VAT @ 20%
£1596.26


AJ6
950109

CLICK FOR
MORE INFO
FRONT WING ASSEMBLY L.H.

Revington TR information: Steel TR4, 4A, 250 and 5 Front Outer Wing left hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (TR4A, 250 and 5) and small side... READ MORE
This item has a secondhand part available - see below

 1

£1062.60

Ex VAT @ 20%
£885.50


Available to order
950109SH
TR4-5 LH FRONT WING SECOND HAND

 1

£1915.51

Ex VAT @ 20%
£1596.26


AJ6A
850458

CLICK FOR
MORE INFO
Panel assembly, front wing filler R.H.

 1

£60.42

Ex VAT @ 20%
£50.35


AJ6B
850457

CLICK FOR
MORE INFO
Panel assembly, front wing filler L.H.

 1

£60.42

Ex VAT @ 20%
£50.35


AJ6C
HU0706P

CLICK FOR
MORE INFO
Screw, set Front wing assembly to 'A' post

This item has been superceded by HU706P - see below

 6
HU706P
SCREW 1/4UNF x 3/4 CSK POINTED

 6

£2.41

Ex VAT @ 20%
£2.01


AJ6D
WM0057

CLICK FOR
MORE INFO
Washer, plain Front wing assembly to 'A' post

This item has been superceded by WP10412057 - see below

 6
WP10412057

CLICK FOR
MORE INFO
WASHER PLAIN 1/4" x 3/4" x 0.057"

 6

£0.61

Ex VAT @ 20%
£0.51


AJ6E
WQ0307

CLICK FOR
MORE INFO
Washer, lock Front wing assembly to 'A' post

This item has been superceded by WS104070643 - see below

 6
WS104070643
WASHER SPRING 1/4" RECT SECTION

 6

£0.20

Ex VAT @ 20%
£0.17


AJ6F
UL2705

CLICK FOR
MORE INFO

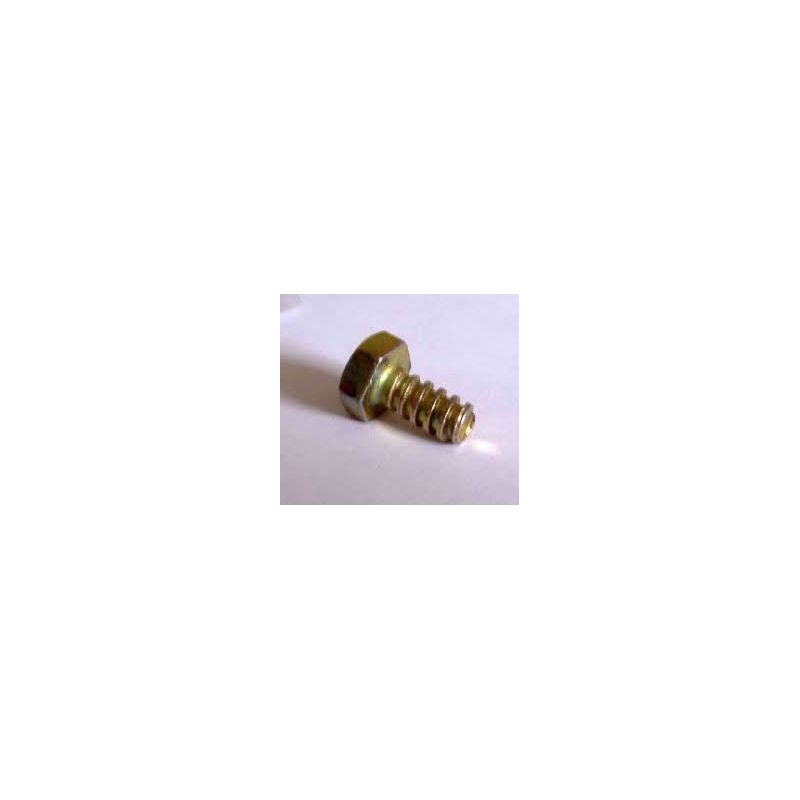

Bolt, acme Front wing assembly to sill panel

Revington TR information: Acme Hex headed Screw predominantly used for attaching TR4-6 outer wings in conjunction with spire nut FJ24074. The countersunk screw used on TR4-5 front wings is 650307. We have many usable original second hand parts available.... READ MORE
This item has a secondhand part available - see below

 6

£0.73

Ex VAT @ 20%
£0.61


Available to order
UL2705SH
Second Hand ACME SCREW

 6

£0.35

Ex VAT @ 20%
£0.29


AJ6G
WP0007

CLICK FOR
MORE INFO
Washer, plain Front wing assembly to sill panel

This item has been superceded by WP10408057 - see below

 6
WP10408057
WASHER PLAIN 1/4" x 1/2" x 0.057"

 6
No longer available
AJ6H
FA3058

CLICK FOR
MORE INFO
Nut, spire Front wing assembly to sill panel

This item has been superceded by FJ24074 - see below

 6
FJ24074

CLICK FOR
MORE INFO
WING CLIP (SPIRENUT)

Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE

 6

£0.97

Ex VAT @ 20%
£0.81


AJ6I
650307

CLICK FOR
MORE INFO
Screw, acme Front wing to closing panel

Revington TR information: Acme Countersunk headed Screw predominantly used for attaching TR4-5 front outer wings in conjunction with spire nut FJ24074. The Hex screw used on TR4-6 front and rear wings is UL2705. We have many usable original second... READ MORE
This item has a secondhand part available - see below

 14

£1.84

Ex VAT @ 20%
£1.53


650307SH
Second Hand WING SCREW TR4-5

 14

£1.02

Ex VAT @ 20%
£0.85


AJ6J
FA3058

CLICK FOR
MORE INFO
Spire, fix Front wing to closing panel

This item has been superceded by FJ24074 - see below

 14
FJ24074

CLICK FOR
MORE INFO
WING CLIP (SPIRENUT)

Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE

 14

£0.97

Ex VAT @ 20%
£0.81


AJ6K
HU0708P

CLICK FOR
MORE INFO
Screw, set Front wing to front upper valance panel

This item has been superceded by SH604081 - see below

 4
SH604081

CLICK FOR
MORE INFO
SCREW 1/4 UNF X 1 INCH

 4

£0.38

Ex VAT @ 20%
£0.32


AJ6L
WPOO07
Washer, plain Front wing to front upper valance panel

 4
No longer available
AJ6M
WQ0307

CLICK FOR
MORE INFO
Washer, lock Front wing to front upper valance panel

This item has been superceded by WS104070643 - see below

 4
WS104070643
WASHER SPRING 1/4" RECT SECTION

 4

£0.20

Ex VAT @ 20%
£0.17


AJ6N
650307

CLICK FOR
MORE INFO
Screw, acme Front wing forward edge fixings

Revington TR information: Acme Countersunk headed Screw predominantly used for attaching TR4-5 front outer wings in conjunction with spire nut FJ24074. The Hex screw used on TR4-6 front and rear wings is UL2705. We have many usable original second... READ MORE
This item has a secondhand part available - see below

 2

£1.84

Ex VAT @ 20%
£1.53


650307SH
Second Hand WING SCREW TR4-5

 2

£1.02

Ex VAT @ 20%
£0.85


AJ6O
FN2059

CLICK FOR
MORE INFO
Nut, spire Front wing forward edge fixings

Revington TR information: No longer available

2
No longer available
AJ6P
HU0707/P

CLICK FOR
MORE INFO
Screw, set Front wing to front valance panel

This item has been superceded by SH604071 - see below

 4
SH604071

CLICK FOR
MORE INFO
SCREW 1/4 UNF X 7/8 INCH

 4

£1.02

Ex VAT @ 20%
£0.85


AJ6Q
WPOO07
Washer, plain Front wing to front valance panel

 4
No longer available
AJ7
850445

CLICK FOR
MORE INFO
FRONT WHEELARCH CLOSING PANEL ASSEMBLY R.H.

This item has been superceded by 811945 - see below

 1
811945

CLICK FOR
MORE INFO
WING FRONT INNER RH TR4-5

 1

£403.51

Ex VAT @ 20%
£336.26


AJ8
850444

CLICK FOR
MORE INFO
FRONT WHEELARCH CLOSING PANEL ASSEMBLY L. H.

This item has been superceded by 811944 - see below

 1
811944

CLICK FOR
MORE INFO
WING FRONT INNER LH TR4-5

 1

£403.51

Ex VAT @ 20%
£336.26


AJ9
850453

CLICK FOR
MORE INFO
FRONT WHEELARCH ASSEMBLY R.H.

 1

£973.90

Ex VAT @ 20%
£811.58


Available to order
AJ10
850452

CLICK FOR
MORE INFO
FRONT WHEELARCH ASSEMBLY L.H.

 1

£973.90

Ex VAT @ 20%
£811.58


Available to order
AJ11
850351

CLICK FOR
MORE INFO
BULKHEAD ASSEMBLY - R.H. Steering

 1

£1909.81

Ex VAT @ 20%
£1591.51


Available to order
AJ11A
850350

CLICK FOR
MORE INFO
BULKHEAD ASSEMBLY - L.H. Steering

 1

£1909.81

Ex VAT @ 20%
£1591.51


Available to order
AJ11B
815834C

CLICK FOR
MORE INFO
Panel Centre, battery support with battery clamp brackets

Triumph Catalogue Remarks: This is a repair panel
Revington TR information: TR4-6 Centre top bulkhead panel without battery clamp lugs. these can be cut off your old bulkhead, or Revington TR can supply at extra cost. Call to check availability.

1

£178.18

Ex VAT @ 20%
£148.48


Available to order
AJ11C
611048

CLICK FOR
MORE INFO
Battery clamp bracket, left hand

Triumph Catalogue Remarks: Included with bulkheads 850351, 850350 and repair panel 815834C

 1

£65.58

Ex VAT @ 20%
£54.65


Available to order
AJ11D
610796

CLICK FOR
MORE INFO
Battery clamp bracket, right hand

Triumph Catalogue Remarks: Included with bulkheads 850351, 850350 and repair panel 815834C

 1

£65.58

Ex VAT @ 20%
£54.65


Available to order
AJ12
850399

CLICK FOR
MORE INFO
BULKHEAD END PANEL ASSEMBLY R.H.

This item has been superceded by 811986 - see below

 1
811986

CLICK FOR
MORE INFO
BULKHEAD END PAN. RH

 1

£124.13

Ex VAT @ 20%
£103.44


AJ13
850398

CLICK FOR
MORE INFO
BULKHEAD END PANEL ASSEMBLY L.H.

This item has been superceded by 811985 - see below

 1
811985

CLICK FOR
MORE INFO
BULKHEAD END PAN.LH.

Revington TR information: This panel has a bracket attached for the bonnet release cable on a TR250, 5 and 6 ( not used on TR4-4A). The bracket is very weak we therefor recommend fitting a strengthener RTR7158

1

£116.53

Ex VAT @ 20%
£97.11


AJ14
750151

CLICK FOR
MORE INFO
Plate, baffle, bulkhead to front wing R.H.

Revington TR information: Consider Stainless Steel part 750151SS

1

£13.90

Ex VAT @ 20%
£11.58


AJ15
750150

CLICK FOR
MORE INFO
Plate, baffle, bulkhead to front wing L.H.

Revington TR information: Consider Stainless Steel version 750150SS

1

£13.90

Ex VAT @ 20%
£11.58


Available to order
AJ16
650172

CLICK FOR
MORE INFO
Seal, rubber, baffle plate to front wing

Revington TR information: You will need 606389 clips x12 per car

 2

£5.52

Ex VAT @ 20%
£4.60


AJ16A
HU0705P

CLICK FOR
MORE INFO
Screw, set Baffle plate to bulkhead

This item has been superceded by SH604051 - see below

 5
SH604051
SCREW 1/4 UNF X 5/8 INCH

 5

£0.62

Ex VAT @ 20%
£0.52


AJ16B
WM0057

CLICK FOR
MORE INFO
Washer, plain Baffle plate to bulkhead

This item has been superceded by WP10412057 - see below

 6
WP10412057

CLICK FOR
MORE INFO
WASHER PLAIN 1/4" x 3/4" x 0.057"

 6

£0.61

Ex VAT @ 20%
£0.51


AJ16C
HU0708P

CLICK FOR
MORE INFO
Screw, set Baffle plate to bulkhead

This item has been superceded by SH604081 - see below

 1
SH604081

CLICK FOR
MORE INFO
SCREW 1/4 UNF X 1 INCH

 1

£0.38

Ex VAT @ 20%
£0.32


AJ16D
HN2007

CLICK FOR
MORE INFO
Nut Baffle plate to bulkhead

This item has been superceded by NP604071 - see below

 1
NP604071
NUT PLAIN 1/4 UNF X 7/32

 1

£0.44

Ex VAT @ 20%
£0.37


AJ17
850451

CLICK FOR
MORE INFO
PLENUM ASSEMBLY

This item has been superceded by 811989 - see below

 1
811989

CLICK FOR
MORE INFO
PLENUM ASSEMBLY

Revington TR information: Not currently available. Phone for details, we may have second hand

1
No longer available
AJ18
650159

CLICK FOR
MORE INFO
Plate, cover, windscreen wiper cable access

Revington TR information: Not available new. Use second hand part 650159SH
This item has a secondhand part available - see below

 2
No longer available
650159SH
Second Hand WIPER RACK ACCES PLATE TR4-6

 2

£22.36

Ex VAT @ 20%
£18.63


AJ18A
YA0403
Screw, S/T., coverplate to plenum chamber

 8
No longer available
AJ19
650308

CLICK FOR
MORE INFO
Tube, drain, plenum chamber

Revington TR information: Short hose draining TR4-6 plenum chamber. Not available new, use second hand part 650308SH or longer hose 602057 and cut to fit.
This item has a secondhand part available - see below

 2
No longer available
650308SH
Second Hand drain hose

 2

£2.22

Ex VAT @ 20%
£1.85


AJ20
850352

CLICK FOR
MORE INFO
SCUTTLE PANEL ASSEMBLY

 1

£1124.50

Ex VAT @ 20%
£937.08


Available to order
AJ21
705242

CLICK FOR
MORE INFO
VENT LID ASSEMBLY

Revington TR information: consider second hand part 705242SH

1

£76.24

Ex VAT @ 20%
£63.53

AJ22
563040

CLICK FOR
MORE INFO
Pin, hinge

 2

£3.73

Ex VAT @ 20%
£3.11


AJ23
611145

CLICK FOR
MORE INFO
Spring, vent lid

Revington TR information: Consider original second hand part number 611145SH. .

1

£14.29

Ex VAT @ 20%
£11.91


AJ24
611117

CLICK FOR
MORE INFO
Rod, vent mechanism

 1

£8.63

Ex VAT @ 20%
£7.19


AJ25
FRI 202
Nut, fix, rod to hinge

 1
No longer available
AJ26
061917

CLICK FOR
MORE INFO
Grommet, on vent rod

 1

£1.10

Ex VAT @ 20%
£0.92


Available to order
AJ27
612219

CLICK FOR
MORE INFO
Clamp, cable Rod to vent lever (For vent lever, see facie details)

Revington TR information: This is the body only and does not include the clamping screw. See AUE34 for the assembly including the screw

1

£2.11

Ex VAT @ 20%
£1.76


Available to order
AJ27A
564832

CLICK FOR
MORE INFO
Screw Rod to vent lever (For vent lever, see facie details)

This item has been superceded by 53K1016 - see below

 1
53K1016

CLICK FOR
MORE INFO
HEATER CONTROL SCREW

Revington TR information: Consider the Trunnion assembly 24G1482K below

1

£0.65

Ex VAT @ 20%
£0.54


AJ28
611118

CLICK FOR
MORE INFO
Rubber, sealing, vent

 1
No longer available
AJ29
HU0503

CLICK FOR
MORE INFO
Screw, set Vent lid and seal to scuttle deflector plate

This item has been superceded by HU503 - see below

 3
HU503

CLICK FOR
MORE INFO
SETSCREW

 3

£1.10

Ex VAT @ 20%
£0.92


AJ30
WL020S
Washer, lock Vent lid and seal to scuttle deflector plate

 3
No longer available
