Interior, Seats, Hoods Etc.

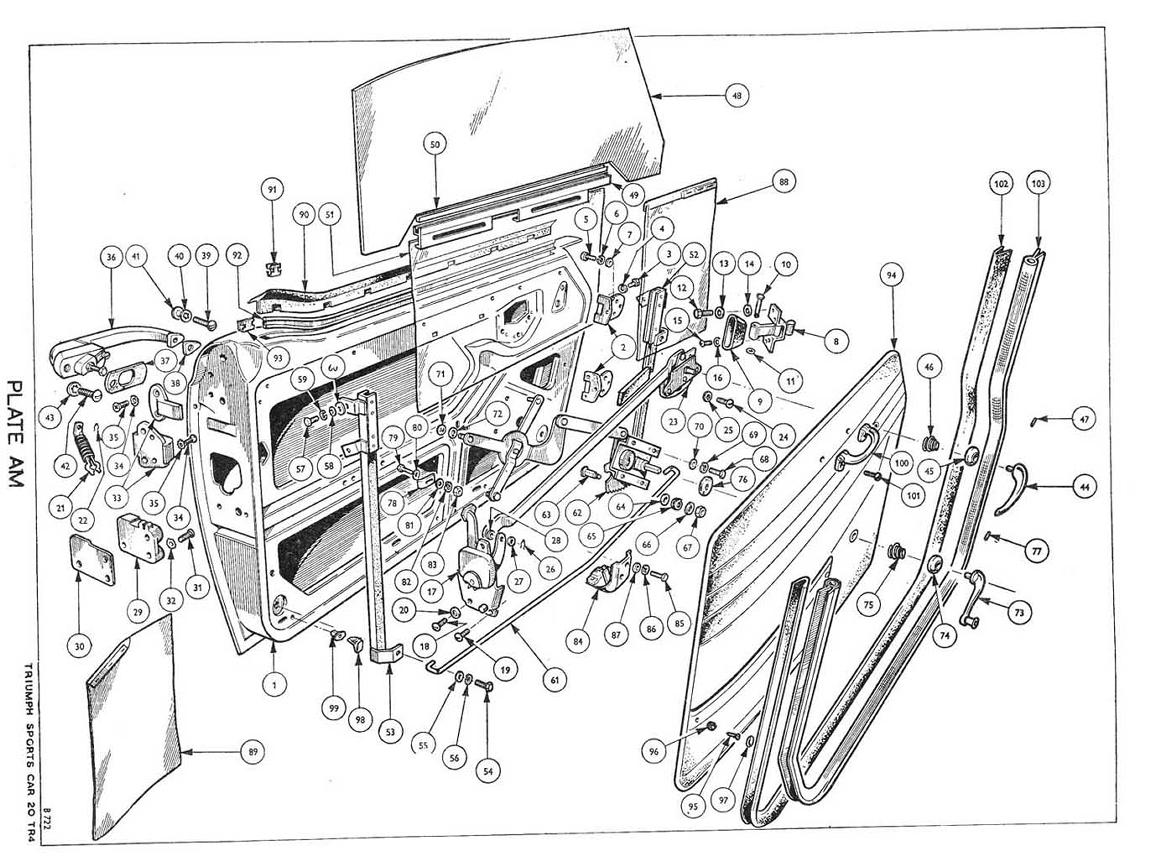

TR4 Plate AM - BODY AND FITTINGS: DOORS, HINGES AND LOCKS, GLASS, REGULATOR AND TRIM.

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
AM1	950124 CLICK FOR MORE INFO	DOOR ASSEMBLY R.H. Triumph Catalogue Remarks: Fitted up to Body No. only Revington TR information: TR4 early door complete. Fitted up to Body No. 22343CT only. This door uses the vertical plastic covered check strap. Not available new, either use a second hand part or repair your old frame using... READ MORE This item has a secondhand part available - see below	1		No longer available
	950124SH CLICK FOR MORE INFO	Second Hand DOOR ASSEMBLY R.H. TR4 Second Hand Triumph Catalogue Remarks: Fitted up to Body No. only Revington TR information: TR4 early door complete. Fitted up to Body No. 22343CT only. This door uses the vertical plastic covered check strap.	1	£158.78 Ex VAT @ 20% £132.32
AM1A	950123 CLICK FOR MORE INFO	DOOR ASSEMBLY L.H. Triumph Catalogue Remarks: Fitted up to Body No. only Revington TR information: TR4 early door complete. Fitted up to Body No. 22343CT only. This door uses the vertical plastic covered check strap. Not available new, either use a second hand part or repair your old frame using... READ MORE This item has a secondhand part available - see below	1		No longer available
	950123SH	Second Hand DOOR ASSEMBLY L.H. TR4 Triumph Catalogue Remarks: Fitted up to Body No. only Revington TR information: TR4 early door complete. Fitted up to Body No. 22343CT only. This door uses the vertical plastic covered check strap.	1	£158.78 Ex VAT @ 20% £132.32
AM1B	903550 CLICK FOR MORE INFO	DOOR ASSEMBLY R.H. Triumph Catalogue Remarks: Fitted from Body No. and future Revington TR information: TR4 late (fitted from Body No. 22343CT) and all TR4A door complete. Not available new, either use a second hand part or repair your old frame using the parts listed below. Whilst the doors on... READ MORE This item has a secondhand part available - see below	1		No longer available
	903550SH CLICK FOR MORE INFO	SECOND HAND DOOR TR4 LATE TR4A RH Triumph Catalogue Remarks: Fitted from Body No. and future Revington TR information: TR4 late (fitted from Body No. 22343CT) and all TR4A door complete. Not available new, either use a second hand part or repair your old frame using the parts listed below. Whilst the doors on... READ MORE	1	£158.78 Ex VAT @ 20% £132.32
AM1C	903549 CLICK FOR MORE INFO	DOOR ASSEMBLY L.H. Triumph Catalogue Remarks: Fitted from Body No. and future Revington TR information: TR4 late (fitted from Body No. 22343CT) and all TR4A door complete. Not available new, either use a second hand part or repair your old frame using the parts listed below. Whilst the doors on... READ MORE This item has a secondhand part available - see below	1		No longer available
	903549SH CLICK FOR MORE INFO	Second Hand DOOR TR4 LATE TR4A LH Second Hand Triumph Catalogue Remarks: Fitted from Body No. and future Revington TR information: TR4 late (fitted from Body No. 22343CT) and all TR4A door complete. Not available new, either use a second hand part or repair your old frame using the parts listed below. Whilst the doors on... READ MORE	1	£158.78 Ex VAT @ 20% £132.32
AM1D	750075 CLICK FOR MORE INFO	Reinforcement, hinge assembly and check strap pivot bracket R.H. Triumph Catalogue Remarks: Fitted up to Body No. only	1	£25.06 Ex VAT @ 20% £20.88	Available to order
AM1E	750074 CLICK FOR MORE INFO	Reinforcement, hinge assembly and check strap pivot bracket L.H. Triumph Catalogue Remarks: Fitted up to Body No. only	1	£25.06 Ex VAT @ 20% £20.88	Available to order
AM1F	707060 CLICK FOR MORE INFO	Reinforcement assembly, hinge R.H. Triumph Catalogue Remarks: Fitted from Body No. and future	1		No longer available
AM1G	707059 CLICK FOR MORE INFO	Reinforcement assembly, hinge L.H. Triumph Catalogue Remarks: Fitted from Body No. and future	1		No longer available
AM2	650112 CLICK FOR MORE INFO	Hinge, door assembly Revington TR information: TR4-6 door hing of the later TR5, 250 and TR6 type. supplied bare steel ready to be painted body colour TR4-4A hinges were slightly different in appearance with two scallops out of the part attached to... READ MORE This item has a secondhand part available - see below	4		No longer available
	650112SH CLICK FOR MORE INFO	Second Hand DOOR HINGE TR4-6 Revington TR information: This is the later TR6 type which is heavier than the TR4-4A type. See 650112-1SH if you particularly want TR4-4A parts These parts are supplied 'as is' some with broken pins, some seized up so assume... READ MORE	4	£24.38 Ex VAT @ 20% £20.32
AM3	HU0805 CLICK FOR MORE INFO	Screw, set Hinge to door This item has been superceded by SH605051 - see below	12
	SH605051 CLICK FOR MORE INFO	SCREW 5/16 UNF X 5/8 INCH	12	£1.39 Ex VAT @ 20% £1.16
AM4	WQ0308 CLICK FOR MORE INFO	Washer, lock Hinge to door This item has been superceded by WS105090853 - see below	12
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	12	£0.25 Ex VAT @ 20% £0.21
AM5	HU0806P CLICK FOR MORE INFO	Screw, set Hinge to body This item has been superceded by SH605061 - see below	12
	SH605061 CLICK FOR MORE INFO	SCREW 5/16 UNF X 3/4 INCH	12	£0.54 Ex VAT @ 20% £0.45
AM6	WQ0308 CLICK FOR MORE INFO	Washer, lock Hinge to body This item has been superceded by WS105090853 - see below	12
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	12	£0.25 Ex VAT @ 20% £0.21
AM7	WM0808 CLICK FOR MORE INFO	Washer, plain Hinge to body This item has been superceded by PWZ205 - see below	12
	PWZ205	WASHER	12	£0.25 Ex VAT @ 20% £0.21	Available to order
AM8	613914 CLICK FOR MORE INFO	DOOR CHECKSTRAP ASSEMBLY R.H. Triumph Catalogue Remarks: Fitted up to Body No. CT22343	1		No longer available
AM8A	613913 CLICK FOR MORE INFO	DOOR CHECKSTRAP ASSEMBLY L.H. Triumph Catalogue Remarks: Fitted up to Body No. CT22344	1		No longer available
AM9	650201 CLICK FOR MORE INFO	Bootee, sealing, 'A' post and door checkstrap holes Triumph Catalogue Remarks: Fitted up to Body No. CT22345	2	£7.04 Ex VAT @ 20% £5.87
AM10	650216 CLICK FOR MORE INFO	Pin, checkstrap Checkstrap to door pivot bracket Triumph Catalogue Remarks: Fitted up to Body No. 5023CT only	2		No longer available
AM10A	612244	Pin, checkstrap Checkstrap to door pivot bracket Triumph Catalogue Remarks: Fitted from Body No. 5024CT up to Body No.CT22343 only	2		No longer available
AM11	FT2902 CLICK FOR MORE INFO	Clip Checkstrap to door pivot bracket Triumph Catalogue Remarks: Fitted up to Body No. CT22341	2		No longer available
AM12	HU0704 CLICK FOR MORE INFO	Screw, set Checkstrap bracket to 'A' post, outer Triumph Catalogue Remarks: Fitted up to Body No. CT22342 This item has been superceded by SH604041 - see below	6
	SH604041 CLICK FOR MORE INFO	SCREW 1/4 UNF X 1/2 INCH	6	£0.58 Ex VAT @ 20% £0.48
AM13	WN0707 CLICK FOR MORE INFO	Washer, shakeproof Checkstrap bracket to 'A' post, outer Triumph Catalogue Remarks: Fitted up to Body No. CT22343 This item has been superceded by WS104070271 - see below	6
	WS104070271	WASHER STAR INT 1/4"	6	£0.43 Ex VAT @ 20% £0.36
AM14	WPO122	Washer, plain Checkstrap bracket to 'A' post, outer Triumph Catalogue Remarks: Fitted up to Body No. CT22344	4		No longer available
AM15	PT0504 CLICK FOR MORE INFO	Screw, set Sealing bootee to 'A' post Triumph Catalogue Remarks: Fitted up to Body No. CT22345	4	£0.47 Ex VAT @ 20% £0.39
AM16	WP0005 CLICK FOR MORE INFO	Washer, plain Sealing bootee to 'A' post Triumph Catalogue Remarks: Fitted up to Body No. CT22346 This item has been superceded by WP10308050 - see below	4
	WP10308050	WASHER PLAIN 3/16" x 1/2" x 0.050"	4	£0.40 Ex VAT @ 20% £0.33
AM16A	WP0156	Washer, plain Sealing bootee to 'A' post Triumph Catalogue Remarks: Fitted up to Body No. CT22347	8		No longer available
AM16B	613622 CLICK FOR MORE INFO	DOOR CHECKSTRAP ASSEMBLY Triumph Catalogue Remarks: Fitted from Body No. CT22344 and future Revington TR information: Door check strap. Consider second hand part 613622SH	2		No longer available
AM16C	610707 CLICK FOR MORE INFO	Rivet, checkstrap to 'A' post Triumph Catalogue Remarks: Fitted from Body No. CT22344 and future	2	£2.29 Ex VAT @ 20% £1.91
AM16D	613623 CLICK FOR MORE INFO	Seal, door check arm Triumph Catalogue Remarks: Fitted from Body No. CT22344 and future	2	£2.66 Ex VAT @ 20% £2.22	Available to order
AM16E	YS1383	Screw Seal attachment Triumph Catalogue Remarks: Fitted from Body No. CT22344 and future	4		No longer available
AM16F	WM0053	Washer, plain Seal attachment Triumph Catalogue Remarks: Fitted from Body No. CT22344 and future	4		No longer available
AM17	750170 CLICK FOR MORE INFO	ROTARY LOCK ASSEMBLY R.H. Revington TR information: Rotary lock on the right hand door, TR4-4A. Not available new, use second hand part 750170SH This item has a secondhand part available - see below	1		No longer available
	750170SH CLICK FOR MORE INFO	Second Hand ROTARY LOCK Right Hand TR4-4A Revington TR information: Second hand Rotary lock on the right hand door, TR4-4A. Not available new, use this second hand part 750170SH	1	£204.94 Ex VAT @ 20% £170.78
AM17A	750169 CLICK FOR MORE INFO	ROTARY LOCK ASSEMBLY L.H. Revington TR information: Rotary lock on the left hand door, TR4-4A. Not available new, use second hand part 750169SH. Use second hand part 750169SH This item has a secondhand part available - see below	1		No longer available
	750169SH CLICK FOR MORE INFO	Second Hand ROTARY LOCK LH TR4/4A door Revington TR information: Second Hand Rotary lock on the left hand door, TR4-4A. Not available new, use this second hand part 750169SH	1	£206.34 Ex VAT @ 20% £171.95
AM18	PT0503 CLICK FOR MORE INFO	Screw, M/C Lock to door inner panel This item has been superceded by PT0504 - see below	6
	PT0504 CLICK FOR MORE INFO	Screw, set Sealing bootee to 'A' post	6	£0.47 Ex VAT @ 20% £0.39
AM19	YB1504 CLICK FOR MORE INFO	Screw, S/T Lock to door inner panel This item has been superceded by SS1100421 - see below	2
	SS1100421	SCREW ST No10 X 1/2" PAN-POZI-BZP	2	£0.14 Ex VAT @ 20% £0.12
AM20	WN0705 CLICK FOR MORE INFO	Washer, shakeproof Lock to door inner panel This item has been superceded by WS103050501 - see below	8
	WS103050501	WASHER STAR INTERNAL 3/16"	8	£0.40 Ex VAT @ 20% £0.33
AM21	650251 CLICK FOR MORE INFO	Link assembly Lock to outside door handle Revington TR information: Consider using 650251SH This item has a secondhand part available - see below	2	£58.70 Ex VAT @ 20% £48.92
	650251SH CLICK FOR MORE INFO	Second Hand CONNECTOR LINK	2	£31.56 Ex VAT @ 20% £26.30	Available to order
AM22	604156 CLICK FOR MORE INFO	Clip, spring Lock to outside door handle	2	£5.14 Ex VAT @ 20% £4.28	Available to order
AM23A	750172 CLICK FOR MORE INFO	REMOTE CONTROL ASSEMBLY R.H. Revington TR information: This TR4 Remote Control for opening the door from inside is not available new. Use second hand part 750171/2SH. The TR4 has a rectangular complex handle spring return assembly. This is unique to the TR4, the... READ MORE	1		No longer available
AM23	750171 CLICK FOR MORE INFO	REMOTE CONTROL ASSEMBLY L.H. Revington TR information: This TR4 Remote Control for opening the door from inside is not available new. Use second hand part 750171/2SH. The TR4 has a rectangular complex handle spring return assembly. This is unique to the TR4, the... READ MORE	1		No longer available
AM24	PT0504 CLICK FOR MORE INFO	Screw, M/C Remote control to door inner	6	£0.47 Ex VAT @ 20% £0.39
AM25	WE0605 CLICK FOR MORE INFO	Washer, shakeproof Remote control to door inner This item has been superceded by WS103050501 - see below	6
	WS103050501	WASHER STAR INTERNAL 3/16"	6	£0.40 Ex VAT @ 20% £0.33
AM26	608703 CLICK FOR MORE INFO	Clip Remote control link to lock	2	£2.30 Ex VAT @ 20% £1.92
AM27	550924 CLICK FOR MORE INFO	Washer, waved Remote control link to lock This item has been superceded by WW10406017 - see below	2
	WW10406017	WASHER WAVE 1/4" x 3/8" x 0.017" Revington TR information: Wave washer for anti-rattle applications; 1/4" internal diameter, 3/8" outside diameter and 0.017" thick. Black finish	2	£0.46 Ex VAT @ 20% £0.38
AM28	WPO161	Washer, plain Remote control link to lock	4		No longer available
AM28A	701354 CLICK FOR MORE INFO	DOOR LOCK STRIKER DOVETAIL R.H.	1	£59.90 Ex VAT @ 20% £49.92
AM29	701353 CLICK FOR MORE INFO	DOOR LOCK STRIKER DOVETAIL L.H.	1	£59.90 Ex VAT @ 20% £49.92	Available to order
AM30	554194 CLICK FOR MORE INFO	Plate, shim Door lock striker dovetail attachment	2	£3.55 Ex VAT @ 20% £2.96
AM31	KT4708 CLICK FOR MORE INFO	Screw, MJC Door lock striker dovetail attachment This item has been superceded by SK604081 - see below	6
	SK604081	SCREW CKS 1/4 UNF X 1 INCH	6	£1.68 Ex VAT @ 20% £1.40
AM32	WK7607 CLICK FOR MORE INFO	Washer, shakeproof Door lock striker dovetail attachment	6	£0.94 Ex VAT @ 20% £0.78
AM33	703741 CLICK FOR MORE INFO	DOOR RESTRAINT DEVICE ASSEMBLY Revington TR information: This part as a male and female pair is not available new. However the male and female parts are available separately. Use ZKC3464, which is the male part and YKC3290, which is the female part	2		No longer available
AM34	KX4705 CLICK FOR MORE INFO	Screw, set Restraint device attachment This item has been superceded by ZKC38 - see below	8
	ZKC38 CLICK FOR MORE INFO	SCREW-1/4UNF X 5/8 CKS POZI	8	£4.25 Ex VAT @ 20% £3.54
AM35	WK7607 CLICK FOR MORE INFO	Washer, shakeproof Restraint device attachment	8	£0.94 Ex VAT @ 20% £0.78
AM36	701561 CLICK FOR MORE INFO	DOOR HANDLE ASSEMBLY - OUTSIDE R.H. Triumph Catalogue Remarks: NLA use 701560X Revington TR information: Not available new. Use second hand part 701561SH or alternative part 701560X. This item has a secondhand part available - see below	1		No longer available
	701561SH	DOOR HANDLE TR4-4A SECOND HAND Right Hand Triumph Catalogue Remarks: NLA use 701560X	1	£209.48 Ex VAT @ 20% £174.57	Available to order
AM36A	701560X CLICK FOR MORE INFO	DOOR HANDLE ASSEMBLY - OUTSIDE L.H. & R.H. Triumph Catalogue Remarks: Alternative. Not Original Revington TR information: This handle is externally visually the same, but does not have the internal lever for internal locker and one attachment hole is in the wrong place. The mechanism from your existing handles can however be transferred... READ MORE	1	£135.89 Ex VAT @ 20% £113.24	Available to order
AM36B	701560 CLICK FOR MORE INFO	DOOR HANDLE ASSEMBLY - OUTSIDE L.H. Triumph Catalogue Remarks: NLA use 701560X Revington TR information: Not available new. Use second hand part 701560SH or alternative part 701560X. In addition a lock set is avaialble part Number TR4DLS. This item has a secondhand part available - see below	1		No longer available
	701560SH	DOOR HANDLE TR4-4A SECOND HAND LH Triumph Catalogue Remarks: NLA use 701560X	1	£209.48 Ex VAT @ 20% £174.57
AM36C	701560X CLICK FOR MORE INFO	DOOR HANDLE ASSEMBLY - OUTSIDE L.H. & R.H. Triumph Catalogue Remarks: Alternative. Not Original Revington TR information: This handle is externally visually the same, but does not have the internal lever for internal locker and one attachment hole is in the wrong place. The mechanism from your existing handles can however be transferred... READ MORE	1	£135.89 Ex VAT @ 20% £113.24	Available to order
AM37	603393 CLICK FOR MORE INFO	Washer, seating, large Door handle attachment	2	£2.05 Ex VAT @ 20% £1.71	Available to order
AM38	603394 CLICK FOR MORE INFO	Washer, seating, small Door handle attachment	2	£1.39 Ex VAT @ 20% £1.16	Available to order
AM39	PT0503 CLICK FOR MORE INFO	Screw, M/C Door handle attachment This item has been superceded by PT0504 - see below	2
	PT0504 CLICK FOR MORE INFO	Screw, set Sealing bootee to 'A' post	2	£0.47 Ex VAT @ 20% £0.39
AM40	WN070S	Washer, shakeproof Door handle attachment	2		No longer available
AM41	WPOO28	Washer, plain Door handle attachment	2		No longer available
AM42	PT0504 CLICK FOR MORE INFO	Screw, M/C Door handle attachment	2	£0.47 Ex VAT @ 20% £0.39
AM43	WE0605 CLICK FOR MORE INFO	Washer, shakeproof Door handle attachment This item has been superceded by WS103050501 - see below	2
	WS103050501	WASHER STAR INTERNAL 3/16"	2	£0.40 Ex VAT @ 20% £0.33
AM44	608454 CLICK FOR MORE INFO	REMOTE CONTROL HANDLE Revington TR information: This item has a secondhand part available - see below	2	£24.53 Ex VAT @ 20% £20.44
	608454SH	INNER DOOR HANDLE/LEVER SECOND HAND	2	£12.00 Ex VAT @ 20% £10.00
AM45	650261 CLICK FOR MORE INFO	Escutcheon Remote control handle	2	£2.48 Ex VAT @ 20% £2.07
AM46	603382 CLICK FOR MORE INFO	Spring, escutcheon Remote control handle	2	£5.28 Ex VAT @ 20% £4.40
AM47	600832 CLICK FOR MORE INFO	Pin, handle attachment This item has been superceded by ALH1527 - see below	2
	ALH1527	HANDLE LOCATING PIN	2	£1.48 Ex VAT @ 20% £1.23	Available to order
AM47A	705917 CLICK FOR MORE INFO	DOOR GLASS AND REGULATOR CHANNEL ASSEMBLY R.H. Revington TR information: Not available new. Use 750135	1		No longer available
AM47B	705916 CLICK FOR MORE INFO	DOOR GLASS AND REGULATOR CHANNEL ASSEMBLY L.H. Revington TR information: Not available new. Use 750135	1		No longer available
AM48	750135 CLICK FOR MORE INFO	Glass Revington TR information: TR4-4A Door Window Glass. This part conforms to RevingtonTR exacting dimensional standards, being correct to the TR4-4A profile. Although TR5-6 glass has a similar profile above the door, it has a different profile at the base... READ MORE This item has a secondhand part available - see below	2	£146.27 Ex VAT @ 20% £121.89	Available to order
	750135SH CLICK FOR MORE INFO	DOOR GLASS TR4/4A SECOND HAND Revington TR information: TR4-4A Door Window Glass second hand. Although similar, TR5-6 glass has a different profile at the base where the channel sits. If interchanged the glass will be tipped by 2 degrees. See part number... READ MORE	2	£69.86 Ex VAT @ 20% £58.22
AM49	750091 CLICK FOR MORE INFO	Channel assembly, window regulator R.H. Revington TR information: Channel supporting TR4-4A door glass right hand. This part is not available new, we can however offer a similar channel from another vehicle that can be used to repair your old parts. We can also occasionally... READ MORE	1		No longer available
AM49A	750090 CLICK FOR MORE INFO	Channel assembly, window regulator L.H. Revington TR information: Channel supporting TR4-4A door glass left hand. This part is not available new, we can however offer a similar channel from another vehicle that can be used to repair your old parts. We can also occasionally... READ MORE	1		No longer available
AM50	562893 CLICK FOR MORE INFO	Strip, glazing This item has been superceded by 617166 - see below	2
	617166 CLICK FOR MORE INFO	GLAZING RUBBER Revington TR information: This rubber strip holds the door glass into its retaining channel. 2 off required per car. Use contact adhesive to secure the strip to the glass and to the retainer. Use ratchet straps to pull the... READ MORE	2	£3.34 Ex VAT @ 20% £2.78
AM51	611812 CLICK FOR MORE INFO	Curtain, water, door glass Revington TR information: No Longer Available	2		No longer available
AM52	850431 CLICK FOR MORE INFO	Channel, glass, assembly, front R.H. Revington TR information: Consider second hand part 850431SH or insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so... READ MORE This item has a secondhand part available - see below	1	£100.74 Ex VAT @ 20% £83.95	Available to order
	850431SH CLICK FOR MORE INFO	Second Hand RH FR CHANNEL TR4-6 Revington TR information: Consider insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so for example when viewing a... READ MORE	1	£55.03 Ex VAT @ 20% £45.86	Available to order
AM52A	850430 CLICK FOR MORE INFO	Channel, glass, assembly, front L.H. Revington TR information: Consider second hand part 850430SH or insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so... READ MORE This item has a secondhand part available - see below	1	£100.74 Ex VAT @ 20% £83.95
	850430SH CLICK FOR MORE INFO	Second Hand LH FR CHANNEL TR4-6 Revington TR information: Consider insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so for example when viewing a... READ MORE	1	£54.36 Ex VAT @ 20% £45.30
AM52A	HU0704 CLICK FOR MORE INFO	Screw, set Front glass channel assembly to door inner panel This item has been superceded by SH604041 - see below	2
	SH604041 CLICK FOR MORE INFO	SCREW 1/4 UNF X 1/2 INCH	2	£0.58 Ex VAT @ 20% £0.48
AM52B	HU0705P CLICK FOR MORE INFO	Screw, set Front glass channel assembly to door inner panel This item has been superceded by SH604051 - see below	2
	SH604051	SCREW 1/4 UNF X 5/8 INCH	2	£0.62 Ex VAT @ 20% £0.52
AM52C	WM0057 CLICK FOR MORE INFO	Washer, plain Front glass channel assembly to door inner panel This item has been superceded by WP10412057 - see below	4
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	4	£0.61 Ex VAT @ 20% £0.51
AM52D	WN0707 CLICK FOR MORE INFO	Washer, shakeproof Front glass channel assembly to door inner panel This item has been superceded by WS104070271 - see below	4
	WS104070271	WASHER STAR INT 1/4"	4	£0.43 Ex VAT @ 20% £0.36
AM52E	051018	Screw, set Front glass channel assembly to door inner panel	2		No longer available
AM52F	051015	Washer, plain Front glass channel assembly to door inner panel	2		No longer available
AM52G	510016 CLICK FOR MORE INFO	Washer, shakeRroof Front glass channel assembly to door inner panel This item has been superceded by WS104070271 - see below	2
	WS104070271	WASHER STAR INT 1/4"	2	£0.43 Ex VAT @ 20% £0.36
AM52H	WP0122 CLICK FOR MORE INFO	Washer, spacer Front glass channel assembly to door inner panel This item has been superceded by WP10416060 - see below	2
	WP10416060	WASHER PLAIN 1/4" x 1" x 0.060"	2	£0.26 Ex VAT @ 20% £0.22
AM52I	850433 CLICK FOR MORE INFO	Channel, glass, assembly, rear R.H. Revington TR information: Consider second hand part 850433SH or insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so... READ MORE This item has a secondhand part available - see below	1	£84.64 Ex VAT @ 20% £70.53	Available to order
	850433SH CLICK FOR MORE INFO	Second Hand RH RR DOOR GLASS CHANNEL TR4-4A Revington TR information: Consider insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so for example when viewing a... READ MORE	1	£54.54 Ex VAT @ 20% £45.45	Available to order
AM53	850432 CLICK FOR MORE INFO	Channel, glass, assembly, rear L.H. Revington TR information: Consider second hand part 850432SH or insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so... READ MORE This item has a secondhand part available - see below	1	£84.64 Ex VAT @ 20% £70.53	Available to order
	850432SH CLICK FOR MORE INFO	Second Hand LH RR DOOR GLASS CHANNEL TR4-4A Revington TR information: Consider insert 850430FT Identification TR4-6 door glass runners can be difficult to differentiate, one from another. There are 6 part numbers. 1. The bottom attachment bracket attaches to the inner panel so for example when viewing a... READ MORE	1	£54.54 Ex VAT @ 20% £45.45
AM54	HU0705P CLICK FOR MORE INFO	Screw, set This item has been superceded by SH604051 - see below	2
	SH604051	SCREW 1/4 UNF X 5/8 INCH	2	£0.62 Ex VAT @ 20% £0.52
AM55	WM0057 CLICK FOR MORE INFO	Washer, plain This item has been superceded by WP10412057 - see below	2
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	2	£0.61 Ex VAT @ 20% £0.51
AM56	WN0707 CLICK FOR MORE INFO	Washer, shakeproof Rear glass channel assembly to door inner panel This item has been superceded by WS104070271 - see below	2
	WS104070271	WASHER STAR INT 1/4"	2	£0.43 Ex VAT @ 20% £0.36
AM57	051018	Screw, set Rear glass channel assembly to door inner panel	4		No longer available
AM58	510015 CLICK FOR MORE INFO	Washer, plain Rear glass channel assembly to door inner panel This item has been superceded by WP10412057 - see below	4
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	4	£0.61 Ex VAT @ 20% £0.51
AM59	510016 CLICK FOR MORE INFO	Washer, shakeproof Rear glass channel assembly to door inner panel This item has been superceded by WS104070271 - see below	4
	WS104070271	WASHER STAR INT 1/4"	4	£0.43 Ex VAT @ 20% £0.36
AM60	WP0122 CLICK FOR MORE INFO	Washer, spacer Rear glass channel assembly to door inner panel This item has been superceded by WP10416060 - see below	2
	WP10416060	WASHER PLAIN 1/4" x 1" x 0.060"	2	£0.26 Ex VAT @ 20% £0.22
AM60A	750166 CLICK FOR MORE INFO	Rod tie, glass channel, bottom R.H. This item has been superceded by 750165 - see below	1
	750165 CLICK FOR MORE INFO	Rod tie, glass channel, bottom L.H. Revington TR information: Not available new, ask for availability if second hand part 750165SH.	1	£8.17 Ex VAT @ 20% £6.81
AM61	750165 CLICK FOR MORE INFO	Rod tie, glass channel, bottom L.H. Revington TR information: Not available new, ask for availability if second hand part 750165SH.	1	£8.17 Ex VAT @ 20% £6.81
AM62A	850401 CLICK FOR MORE INFO	WINDOW REGULATOR ASSEMBLY R. H. Revington TR information: This item has a secondhand part available - see below	1	£107.40 Ex VAT @ 20% £89.50
	850401SH	WINDOW REG.TR4/4A RH Second Hand	1	£73.20 Ex VAT @ 20% £61.00	Available to order
AM62	850400 CLICK FOR MORE INFO	WINDOW REGULATOR ASSEMBLY L. H. Revington TR information: This item has a secondhand part available - see below	1	£107.40 Ex VAT @ 20% £89.50
	850400SH	WINDOW REG TR4/4A LH Second Hand	1	£73.20 Ex VAT @ 20% £61.00
AM63	650236 CLICK FOR MORE INFO	Pivot, window regulator Window regulator assembly to door panel This item has been superceded by 607841 - see below	2
	607841	PIVOT BOLT REGULATR NCA NCA Revington TR information: Call for price and availability	2		No longer available
AM64	WP0119 CLICK FOR MORE INFO	Washer, plain Window regulator assembly to door panel This item has been superceded by WP10814050 - see below	6
	WP10814050	WASHER PLAIN 1/2"X 7/8" X .050"	6		No longer available
AM65	608301 CLICK FOR MORE INFO	Washer, tension Window regulator assembly to door panel This item has been superceded by WT10814 - see below	2
	WT10814	WASHER THACKERY 1/2 INCH	2		No longer available
AM66	WL0208 CLICK FOR MORE INFO	Washer, lock Window regulator assembly to door panel This item has been superceded by WS105090853 - see below	2
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	2	£0.25 Ex VAT @ 20% £0.21
AM67	JN2108 CLICK FOR MORE INFO	Nut Window regulator assembly to door panel This item has been superceded by NP605061 - see below	2
	NP605061 CLICK FOR MORE INFO	NUT PLAIN 5/16 UNF X 3/16"	2	£0.46 Ex VAT @ 20% £0.38
AM68	HU070S/P	Screw, set Window regulator assembly to door panel	8		No longer available
AM69	WL0207 CLICK FOR MORE INFO	Washer, lock Window regulator assembly to door panel This item has been superceded by WS104070643 - see below	8
	WS104070643	WASHER SPRING 1/4" RECT SECTION	8	£0.20 Ex VAT @ 20% £0.17
AM70	WPOO07	Washer, plain Window regulator assembly to door panel	8		No longer available
AM71	607867 CLICK FOR MORE INFO	Retainer, stud Securing glass channel retainer to regulator Revington TR information: This item has a secondhand part available - see below	4	£3.32 Ex VAT @ 20% £2.77
	607867SH	WINDOW WINDER RETAINER	4	£1.67 Ex VAT @ 20% £1.39
AM72	607902 CLICK FOR MORE INFO	Washer, leather Securing glass channel retainer to regulator	8	£1.13 Ex VAT @ 20% £0.94	Available to order
AM73	650260 CLICK FOR MORE INFO	WINDOW REGULATOR HANDLE This item has been superceded by 613017 - see below	2
	613017 CLICK FOR MORE INFO	WINDOW REG HANDLE TR4-4A	2	£30.26 Ex VAT @ 20% £25.22
AM74	650261 CLICK FOR MORE INFO	Escutcheon	2	£2.48 Ex VAT @ 20% £2.07
AM75	603382 CLICK FOR MORE INFO	Spring, escutcheon	2	£5.28 Ex VAT @ 20% £4.40
AM76	609649 CLICK FOR MORE INFO	Washer, sealing	2	£1.22 Ex VAT @ 20% £1.02	Available to order
AM77	600832 CLICK FOR MORE INFO	Pin, handle attachment This item has been superceded by ALH1527 - see below	2
	ALH1527	HANDLE LOCATING PIN	2	£1.48 Ex VAT @ 20% £1.23	Available to order
AM78	610174 CLICK FOR MORE INFO	WINDOW REGULATOR STOP BRACKET Revington TR information: NO LONGER AVAILABLE	2		No longer available
AM79	HU0705 CLICK FOR MORE INFO	Screw, set Stop bracket to door inner panel This item has been superceded by SH604051 - see below	2
	SH604051	SCREW 1/4 UNF X 5/8 INCH	2	£0.62 Ex VAT @ 20% £0.52
AM80	501794	Washer, plain Stop bracket to door inner panel	2		No longer available
AM81	WP0167 CLICK FOR MORE INFO	Washer, plain Stop bracket to door inner panel This item has been superceded by WP10412057 - see below	4
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	4	£0.61 Ex VAT @ 20% £0.51
AM82	WL0207 CLICK FOR MORE INFO	Washer, lock Stop bracket to door inner panel This item has been superceded by WS104070643 - see below	2
	WS104070643	WASHER SPRING 1/4" RECT SECTION	2	£0.20 Ex VAT @ 20% £0.17
AM83	HN2007 CLICK FOR MORE INFO	Nut Stop bracket to door inner panel This item has been superceded by NP604071 - see below	2
	NP604071	NUT PLAIN 1/4 UNF X 7/32	2	£0.44 Ex VAT @ 20% £0.37
AM84	650242 CLICK FOR MORE INFO	GLASS STOP BRACKET ASSEMBLY Revington TR information: Not available new. Use second hand part 650242SH.	2		No longer available
AM85	PX0504 CLICK FOR MORE INFO	Screw, set Glass stop bracket to door inner panel This item has been superceded by PMZ308 - see below	4
	PMZ308	SCREW 3/16 X 1/2 UNF	4	£0.24 Ex VAT @ 20% £0.20	Available to order
AM86	WL020S	Washer, lock Glass stop bracket to door inner panel	4		No longer available
AM87	WP0005 CLICK FOR MORE INFO	Washer, plain Glass stop bracket to door inner panel This item has been superceded by WP10308050 - see below	4
	WP10308050	WASHER PLAIN 3/16" x 1/2" x 0.050"	4	£0.40 Ex VAT @ 20% £0.33
AM88	611818 CLICK FOR MORE INFO	Curtain, water, assembly, front Revington TR information: No longer available	2		No longer available
AM88A	502505 CLICK FOR MORE INFO	Clip, fixing, front water curtain This item has been superceded by BHA4359 - see below	6
	BHA4359	DOORCLIP AH&TR502505	6	£0.44 Ex VAT @ 20% £0.37
AM89	611819 CLICK FOR MORE INFO	Curtain, water, assembly, rear	2		No longer available
AM89A	502505 CLICK FOR MORE INFO	Clip, fixing, rear water curtain This item has been superceded by BHA4359 - see below	4
	BHA4359	DOORCLIP AH&TR502505	4	£0.44 Ex VAT @ 20% £0.37
AM90	850325 CLICK FOR MORE INFO	Rubber, sealing, waist, door, outer R.H. Revington TR information: Revington TR only sell the original part in original packaging. See numbers below. If this reproduction inferior part is required it will be to special order only. please state you do require this part.	1	£10.70 Ex VAT @ 20% £8.92	Available to order
AM90A	850324 CLICK FOR MORE INFO	Rubber, sealing, waist, door, outer L.H.	1	£13.34 Ex VAT @ 20% £11.12
AM91	609742 CLICK FOR MORE INFO	Clip, securing sealing rubber This item has been superceded by GHF1560 - see below	14
	GHF1560	W/STRIP CLIP OUTER	14	£0.46 Ex VAT @ 20% £0.38
AM92	850323 CLICK FOR MORE INFO	Weatherstrip, waist, door, inner R.H. Revington TR information: Weather Strip inner to glass right hand, TR4-6.Secured with clip GHF1582 to door inner lip. 14 required per car	1	£11.68 Ex VAT @ 20% £9.73
AM92A	850322 CLICK FOR MORE INFO	Weatherstrip, waist, door, inner L.H. Revington TR information: Weather Strip inner to glass left hand, TR4-6.Secured with clip GHF1582 to door inner lip. 14 required per car	1	£11.68 Ex VAT @ 20% £9.73	Available to order
AM93	608604 CLICK FOR MORE INFO	Clip, securing weatherstrip This item has been superceded by GHF1582 - see below	14
	GHF1582 CLICK FOR MORE INFO	CLIP-INNER W/STRIP Revington TR information: Clip securing door glass inner weather strip to door inner lip, TR4-6. 14 required per car	14	£0.65 Ex VAT @ 20% £0.54
AM94	566271 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Red R.H.	1		No longer available
AM94A	566268 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Red L.H.	1		No longer available
AM94B	566272 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Blue R.H.	1		No longer available
AM94C	566269 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Blue L.H.	1		No longer available
AM94D	566273 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Black R.H.	1	£155.40 Ex VAT @ 20% £129.50	Available to order
AM94E	566270 CLICK FOR MORE INFO	FRONT DOOR TRIM PAD ASSEMBLY Black L.H.	1	£155.40 Ex VAT @ 20% £129.50	Available to order
AM95	YZ3426 CLICK FOR MORE INFO	Screw, S/T Door pocket attachment This item has been superceded by SS1080641 - see below	4
	SS1080641	SCREW ST No8x3/4" CKS-POZI-BZP	4	£0.08 Ex VAT @ 20% £0.07
AM96	608586 CLICK FOR MORE INFO	Washer, cup Door pocket attachment	4	£2.63 Ex VAT @ 20% £2.19
AM97	611680 CLICK FOR MORE INFO	Cap, screw Door pocket attachment Red This item has been superceded by 621992 - see below	4
	621992 CLICK FOR MORE INFO	CAP POCKET FIXING RED TR4-6 Revington TR information: Similar caps are 621992 Red, 621993 Light Tan, 621997 Blue, 621991 Black.	4	£1.07 Ex VAT @ 20% £0.89
AM97A	611681 CLICK FOR MORE INFO	Cap, screw Door pocket attachment Blue This item has been superceded by 621997 - see below	4
	621997 CLICK FOR MORE INFO	CAP TRIM BLUE	4	£2.77 Ex VAT @ 20% £2.31
AM97B	611682 CLICK FOR MORE INFO	Cap, screw Door pocket attachment Black This item has been superceded by 621991 - see below	4
	621991 CLICK FOR MORE INFO	BLACK TRIM CAP SCREW Revington TR information: Similar caps are 621992 Red, 621993 Light Tan, 621997 Blue, 621991 Black.	4	£1.26 Ex VAT @ 20% £1.05	Available to order
AM98	608511 CLICK FOR MORE INFO	Clip, door trim pad attachment This item has been superceded by GHF1230 - see below	30
	GHF1230	CLIP DOOR PANEL TR4-6	30	£0.90 Ex VAT @ 20% £0.75	Available to order
AM99	563589 CLICK FOR MORE INFO	Snapsac, door casing This item has been superceded by 613769 - see below	20
	613769 CLICK FOR MORE INFO	CLIP RETAINER	20	£1.72 Ex VAT @ 20% £1.43
AM100	650306 CLICK FOR MORE INFO	DOOR PULL HANDLE Revington TR information: Nut FS27584 and Screw 510799 are required to fit this handle. However as FS27584 is currently unavailable. Use plastic nut GHF1021 and self-tapping screw SS1080651. This item has a secondhand part available - see below	2	£21.84 Ex VAT @ 20% £18.20
	650306SH CLICK FOR MORE INFO	Second Hand INTERIOR HANDLE Revington TR information: Nut FS27584 and Screw 510799 are required to fit this handle. However as FS27584 is currently unavailable. Use plastic nut GHF1021 and self-tapping screw SS1080651.	2	£13.51 Ex VAT @ 20% £11.26	Available to order
AM101	510799 CLICK FOR MORE INFO	Screw, set Door pull handle to door	4	£2.28 Ex VAT @ 20% £1.90
AM101A	FS2758 CLICK FOR MORE INFO	Nut, fix Door pull handle to door This item has been superceded by FS27584 - see below	4
	FS27584	NUT CAPTIVE NO8 UNF Revington TR information: No longer available	4		No longer available
AM102	650310 CLICK FOR MORE INFO	Rubber, sealing, door aperture Revington TR information: This seal is for one door, from the top of the windscreen frame to the top of the 'B' post. Two required per car, 2260mm long each	2	£33.42 Ex VAT @ 20% £27.85
AM102A	650311 CLICK FOR MORE INFO	Rubber, sealing, door aperture Triumph Catalogue Remarks: For use when hard top is fitted Revington TR information: This seal is for one door, from the top of the windscreen frame to the top of the rear edge of the door glass including the vertical part of the backlight frame.Two required per car, 2560mm... READ MORE	2	£37.02 Ex VAT @ 20% £30.85
AM103	611597 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon Red Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. This type of seal is no longer available. We can however supply 611597X... READ MORE	2		No longer available
AM103	611598 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon Blue Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. This type of seal is no longer available. We can however supply 611598X... READ MORE	2		No longer available
AM103	611599 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon Black Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. This type of seal is no longer available. We can however supply 611599X... READ MORE	2		No longer available
AM103A	611587 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon (19' 10" for two doors) Red Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. We currently have Stanpart originals in stock If this type of seal is... READ MORE	1	£227.86 Ex VAT @ 20% £189.88
AM103B	611588 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon (19' 10" for two doors) Blue Triumph Catalogue Remarks: For use when hard top is fitted Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. This type of seal is no longer available. We can however supply 611588X... READ MORE	1		No longer available
AM103C	611589 CLICK FOR MORE INFO	DRAUGHT EXCLUDER Snappon (19' 10" for two doors) Black Triumph Catalogue Remarks: For use when hard top is fitted Revington TR information: This part is the original TR4-4A door draught excluder that clips on the sill seam and has an extra round contour on top. This type of seal is no longer available. We can however supply 611589X... READ MORE	2		No longer available

Special Offer

AMMETER -60->+60 BLACK RIM

Interior, Seats, Hoods Etc.

TR4 Plate AM - BODY AND FITTINGS: DOORS, HINGES AND LOCKS, GLASS, REGULATOR AND TRIM.

950124

DOOR ASSEMBLY R.H.

950124SH

950123

DOOR ASSEMBLY L.H.

950123SH

903550

DOOR ASSEMBLY R.H.

903550SH

903549

DOOR ASSEMBLY L.H.

903549SH

750075

750074

707060

707059

650112

Hinge, door assembly

650112SH

HU0805

Screw, set Hinge to door

SH605051

WQ0308

Washer, lock Hinge to door

WS105090853

HU0806P

Screw, set Hinge to body

SH605061

WQ0308

Washer, lock Hinge to body

WS105090853

WM0808

Washer, plain Hinge to body

PWZ205

613914

613913

650201

650216

612244

Pin, checkstrap Checkstrap to door pivot bracket

FT2902

HU0704

Screw, set Checkstrap bracket to 'A' post, outer

SH604041

WN0707

Washer, shakeproof Checkstrap bracket to 'A' post, outer

WS104070271

WPO122

Washer, plain Checkstrap bracket to 'A' post, outer

PT0504

WP0005

Washer, plain Sealing bootee to 'A' post

WP10308050

WP0156

Washer, plain Sealing bootee to 'A' post

613622

610707

613623

YS1383

Screw Seal attachment

WM0053

Washer, plain Seal attachment

750170

ROTARY LOCK ASSEMBLY R.H.

750170SH

750169

ROTARY LOCK ASSEMBLY L.H.

750169SH

PT0503

Screw, M/C Lock to door inner panel

PT0504

YB1504

Screw, S/T Lock to door inner panel

SS1100421

WN0705

Washer, shakeproof Lock to door inner panel
