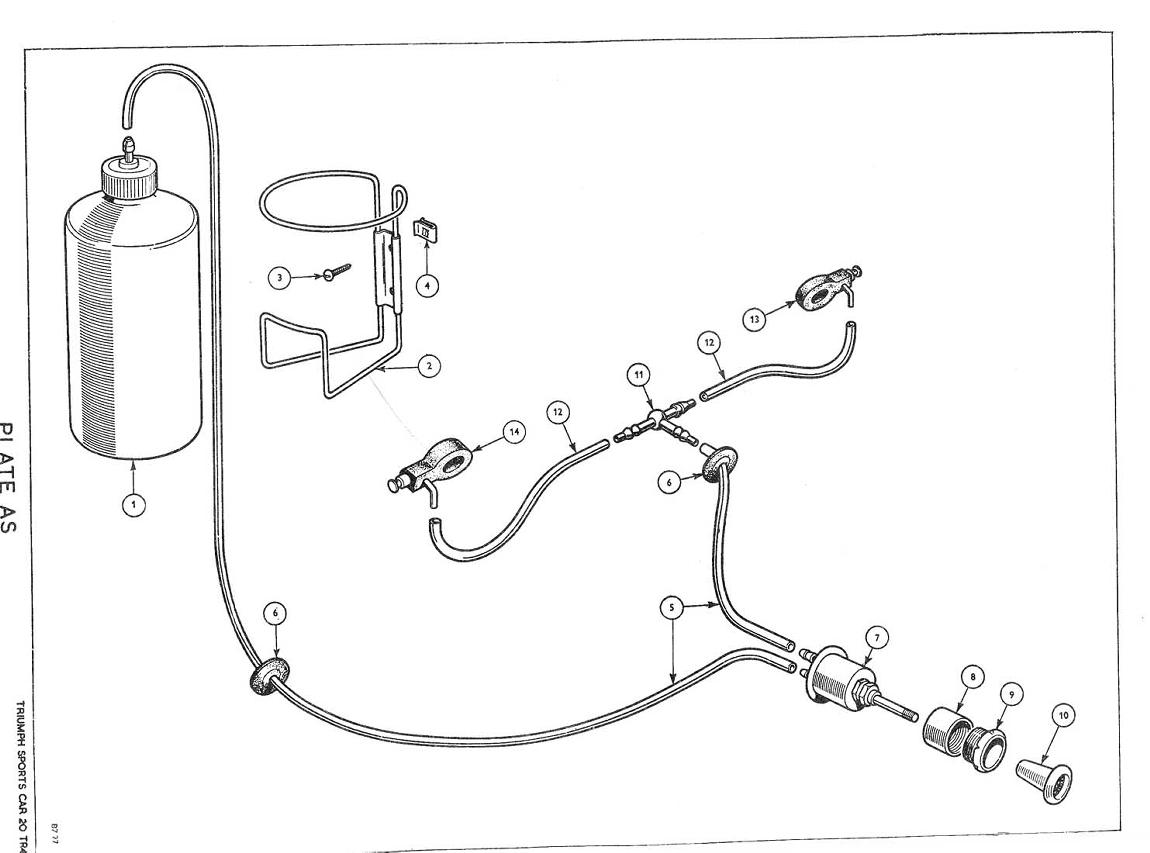

TR4 Plate AS - BODY AND FITTINGS: WINDSCREEN WASHER DETAILS.
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
AS1 | 608319 |
ContainerThis item has been superceded by GWW918K - see below |
1 | ||
|
GWW918K |
BOTTLE & TOP ASSY |
1 |
£18.00 Ex VAT @ 20% |
||
|
AS2 | 609613 |
Bracket, screenwasher containerThis item has been superceded by 13H232SS - see below |
1 | ||
|
13H232SS |
BRKT-W/W SS BOTTLE |
1 |
£11.15 Ex VAT @ 20% |
||
|
AS3 | YZ330S |
Screw, S/T Securing bracket to valance |
2 | ||
|
AS4 | FC2803 |
Nut, spire Securing bracket to valance |
2 |
£1.09 Ex VAT @ 20% |
|
|
ASS | 604146 |
Tube, container to pump and pump to 'T' pieceTriumph Catalogue Remarks: Sold in feet |
as req'd. | ||
|
RTR5127M
|
TUBING CLEAR 4mm ID X 6.0mm OD PER MTRRevington TR information: 4.00mm I/D.6mm O/D Windscreen washer clear plastic tubing, bottle to pump and to T Piece. Per Metre |
as req'd. |
£2.90 Ex VAT @ 20% |
||
 |
AS6 | 061917 |
Grommet, suction tube |
2 |
£1.10 Ex VAT @ 20% |
|
|
AS7 | 609173 |
PlungerRevington TR information: consider second hand 609173SH |
1 |
£51.30 Ex VAT @ 20% |
|
|
AS8 | 609526 |
Spacer Securing plunger to switch plinth |
1 |
£10.82 Ex VAT @ 20% |
|
|
AS9 | 609919 |
Bezel |
1 | ||
|
AS10 | 609946 |
KnobRevington TR information: Our stock is genuine Stanpart |
1 |
£8.02 Ex VAT @ 20% |
|
|
AS11 | 609174 |
'T' pieceTriumph Catalogue Remarks: Fitted up to Commission No. CT11145 only |
1 | ||
|
GWW404 |
T PIECE 4mm in, 2 x 3mm out WASHERS |
1 |
£2.46 Ex VAT @ 20% |
||
|
AS12 | 604132 |
Tube, 'T' piece to nozzleTriumph Catalogue Remarks: Sold in feet |
as req'd. | ||
|
RTR5126M
|
TUBING CLR 2.78mm I/D 3.57mm O/D PER MTRRevington TR information: 2.78mm I/D. 3.57mm O/D Windscreen washer clear plastic tubing 'T' piece to jets. Per Metre. |
as req'd. |
£6.13 Ex VAT @ 20% |
||
|
AS13 | 511070 |
Nozzle and bush assembly R.H.Revington TR information: Wiper wheels box support kit left hand including 1 x upper support, 1 x washer jet and 1 x washer feed tubes, sufficient for the left hand wiper wheel box only. Should you require the complete... READ MORE |
1 |
£8.45 Ex VAT @ 20% |
|
|
AS14 | 511071 |
Nozzle and bush assembly L.H.Revington TR information: Wiper wheels box support kit right hand including 1 x upper support, 1 x washer jet and 1 x washer feed tubes, sufficient for the left hand wiper wheel box only. Should you require the complete... READ MORE |
1 |
£8.45 Ex VAT @ 20% |
|
|
AS14A | 612601 |
'T' pieceTriumph Catalogue Remarks: Fitted from Commission No. CT11146 and future |
1 | ||
|
GWW404 |
T PIECE 4mm in, 2 x 3mm out WASHERS |
1 |
£2.46 Ex VAT @ 20% |
