Engine, Transmission, wheels/Tyres and Heating/Cooling
- Browse Modified, Uprated & Alternative Parts
- CLICK TO VIEW
TRIUMPH PLATES - Browse Original Triumph Catalogue Plates
ENGINE BLOCK PARTS
| Part No. | Description and Comments | Price | Add to Cart | |
|---|---|---|---|---|
 |
RTR1498
|
TR2-4 ARP HEAD STUD/NUT SETRevington TR information: Set of 10 TR2-4A head studs, washers and nuts by ARP. Useful in an engine producing the highest power and therefor subject to the highest stesses A 6 cylinder kit is not available. |
£553.56 Ex VAT @ 20% |
|
 |
155660 |
MAGNETIC DRAIN PLUGRevington TR information: Magnetic sump plug, catches all the iron filings as your engine slowly wears. Can be used in gearbox and axle too. Don't forget the fibre washer which is sometimes required. |
£17.81 Ex VAT @ 20% |
|
|
RTR1068
|
BRACKET ALTERNATORRevington TR information: TR2-4A modified dynamo bracket to accept an alternator. Revington TR have three alternator/dynamo brackets available. 058912 Original TR2-4A dynamo mount. This bracket has its legs 102mm apart measured externally and 94mm internally (the material is 4mm... READ MORE |
£32.32 Ex VAT @ 20% |
|
 |
RTR1281
|

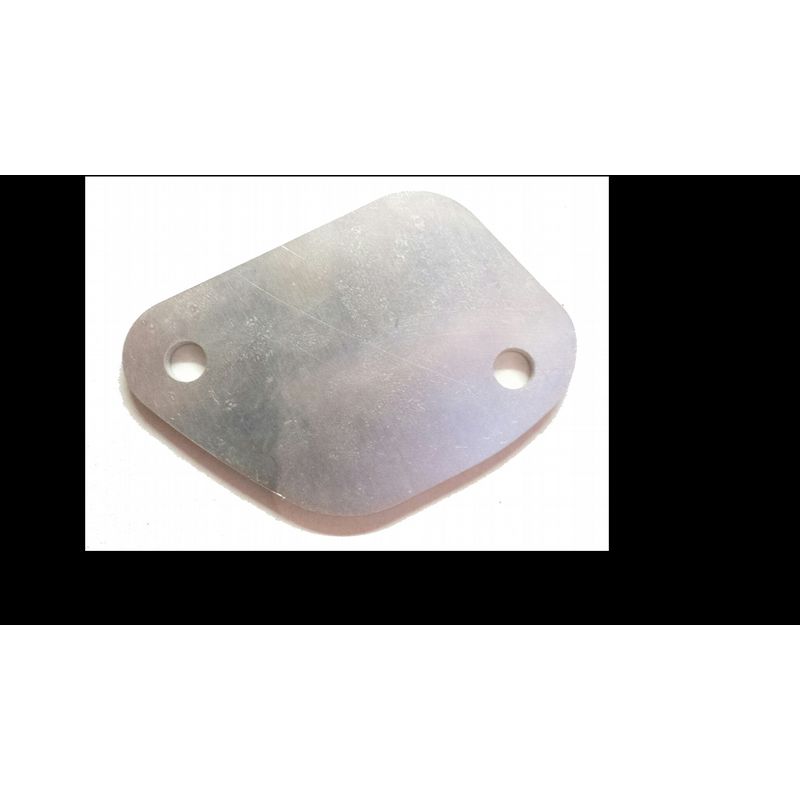

BLANK PETROL PUMP TR2-4ARevington TR information: TR2-4A blank when mechanical petrol pump not used. We make these pieces by hand due to the very small sales volume. Some tool marks may be visible which could be polished out to improve the... READ MORE |
£16.93 Ex VAT @ 20% |
|
 |
RTR1026K
|
SEAL KIT REAR CRANK GACO TR2-4ARevington TR information: Crankshaft Gaco lip type rear oil seal kit, suitable for TR2-4A, Vanguard and Ensign etc. The scroll is machined off the crankshaft down to 63.5mm and a Gaco type lip seal is fitted. The kit comes... READ MORE |
£148.40 Ex VAT @ 20% |
|
 |
RTR1026S
|
SEAL GACO RR CRANK TR2-4ARevington TR information: Replacement seal for Crank shaft Gaco rear oil seal kit. |
£14.99 Ex VAT @ 20% |
|
|
RTR1135K
|
BOLT SET ENG->GEARBOX 8MM TR2-4ARevington TR information: TR2-4A bolt set engine to gearbox with 8mm flange. |
£29.96 Ex VAT @ 20% |
|
|
RTR1147K
|
BOLT SET ENG->G/BOX 14MM TR2-4ARevington TR information: TR2-4A bolt set engine to gearbox with 14mm flange. |
£32.02 Ex VAT @ 20% |
|
|
112789 |
GASKET FIG 8 0.015" STEELRevington TR information: Three thicknesses of figure of 8 gasket are available; 0.015" made from steel, 0.018" made from copper, and 0.021" made from aluminium or copper. The alternative thicknesses can be used to adjust the height of the... READ MORE |
£3.79 Ex VAT @ 20% |
|
|
112789-021C |
GASKET FIG 8 0.021" CopperRevington TR information: Three thicknesses of figure of 8 gasket are available; 0.015" made from steel, 0.018" made from copper, and 0.021" made from aluminium or copper. The alternative thicknesses can be used to adjust the height of the... READ MORE |
£17.94 Ex VAT @ 20% |
|
|
112789X |
GASKET FIG 8 0.021" ALLYRevington TR information: When NO LONGER AVAILABLE us 112789-021C. Three thicknesses of figure of 8 gasket are available; 0.015" made from steel, 0.018" made from copper, and 0.021" made from aluminium or copper. The alternative thicknesses can be used... READ MORE |
