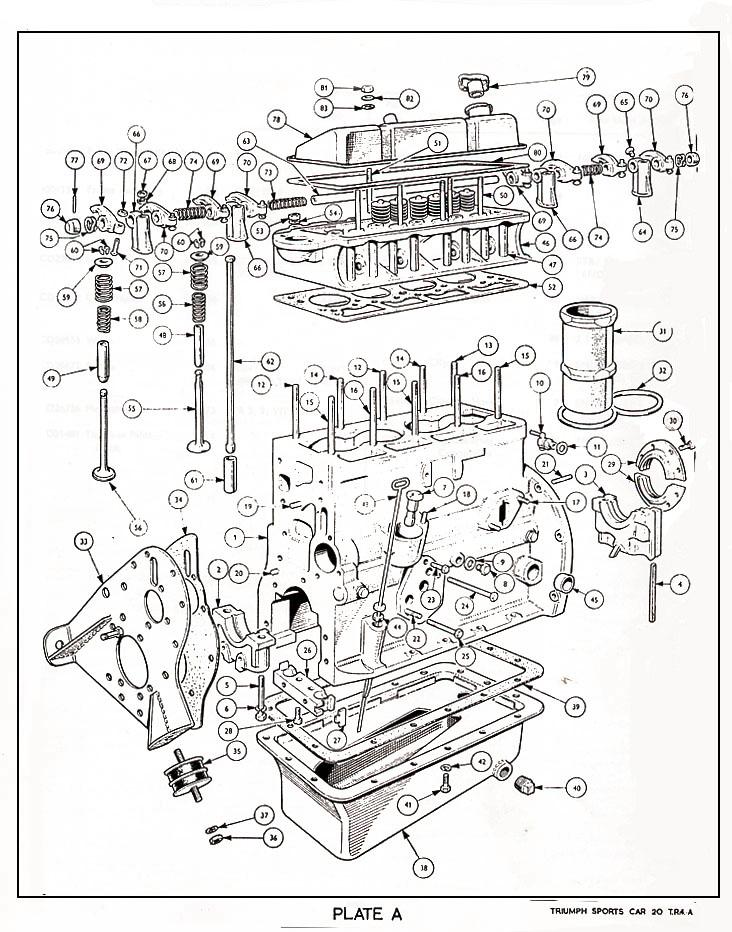

TR4A Plate A - 83 m.m. and 86 m.m. ENGINE: BLOCK AND HEAD

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
A1AA	514659 CLICK FOR MORE INFO	ENGINE UNIT 86 mm Triumph Catalogue Remarks: Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1BB	514660 CLICK FOR MORE INFO	ENGINE UNIT 83 mm Triumph Catalogue Remarks: Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1CC	514659/R CLICK FOR MORE INFO	ENGINE UNIT 86 mm Recondition Unit Triumph Catalogue Remarks: Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1DD	514660/R CLICK FOR MORE INFO	ENGINE UNIT 83 mm Recondition Unit Triumph Catalogue Remarks: Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1EE	514760 CLICK FOR MORE INFO	ENGINE UNIT 86 mm Triumph Catalogue Remarks: LOW COMPRESSION ENGINE. For use in countries where High Octane fuel is unobtainable. Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1FF	514760/R CLICK FOR MORE INFO	ENGINE UNIT 86 mm Recondition Unit Triumph Catalogue Remarks: LOW COMPRESSION ENGINE. For use in countries where High Octane fuel is unobtainable. Note:-This unit is less Water Pump, Distributor, Dynamo, Petrol Pump, Oil Filter, Thermostat, Inlet and Exhaust Manifolds, Carburettors and Sparking Plugs.	1		No longer available
A1GG	514744 CLICK FOR MORE INFO	DECARBONISING GASKET SET 86 mm	1		No longer available
A1HH	514745 CLICK FOR MORE INFO	DECARBONISING GASKET SET 83 mm	1		No longer available
A1II	514746 CLICK FOR MORE INFO	ENGINE GASKET SET 86 mm	1		No longer available
A1JJ	514747 CLICK FOR MORE INFO	ENGINE GASKET SET 83 mm	1		No longer available
A1	502363 CLICK FOR MORE INFO	CYLINDER BLOCK Revington TR information: not available new, use second hand part 502363SH	1		No longer available
A2		Cap, bearing Front Triumph Catalogue Remarks: Not serviced
A2A		Cap, bearing Centre Triumph Catalogue Remarks: Not serviced
A3		Cap, bearing Rear Triumph Catalogue Remarks: Not serviced
A4	058335 CLICK FOR MORE INFO	Packing, felt, rear bearing cap	2	£6.31 Ex VAT @ 20% £5.26
A5	057121 CLICK FOR MORE INFO	Screw, set Bearing caps to block	6	£7.34 Ex VAT @ 20% £6.12	Available to order
A6	101587 CLICK FOR MORE INFO	Washer, spring Bearing caps to block This item has been superceded by WS108143133 - see below	6
	WS108143133	WASHER SPRING 1/2" RECT SECTION	6	£0.16 Ex VAT @ 20% £0.13
A7	056405 CLICK FOR MORE INFO	Bush, oil pump drive shaft Revington TR information: use second hand part 056405SH	1		No longer available
A7A	044473 CLICK FOR MORE INFO	Plug, core, rear of camshaft	1	£3.22 Ex VAT @ 20% £2.68
A7B	056765 CLICK FOR MORE INFO	Plug, core, oil gallery ends Revington TR information: TR2-4A oil gallery end plugs, part number 056765, are screwed into the block and must be removed and replaced during an engine rebuild to ensure the oil gallery can be cleaned properly. Price per plug not... READ MORE	2	£8.04 Ex VAT @ 20% £6.70
A8	102785 CLICK FOR MORE INFO	Screw, Set Oil gallery side Revington TR information: May need to consider second hand.	3		No longer available
A9	500463 CLICK FOR MORE INFO	Washer, copper Oil gallery side This item has been superceded by WC10711064 - see below	3
	WC10711064	WASHER COPPER 7/16 x 11/16 x .064	3	£0.89 Ex VAT @ 20% £0.74
A9A	HU0954 CLICK FOR MORE INFO	Screw, set Oil gallery side This item has been superceded by SH506041 - see below	1
	SH506041	SCREW 3/8 UNC X 1/2 INCH	1	£1.60 Ex VAT @ 20% £1.33
A9B	500464 CLICK FOR MORE INFO	Washer, copper Oil gallery side This item has been superceded by WC10610080 - see below	1
	WC10610080	WASHER COPPER 3/8 X 5/8 X .080"	1	£1.81 Ex VAT @ 20% £1.51
A10	061478 CLICK FOR MORE INFO	Tap, water drain Revington TR information: Brass Drain tap with a parallel 1/2"UNF thread, used in the engine block of TR2-5 to drain the coolant. This tap can be used on later TR's instead of the standard blanking plug, or indeed in... READ MORE	1	£24.19 Ex VAT @ 20% £20.16	Available to order
A11	WF0511 CLICK FOR MORE INFO	Washer, fibre, water drain tap This item has been superceded by WF10812062 - see below	1
	WF10812062	WASHER FIBRE 1/2 ID x 3/4 x 0.062" THICK	1	£0.70 Ex VAT @ 20% £0.58
A11A	WF0525 CLICK FOR MORE INFO	Washer, fibre, water drain tap This item has been superceded by WF10812062 - see below	as req'd.
	WF10812062	WASHER FIBRE 1/2 ID x 3/4 x 0.062" THICK	as req'd.	£0.70 Ex VAT @ 20% £0.58
A12	113570 CLICK FOR MORE INFO	Stud, cylinder head attachment, front and centre of block - R.H. side Revington TR information: 1/2"UNC	2	£21.97 Ex VAT @ 20% £18.31
A13	121734 CLICK FOR MORE INFO	Stud, cylinder head attachment; rear of block - R.H. side	1	£36.85 Ex VAT @ 20% £30.71
A14	113169 CLICK FOR MORE INFO	Stud, cylinder head attachment, adjacent to centre of cylinder head - R.H. side	2	£19.90 Ex VAT @ 20% £16.58
A15	106959 CLICK FOR MORE INFO	Stud, cylinder head attachment, front centre and rear of block - L.H. side Revington TR information: Head stud for various applications from TR2 - TR4A	3	£17.27 Ex VAT @ 20% £14.39
A16	106960 CLICK FOR MORE INFO	Stud, cylinder head attachment, adjacent to centre of cylinder head - L.H. side	2	£17.64 Ex VAT @ 20% £14.70
A16A	V7318 CLICK FOR MORE INFO	Stud, oil pump attachment This item has been superceded by ST705111 - see below	3
	ST705111	STUD 5/16 X 1-3/8" 5/8UNF+3/8UNC	3	£1.38 Ex VAT @ 20% £1.15
A17	V7322 CLICK FOR MORE INFO	Stud, petrol pump attachment This item has been superceded by ST705111 - see below	2
	ST705111	STUD 5/16 X 1-3/8" 5/8UNF+3/8UNC	2	£1.38 Ex VAT @ 20% £1.15
A18	V7322 CLICK FOR MORE INFO	Stud, distributor pedestal attachment This item has been superceded by ST705111 - see below	2
	ST705111	STUD 5/16 X 1-3/8" 5/8UNF+3/8UNC	2	£1.38 Ex VAT @ 20% £1.15
A19	V7318 CLICK FOR MORE INFO	Stud, front engine plate and timing cover attachment This item has been superceded by ST705111 - see below	1
	ST705111	STUD 5/16 X 1-3/8" 5/8UNF+3/8UNC	1	£1.38 Ex VAT @ 20% £1.15
A20	DP0512 CLICK FOR MORE INFO	Dowel, locating front engine plate This item has been superceded by DP514 - see below	2
	DP514	DOWEL 5/16 DIA X 7/8" LONG	2	£1.78 Ex VAT @ 20% £1.48
A21	V7318 CLICK FOR MORE INFO	Stud, gearbox attachment This item has been superceded by ST705111 - see below	3
	ST705111	STUD 5/16 X 1-3/8" 5/8UNF+3/8UNC	3	£1.38 Ex VAT @ 20% £1.15
A22AA	DP0612 CLICK FOR MORE INFO	Dowel, locating gearbox on rear face of cylinder block This item has been superceded by DP619 - see below	2
	DP619	DOWEL 3/8" DIA x 1.5" LONG Cut to fit Revington TR information: This dowel is used on 6 cylinder engines to locate crankshaft to flywheel. To determine length required, measure into the crankshaft and into the flywheel and add these together then subtract 1mm for clearance.	2	£3.00 Ex VAT @ 20% £2.50
A22	112170 CLICK FOR MORE INFO	Stud Oil filter (pressure) attachment lower front This item has been superceded by ST705171 - see below	1
	ST705171	STUD 5/16 UNC/UNF2-1/8	1	£2.47 Ex VAT @ 20% £2.06
A22A	DN3408 CLICK FOR MORE INFO	Nut, cap Oil filter (pressure) attachment lower front This item has been superceded by 14B2685 - see below	1
	14B2685	NUT DOME 5/16 UNF CHROME	1	£2.39 Ex VAT @ 20% £1.99	Available to order
A23	112233 CLICK FOR MORE INFO	Bolt, oil filter (pressure) attachment, upper front This item has been superceded by BH505101 - see below	1
	BH505101	BOLT 5/16 UNC X 1-1/4 INCH	1	£1.22 Ex VAT @ 20% £1.02
A24	112231 CLICK FOR MORE INFO	Bolt, oil filter (pressure) attachment, upper rear This item has been superceded by BH505321 - see below	1
	BH505321	BOLT 5/16 UNC X 4 INCH	1	£4.18 Ex VAT @ 20% £3.48
A25	112232 CLICK FOR MORE INFO	Bolt, oil filter (pressure) attachment, lower rear This item has been superceded by BH505241 - see below	1
	BH505241	BOLT 5/16 UNC X 3 INCH	1	£2.28 Ex VAT @ 20% £1.90	Available to order
A25A	WL0208 CLICK FOR MORE INFO	Washer, lock, fitted on bolts This item has been superceded by WS105090853 - see below	3
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	3	£0.25 Ex VAT @ 20% £0.21
A26	055810 CLICK FOR MORE INFO	FRONT SEALING BLOCK Revington TR information: Sealing block, front of engine Tr2-4A. Consider original second hand part 055810SH	1		No longer available
A27	059381 CLICK FOR MORE INFO	Pad, sealing, in ends of block	2	£1.21 Ex VAT @ 20% £1.01
A28	056574 CLICK FOR MORE INFO	Screw, sealing block attachment	2	£2.05 Ex VAT @ 20% £1.71
A29	060862 CLICK FOR MORE INFO	REAR OIL SEAL ASSEMBLY Revington TR information: This original oils seal arrangement is prone to severe leakage. This is due the inherent weakness of the reverse scroll design, where there is no physical contact between the seal and the crankshaft. The reverse scroll... READ MORE	1	£87.40 Ex VAT @ 20% £72.83	Available to order
A30	HU0755 CLICK FOR MORE INFO	Screw, set Oil seal to cylinder block This item has been superceded by SH504051 - see below	8
	SH504051	SCREW 1/4 UNC X 5/8"	8	£0.42 Ex VAT @ 20% £0.35
A30A	WL0207 CLICK FOR MORE INFO	Washer, spring Oil seal to cylinder block This item has been superceded by WS104070643 - see below	8
	WS104070643	WASHER SPRING 1/4" RECT SECTION	8	£0.20 Ex VAT @ 20% £0.17
A31	122166 CLICK FOR MORE INFO	CYLINDER LINER (Graded F, G, H) 86 mm Engine Revington TR information: Liner 86mm. Standard Sizes up to plus +60 available	4	£99.71 Ex VAT @ 20% £83.09	Available to order
A32	112789 CLICK FOR MORE INFO	Gasket, liner 86 mm Engine Revington TR information: Three thicknesses of figure of 8 gasket are available; 0.015" made from steel, 0.018" made from copper, and 0.021" made from aluminium or copper. The alternative thicknesses can be used to adjust the height of the... READ MORE	2	£3.79 Ex VAT @ 20% £3.16	Available to order
A31	105539 CLICK FOR MORE INFO	CYLINDER LINER (Graded F, G, H) 83 mm Engine Revington TR information: Liners 83mm Standard Sizes up to +40 available	4	£104.11 Ex VAT @ 20% £86.76	Available to order
A32	112789 CLICK FOR MORE INFO	Gasket, liner 83 mm Engine Revington TR information: Three thicknesses of figure of 8 gasket are available; 0.015" made from steel, 0.018" made from copper, and 0.021" made from aluminium or copper. The alternative thicknesses can be used to adjust the height of the... READ MORE	2	£3.79 Ex VAT @ 20% £3.16	Available to order
A33	304711 CLICK FOR MORE INFO	FRONT ENGINE PLATE Revington TR information: the pin is 056763	1		No longer available
A34	056389 CLICK FOR MORE INFO	Washer, joint Engine plate attachment to cylinder block	1	£2.24 Ex VAT @ 20% £1.87
A34A	HU0856 CLICK FOR MORE INFO	Screw, set Engine plate attachment to cylinder block This item has been superceded by SH505061 - see below	5
	SH505061 CLICK FOR MORE INFO	SCREW 5/16 UNC X 3/4 INCH	5	£0.90 Ex VAT @ 20% £0.75
A34B	WL0208 CLICK FOR MORE INFO	Washer, spring Engine plate attachment to cylinder block This item has been superceded by WS105090853 - see below	5
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	5	£0.25 Ex VAT @ 20% £0.21
A35	130985 CLICK FOR MORE INFO	FRONT ENGINE MOUNTING Revington TR information: This round engine mounting was fitted to TR4. The square type part number 143057 was fitted to TR4A. The parts are however interchangeable.	2	£19.15 Ex VAT @ 20% £15.96
A36	HN2009 CLICK FOR MORE INFO	Nut Mounting to engine plate and frame This item has been superceded by NP606111 - see below	4
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	4	£0.14 Ex VAT @ 20% £0.12
A37	WL0209 CLICK FOR MORE INFO	Washer, lock Mounting to engine plate and frame This item has been superceded by WS106111243 - see below	4
	WS106111243	WASHER SPRING 3/8" RECT SECTION	4	£0.37 Ex VAT @ 20% £0.31
A37A	134234 CLICK FOR MORE INFO	Washer, packing Mounting to engine plate and frame This item has been superceded by WP106381571 - see below	2
	WP106381571 CLICK FOR MORE INFO	WASHER DIFF MOUNT 3/8" X 2-3/8" X 0.157" Revington TR information: Revington TR recommend using Stainless Steel Washer WP106381572	2	£3.46 Ex VAT @ 20% £2.88
		REAR ENGINE MOUNTING (For details see Gear Box Section)
A38	115350 CLICK FOR MORE INFO	OIL SUMP ASSEMBLY Revington TR information: Consider alloy sump 301318 or second hand part 115350SH	1		No longer available
A39	211123 CLICK FOR MORE INFO	Washer, joint, between sump and cylinder block Revington TR information: This is a thinner paper gasket that is more suitable for this application. If you have a joint which is irregular or not flat maybe try 211123-1 which is a cork gasket. Should you require a complete... READ MORE	1	£4.60 Ex VAT @ 20% £3.83
A40	114774 CLICK FOR MORE INFO	Plug, oil drain Revington TR information: The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using a magnetic drain... READ MORE	1	£5.87 Ex VAT @ 20% £4.89	Available to order
A41	100749 CLICK FOR MORE INFO	Screw, set Sump to cylinder block This item has been superceded by SH505061 - see below	16
	SH505061 CLICK FOR MORE INFO	SCREW 5/16 UNC X 3/4 INCH	16	£0.90 Ex VAT @ 20% £0.75
A41A	HU0855	Screw, set Sump to front sealing block	1		No longer available
A41B	105220 CLICK FOR MORE INFO	Screw, set Slave cylinder stay to sump and cylinder block This item has been superceded by BH505101 - see below	2
	BH505101	BOLT 5/16 UNC X 1-1/4 INCH	2	£1.22 Ex VAT @ 20% £1.02
A42	WL0208 CLICK FOR MORE INFO	Washer, lock, on set screws This item has been superceded by WS105090853 - see below	19
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	19	£0.25 Ex VAT @ 20% £0.21
A43	102139 CLICK FOR MORE INFO	Dipstick Revington TR information: Consider also 102139SH and 102139SHPC	1	£31.63 Ex VAT @ 20% £26.36	Available to order
A44	032307 CLICK FOR MORE INFO	Washer, felt	1	£1.82 Ex VAT @ 20% £1.52
A45	132924 CLICK FOR MORE INFO	Plug, closing, breather pipe aperture	1	£4.84 Ex VAT @ 20% £4.03
A46	514748 CLICK FOR MORE INFO	COMBUSTION HEAD ASSEMBLY (Complete with valves and springs) 86 mm Revington TR information: TR4A New cast iron cylinder head with unleaded seats, built up with valves, springs, caps etc. ready to fit. Suitable for 86mm engines. Will also fit TR2-4 with suitable manifolds and gaskets. We also supply this... READ MORE	1	£2888.80 Ex VAT @ 20% £2407.33	Available to order
A46A	514749 CLICK FOR MORE INFO	COMBUSTION HEAD ASSEMBLY (Complete with valves and springs) 83 mm	1		No longer available
A46B	511695 CLICK FOR MORE INFO	COMBUSTION HEAD ASSEMBLY (Less valves and springs) 86 mm Revington TR information: TR4A New cast iron cylinder head fully machined with unleaded seats and guides, but with no valves, springs, caps etc. ready to accept your own parts. Suitable for 86mm engines. Will also fit TR2-4 with suitable... READ MORE	1	£2661.10 Ex VAT @ 20% £2217.58	Available to order
A46C	511785 CLICK FOR MORE INFO	COMBUSTION HEAD ASSEMBLY (Less valves and springs) 83 mm Revington TR information: 83mm head	1		No longer available
A46D	PS1603 CLICK FOR MORE INFO	Plug, core, top face of combustion head Revington TR information: This Core Plug is threaded. The thread is 1" UNF x 12TPI,	1	£6.96 Ex VAT @ 20% £5.80
A47	100792 CLICK FOR MORE INFO	Tube, sealing Revington TR information: These tubes, made from Aluminium, need to be pressed gently in. Use a hand press, not a fly press. Our experience is that both aluminium and steel tubes were used by Triumph in original heads. We... READ MORE	8		No longer available
A48	058923 CLICK FOR MORE INFO	Guide, valve Inlet Revington TR information: Standard steel inlet Valve Guide fitted to TR2-6 inclusive. Also used in the exhaust position on TR4 from CT27411 and all TR4A. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an... READ MORE	4	£1.84 Ex VAT @ 20% £1.53
A49	058923 CLICK FOR MORE INFO	Guide, valve Exhaust Revington TR information: Standard steel inlet Valve Guide fitted to TR2-6 inclusive. Also used in the exhaust position on TR4 from CT27411 and all TR4A. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an... READ MORE	4	£1.84 Ex VAT @ 20% £1.53
A49A	111913 CLICK FOR MORE INFO	Insert, valve seat Inlet	as req'd.		No longer available
A49B	102941 CLICK FOR MORE INFO	Insert, valve seat Exhaust	as req'd.		No longer available
A49C	027378 CLICK FOR MORE INFO	Plug, core, rear face of head Triumph Catalogue Remarks: Fitted up to Engine No. only	1	£2.18 Ex VAT @ 20% £1.82
A49D	144648 CLICK FOR MORE INFO	Plug, core, rear face of head Triumph Catalogue Remarks: Fitted from Engine No. and future	1	£2.29 Ex VAT @ 20% £1.91
A49E	114774 CLICK FOR MORE INFO	Plug, (not required when heater is fitted) Revington TR information: The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using a magnetic drain... READ MORE	1	£5.87 Ex VAT @ 20% £4.89	Available to order
A49F	HU0953 CLICK FOR MORE INFO	Screw, set Fitted in cylinder head for rocker oil feed This item has been superceded by SH506031 - see below	1
	SH506031	SCREW HEX 3/8UNC X 3/8 INCH	1		No longer available
A49G	500464 CLICK FOR MORE INFO	Washer, copper Fitted in cylinder head for rocker oil feed This item has been superceded by WC10610080 - see below	1
	WC10610080	WASHER COPPER 3/8 X 5/8 X .080"	1	£1.81 Ex VAT @ 20% £1.51
A50	111717 CLICK FOR MORE INFO	Stud, rocker pedestal This item has been superceded by ST706251 - see below	4
	ST706251	STUD 3/8 X3-1/8" 1-1/8"UNF1/2"UNC	4	£3.85 Ex VAT @ 20% £3.21
A51	059011 CLICK FOR MORE INFO	Stud, rocker cover This item has been superceded by ST705301 - see below	2
	ST705301 CLICK FOR MORE INFO	STUD 5/16 X 3-3/4" 5/8UNF+1/2UNC Revington TR information: This stud is mainly used for holding the standard rocker cover on TR2-4A. If you have an aluminium rocker cover fitted then a slightly longer stud ST705341 will most likely be required. Consider also fitting kit... READ MORE	2	£4.26 Ex VAT @ 20% £3.55
A51A	058917 CLICK FOR MORE INFO	Stud, manifold attachment 1 15/16" long This item has been superceded by ST506152 - see below	1
	ST506152	STUD 3/8 X 1-15/16" UNC+ UNC	1	£4.68 Ex VAT @ 20% £3.90
A51B	058688 CLICK FOR MORE INFO	Stud, manifold attachment 1 11/16" long This item has been superceded by ST506132 - see below	1
	ST506132	STUD 3/8 X 1-11/16" UNC+ UNC	1	£2.21 Ex VAT @ 20% £1.84
A51C	102474 CLICK FOR MORE INFO	Stud, manifold attachment 2.06' long This item has been superceded by ST506162 - see below	4
	ST506162	STUD 3/8 X 2.06" UNC+ UNC	4	£2.63 Ex VAT @ 20% £2.19
A51D	107055 CLICK FOR MORE INFO	Stud, manifold attachment 2.38' long This item has been superceded by ST506191 - see below	2
	ST506191	STUD 3/8 X 2-3/8 UNC+ UNC	2	£4.18 Ex VAT @ 20% £3.48
A51E	DP0512 CLICK FOR MORE INFO	Dowel, manifold attachment This item has been superceded by DP514 - see below	2
	DP514	DOWEL 5/16 DIA X 7/8" LONG	2	£1.78 Ex VAT @ 20% £1.48
A52	205481 CLICK FOR MORE INFO	Gasket Between combustion head and cylinder block 86 mm Revington TR information: Should you require a complete head gasket set, order GEG178. .	1	£38.08 Ex VAT @ 20% £31.73
A52	202127 CLICK FOR MORE INFO	Gasket Between combustion head and cylinder block 83 mm Revington TR information: TR2 Head Gasket 83mm No longer available. Use 205481 or gasket set 505281.	1		No longer available
A52A	208096 CLICK FOR MORE INFO	Plate, low compression-86 mm Triumph Catalogue Remarks: For use in countries where High Octane fuel is unobtainable	1		No longer available
A52B	202775 CLICK FOR MORE INFO	Gasket, low compression plate-86 mm Triumph Catalogue Remarks: For use in countries where High Octane fuel is unobtainable Revington TR information: TR2-4A Steel shim head gasket 87mm - 0.5mm (0.020") thick when compressed This Gasket can be shaped to suit 87-89mm liner diameters and can also be used on engines with 83 or 86mm liners. This gasket... READ MORE	1	£124.44 Ex VAT @ 20% £103.70	Available to order
A53	110962 CLICK FOR MORE INFO	Nut Combustion Head attachment Revington TR information: 10 required	10	£2.94 Ex VAT @ 20% £2.45
A54	WP0029 CLICK FOR MORE INFO	Washer, pialn Combustion Head attachment This item has been superceded by WP108140753 - see below	10
	WP108140753	WASHER PLAIN 1/2" x 7/8" X 0.075" HARDENED Revington TR information: Hardened cylinder head stud attachment Washer ½" Internal diameter x 7/8" Outside diameter for underneath the cylinder head nut of TR2-TR4A and other engines with ½" diameter studs.	10	£3.12 Ex VAT @ 20% £2.60
A54A	121231 CLICK FOR MORE INFO	Eye, lifting, assembly, front Revington TR information: lifting Eye, front of the engine, TR2-TR4A and any other car with a 4 cylinder TR or vanguard type engine. This part has been remanufactured to the original design in stainless steel and is supplied unpainted.... READ MORE	1	£60.80 Ex VAT @ 20% £50.67
A54B	121752 CLICK FOR MORE INFO	Bracket, lifting, rear Revington TR information: Engine Lifting Eye rear TR4A. Use our improved part 121752-1 which fits without the need to remove a head stud nut. Consider second hand part 121752SH.	1	£17.04 Ex VAT @ 20% £14.20
A54C	WL0033 CLICK FOR MORE INFO	Washer, plain, lifting eye This item has been superceded by WL33 - see below	1
	WL33	[WL33]	1		No longer available
		VALVES
A55	107626 CLICK FOR MORE INFO	Valve Inlet Revington TR information: Inlet Valve standard TR2-4A. We have good stock of second hand valves too for those wanting either a cheaper or an original part. in addition we have tow valves available with larger heads. ... READ MORE	4	£14.42 Ex VAT @ 20% £12.02
A56	136567 CLICK FOR MORE INFO	Valve Exhaust Revington TR information: Exhaust Valve TR4late and TR4A, 32.89mm Head Diameter, 5/16" (7.94mm) shaft diameter. We have good stock of second hand valves too for those wanting either a cheaper or an original part. For larger valves, gas flowed,... READ MORE	4	£24.01 Ex VAT @ 20% £20.01
A57	142135 CLICK FOR MORE INFO	Spring, valve Outer Revington TR information: Singular valve springs are now not available separately. Please order car set RTR1148	8		No longer available
A58	142136 CLICK FOR MORE INFO	Spring, valve Inner Revington TR information: Singular valve springs are now not available separately. Please order car set RTR1148	8		No longer available
A59	142137 CLICK FOR MORE INFO	Collar, valve spring Revington TR information: TR4A valve spring Cap. As this part does not wear out, RevingtonTR prefer to supply original second hand part 142137SH which can be guaranteed to be the correct shape and material specification. Alternatively we... READ MORE	8	£8.38 Ex VAT @ 20% £6.98
A60	106663 CLICK FOR MORE INFO	Cone, split, retaining collar on valve Revington TR information: There are two collet halves per valve. This part number is for two halves therfore 2 pieces are supplied and priced as 1 collet = 2 halves. Note - Some suppliers sell just 1 half.	8 prs.	£4.03 Ex VAT @ 20% £3.36
A61	057933 CLICK FOR MORE INFO	VALVE TAPPET Revington TR information: Revington TR recommends using an uprated cam follower in favour of the standard part. These are tuftrided and have a drain hole to allow oil to dribble onto the cam lobe. Order part number RTR1024 below.... READ MORE	8	£9.83 Ex VAT @ 20% £8.19
A62	106968 CLICK FOR MORE INFO	PUSH ROD ASSEMBLY Revington TR information: Push Rod for TR2-4A for standard high compression engines. 257mm long. Consider second hand original part 106968SH or for competition use RTR1155. Various pushrod types were used in TR2-4A engines as follows: TR2-3B High compression 106968 Eng.... READ MORE	8	£23.94 Ex VAT @ 20% £19.95	Available to order
A62A	108616 CLICK FOR MORE INFO	PUSH ROD (To be used in conjunction with Compression Plate 208096 in countries where High Octane fuel is unobtainable) Revington TR information: Push rod, TR2-4A engine for use in low compression engines. When not available use second hand part 106968SH. listed here are all the push rods used throughout the production of TR2-4A engines. Various pushrod types... READ MORE	8		No longer available
A63	111064 CLICK FOR MORE INFO	ROCKER SHAFT Revington TR information: Consider tuftrided part RTR1103.	1	£49.22 Ex VAT @ 20% £41.02
A64	112545 CLICK FOR MORE INFO	Pedestal, rocker, drilled Revington TR information: Not available new singularly. Order second hand part 112545SH or new set 112545X. The non-drilled part is 112546SH. Consider also improved Aluminium rocker pedestal set 112545X which includes front and rear pedestals with end... READ MORE	1		No longer available
A65	042880 CLICK FOR MORE INFO	Screw, locking, pedestal to shaft	1		No longer available
A66	112546 CLICK FOR MORE INFO	Pedestal, rocker, plain Revington TR information: Not available new singularly. Order second hand part 112546SH or new set 112545X. The drilled part is 112545SH. Consider also improved Aluminium rocker pedestal set 112545X which includes front and rear pedestals with end... READ MORE	3		No longer available
A67	HN2009 CLICK FOR MORE INFO	Nut, rocker pedestal to combustion head This item has been superceded by NP606111 - see below	4
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	4	£0.14 Ex VAT @ 20% £0.12
A68	WP009 CLICK FOR MORE INFO	Washer, plain, rocker pedestal to combustion head This item has been superceded by WP106121191 - see below	4
	WP106121191	WASHER PLAIN 3/8" x 3/4" x 0.119" HARDENED	4	£1.48 Ex VAT @ 20% £1.23
A69	108012 CLICK FOR MORE INFO	Rocker assembly No.1	4	£18.50 Ex VAT @ 20% £15.42
A70	108014 CLICK FOR MORE INFO	Rocker assembly No. 2	4	£12.31 Ex VAT @ 20% £10.26
A70A	044370 CLICK FOR MORE INFO	Bush, rocker	16	£3.68 Ex VAT @ 20% £3.07
A71	109495 CLICK FOR MORE INFO	Screw, adjustment Fitted in rockers Revington TR information: All TR2-6 use a similar rocker adjusting screw and nut principle. In fact all TR2-4A and TR5, TR6CP, CF and CR use the same screw 109495 and nut 057110 (now superceded to 51K1178). TR250 and TR6CC... READ MORE	8	£7.02 Ex VAT @ 20% £5.85
A72	057110 CLICK FOR MORE INFO	Nut, lock Fitted in rockers This item has been superceded by 51K1178 - see below	8
	51K1178 CLICK FOR MORE INFO	LOCKNUT ROCKER ADJ. Revington TR information: 5/16" UNF locknut rocker adjusting TR2-6 All TR2-6 use a similar rocker adjusting screw and nut principle. In fact all TR2-4A and TR5, TR6CP, CF and CR use the same screw 109495 and nut 057110 (now... READ MORE	8	£0.65 Ex VAT @ 20% £0.54
A73	128074 CLICK FOR MORE INFO	Spring, rocker Centre Revington TR information: use second hand spring128074SH	1		No longer available
A74	130481 CLICK FOR MORE INFO	Spring, rocker Intermediate	2		No longer available
A75	044630 CLICK FOR MORE INFO	Spring, rocker Outer This item has been superceded by WT11016 - see below	2
	WT11016	WASHER THACKERY 5/8 INCH Revington TR information: No longer available	2		No longer available
A75	044630 CLICK FOR MORE INFO	Spring, rocker Outer This item has been superceded by WT11016 - see below	2
	WT11016	WASHER THACKERY 5/8 INCH Revington TR information: No longer available	2		No longer available
A76	060733 CLICK FOR MORE INFO	Collar, on ends of shaft	2		No longer available
A77	058334 CLICK FOR MORE INFO	Pin, (Mills), securing collar This item has been superceded by 500975 - see below	2
	500975 CLICK FOR MORE INFO	MILLS PIN 1/8"x1"	2	£1.63 Ex VAT @ 20% £1.36
A78	306527 CLICK FOR MORE INFO	ROCKER COVER ASSEMBLY Revington TR information: Rocker cover, TR4A with Twist oil fitter cap and breather pipe. This part is not available new. Consider a second hand part 306527SH or a rechromed part 306527RCEX.	1		No longer available
A79	143393 CLICK FOR MORE INFO	Cap, oil filler This item has been superceded by GRC126 - see below	1
	GRC126	RAD CAP	1	£6.24 Ex VAT @ 20% £5.20	Available to order
A80	121219 CLICK FOR MORE INFO	Washer, joint, cover to combustion head This item has been superceded by GEG437 - see below	1
	GEG437 CLICK FOR MORE INFO	GASKET ROCKER COVER TR2-4A Revington TR information: Our gasket is approx 6mm thick. Beware of thinner alternatives that are not as thick as the rocker cover recess.	1	£7.45 Ex VAT @ 20% £6.21
A81	YN2908 CLICK FOR MORE INFO	Nut, nyloc Rocker cover attachment This item has been superceded by NY605141 - see below	2
	NY605141	NYLOC 5/16 UNF X 7/16 THICK Revington TR information: Nyloc Nut tall version. This Nyloc nut is used in locations where extra thread depth is desirable.	2		No longer available
A82	WP0008 CLICK FOR MORE INFO	Washer, plain Rocker cover attachment This item has been superceded by WP10510075 - see below	2
	WP10510075	WASHER PLAIN 5/16" x 5/8" x 0.075"	2	£0.44 Ex VAT @ 20% £0.37
A83	WF0508 CLICK FOR MORE INFO	Washer, fibre Rocker cover attachment This item has been superceded by WF10510056 - see below	2
	WF10510056	WASHER FIBRE 5/16 I/D X 5/8 OD	2	£0.80 Ex VAT @ 20% £0.67

Special Offer

BRAKE PIPE SET TR7 GREEN

Engine, Transmission, wheels/Tyres and Heating/Cooling

TR4A Plate A - 83 m.m. and 86 m.m. ENGINE: BLOCK AND HEAD

514659

514660

514659/R

514660/R

514760

514760/R

514744

514745

514746

514747

502363

Cap, bearing Front

Cap, bearing Centre

Cap, bearing Rear

058335

057121

101587

Washer, spring Bearing caps to block

WS108143133

056405

044473

056765

102785

500463

Washer, copper Oil gallery side

WC10711064

HU0954

Screw, set Oil gallery side

SH506041

500464

Washer, copper Oil gallery side

WC10610080

061478

WF0511

Washer, fibre, water drain tap

WF10812062

WF0525

Washer, fibre, water drain tap

WF10812062

113570

121734

113169

106959

106960

V7318

Stud, oil pump attachment

ST705111

V7322

Stud, petrol pump attachment

ST705111

V7322

Stud, distributor pedestal attachment

ST705111

V7318

Stud, front engine plate and timing cover attachment

ST705111

DP0512

Dowel, locating front engine plate

DP514

V7318

Stud, gearbox attachment

ST705111

DP0612

Dowel, locating gearbox on rear face of cylinder block

DP619

112170

Stud Oil filter (pressure) attachment lower front

ST705171

DN3408

Nut, cap Oil filter (pressure) attachment lower front

14B2685

112233

Bolt, oil filter (pressure) attachment, upper front

BH505101

112231

Bolt, oil filter (pressure) attachment, upper rear
