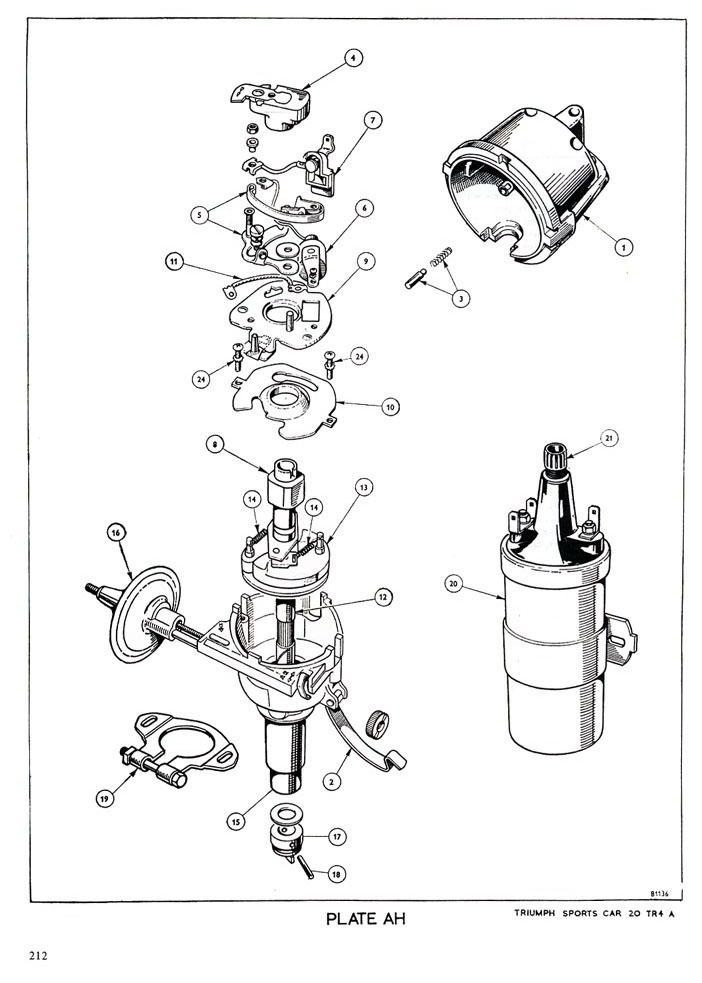

TR4A Plate AH - ELECTRICAL EQUIPMENT: DISTRIBUTOR AND IGNITION COIL.
<< Return to Triumph Catalogue Plate ListPlate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
![]() |
AH1A | 208972 |
DISTRIBUTOR-86 mm. ENGINERevington TR information: 25D4 type distributor. TR4 from CT17954 with 86mm engine and all TR4A. Not available new, use 208972EX |
1 | ||
![]() |
AH1 | 511009 |
Cap |
1 | ||
![]() |
AH2 | 507083 |
Clip, retaining cover |
2 | ||
![]() |
AH3 | 501718 |
Brush and spring, cap centre |
1 | ||
![]() |
AH4 | 057469 |
Arm, rotor |
1 | ||
![]() |
AH5 | 503681 |
Contact set |
1 | ||
![]() |
AH6 | 509319 |
Condenser |
1 | ||
![]() |
AH7 | 511086 |
Connector, bush and lead (Lucar) |
1 | ||
![]() |
AH8 | 510640 |
Cam |
1 | ||
![]() |
AH9 | 503684 |
Plate, contact breaker baseRevington TR information: Base Plate upper, DM2 distributor. We also have second hand parts too and can offer part number 17H5469 as an alternative. |
1 |
£60.88 Ex VAT @ 20% |
|
![]() |
AH10 | 511010 |
Plate, contact breaker bearing |
1 |
£44.51 Ex VAT @ 20% |
|
![]() |
AH11 | 503690 |
Lead, earth |
1 | ||
![]() |
AH12 | 509324 |
Plate, shaft and action |
2 | ||
![]() |
AH13 | 510638 |
Weight, auto advanceRevington TR information: No longer available |
2 | ||
![]() |
AH14 | 510889 |
Spring, auto advance weight |
1 set |
£26.77 Ex VAT @ 20% |
|
![]() |
AH15 | 507082 |
Bushing |
1 | ||
![]() |
AH16 | 510890 |
Unit, vacuum controlRevington TR information: Fitted from TR4 CT17954. This unit has a Push on Pipe connection. The earlier version with a screw on connection is part number 503697 |
1 |
£74.76 Ex VAT @ 20% |
|
![]() |
AH17 | 510043 |
Dog, driving distributor |
1 | ||
![]() |
AH18 | 057992 |
Peg, securing dog |
1 | ||
![]() |
AH19 | 501134 |
Plate, clamping distributor |
1 | ||
![]() |
AH19A | 501728 |
Set, sundry parts |
1 | ||
![]() |
AH19B | 209092 |
DISTRIBUTOR-86 mm. ENGINETriumph Catalogue Remarks: For Low Compression Engines only |
1 | ||
![]() |
AH19C | 503690 |
Cam |
1 | ||
![]() |
AH19D | 512498 |
Spring, auto advance weight |
1 set | ||
![]() |
AH19E | 512499 |
Unit, vacuum control |
1 | ||
![]() |
AH19F | 208643 |
DISTRIBUTOR-83 mm. ENGINERevington TR information: Only available on the basis of rebuilding your unit. Please enquire for current pricing |
|||
![]() |
AH19G | 511200 |
Cam |
1 | ||
![]() |
AH19H | 511201 |
Spring, auto advance weight |
1 set | ||
![]() |
AH19I | 511202 |
Unit, vacuum control |
1 | ||
![]() |
AH20 | 141906 |
IGNITION COIL |
1 | ||
![]() |
AH21 | 105036 |
Nut, terminal |
1 |
£1.91 Ex VAT @ 20% |
|
![]() |
AH21A | HU0755 |
Screw, set, ignition coil to cylinder block |
2 | ||
![]() |
AH21B | WL0207 |
Washer, spring, on screw |
2 | ||
![]() |
AH21C | WP0007 |
Washer, plain |
2 |
