Electrical systems, Instruments etc.
- Browse Modified, Uprated & Alternative Parts
- CLICK TO VIEW
MODIFIED PARTS - Browse Original Triumph Catalogue Plates

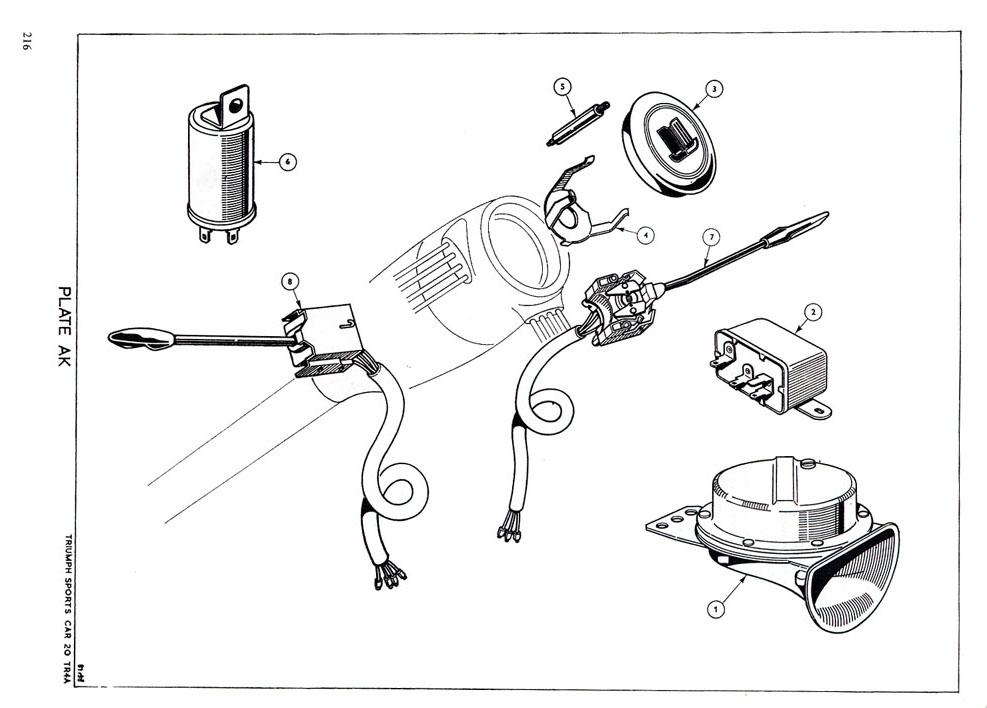

TR4A Plate AK - ELECTRICAL EQUIPMENT: HORNS, HORN PUSH, FLASHER UNIT, TRAFFICATOR AND LIGHTING SWITCH.
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
AK1 | 142251/1 |
HORN-WINDTONE-LOW NOTE LUCASTriumph Catalogue Remarks: Alternative to 142251/2 and 142252/2 in pairs only |
1 | ||
|
AK1A | 142252/1 |
HORN-WINDTONE-HIGH NOTE LUCASTriumph Catalogue Remarks: Alternative to 142251/2 and 142252/2 in pairs only |
1 | ||
|
AK1 | 142251/2 |
HORN-WINDTONE-LOW NOTE CLEAR HOOTERTriumph Catalogue Remarks: Alternative to 142251/1 and 142252/1 In palm only |
1 | ||
|
AK1A | 142252/2 |
HORN-WINDTONE-HIGH NOTE CLEAR HOOTERTriumph Catalogue Remarks: Alternative to 142251/1 and 142252/1 In palm only |
1 | ||
|
AK1B | H80708P |
Bolt Horn attachment |
4 | ||
|
AK1C | WM0093 |
Washer, plain Horn attachmentThis item has been superceded by WP10410130 - see below |
4 | ||
|
WP10410130 |
WASHER PLAIN 1/4" x 5/8" x 0.130" |
4 |
£1.62 Ex VAT @ 20% |
||
|
AK1D | WL0207 |
Washer, lock Horn attachmentThis item has been superceded by WS104070643 - see below |
4 | ||
|
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
4 |
£0.20 Ex VAT @ 20% |
||
|
AK2 | 137747/1 |
HORN RELAY-LUCASTriumph Catalogue Remarks: For use with horns 142251/1 and 142252/1 only |
1 | ||
|
AK2 | 137747/2 |
HORN RELAY-CLEAR HOOTERTriumph Catalogue Remarks: For use with horns 142251/2 and 142252/2 only |
1 | ||
|
AK2A | 133321 |
HORN WINDTONE-HIGH NOTETriumph Catalogue Remarks: France only |
1 | ||
|
AK2B | 133322 |
Switch, hornTriumph Catalogue Remarks: France only |
1 | ||
|
AK2C | 609795 |
Bezel, horn switchTriumph Catalogue Remarks: France only |
1 | ||
 |
609792 |
CHROME NUT |
1 |
£10.93 Ex VAT @ 20% |
||
|
AK2D | 128088 |
Washer, spring, horn switchTriumph Catalogue Remarks: France only |
1 | ||
|
AK2E | 142443 |
Lead, extensionTriumph Catalogue Remarks: France only |
1 | ||
|
AK2F | 060527 |
Cleat Cable attachmentTriumph Catalogue Remarks: France only |
1 | ||
|
AK2G | 508761 |
Clip Cable attachmentTriumph Catalogue Remarks: France only |
1 | ||
|
AK3 | 131227 |
HORN PUSH ASSEMBLYThis item has been superceded by 150277 - see below |
1 | ||
|
150277 |
HORN PUSH EARLY TR4-6Revington TR information: consider Second Hand part 150277SH |
1 |
£57.25 Ex VAT @ 20% |
||
|
AK4 | 204741 |
Clip, horn push assembly |
1 |
£17.98 Ex VAT @ 20% |
|
|
AK5 | 108657 |
Brush, horn push connectionThis item has been superceded by 142534 - see below |
1 | ||
|
142534 |
HORN BRUSH TR4-6Revington TR information: 2.25"-2.625" long. A longer connector maybe required if you have a Motalita steering wheel hub fitted. Use 142534X. |
1 |
£14.38 Ex VAT @ 20% |
||
|
AK6 | 131251 |
FLASHER UNITThis item has been superceded by GFU2103 - see below |
1 | ||
|
GFU2103 |
FLASHER UNIT 3 PIN TR3-4A LUCARRevington TR information: This is the TR3A-4A Lucar connection type, 3 pin. This is a reproduction unit in the original barrel style. consider also GFU2103-1 Originally this flasher unit was a hot wire type with a purely mechanical function.... READ MORE |
1 |
£15.00 Ex VAT @ 20% |
||
|
AK6A | YX5306 |
Screw Attaching flasher unit socket to side panel |
1 | ||
|
AK6B | FU2543 |
Nut, fix Attaching flasher unit socket to side panel |
1 | ||
|
AK7 | 141628 |
TRAFFICATOR SWITCHThis item has been superceded by 158966 - see below |
1 | ||
 |
158966 |
SWITCH INDICATOR TR4-5-6Revington TR information: Indicator switch TR4-6.This switch has black sleeving covering the stem which can be removed to reveal a bright zinc plated (not chrome) stem that would better suit fitment to TR4 and 4A. We have noticed on... READ MORE |
1 |
£67.42 Ex VAT @ 20% |
||
|
AK7A | TP0402 |
Screw, set Switch attachmentThis item has been superceded by TP402 - see below |
2 | ||
|
TP402 |
PAN HD SCREW-NO8X.25 |
2 |
£0.73 Ex VAT @ 20% |
||
|
AK7B | WE0604 |
Washer, shakeproof Switch attachmentThis item has been superceded by WE604 - see below |
2 | ||
|
WE604 |
4BA S/PROOF WASHER(EXT.TEETH)Revington TR information: No longer available |
2 | |||
|
AK8 | 142579 |
LIGHTING SWITCH-OFF SIDE HEAD AND HEADLAMP FLASHER R.H.S.Revington TR information: Lighting switch, TR4A Right Hand Drive only mounted on the Left Hand side of the column. Consider second hand part 142579SH. This switch has a short chrome stem. Up = off, middle = side,... READ MORE |
1 | ||
|
AK8A | 141858 |
LIGHTING SWITCH-OFF SIDE HEAD AND HEADLAMP FLASHER L.H.S.Revington TR information: Lighting switch TR4A LHD mounted on the RH side of the column. Consider second hand part 141858. This switch has a short chrome stem. Up = off, middle = side, down = side+main, towards the wheel... READ MORE |
1 |
£96.00 Ex VAT @ 20% |
|
|
AK8B | TP0402 |
Screw, Lighting switch attachmentThis item has been superceded by TP402 - see below |
2 | ||
|
TP402 |
PAN HD SCREW-NO8X.25 |
2 |
£0.73 Ex VAT @ 20% |
||
|
AK8C | WE0604 |
Washer, shakeproof Lighting switch attachmentThis item has been superceded by WE604 - see below |
2 | ||
|
WE604 |
4BA S/PROOF WASHER(EXT.TEETH)Revington TR information: No longer available |
2 |
