Chassis and bodywork

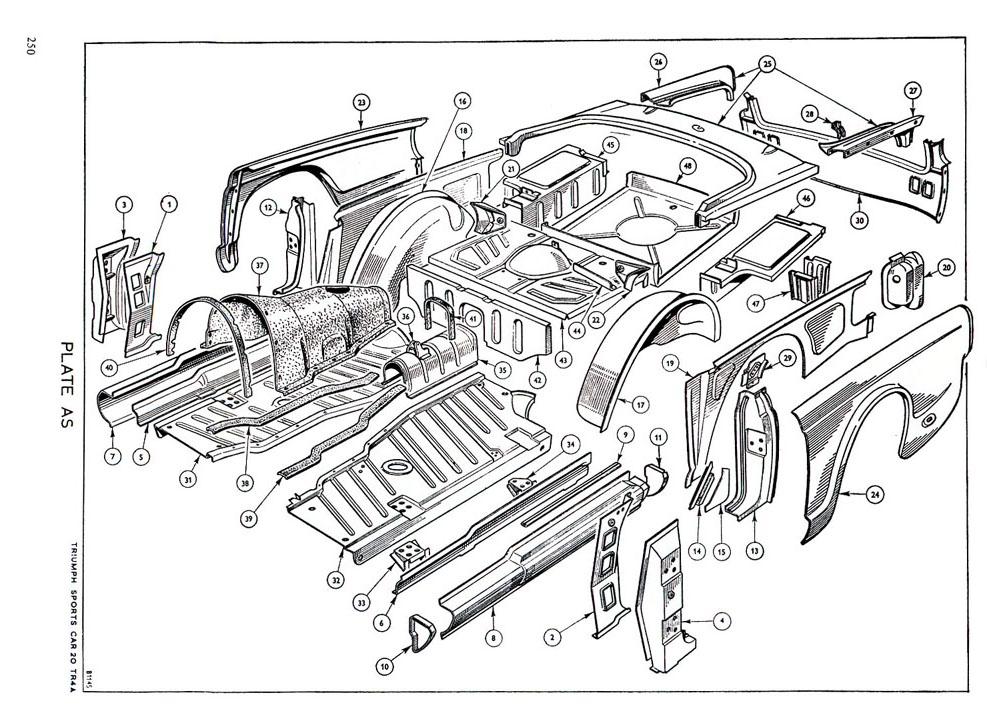

TR4A Plate AS - BODY AND FITTINGS: FLOORS REAR WINGS INNER AND OUTER AND REAR BODY PANELS.

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
		BODY SIDE DETAILS
AS1	850344 CLICK FOR MORE INFO	Post 'A', inner, assembly R.H.	1	£129.36 Ex VAT @ 20% £107.80	Currently unavailable
AS2	850343 CLICK FOR MORE INFO	Post 'A', inner, assembly L H.	1	£123.40 Ex VAT @ 20% £102.83	Currently unavailable
AS3	807422 CLICK FOR MORE INFO	Post 'A', outer, assembly R.H. This item has been superceded by 813101 - see below	1
	813101 CLICK FOR MORE INFO	A Post TR4-6 OUTER RH Revington TR information: Fitted up to end of TR6 production 1976. Pierced for one courtesy light switch.	1	£210.66 Ex VAT @ 20% £175.55
AS4	807421 CLICK FOR MORE INFO	Post 'A', outer, assembly L.H. This item has been superceded by XKC510 - see below	1
	XKC510 CLICK FOR MORE INFO	A POST OUTER LH TR6 LATE Revington TR information: Fitted from commission number CR5001/CF12501 1973 to 1976. Pierced for two courtesy light switch.	1	£218.50 Ex VAT @ 20% £182.08	Currently unavailable
AS4A	603344 CLICK FOR MORE INFO	Spring, guide, check arm Revington TR information: TR4 from CT22344 and all TR4A-6. Spring check strap guide, fitted in A post	2	£8.45 Ex VAT @ 20% £7.04
AS4B	556141 CLICK FOR MORE INFO	Rivet, spring guide attachment This item has been superceded by RP1122411 - see below	4
	RP1122411	RIVET POP 3/16"x3/4" PAN ALLY	4	£1.07 Ex VAT @ 20% £0.89
AS5	564807 CLICK FOR MORE INFO	Panel, sill, inner, assembly R.H.	1	£75.34 Ex VAT @ 20% £62.78
AS6	850122 CLICK FOR MORE INFO	Panel, sill, inner, assembly L.H. Revington TR information: This left hand inner sill part number 850122 has tags attached to secure the wiring down the left side of the car and is suitable for TR250, 5 and 6 as the wiring on these cars... READ MORE	1	£75.34 Ex VAT @ 20% £62.78
AS7	850282 CLICK FOR MORE INFO	Panel, sill, outer R.H.	1	£152.81 Ex VAT @ 20% £127.34
AS8	850281 CLICK FOR MORE INFO	Panel, sill, outer L.H.	1	£152.81 Ex VAT @ 20% £127.34
AS9	750163 CLICK FOR MORE INFO	Retainer, seal, sill outer panel Revington TR information: Welded to sills of TR4-4A and used on the roof and backlight frames of TR4-6. the strip is 600mm long	2	£10.68 Ex VAT @ 20% £8.90	Currently unavailable
AS10	750087 CLICK FOR MORE INFO	Plller, sill end, front R.H.	1	£8.16 Ex VAT @ 20% £6.80
AS10	750086 CLICK FOR MORE INFO	Plller, sill end, front L.H.	1	£8.16 Ex VAT @ 20% £6.80
AS11	750048 CLICK FOR MORE INFO	Filler, sill end, rear R.H.	1	£5.35 Ex VAT @ 20% £4.46
AS11	750047 CLICK FOR MORE INFO	Filler, sill end, rear L.H.	1	£5.33 Ex VAT @ 20% £4.44
AS11A	619395 CLICK FOR MORE INFO	Plate, packing; 'A' post mounting, sill brackets, front Revington TR information: These steel shims are used where additional packing between chassis and body is needed at the A post of TR2-6 and at the B post TR2-4 to get door gaps correct. We also have second hand... READ MORE This item has a secondhand part available - see below	as req'd	£4.49 Ex VAT @ 20% £3.74	Currently unavailable
	619395SH CLICK FOR MORE INFO	Second Hand Shim. Steel, square 4 holes between body and chassis TR2-6 Revington TR information: Second Hand Steel Shim. These steel shims are used where additional packing between chassis and body is needed at the A post of TR2-6 and at the B post TR2-4 to get door gaps correct. We... READ MORE	as req'd	£3.29 Ex VAT @ 20% £2.74	Currently unavailable
AS12	850276 CLICK FOR MORE INFO	Post 'B' assembly R.H. Revington TR information: TR4-4A complete B-Posts, part numbers 850275 and 850276 are available as separate front and back parts as well as a complete assembly. If preferred please order both front and back parts listed below to make a... READ MORE	1	£200.10 Ex VAT @ 20% £166.75	Currently unavailable
AS13	850275 CLICK FOR MORE INFO	Post 'B' assembly L.H. Revington TR information: TR4-4A complete B-Posts, part numbers 850275 and 850276 are available as separate front and back parts as well as a complete assembly. If preferred please order both front and back parts listed below to make a... READ MORE	1	£200.10 Ex VAT @ 20% £166.75	Currently unavailable
AS13A	611572 CLICK FOR MORE INFO	Reinforcement, sill to 'B' post R.H. This item has been superceded by 611571 - see below	1
	611571 CLICK FOR MORE INFO	Reinforcement, sill to 'B' post L H Revington TR information: Sill to 'B' post Reinforcement Left hand and Right Hand for TR4, 4A. This 'top hat' section shaped plate along with flat plate 611570 is welded to the sill and the 'B' post on the seam... READ MORE	1	£10.43 Ex VAT @ 20% £8.69	Currently unavailable
AS14	611571 CLICK FOR MORE INFO	Reinforcement, sill to 'B' post L H Revington TR information: Sill to 'B' post Reinforcement Left hand and Right Hand for TR4, 4A. This 'top hat' section shaped plate along with flat plate 611570 is welded to the sill and the 'B' post on the seam... READ MORE	1	£10.43 Ex VAT @ 20% £8.69	Currently unavailable
AS15	611570 CLICK FOR MORE INFO	Gusset, sill to 'B' post Revington TR information: Sill to 'B' post Strengthener flat plate Left hand and Right Hand for TR4, 4A. This flat triangular shaped plate along with its stiffener 611571 or 611572 is welded to the sill and the 'B' post... READ MORE	2	£15.08 Ex VAT @ 20% £12.57
AS15A	619396 CLICK FOR MORE INFO	Plate, packing; 'B' post mounting, sill brackets, front Revington TR information: These steel shims are used where additional packing between chassis and body is needed at the B post TR4A-6 to get door gaps correct. We also have second hand parts and if you want posh, powder... READ MORE	as req'd	£3.62 Ex VAT @ 20% £3.02	Currently unavailable
AS16	850394 CLICK FOR MORE INFO	Panel, rear, wheelarch R.H. Revington TR information: In the event that this wheelarch is unavailable TR6 part 815958 can be used. The only difference is that the TR6 wheel arch does not have a nut welded into the bump stop bracket, which in... READ MORE	I	£408.58 Ex VAT @ 20% £340.48	Currently unavailable
AS17	850393 CLICK FOR MORE INFO	Panel, rear, wheelarch L.H. Revington TR information: In the event that this wheelarch is unavailable TR6 part 815957 can be used. The only difference is that the TR6 wheel arch does not have a nut welded into the bump stop bracket, which in... READ MORE	1	£408.58 Ex VAT @ 20% £340.48	Currently unavailable
ASI8	850121 CLICK FOR MORE INFO	Panel, closing, rear wheelarch R.H. Revington TR information: Call for price and availability	1	£416.66 Ex VAT @ 20% £347.22	Currently unavailable
AS19	850120 CLICK FOR MORE INFO	Panel, closing, rear wheelarch L.H. Revington TR information: Call for availabilty. Not currently available	1	£416.66 Ex VAT @ 20% £347.22	Currently unavailable
AS19A	850429 CLICK FOR MORE INFO	Housing, rear lamp, and dosing pocket assembly R.H.	1	£109.76 Ex VAT @ 20% £91.47
AS20	850428 CLICK FOR MORE INFO	Housing, rear lamp, and dosing pocket assembly L.H.	1	£109.76 Ex VAT @ 20% £91.47
AS21	650166 CLICK FOR MORE INFO	Bracket, support, tank to wheelarch R.H. Revington TR information: No longer available, please use 650165SH and 650166SH Consider also second hand part 650166SH. This item has a secondhand part available - see below	1	£53.95 Ex VAT @ 20% £44.96
	650166SH	econd Hand BKT TANK SUPPORT TR4-6	1	£32.38 Ex VAT @ 20% £26.98
AS22	650165 CLICK FOR MORE INFO	Bracket, support, tank to wheelarch L.H. Revington TR information: No longer available, please use 650165SH and 650166SH Consider also second hand part 650165SH. This item has a secondhand part available - see below	1		No longer available
	650165SH	Second Hand BKT TANK SUPPORT TR4-6	1	£32.38 Ex VAT @ 20% £26.98
AS22A	650294 CLICK FOR MORE INFO	Bracket, side and tank millboard support	4	£12.01 Ex VAT @ 20% £10.01	Currently unavailable
AS22B	750175 CLICK FOR MORE INFO	Support, squab side, rear Revington TR information: TR4, 4A, 250, 5, 6 Vertical Tank Board Angled Support welded to the triangular Gusset Panel and rear wheel arch. The same part is used on the left and the right. Several of the gusset and... READ MORE This item has a secondhand part available - see below	2	£17.02 Ex VAT @ 20% £14.18	Currently unavailable
	750175SH CLICK FOR MORE INFO	Second Hand BKT.SUPPORT SQUAB SIDE REAR TR4/6 Revington TR information: TR4, 4A, 250, 5, 6 Aluminium Vertical Tank Board Angled Support welded to the triangular Gusset Panel and rear wheel arch. The same part is used on the left and the right. Several of the gusset... READ MORE	2	£9.77 Ex VAT @ 20% £8.14
AS22C	708272 CLICK FOR MORE INFO	Bracket assembly, bump stop R.H.	1		No longer available
AS22D	708271 CLICK FOR MORE INFO	Bracket assembly, bump stop L.H.	1		No longer available
AS22E	612228 CLICK FOR MORE INFO	Plate, tapped, hood pivot attachment Triumph Catalogue Remarks: Fitted up to Comm. No.	1	£38.36 Ex VAT @ 20% £31.97
AS22F	613938	Plate, cover retaining R.H. Triumph Catalogue Remarks: Fitted up to Comm. No.	1		No longer available
AS22G	613937	Plate, cover retaining L.H. Triumph Catalogue Remarks: Fitted up to Comm. No.	1		No longer available
AS22H	619592 CLICK FOR MORE INFO	Tapped plate Hood pivot attachment Triumph Catalogue Remarks: Fitted from Comm. No. and future Revington TR information: Tapped Plate part number 619592 and Retainer 616058 are not available separately. They are however available as part of tonneau forward filler panels 708093 and 708094 from which they can be removed if they are required... READ MORE	2		No longer available
AS22I	616058 CLICK FOR MORE INFO	Retainer, for tapped plate Hood pivot attachment Triumph Catalogue Remarks: Fitted from Comm. No. and future Revington TR information: Tapped Plate part number 619592 and Retainer 616058 are not available separately. They are however available as part of tonneau forward filler panels 708093 and 708094 from which they can be removed if they are required... READ MORE	2		No longer available
AS23	850476 CLICK FOR MORE INFO	REAR WING ASSEMBLY R.H. Triumph Catalogue Remarks: Includes stiffener 850328 Revington TR information: Steel TR4, 4A, 250 and 5 Rear Outer Wing right hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (250 and 5) have been omitted and... READ MORE	1	£971.87 Ex VAT @ 20% £809.89	Currently unavailable
AS23A	850328 CLICK FOR MORE INFO	Panel, stiffening, rear wing to B post LH Revington TR information: TR4-6 Panel stiffening, rear wing to B post. Part of rear wing. Left Hand.	1	£76.63 Ex VAT @ 20% £63.86	Currently unavailable
AS24	850475 CLICK FOR MORE INFO	REAR WING ASSEMBLY L.H. Triumph Catalogue Remarks: Includes stiffener 850329 Revington TR information: Steel TR4, 4A, 250 and 5 Rear Outer Wing left hand. To enable this panel to be universally used on all TR4-5 models, the piercings for the wing lamp (250 and 5) have been omitted and... READ MORE	1	£879.18 Ex VAT @ 20% £732.65	Currently unavailable
AS24A	850329 CLICK FOR MORE INFO	Panel, stiffening, rear wing to B post rH Revington TR information: TR4-6 Panel stiffener, rear wing to B post. Part of rear wing. right Hand.	1	£76.63 Ex VAT @ 20% £63.86	Currently unavailable
AS24B	HU0706P CLICK FOR MORE INFO	Screw, set Rear wing to 'B' post attachment This item has been superceded by HU706P - see below	6
	HU706P	SCREW 1/4UNF x 3/4 CSK POINTED	6	£2.41 Ex VAT @ 20% £2.01
AS24C	WM0057 CLICK FOR MORE INFO	Washer, plain Rear wing to 'B' post attachment This item has been superceded by WP10412057 - see below	6
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	6	£0.61 Ex VAT @ 20% £0.51
AS24D	WQ0307 CLICK FOR MORE INFO	Washer, lock Rear wing to 'B' post attachment This item has been superceded by WS104070643 - see below	6
	WS104070643	WASHER SPRING 1/4" RECT SECTION	6	£0.20 Ex VAT @ 20% £0.17
AS24E	UL2705 CLICK FOR MORE INFO	Screw, acme Rear wing to tonneau and deck Revington TR information: Acme Hex headed Screw predominantly used for attaching TR4-6 outer wings in conjunction with spire nut FJ24074. The countersunk screw used on TR4-5 front wings is 650307. We have many usable original second hand parts available.... READ MORE This item has a secondhand part available - see below	16	£0.73 Ex VAT @ 20% £0.61	Currently unavailable
	UL2705SH	Second Hand ACME SCREW	16	£0.35 Ex VAT @ 20% £0.29
AS24F	WM0057 CLICK FOR MORE INFO	Washer, plain Rear wing to tonneau and deck This item has been superceded by WP10412057 - see below	16
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	16	£0.61 Ex VAT @ 20% £0.51
AS24G	FA3060/9 CLICK FOR MORE INFO	Nut, spire Rear wing to tonneau and deck Triumph Catalogue Remarks: Alt. to FA3058 This item has been superceded by FJ24074 - see below	16
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	16	£0.97 Ex VAT @ 20% £0.81
AS24H	FA3058 CLICK FOR MORE INFO	Nut, fix Rear wing to tonneau and deck Triumph Catalogue Remarks: Alt. to FA3060/9 This item has been superceded by FJ24074 - see below	16
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	16	£0.97 Ex VAT @ 20% £0.81
AS24I	UL2705 CLICK FOR MORE INFO	Screw, acme Wing to closing panel and rear valance Revington TR information: Acme Hex headed Screw predominantly used for attaching TR4-6 outer wings in conjunction with spire nut FJ24074. The countersunk screw used on TR4-5 front wings is 650307. We have many usable original second hand parts available.... READ MORE This item has a secondhand part available - see below	2	£0.73 Ex VAT @ 20% £0.61	Currently unavailable
	UL2705SH	Second Hand ACME SCREW	2	£0.35 Ex VAT @ 20% £0.29
AS24J	WM00S7	Washer, plain Wing to closing panel and rear valance	2		No longer available
AS24K	FA3060/9 CLICK FOR MORE INFO	Nut, spire Wing to closing panel and rear valance Triumph Catalogue Remarks: Alt. to FA3058 This item has been superceded by FJ24074 - see below	2
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	2	£0.97 Ex VAT @ 20% £0.81
AS24L	FA305B	Nut, fIx Wing to closing panel and rear valance Triumph Catalogue Remarks: Alt. to FA3060/9	2		No longer available
AS24M	UL2705 CLICK FOR MORE INFO	Screw, acme Wing to rear valance Revington TR information: Acme Hex headed Screw predominantly used for attaching TR4-6 outer wings in conjunction with spire nut FJ24074. The countersunk screw used on TR4-5 front wings is 650307. We have many usable original second hand parts available.... READ MORE This item has a secondhand part available - see below	4	£0.73 Ex VAT @ 20% £0.61	Currently unavailable
	UL2705SH	Second Hand ACME SCREW	4	£0.35 Ex VAT @ 20% £0.29
AS24N	WM0057 CLICK FOR MORE INFO	Washer, plain Wing to rear valance This item has been superceded by WP10412057 - see below	4
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	4	£0.61 Ex VAT @ 20% £0.51
AS24O	FA3060/9 CLICK FOR MORE INFO	Nut, spire Wing to rear valance Triumph Catalogue Remarks: Alt. to FA3058 This item has been superceded by FJ24074 - see below	4
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	4	£0.97 Ex VAT @ 20% £0.81
AS24P	FA3058 CLICK FOR MORE INFO	Nut, fix Wing to rear valance Triumph Catalogue Remarks: Alt. to FA3060/9 This item has been superceded by FJ24074 - see below	4
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	4	£0.97 Ex VAT @ 20% £0.81
AS24Q	UL2705 CLICK FOR MORE INFO	Screw, acme Wing to sill panel Revington TR information: Acme Hex headed Screw predominantly used for attaching TR4-6 outer wings in conjunction with spire nut FJ24074. The countersunk screw used on TR4-5 front wings is 650307. We have many usable original second hand parts available.... READ MORE This item has a secondhand part available - see below	2	£0.73 Ex VAT @ 20% £0.61	Currently unavailable
	UL2705SH	Second Hand ACME SCREW	2	£0.35 Ex VAT @ 20% £0.29
AS24R	WP0007 CLICK FOR MORE INFO	Washer, plain Wing to sill panel This item has been superceded by WP10408057 - see below	2
	WP10408057	WASHER PLAIN 1/4" x 1/2" x 0.057"	2		No longer available
AS24S	FA3060/9 CLICK FOR MORE INFO	Nut, spire Wing to sill panel Triumph Catalogue Remarks: Alt. to FA3058 This item has been superceded by FJ24074 - see below	2
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	2	£0.97 Ex VAT @ 20% £0.81
AS24T	FA3058 CLICK FOR MORE INFO	Nut, fix Wing to sill panel Triumph Catalogue Remarks: Alt. to FA3060/9 This item has been superceded by FJ24074 - see below	2
	FJ24074 CLICK FOR MORE INFO	WING CLIP (SPIRENUT) Revington TR information: Acme Spire Nut predominantly used for attaching TR4-6 outer wings in conjunction with Hex headed spire screws UL2705 and 650307, the countersunk screw used on TR4-5 front wings. We have many usable original second hand parts... READ MORE	2	£0.97 Ex VAT @ 20% £0.81
AS24U	608522 CLICK FOR MORE INFO	Clip, wing to lamp housing This item has been superceded by ANK5046A - see below	4
	ANK5046A	SEAT COVER CLIP	4	£0.65 Ex VAT @ 20% £0.54
AS24V	619587 CLICK FOR MORE INFO	Washer, on screws-for water excluding This item has been superceded by 626716 - see below	30
	626716 CLICK FOR MORE INFO	EVERSEAL WASHER REAR WING-B POST	30	£0.67 Ex VAT @ 20% £0.56
AS25	808776 CLICK FOR MORE INFO	REAR DECK ASSEMBLY Revington TR information: TR4A, 250, 5 Rear Deck Assembly incorporating two forward panels, a centre panel and two rear panels either side of the boot lid. Only available in separate parts. Originally the rear deck of a TR4, 4A,... READ MORE	1		No longer available
A526	850008 CLICK FOR MORE INFO	Tonneau side, upper R.H. Revington TR information: TR4, 4A, 250 and 5 Right Hand Rear Deck Panel, steel; the part of the rear deck that sits to the left of the boot lid. Originally the rear deck of a TR4, 4A, 5 and... READ MORE This item has a secondhand part available - see below	1	£295.51 Ex VAT @ 20% £246.26
	850008SH	Second Hand UPP TONNEAU SIDE RH TR4-5	1	£107.65 Ex VAT @ 20% £89.71
AS27	850007 CLICK FOR MORE INFO	Tonneau side, upper L.H. Revington TR information: TR4, 4A, 250 and 5 Left Hand Rear Deck Panel, steel; the part of the rear deck that sits to the left of the boot lid. Originally the rear deck of a TR4, 4A, 5 and... READ MORE This item has a secondhand part available - see below	1	£295.51 Ex VAT @ 20% £246.26
	850007SH	Second Hand UPP TONNEAU SIDE LH TR4-5	1	£271.60 Ex VAT @ 20% £226.33	Currently unavailable
AS28	612487 CLICK FOR MORE INFO	Bracket, catch, trunk lid stay Revington TR information: Support bracket welded to inner wing and rear tonneau panel to which the boot lid stay is attached. Not available new. Use 612487SH	1		No longer available
AS28A	708094 CLICK FOR MORE INFO	Gusset, 'B' Post, top R.H. Revington TR information: TR4-6 Right Hand B-post top gusset Panel (to which hood frame is attached). This little panel fits between the forward deck panel and the rear inner wing and contains a tapped plate to which the hood... READ MORE This item has a secondhand part available - see below	1	£58.78 Ex VAT @ 20% £48.98	Currently unavailable
	708094SH	Second Hand DECK FWD FILLER RH TR4-6	1	£32.78 Ex VAT @ 20% £27.32
A529	708093 CLICK FOR MORE INFO	Gusset, 'B' Post, top L.H. Revington TR information: TR4-6 Left Hand B-post top gusset Panel (to which hood frame is attached). This little panel fits between the forward deck panel and the rear inner wing and contains a tapped plate to which the hood... READ MORE This item has a secondhand part available - see below	1	£58.78 Ex VAT @ 20% £48.98
	708093SH	Second Hand DECK FWD FILLER LH TR4-6	1	£32.78 Ex VAT @ 20% £27.32
A530	850379 CLICK FOR MORE INFO	REAR VALANCE ASSEMBLY Revington TR information: VALENCE REAR. TR4/5	1	£687.02 Ex VAT @ 20% £572.52	Currently unavailable
AS30A	904006 CLICK FOR MORE INFO	FLOOR DETAILS Revington TR information: TR4A-6 RH floor panel (also use for TR4).		£304.60 Ex VAT @ 20% £253.83	Currently unavailable
AS31	904006 CLICK FOR MORE INFO	Floor, panel, main R.H. Revington TR information: TR4A-6 RH floor panel (also use for TR4).	1	£304.60 Ex VAT @ 20% £253.83	Currently unavailable
AS32	904005 CLICK FOR MORE INFO	Floor, panel, main L.H. Revington TR information: TR4A-6 LH floor panel (also use for TR4).	1	£304.60 Ex VAT @ 20% £253.83
AS33	750027 CLICK FOR MORE INFO	Bracket, sill mounting, front	4	£19.85 Ex VAT @ 20% £16.54
AS34	616005 CLICK FOR MORE INFO	Bracket, sill mounting, rear R.H.	1	£14.72 Ex VAT @ 20% £12.27
AS34A	616004 CLICK FOR MORE INFO	Bracket, sill mounting, rear L.H.	1	£14.72 Ex VAT @ 20% £12.27	Currently unavailable
AS35	808230 CLICK FOR MORE INFO	Tunnel, propshaft, assembly Revington TR information: Rear transmission Tunnel TR4-6 on which the handbrake is mounted(TR4A-6 cars only). Consider second hand part 808230SH This item has a secondhand part available - see below	1	£296.81 Ex VAT @ 20% £247.34	Currently unavailable
	808230SH	Second Hand HANDBRAKE TUNNEL 4-6 Revington TR information: Second Hand part cut from an original body shell.	1	£151.24 Ex VAT @ 20% £126.03	Currently unavailable
AS35A	615984 CLICK FOR MORE INFO	Washer assembly, tunnel reinforcement	2		No longer available
AS36	121765 CLICK FOR MORE INFO	Bracket, fulcrum, handbrake lever Revington TR information: Bracket supporting handbrake TR4A-6. No Longer available new, consider second hand part 121765SH This item has a secondhand part available - see below	1		No longer available
	121765SH CLICK FOR MORE INFO	Second Hand BRACKET H/B LEVER	1	£86.40 Ex VAT @ 20% £72.00
AS37	805686 CLICK FOR MORE INFO	Cover assembly, gearbox This item has been superceded by 713569FG - see below	1
	713569FG CLICK FOR MORE INFO	GEARBOX TUNNEL FIBREGLASS TR4-6 Revington TR information: TR4-6 fibreglass transmission tunnel. You may need a fitting kit 713569FK (consisting of all the screws and plates needed to fit the gearbox cover) and a seal kit 713569GS. TR6 gearbox cover assemblies in particular have... READ MORE	1	£167.44 Ex VAT @ 20% £139.53
AS37A	809272 CLICK FOR MORE INFO	Cover, gearbox Triumph Catalogue Remarks: Only required when Overdrive is fitted This item has been superceded by 713569FG - see below	1
	713569FG CLICK FOR MORE INFO	GEARBOX TUNNEL FIBREGLASS TR4-6 Revington TR information: TR4-6 fibreglass transmission tunnel. You may need a fitting kit 713569FK (consisting of all the screws and plates needed to fit the gearbox cover) and a seal kit 713569GS. TR6 gearbox cover assemblies in particular have... READ MORE	1	£167.44 Ex VAT @ 20% £139.53
AS37B	809271 CLICK FOR MORE INFO	Plate, cover, speedo cable access Triumph Catalogue Remarks: Only required when Overdrive is fitted Revington TR information: Cover Plate right hand side, speedometer cable access. The original part was a steel pressing, we supply a handmade aluminium part, not cheap but handmade is never cheap! 809271FG is an economical fibreglass option. Consider also... READ MORE	1	£105.86 Ex VAT @ 20% £88.22	Currently unavailable
AS37C	YB1404 CLICK FOR MORE INFO	Screw, Speedo cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted This item has been superceded by SS1080421 - see below	4
	SS1080421	SCREW ST No 8x1/2" PAN POZI BZP	4	£0.47 Ex VAT @ 20% £0.39
AS37D	WP0004 CLICK FOR MORE INFO	Washer, plain Speedo cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted	4	£0.42 Ex VAT @ 20% £0.35
AS37E	FU2569/4 CLICK FOR MORE INFO	Nut, fix Speedo cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted This item has been superceded by RTR5089 - see below	4
	RTR5089 CLICK FOR MORE INFO	NUT SPIRE No8 U TYPE 16 X 11MM	4	£0.43 Ex VAT @ 20% £0.36
AS37F	705851 CLICK FOR MORE INFO	Plate, cover, solenoid access Triumph Catalogue Remarks: Only required when Overdrive is fitted Revington TR information: consider second hand original part 705851SH. This item has a secondhand part available - see below	1	£30.36 Ex VAT @ 20% £25.30	Currently unavailable
	705851SH	PLATE SOLENIOD ACCESS Triumph Catalogue Remarks: Only required when Overdrive is fitted	1	£10.88 Ex VAT @ 20% £9.07
AS37G	YBI404	Screw Solenoid cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted	3		No longer available
AS37H	WP0004 CLICK FOR MORE INFO	Washer, plain Solenoid cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted	3	£0.42 Ex VAT @ 20% £0.35
AS37I	FU2578/4 CLICK FOR MORE INFO	Nut, fix Solenoid cover plate to gearbox cover Triumph Catalogue Remarks: Only required when Overdrive is fitted This item has been superceded by RTR5089 - see below	3
	RTR5089 CLICK FOR MORE INFO	NUT SPIRE No8 U TYPE 16 X 11MM	3	£0.43 Ex VAT @ 20% £0.36
AS37J	709329 CLICK FOR MORE INFO	Gear Lever GROMMET lower Revington TR information: Upper grommet is linked below.	1	£17.30 Ex VAT @ 20% £14.42
AS37K	709328 CLICK FOR MORE INFO	Gear Lever GROMMET upper Revington TR information: This is the single grommet without the upper vinyl trim. 631881 does include both items if required.	1	£8.28 Ex VAT @ 20% £6.90	Currently unavailable
AS38	805674 CLICK FOR MORE INFO	Seal, rubber, cover to floor R.H. This item has been superceded by RTR5304 - see below	1
	RTR5304	RUBBER C SEC SOFT 30mm x 20mm x 3mm x2 Metres long	1	£18.01 Ex VAT @ 20% £15.01
A539	805673 CLICK FOR MORE INFO	Seal, rubber, cover to floor L.H. This item has been superceded by RTR5304 - see below	1
	RTR5304	RUBBER C SEC SOFT 30mm x 20mm x 3mm x2 Metres long	1	£18.01 Ex VAT @ 20% £15.01
AS40	805684 CLICK FOR MORE INFO	Seal, rubber Cover to bulkhead centre panel This item has been superceded by RTR5303 - see below	1
	RTR5303	RUBBER STRIP SOFT "P"SEC. 1.3M	1		No longer available
AS41	705758 CLICK FOR MORE INFO	Seal, rubber Cover to propshaft tunnel This item has been superceded by RTR5303 - see below	1
	RTR5303	RUBBER STRIP SOFT "P"SEC. 1.3M	1		No longer available
AS41A	HU0706 CLICK FOR MORE INFO	Screw, set Gearbox cover to floor This item has been superceded by SH604061 - see below	10
	SH604061 CLICK FOR MORE INFO	SCREW 1/4 UNF X 3/4 INCH	10	£0.38 Ex VAT @ 20% £0.32
AS31B	612286 CLICK FOR MORE INFO	Washer, plain Gearbox cover to floor Revington TR information: This item has a secondhand part available - see below	9	£1.82 Ex VAT @ 20% £1.52
	612286SH	PLATE WASHER	9	£1.22 Ex VAT @ 20% £1.02	Currently unavailable
AS31C	WM0057 CLICK FOR MORE INFO	Washer, plain Gearbox cover to floor This item has been superceded by WP10412057 - see below	1
	WP10412057 CLICK FOR MORE INFO	WASHER PLAIN 1/4" x 3/4" x 0.057"	1	£0.61 Ex VAT @ 20% £0.51
AS31D	HU0706 CLICK FOR MORE INFO	Screw, set Gearbox cover to bulkhead centre panel This item has been superceded by SH604061 - see below	7
	SH604061 CLICK FOR MORE INFO	SCREW 1/4 UNF X 3/4 INCH	7	£0.38 Ex VAT @ 20% £0.32
AS31E	WM00S7	Washer, plain Gearbox cover to bulkhead centre panel	7		No longer available
AS31F	FQ3405 CLICK FOR MORE INFO	Nut, captive, and retainer Gearbox cover to bulkhead centre panel This item has been superceded by 518454X - see below	7
	518454X	CAGED CLIP NUT-1/4	7	£2.65 Ex VAT @ 20% £2.21
AS42	850397 CLICK FOR MORE INFO	Heelboard	1	£137.56 Ex VAT @ 20% £114.63
AS43	566601 CLICK FOR MORE INFO	Seat pan assembly, occasional seat This item has been superceded by 910065 - see below	1
	910065 CLICK FOR MORE INFO	REAR PASS FLOOR 4-6 Revington TR information: Consider bracket under the floor part number 950008 (TR250, 5 and 6 only) and aluminium part 910065AL	1	£442.25 Ex VAT @ 20% £368.54	Currently unavailable
AS43A	618376 CLICK FOR MORE INFO	Bracket, support, tunnel cover Revington TR information: No longer available	1		No longer available
AS43B	650272 CLICK FOR MORE INFO	Bracket, support, squab, bottom R.H. Revington TR information: TR4, 4A, 250, 5, 6 Horizontal Tank Board Angled Support Right hand welded to the triangular Gusset Panel and rear floor. Several of the gusset and support panels are in stock second hand, please enquire for... READ MORE	1	£1.72 Ex VAT @ 20% £1.43
AS44	650271 CLICK FOR MORE INFO	Bracket, support, squab, bottom L.H. Revington TR information: TR4, 4A, 250, 5, 6 Horizontal Tank Board Angled Support Left Hand welded to the triangular Gusset Panel and rear floor. Several of the gusset and support panels are in stock second hand, please enquire for... READ MORE	1	£1.72 Ex VAT @ 20% £1.43	Currently unavailable
AS44A	650424	Bracket, support, centre, rear squab	1		No longer available
AS44B	612288 CLICK FOR MORE INFO	Plate assembly, petrol tank fixing reinforcement	2	£0.48 Ex VAT @ 20% £0.40	Currently unavailable
AS45	850471 CLICK FOR MORE INFO	Floor panel assembly. side rear R.H.	1	£290.02 Ex VAT @ 20% £241.68	Currently unavailable
AS46	850470 CLICK FOR MORE INFO	Floor panel assembly. side rear L.H.	1	£224.26 Ex VAT @ 20% £186.88	Currently unavailable
AS47	750022 CLICK FOR MORE INFO	Bracket, mounting, rear	2	£75.68 Ex VAT @ 20% £63.07
AS48	850387 CLICK FOR MORE INFO	Pan, spare wheel, assembly	1	£372.97 Ex VAT @ 20% £310.81	Currently unavailable

Special Offer

AMMETER -60->+60 BLACK RIM

Chassis and bodywork

TR4A Plate AS - BODY AND FITTINGS: FLOORS REAR WINGS INNER AND OUTER AND REAR BODY PANELS.

BODY SIDE DETAILS

850344

850343

807422

Post 'A', outer, assembly R.H.

813101

807421

Post 'A', outer, assembly L.H.

XKC510

603344

556141

Rivet, spring guide attachment

RP1122411

564807

850122

850282

850281

750163

750087

750086

750048

750047

619395

Plate, packing; 'A' post mounting, sill brackets, front

619395SH

850276

850275

611572

Reinforcement, sill to 'B' post R.H.

611571

611571

611570

619396

850394

850393

850121

850120

850429

850428

650166

Bracket, support, tank to wheelarch R.H.

650166SH

650165

Bracket, support, tank to wheelarch L.H.

650165SH

650294

750175

Support, squab side, rear

750175SH

708272

708271

612228

613938

Plate, cover retaining R.H.

613937

Plate, cover retaining L.H.

619592

616058

850476

850328

850475

850329

HU0706P

Screw, set Rear wing to 'B' post attachment

HU706P

WM0057

Washer, plain Rear wing to 'B' post attachment

WP10412057

WQ0307

Washer, lock Rear wing to 'B' post attachment

WS104070643

UL2705

Screw, acme Rear wing to tonneau and deck

UL2705SH

WM0057

Washer, plain Rear wing to tonneau and deck
