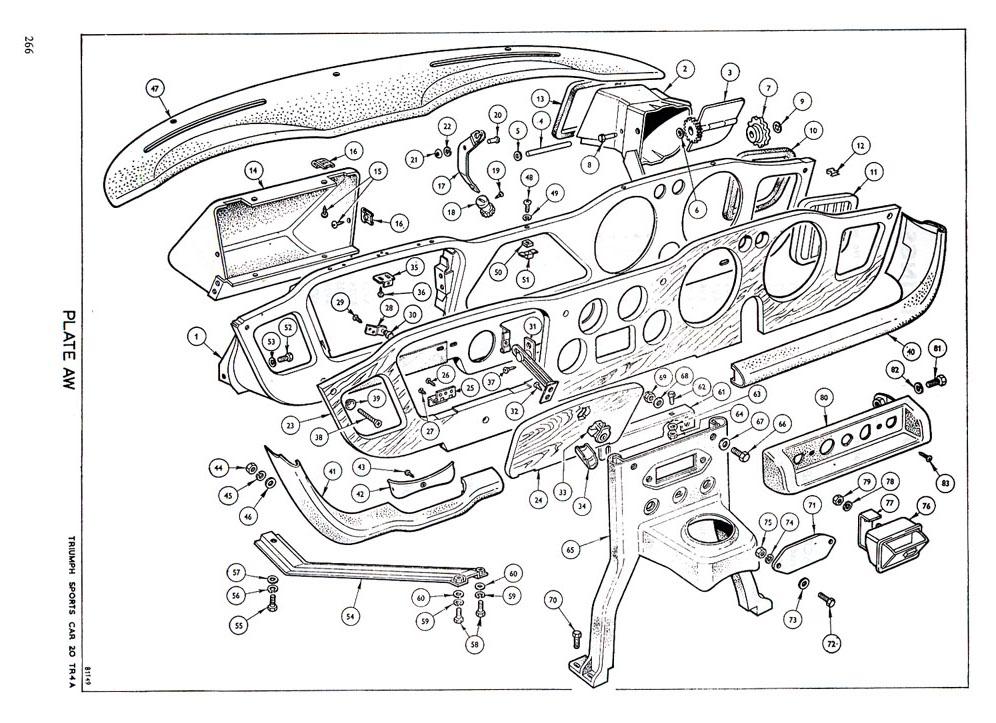

TR4A Plate AW - BODY AND FITTINGS: METAL AND VENEERED FACIA PANELS, CUBBY BOX AND SWITCH PLINTH.
<< Return to Triumph Catalogue Plate ListPlate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
AW1 | 903997 |
METAL FACIA PANEL ASSEMBLY R.H.S. |
1 |
£572.02 Ex VAT @ 20% |
||
AW1A | 903996 |
METAL FACIA PANEL ASSEMBLY L.H.S. |
1 | |||
AW1B | 616257 |
Bracket, check link retainer. R.H.S. |
1 | |||
AW1C | 616256 |
Bracket, check link retainer. L.H.S. |
1 |
£5.64 Ex VAT @ 20% |
||
AW2 | 705217 |
Duct assembly, fresh air control R.H.Revington TR information: Consider original second hand part number 705217SH. . |
1 | |||
AW2A | 705216 |
Duct assembly, fresh air control L.H.Revington TR information: Consider original second hand part number 705216SH. . |
1 | |||
AW3 | 610415 |
Valve, air control, assembly R.H. |
1 | |||
AW3A | 610414 |
Valve, air control, assembly L.H. |
1 | |||
AW4 | 610416 |
Spindle, air control valve |
2 | |||
AW5 | WP0177 |
Washer, plain Retaining spindle |
2 | |||
AW6 | FX3203 |
Fix, spire Retaining spindleRevington TR information: Call for price and availability |
4 |
£0.71 Ex VAT @ 20% |
||
AW7 | 610418 |
Knob, control valve |
2 | |||
AW8 | 610513 |
Pin, pivot, control knob |
2 | |||
AW9 | 509872 |
Fix, spire, securing pivot pin |
2 | |||
AW10 | 610777 |
Seal, duct, fresh air control |
2 | |||
AW10A | YA0302 |
Screw, air control facia bracket to facia. |
2 | |||
AW10B | YA0303 |
Screw Duct assembly to facia bracketThis item has been superceded by SS1060321 - see below |
4 | |||
SS1060321 |
SCREW ST No 6x3/8" PAN POZI BZP |
4 |
£0.55 Ex VAT @ 20% |
|||
AW10C | FN2043 |
Nut, spire Duct assembly to facia bracketThis item has been superceded by PFS103 - see below |
4 | |||
PFS103 |
SPIRE NUT 3/32 |
4 |
£0.65 Ex VAT @ 20% |
|||
AW11 | 705002 |
Grille, facia vent R.H.Revington TR information: Only available new in pairs, also available second hand. Press 'more' for details |
1 | |||
AW11A | 705001 |
Grille, facia vent L.H.Revington TR information: Only available new in pairs, also available second hand. Press 'more' for details |
1 | |||
AW12 | 613018 |
Clip, grille to faciaRevington TR information: Consider the part below. |
8 | |||
AW13 | 610639 |
Seal, fresh air control duct to plenum chamberRevington TR information: Not available new. Use second hand part 610639SH. |
2 | |||
AW14 | 805135 |
Box, tubby, assemblyRevington TR information: Glove box, fibreboard internal casing, listed for both left hand drive and right hand drive TR4-5. This part is not available, please use universal part 815746-1 or plastic version 815747SAP. |
2 | |||
AW15 | YA0303 |
Screw Cubby box to faciaThis item has been superceded by SS1060321 - see below |
6 | |||
SS1060321 |
SCREW ST No 6x3/8" PAN POZI BZP |
6 |
£0.55 Ex VAT @ 20% |
|||
AW16 | FJ2463 |
Nut, spire Cubby box to faciaThis item has been superceded by RTR5093 - see below |
6 | |||
RTR5093 |
NUT SPIRE No6 J TYPE 16 X 11MM |
6 |
£0.58 Ex VAT @ 20% |
|||
AW17 | 616333 |
Lever, vent, assemblyThis item has been superceded by 626687 - see below |
1 | |||
626687 |
LEVER VENT LID OPENINGRevington TR information: no longer available |
1 | ||||
AW18 | 601678 |
Knob, vent leverThis item has been superceded by 17H490 - see below |
1 | |||
17H490 |
KNOB VENT TR4-6Revington TR information: Secured with screw AB604023 |
1 |
£5.28 Ex VAT @ 20% |
|||
AW19 | YB1102 |
Screw, knob to leverThis item has been superceded by SS1040222 - see below |
1 | |||
SS1040222 |
SCREW ST No 4 x 1/4" Pozidrive pan head, chrome |
1 |
£1.08 Ex VAT @ 20% |
|||
AW20 | RR0606 |
Rivet Lever assembly to facia panelThis item has been superceded by RR606 - see below |
1 | |||
RR606 |
RIVET *NCA*Revington TR information: No longer available |
1 | ||||
AW21 | FH3155 |
Retainer, truarc Lever assembly to facia panel |
1 | |||
AW22 | WD0157 |
Washer, spring Lever assembly to facia panelThis item has been superceded by WT10408 - see below |
1 | |||
WT10408 |
WASHER THACKERY 1/4 INCH |
1 |
£0.40 Ex VAT @ 20% |
|||
AW22A | 618388 |
VENEERED FACIA PANEL ASSEMBLY L.H.S.Triumph Catalogue Remarks: France only |
1 | |||
AW23 | 904154 |
VENEERED FACIA PANEL ASSEMBLY R.H.S.This item has been superceded by 904154BG - see below |
1 | |||
904154BG |
DASHBOARD WALNUT BURR GL. TR4A RHD |
1 |
£520.66 Ex VAT @ 20% |
|||
AW23A | 904153 |
VENEERED FACIA PANEL ASSEMBLY L.H.S.Revington TR information: TR4A LHD. Gloss walnut. |
1 |
£520.66 Ex VAT @ 20% |
||
AW24 | 706906 |
Lid, cubby box |
1 | |||
AW25 | 611565 |
Hinge assembly, tubby box |
2 |
£23.00 Ex VAT @ 20% |
||
AW26 | 511669 |
Screw, wood Hinge to lid and faciaThis item has been superceded by AB606039 - see below |
10 | |||
AB606039 |
SCREW No. 6 x 3/8" |
10 |
£0.66 Ex VAT @ 20% |
|||
AW27 | 511668 |
Screw, wood Hinge to lid and faciaThis item has been superceded by AB606039 - see below |
4 | |||
AB606039 |
SCREW No. 6 x 3/8" |
4 |
£0.66 Ex VAT @ 20% |
|||
AW28 | 612988 |
Bracket, tubby box lid buffer |
2 | |||
AW29 | TW0402 |
Screw, wood, bracket to faciaThis item has been superceded by AB606039 - see below |
4 | |||
AB606039 |
SCREW No. 6 x 3/8" |
4 |
£0.66 Ex VAT @ 20% |
|||
AW30 | 613863 |
Buffer, fitted in bracketRevington TR information: no longer available. Consider second hand part 613863SH |
2 |
£2.08 Ex VAT @ 20% |
||
AW31 | 609745 |
Link, check, tubby box lidThis item has been superceded by 609745SS - see below |
1 | |||
609745SS |
LINK STAINLESS STEEL |
1 |
£32.23 Ex VAT @ 20% |
|||
AW32 | 511670 |
Screw, wood, link to tubby box lidThis item has been superceded by 510273 - see below |
2 | |||
510273 |
CHROME SCREW510273 |
2 |
£1.22 Ex VAT @ 20% |
|||
AW33 | 611584 |
Lock, tubby box AlternativeRevington TR information: fitted TR4- TR6 to CC/CP75000 631404 is later black part. |
1 |
£57.04 Ex VAT @ 20% |
||
AW33 | 612381 |
Lock, tubby box AlternativeThis item has been superceded by 611584 - see below |
1 | |||
611584 |
Lock, tubby box AlternativeRevington TR information: fitted TR4- TR6 to CC/CP75000 631404 is later black part. |
1 |
£57.04 Ex VAT @ 20% |
|||
AW34 | 609463 |
Pull, finger, tubby box lock |
1 | |||
AW35 | 616275 |
Bracket, striker, tubby box lock |
1 | |||
AW36 | YZ3303 |
Screw, striker bracket to faciaThis item has been superceded by AB606039 - see below |
2 | |||
AB606039 |
SCREW No. 6 x 3/8" |
2 |
£0.66 Ex VAT @ 20% |
|||
AW37 | 510995 |
Screw, check link to faciaThis item has been superceded by AD606033 - see below |
2 | |||
AD606033 |
TAP SCREW |
2 |
£0.40 Ex VAT @ 20% |
|||
AW38 | 511671 |
Screw Veneered facia panel to metal facia, panelThis item has been superceded by AD608103 - see below |
5 | |||
AD608103 |
SELF TAPPER NO8x1.25 CHR POZ CSK |
5 |
£0.89 Ex VAT @ 20% |
|||
AW39 | CD24153 |
Washer, cup Veneered facia panel to metal facia, panel |
5 |
£0.42 Ex VAT @ 20% |
||
AW40 | 808730 |
Pad, crash, assembly, Right Hand steering R.H.This item has been superceded by 812091 - see below |
1 | |||
812091 |
LOWER DASH PAD RH TR5-6Revington TR information: TR5- pre commission number 50,000 TR6 left hand lower dash pad RHD and LHD High quality part. This has a good vinyl cover and is not a part made from black expanded foam, Consider original second hand... READ MORE |
1 |
£190.04 Ex VAT @ 20% |
|||
AW41 | 808732 |
Pad, crash, assembly, Right Hand steering L.H.Revington TR information: TR4A passenger lower dash pad RHD. TR4 owners need to be aware of a minor problem with this part before purchasing. The parts fitted to the TR4 and TR4A are largely the same but the TR4... READ MORE |
1 |
£321.94 Ex VAT @ 20% |
||
AW41A | 808733 |
Pad, crash, assembly, Left Hand steering R.H.Revington TR information: TR4 owners need to be aware of a minor problem with this part before purchasing. The parts fitted to the TR4 and TR4A are largely the same but the TR4 part is slightly longer where it... READ MORE |
1 |
£127.02 Ex VAT @ 20% |
||
AW41B | 808729 |
Pad, crash, assembly, Left Hand steering L.H.This item has been superceded by 812081 - see below |
1 | |||
812081 |
LOWER DASH PAD LH TR5-6Revington TR information: TR5 to commission number CC/CP50,000 TR6 left hand lower dash pad RHD and LHD Consider original second hand part number 812081SH |
1 |
£141.84 Ex VAT @ 20% |
|||
AW42 | 611363 |
Finisher, fads crash panel |
1 | |||
AW43 | 509557 |
Screw, finisher attachmentThis item has been superceded by SS1080421 - see below |
3 | |||
SS1080421 |
SCREW ST No 8x1/2" PAN POZI BZP |
3 |
£0.47 Ex VAT @ 20% |
|||
AW44 | HN2008 |
Nut Crash pads to facia panelThis item has been superceded by NP605081 - see below |
8 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
8 |
£0.17 Ex VAT @ 20% |
|||
AW45 | WQ0308 |
Washer, lock Crash pads to facia panelThis item has been superceded by WS105090853 - see below |
8 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
8 |
£0.25 Ex VAT @ 20% |
|||
AW46 | WP0113 |
Washer, plain Crash pads to facia panelThis item has been superceded by WP10312020 - see below |
8 | |||
WP10312020 |
WASHER PLAIN 3/16" x 3/4" x 0.020" |
8 |
£0.24 Ex VAT @ 20% |
|||
AW47 | 904115 |
Pad, crash, scuttle topRevington TR information: This is a high quality product with a vinyl cover and a flap that hides the gap when fitting. For a lower priced product see the products below |
1 |
£412.82 Ex VAT @ 20% |
||
FACIA PANEL ATTACHMENT DETAILS |
||||||
AW48 | PX0704 |
Screw set Facia to scuttle railThis item has been superceded by SE604041 - see below |
5 | |||
SE604041 |
SCREW (P-10) |
5 |
£0.66 Ex VAT @ 20% |
|||
AW49 | WL0207 |
Washer, lock Facia to scuttle railThis item has been superceded by WS104070643 - see below |
5 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
5 |
£0.20 Ex VAT @ 20% |
|||
AW50 | NQ2707 |
Nut, square Facia to scuttle railThis item has been superceded by CN1 - see below |
5 | |||
CN1 |
NUT for CAGE 1/4 UNF 7/16" Square, 0.18" thick. BZPRevington TR information: Nut square 1/4" UNF, 0.427" across the flats, (7/16"AF) 0.177" thick, zinc plated. Triumph and general application. Usually used with cages, CN2, CN2-1 and CN3. A full range of cages and nuts is available, detailed in... READ MORE |
5 |
£0.47 Ex VAT @ 20% |
|||
AW51 | 600669 |
Retainer, nut Facia to scuttle rail |
5 | |||
AW52 | HU0706 |
Screw, set Facia to 'A' postThis item has been superceded by SH604061 - see below |
2 | |||
SH604061 |
SCREW 1/4 UNF X 3/4 INCH |
2 |
£0.38 Ex VAT @ 20% |
|||
AW53 | WL0207 |
Washer, lock Facia to 'A' postThis item has been superceded by WS104070643 - see below |
2 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
2 |
£0.20 Ex VAT @ 20% |
|||
AW54 | 610592 |
Channel, support, assembly, facia to dashRevington TR information: Metal Channel that supports the dashboard, TR4. 4A, 250, 5 and 6. No longer available new, please consider second hand part 610592SH and second hand powder coated black part 610592SHPC. |
1 | |||
AW55 | HU0704 |
Screw, set Support channel to dashThis item has been superceded by SH604041 - see below |
1 | |||
SH604041 |
SCREW 1/4 UNF X 1/2 INCH |
1 |
£0.58 Ex VAT @ 20% |
|||
AW56 | WL0207 |
Washer, lock Support channel to dashThis item has been superceded by WS104070643 - see below |
1 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
1 |
£0.20 Ex VAT @ 20% |
|||
AW57 | WP0023 |
Washer, plain Support channel to dashThis item has been superceded by WP10408035 - see below |
1 | |||
WP10408035 |
WASHER PLAIN 1/4" x 1/2" x 0.035" |
1 |
£0.62 Ex VAT @ 20% |
|||
AW5B | PX0504 |
Screw Support channel to facia panelThis item has been superceded by PMZ308 - see below |
2 | |||
PMZ308 |
SCREW 3/16 X 1/2 UNF |
2 |
£0.24 Ex VAT @ 20% |
|||
AW59 | WL020S |
Washer, lock Support channel to facia panel |
2 | |||
AW60 | WP0113 |
Washer, plain Support channel to facia panelThis item has been superceded by WP10312020 - see below |
2 | |||
WP10312020 |
WASHER PLAIN 3/16" x 3/4" x 0.020" |
2 |
£0.24 Ex VAT @ 20% |
|||
AW61 | 616193 |
Bracket, fixing, between fade and support bracketRevington TR information: Not available new. We sometimes have second hand parts. Order 616193SH |
I | |||
AW62 | HU0806 |
Screw, set Fixing bracket to faciaThis item has been superceded by SH605061 - see below |
2 | |||
SH605061 |
SCREW 5/16 UNF X 3/4 INCH |
2 |
£0.54 Ex VAT @ 20% |
|||
AW63 | WP0034 |
Washer, plain Fixing bracket to faciaThis item has been superceded by WP10510075 - see below |
2 | |||
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
2 |
£0.44 Ex VAT @ 20% |
|||
AW64 | YN2908 |
Nut, nyloc Fixing bracket to faciaThis item has been superceded by NY605141 - see below |
2 | |||
NY605141 |
NYLOC 5/16 UNF X 7/16 THICKRevington TR information: Nyloc Nut tall version. This Nyloc nut is used in locations where extra thread depth is desirable. |
2 | ||||
AW65 | 808682 |
Bracket, support, assembly, facia to floorRevington TR information: TR4A Facia support often known as the 'H' frame. It has rounded upper sides and 3 heater control holes. As this part is not available new, consider second hand part 808682SH or one of the covers... READ MORE |
1 | |||
AW65A | 808702 |
Cover, facia support bracketThis item has been superceded by 808682X - see below |
1 | |||
808682X |
COVER MOULDED TR4ARevington TR information: Original style plastic cover for TR4A Facia support often known as the 'H' frame; the type with rounded upper sides and 3 heater control holes. The original cover is cut off the 'H' frame and this... READ MORE |
1 |
£262.16 Ex VAT @ 20% |
|||
AW66 | 512393 |
Screw, set Support bracket to fixing bracketThis item has been superceded by 624818 - see below |
2 | |||
624818 |
HEX BOLT CHROME PLTDRevington TR information: Chrome dome headed screw 5/16UNF. Please order 611637SS for the rear bolts for TR4 hardtop The following screws are all domed headed and chrome plated (except 611637SS) which you might find useful in certain applications 611640 5/16UNF... READ MORE |
2 |
£4.08 Ex VAT @ 20% |
|||
AW67 | 500172 |
Washer, plain Support bracket to fixing bracketThis item has been superceded by WP105100753 - see below |
2 | |||
WP105100753 |
WASHER 5/16" x 5/8" x 0.075" CHROME |
2 |
£1.97 Ex VAT @ 20% |
|||
AW68 | WP0008 |
Washer, plain Support bracket to fixing bracketThis item has been superceded by WP10510075 - see below |
2 | |||
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
2 |
£0.44 Ex VAT @ 20% |
|||
AW69 | YN2908 |
Nut, nyloc Support bracket to fixing bracketThis item has been superceded by NY605141 - see below |
2 | |||
NY605141 |
NYLOC 5/16 UNF X 7/16 THICKRevington TR information: Nyloc Nut tall version. This Nyloc nut is used in locations where extra thread depth is desirable. |
2 | ||||
AW70 | HU0708/P |
Screw, set, support bracket to floor |
4 | |||
AW71 | 617069 |
Plate, cover, radio mountingRevington TR information: Radio blanking plate fine grain |
1 | |||
AW72 | 512462 |
Screw, set Cover plate to support bracketThis item has been superceded by SE910201 - see below |
2 | |||
SE910201 |
SCREW PAN HD 10.32 |
2 |
£0.82 Ex VAT @ 20% |
|||
AW73 | WP0031 |
Washer, plain Cover plate to support bracketThis item has been superceded by WP10312020 - see below |
2 | |||
WP10312020 |
WASHER PLAIN 3/16" x 3/4" x 0.020" |
2 |
£0.24 Ex VAT @ 20% |
|||
AW74 | WL020S |
Washer, lock Cover plate to support bracket |
2 | |||
AW75 | HN2005 |
Nut Cover plate to support bracketThis item has been superceded by NP603041 - see below |
2 | |||
NP603041 |
NUT PLAIN 10-32 UNF 3/8 AF |
2 |
£0.18 Ex VAT @ 20% |
|||
AW75A | 600398 |
Plug, rubber Blanking heater control holesThis item has been superceded by 14A7031 - see below |
2 | |||
14A7031 |
GROMMET STEERING PLUG 1/2" DIAM. |
2 |
£1.68 Ex VAT @ 20% |
|||
AW75B | S10066 |
Screw, set Blanking heater control holesTriumph Catalogue Remarks: Not required when |
1 | |||
AW75F | HN2008 |
Nut Blanking heater control holesTriumph Catalogue Remarks: heater Is fitted |
1 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
1 |
£0.17 Ex VAT @ 20% |
|||
AW75G | WL0205 |
Washer, lock Blanking heater control holesThis item has been superceded by WS10306048 - see below |
||||
WS10306048 |
SPRING WASHER 3/16" x 3/8"x 0.048" |
£0.16 Ex VAT @ 20% |
||||
AW76 | 612431 |
ASH TRAY ASSEMBLY-FACIAThis item has been superceded by 627503 - see below |
1 | |||
627503 |
ASHTRAY assembly TR4-4ARevington TR information: Ashtray assembly TR4-4A. This product is not available new, however we have secondhand parts available from time to time, but more usually can offer a secondhand chrome surround 612430SH and a new black ashtray 627503X to... READ MORE |
1 | ||||
AW77 | 613580 |
Retainer Ash tray to facia |
1 | |||
AW78 | WL0205 |
Washer, lock Ash tray to faciaThis item has been superceded by WS10306048 - see below |
1 | |||
WS10306048 |
SPRING WASHER 3/16" x 3/8"x 0.048" |
1 |
£0.16 Ex VAT @ 20% |
|||
AW79 | HN2008 |
Nut Ash tray to faciaThis item has been superceded by NP605081 - see below |
1 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
1 |
£0.17 Ex VAT @ 20% |
|||
AW80 | 809003 |
SWITCH PLINTH ASSEMBLY |
1 |
£209.00 Ex VAT @ 20% |
||
AW81 | HU0704 |
Screw, set Plinth assembly to facia panelThis item has been superceded by SH604041 - see below |
1 | |||
SH604041 |
SCREW 1/4 UNF X 1/2 INCH |
1 |
£0.58 Ex VAT @ 20% |
|||
AW82 | WL0207 |
Washer, Lock Plinth assembly to facia panelThis item has been superceded by WS104070643 - see below |
1 | |||
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
1 |
£0.20 Ex VAT @ 20% |
|||
AW83 | 500647 |
Screw Plinth assembly to facia panelThis item has been superceded by SS1080562 - see below |
2 | |||
SS1080562 |
SCREW ST No 8x5/8" CSK RSD POZI CHR |
2 |
£0.38 Ex VAT @ 20% |
