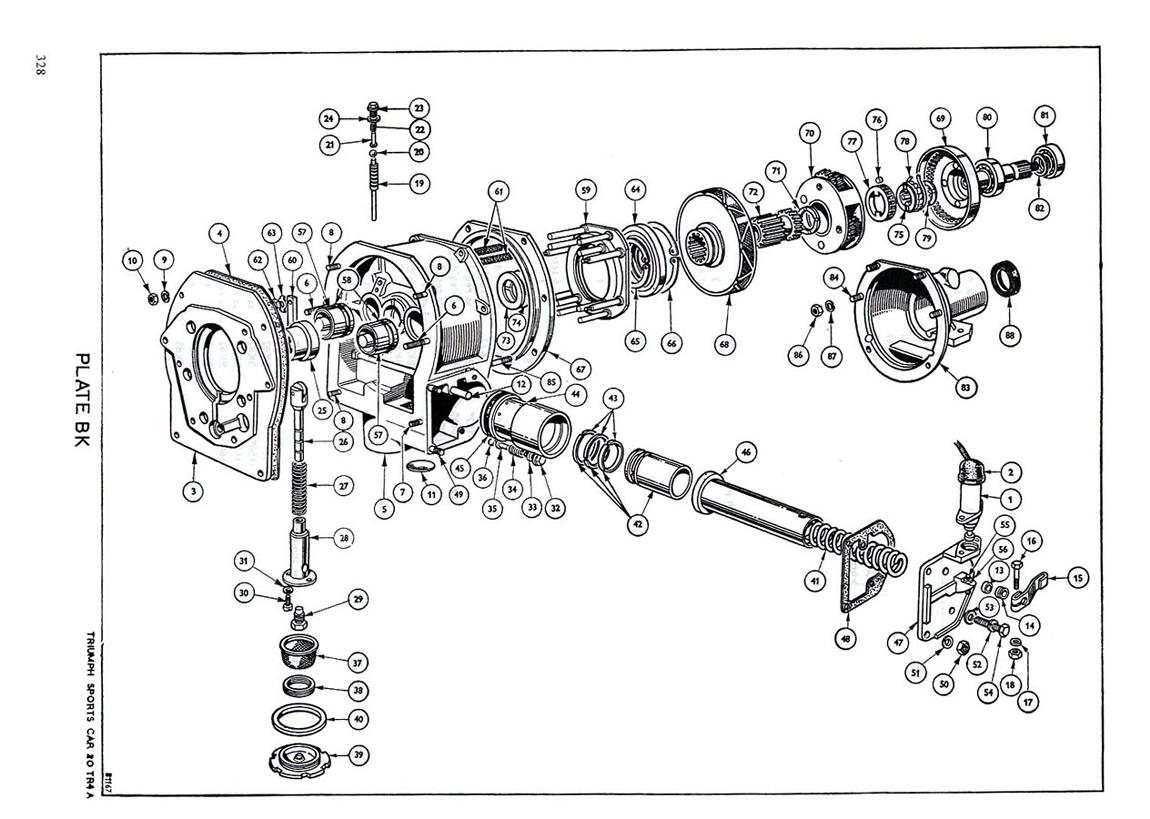

TR4A Plate BK - OVERDRIVE: OVERDRIVE UNIT DETAILS (independent rear axles only).
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
BK1AA | 307603 |
OVERDRIVE UNIT ASSEMBLYTriumph Catalogue Remarks: For independent rear axles only |
1 | ||
|
BK1 | 112946 |
SolenoidThis item has been superceded by 508794 - see below |
1 | ||
|
508794 |
SOLENOID O/D A TYPE TR2-6Revington TR information: Occassionally this part is supplied with a lucar not a bullet connector. A change of connector maybe required. |
1 |
£52.48 Ex VAT @ 20% |
||
|
BK1A | 513226 |
Screw, set Securing solenoid to bracketThis item has been superceded by SH603041 - see below |
2 | ||
|
SH603041 |
SCREW 3/16 UNF x 1/2 INCH |
2 |
£0.71 Ex VAT @ 20% |
||
|
BK1B | 513903 |
Washer, lock Securing solenoid to bracketThis item has been superceded by WL105001 - see below |
2 | ||
|
WL105001 |
WASHER SPRING 5mm |
2 |
£2.74 Ex VAT @ 20% |
||
|
BK2 | 109521 |
Cover, rubber, solenoidRevington TR information: Consider Second hand part 109521SH. |
1 | ||
|
BK3 | 208098 |
Plate, adaptor, overdrive unit to gearboxRevington TR information: consider second hand part 208098SH |
1 |
£175.64 Ex VAT @ 20% |
|
|
BK4 | 502556 |
Washer, joint, between adaptor plate and front casing assy. |
1 |
£2.46 Ex VAT @ 20% |
|
|
BK5 | 503159 |
Casing, front, assemblyThis item has been superceded by RTR1276 - see below |
1 | ||
|
RTR1276
|
MAIN CASE FOR 1-3/8" OP PISTONRevington TR information: 'A' type overdrive main case with 1 ¾" accumulator piston and 1 3/8" operating pistons For Race or Rally purposes, a main case with 1 ¾" accumulator piston and 1 3/8" operating pistons will be required.... READ MORE |
1 |
£347.76 Ex VAT @ 20% |
||
|
BK6 | 500576 |
Stud, 2 5/8" Adaptor plate attachment |
2 |
£4.18 Ex VAT @ 20% |
|
|
BK7 | 500666 |
Stud, 1" Adaptor plate attachment |
1 |
£3.11 Ex VAT @ 20% |
|
|
BK8 | 500578 |
Stud, 1 1/4" Adaptor plate attachmentThis item has been superceded by ST605101 - see below |
3 | ||
|
ST605101 |
STUD 5/16 X 1-1/4" UNF+ UNF |
3 |
£3.04 Ex VAT @ 20% |
||
|
BK9 | WL0208 |
Washer, lock Adaptor plate attachmentThis item has been superceded by WS105090853 - see below |
6 | ||
|
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
6 |
£0.25 Ex VAT @ 20% |
||
|
BK10 | HN2008 |
NutThis item has been superceded by NP605081 - see below |
6 | ||
|
NP605081 |
NUT PLAIN 5/16 UNF |
6 |
£0.17 Ex VAT @ 20% |
||
|
BK11 | 500570 |
Plug, welch, in casingRevington TR information: No longer available |
1 | ||
|
BK39 | 513904 |
Plug, oil drainThis item has been superceded by 521814 - see below |
1 | ||
|
521814 |
DRAIN PLUG A TYPE C SPANNER TYPE |
1 |
£80.50 Ex VAT @ 20% |
||
|
BK40 | 500641 |
Washer, drain plug |
1 |
£1.03 Ex VAT @ 20% |
|
|
BK41 | 515131 |
Spring, pressure, accumulator |
1 |
£33.12 Ex VAT @ 20% |
|
|
BK42 | 501909 |
Piston assembly, accumulator |
1 |
£113.35 Ex VAT @ 20% |
|
|
BK43 | 505555 |
Ring, piston |
1 set |
£81.91 Ex VAT @ 20% |
|
|
BK44 | 501908 |
Housing assembly, accumulator |
1 |
£69.00 Ex VAT @ 20% |
|
|
SK45 | 501910 |
"0" Ring |
1 |
£3.28 Ex VAT @ 20% |
|
|
BK46 | 502563 |
Spacing tube, and washer assembly |
1 |
£33.05 Ex VAT @ 20% |
|
|
BK47 | 502566 |
Bracket assembly-solenoid |
1 |
£121.15 Ex VAT @ 20% |
|
|
BK48 | 500645 |
washer, Joint, side cover |
1 |
£1.03 Ex VAT @ 20% |
|
|
BK49 | 500577 |
Stud Attaching solenoid bracket to front casingThis item has been superceded by ST605111 - see below |
2 | ||
|
ST605111 |
STUD 5/16 X 1 3/8 UNF+ UNF |
2 |
£2.39 Ex VAT @ 20% |
||
|
BK50 | HN2008 |
Nut Attaching solenoid bracket to front casingThis item has been superceded by NP605081 - see below |
2 | ||
|
NP605081 |
NUT PLAIN 5/16 UNF |
2 |
£0.17 Ex VAT @ 20% |
||
|
BK51 | WL0208 |
Washer, lock Attaching solenoid bracket to front casingThis item has been superceded by WS105090853 - see below |
2 | ||
|
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
2 |
£0.25 Ex VAT @ 20% |
||
|
BK52 | 103268 |
Screw, set Attaching solenoid bracket to front casingThis item has been superceded by SH605141 - see below |
2 | ||
|
SH605141 |
SCREW 5/16 UNF X 1-3/4 INCH |
2 |
£1.31 Ex VAT @ 20% |
||
|
BK53 | WP0008 |
Washer, plain Attaching solenoid bracket to front casingThis item has been superceded by WP10510075 - see below |
2 | ||
|
WP10510075 |
WASHER PLAIN 5/16" x 5/8" x 0.075" |
2 |
£0.44 Ex VAT @ 20% |
||
|
BK54 | WL0208 |
Washer, lock Attaching solenoid bracket to front casingThis item has been superceded by WS105090853 - see below |
2 | ||
|
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
2 |
£0.25 Ex VAT @ 20% |
||
|
BK55 | 513918 |
Adjusting screw SolenoidRevington TR information: No Longer Available |
1 | ||
|
BK56 | 513919 |
Nut, lock Solenoid |
1 | ||
|
BK56A | 502560 |
Breather |
1 |
£11.62 Ex VAT @ 20% |
|
|
BK57 | 513890 |
Piston, operating, assembly |
2 |
£34.60 Ex VAT @ 20% |
|
|
BK58 | 513912 |
"0" Ring |
2 |
£1.72 Ex VAT @ 20% |
|
|
BK59 | 500660 |
Ring, clutch thrust, assembly, with pins |
1 |
£167.90 Ex VAT @ 20% |
|
|
BK60 | 50058'! |
Piece, bridge |
2 | ||
|
BK61 | 502554 |
Spring, clutch, setRevington TR information: Set of 8 overdirve springs Kit of 8 springs. Overall length 114mm. 4 springs are approx 2mm wire thickness and the other 4 springs 2.4mm wire thickness. Flat at either end. 31 turns. for... READ MORE |
1 set |
£71.92 Ex VAT @ 20% |
|
|
BK62 | HN2007 |
Nut Clutch thrust ring attachmentThis item has been superceded by NP604071 - see below |
4 | ||
|
NP604071 |
NUT PLAIN 1/4 UNF X 7/32 |
4 |
£0.44 Ex VAT @ 20% |
||
|
BK63 | 500642 |
Washer, tab Clutch thrust ring attachmentThis item has been superceded by NS604061 - see below |
4 | ||
|
NS604061 |
NUT 1/4 UNF PHILIDAS |
4 |
£1.55 Ex VAT @ 20% |
||
|
BK64 | 500640 |
Bearing, ball, clutch thrust ringRevington TR information: Call for price and availability. |
1 |
£50.10 Ex VAT @ 20% |
|
|
BK65 | 500636 |
Circlip Ball bearing location |
1 |
£2.41 Ex VAT @ 20% |
|
|
BK66 | 500637 |
Circlip Ball bearing location |
1 |
£16.19 Ex VAT @ 20% |
|
|
BK67 | 502555 |
Ring, brake, clutch |
1 |
£206.44 Ex VAT @ 20% |
|
|
BK68 | 500661 |
Clutch assembly, sliding member with liningsRevington TR information: Overdrive 'A' type cone clutch. Not available new use 500661EX, 500661SH or RTR1277. Press click 'MORE' for details |
1 | ||
|
BK69 | 500602 |
Annulus assemblyRevington TR information: Consider Exchange part RTR1104EX. press 'READ MORE' for more details |
1 | ||
|
BK70 | 505545 |
carrier assembly PlanetThis item has been superceded by 505545SH - see below |
1 | ||
|
505545SH |
CARRIER ASS PLANET G |
1 |
£175.28 Ex VAT @ 20% |
||
|
BK70A | 513224 |
Bearing, planet carrierThis item has been superceded by 505546 - see below |
6 sets | ||
|
505546 |
ROLLER BEARING ATYPE |
6 sets | |||
|
BK70B | 513914 |
Washer, thrustThis item has been superceded by 505546 - see below |
3 | ||
|
505546 |
ROLLER BEARING ATYPE |
3 | |||
|
BK71 | 500611 |
Washer, thrustThis item has been superceded by 505548 - see below |
1 | ||
|
505548 |
THRUST WASHER |
1 |
£23.17 Ex VAT @ 20% |
||
|
BK72 | 505549 |
Sunwheel assemblyRevington TR information: use 505549SH |
1 |
£206.48 Ex VAT @ 20% |
|
|
BK73 | 500588A |
Washer,, adjusting, front of Sunwheel .113/.114" |
as req'd |
£14.39 Ex VAT @ 20% |
|
|
BK73 | 5005888 |
Washer,, adjusting, front of Sunwheel .107/.108" |
as req'd | ||
|
BK73 | 500588C |
Washer,, adjusting, front of Sunwheel .101/.102" |
as req'd |
£13.45 Ex VAT @ 20% |
|
|
BK73 | 500588D |
Washer,, adjusting, front of Sunwheel .095/.096" |
as req'd |
£13.45 Ex VAT @ 20% |
|
|
BK73 | 500588E |
Washer,, adjusting, front of Sunwheel .089/.090" |
as req'd |
£13.45 Ex VAT @ 20% |
|
|
BK73 | 500588 |
Washer,, adjusting, front of Sunwheel .083/.084' |
as req'd | ||
|
BK73 | 500588G |
Washer,, adjusting, front of Sunwheel .077/.078" |
as req'd |
£13.45 Ex VAT @ 20% |
|
|
BK74 | 500610 |
Washer, thrust, sunwheel |
1 |
£21.05 Ex VAT @ 20% |
|
|
BK75 | 502558 |
Clutch, uni-directional Inner memberThis item has been superceded by BAU2061A - see below |
1 | ||
|
BAU2061A |
FREE WHEEL MEMBERRevington TR information: Overdrive Roller Clutch, also known as a sprag or uni-directional clutch, as it allows drive to take up only in one direction. This part is a later version and replaces parts 502558 502550 502559 500630. in... READ MORE |
1 |
£147.35 Ex VAT @ 20% |
||
|
BK76 | 502550 |
Roller, setThis item has been superceded by 506063A - see below |
1 | ||
|
506063A |
ROLLER SET |
1 |
£11.84 Ex VAT @ 20% |
||
|
BK77 | 502559 |
Cage, rollerRevington TR information: Use assembly BAU2061A |
1 | ||
|
BK78 | 500630 |
Spring, clutch |
1 | ||
|
BK79 | 500613 |
Washer, thrust, rear of uni-directional clutchThis item has been superceded by 500613A - see below |
1 | ||
|
500613A |
THRUST WASHER |
1 |
£21.84 Ex VAT @ 20% |
||
|
BK80 | SP74G |
Bearing, ball, front, for annulus |
1 |
£33.52 Ex VAT @ 20% |
|
|
BK81 | 513897 |
Bearing, ball, rear, for annulusThis item has been superceded by SP75G - see below |
1 | ||
|
SP75G |
BEARING 4SYNC O/D RR ANNRevington TR information: Remove circlip when using in a Lockheed axle application. |
1 |
£18.70 Ex VAT @ 20% |
||
|
BK82 | 500623/E |
Washer, adjusting annulus end float .146"This item has been superceded by 500623E - see below |
as req'd | ||
|
500623E |
THRUST WASHER .146 |
as req'd |
£14.39 Ex VAT @ 20% |
||
|
BK82 | 500623/F |
Washer, adjusting annulus end float .151"This item has been superceded by 500623F - see below |
as req'd | ||
|
500623F |
WASHER ADJ. 0.151 |
as req'd |
£22.16 Ex VAT @ 20% |
||
|
BK82 | 500623/G |
Washer, adjusting annulus end float .156"This item has been superceded by 500623G - see below |
as req'd | ||
|
500623G |
O/D ADJ WASHER .156" |
as req'd |
£12.07 Ex VAT @ 20% |
||
|
BK82 | 500623/H |
Washer, adjusting annulus end float .161"This item has been superceded by 500623H - see below |
as req'd | ||
|
500623H |
WASHER ADJ. 0.161 |
as req'd |
£22.16 Ex VAT @ 20% |
||
|
BK82 | 500623/I |
Washer, adjusting annulus end float .166 |
as req'd | ||
|
BK83 | 500655 |
Casing, rear, with studsRevington TR information: Consider Exchange part RTR1105EX The speedometer drive exits this casing pointing downwards where as the saloon rear casing has the speedometer exit horizontally. For a rally car where it is intended that the speedometer cable should run... READ MORE |
1 |
£311.06 Ex VAT @ 20% |
|
|
BK84 | 500756 |
Stud Rear casing attachmentThis item has been superceded by ST605121 - see below |
4 | ||
|
ST605121 |
STUD 5/16 X 1-1/2" UNF+ UNF |
4 |
£1.92 Ex VAT @ 20% |
||
|
BK85 | 500579 |
Stud Rear casing attachment |
2 | ||
|
BK86 | HN2008 |
Nut Rear casing attachmentThis item has been superceded by NP605081 - see below |
6 | ||
|
NP605081 |
NUT PLAIN 5/16 UNF |
6 |
£0.17 Ex VAT @ 20% |
||
|
BK87 | WL0208 |
Washer, lock Rear casing attachmentThis item has been superceded by WS105090853 - see below |
6 | ||
|
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
6 |
£0.25 Ex VAT @ 20% |
||
|
BK88 | 513898 |
Seal, oil, In rear casingThis item has been superceded by 146129 - see below |
1 | ||
|
146129 |
OIL SEAL REAR GEAR BOX & A TYPE O/D |
1 |
£12.26 Ex VAT @ 20% |
||
|
BK88A | 058948 |
Flaw., mainshaftRevington TR information: Square Gearbox/Overdrive output flange. TR2-6 all non-overdrive gearboxes and all 'A' type overdrive gearboxes up to Gearbox number CD15651 with O/D number 22/61953. Not available new. Consider second hand part 058948SH or the interchangeable later TR6... READ MORE |
1 | ||
|
BK88B | 057868 |
Nut, slotted Securing flange to mainshaftRevington TR information: see also 057868SH |
1 |
£6.78 Ex VAT @ 20% |
|
|
BK88C | WP0024 |
Washer, plain Securing flange to mainshaft |
1 |
£1.03 Ex VAT @ 20% |
|
|
BK88D | P00012 |
Pin, split Securing flange to mainshaftThis item has been superceded by PS108091 - see below |
1 | ||
|
PS108091 |
PIN SPLIT 1/8 X 1-1/8 |
1 |
£0.26 Ex VAT @ 20% |
||
|
OVERDRIVE GEARBOX ASSEMBLY (Lees Gear Lover)Triumph Catalogue Remarks: For details see Gearbox Section. |
