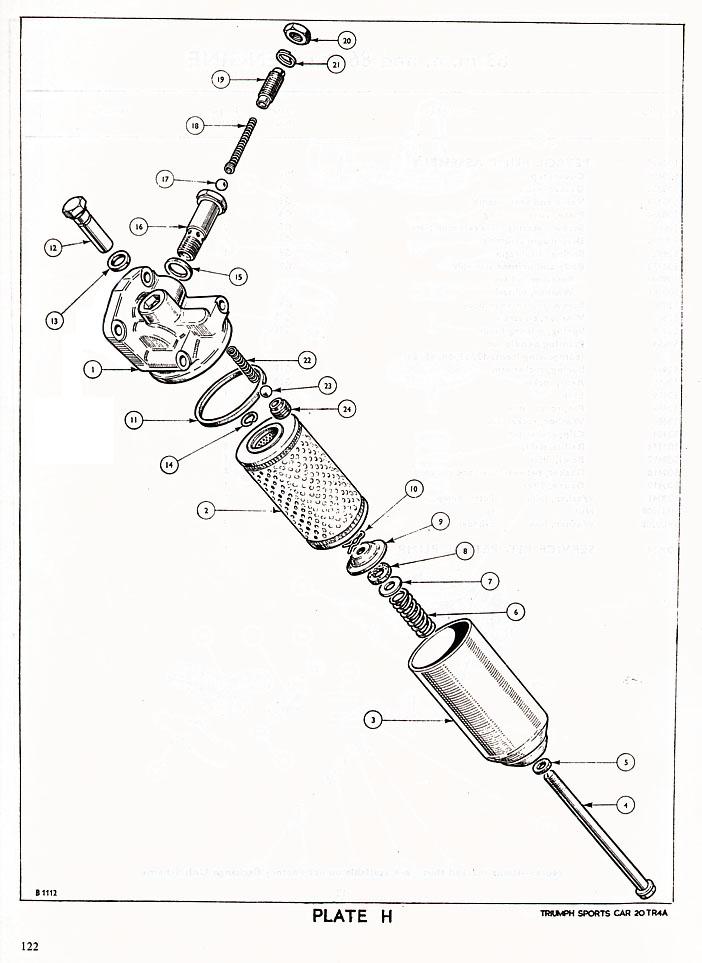

TR4A Plate H - 83 m.m. and 86 m.m. ENGINE: OIL FILTER ASSEMBLY. TECALEMIT TYPE.
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
H1AA | 203271 |
OIL FILTER ASSEMBLY (Full Flow) (Tecalemit)Triumph Catalogue Remarks: For 'Automotive' Oil Filter |
1 | ||
|
H1 | 508770 |
Head, filterRevington TR information: Head only oil filter full flow Tecalemit type fitted to some TR4A. The bolt securing the filter bowl (sump) has a UNF Thread. As new parts are not available, use these second hand parts 203271PSH and203271TSH,... READ MORE |
1 | ||
|
508770SH |
Second hand HEAD FILTER TECALEMITRevington TR information: Second Hand Head only oil filter full flow fitted to some TR4A. The bolt securing the filter bowl (sump) has a UNF Thread. As new parts are not available, use these second hand parts 203271PSH and203271TSH,... READ MORE |
1 |
£90.74 Ex VAT @ 20% |
||
|
H2 | 506517 |
Element, filterThis item has been superceded by GFE104 - see below |
1 | ||
 |
GFE104 |
OIL FILTER TR2-4A PAPERRevington TR information: As per original paper type filter. This is NOT the spin on type. for spin on types. |
1 |
£6.07 Ex VAT @ 20% |
||
|
H3 | 507148 |
Container |
1 | ||
|
H4 | 507147 |
Bolt, container to filter head |
1 | ||
|
H5 | 502489 |
Washer, rubber, between bolt head and containerThis item has been superceded by 500321 - see below |
1 | ||
|
500321 |
RUBBER WASHER oil filter canister base TR2-4A |
1 |
£2.28 Ex VAT @ 20% |
||
|
H6 | 502484 |
Spring, between container and pressure plate |
1 | ||
|
H7 | 502487 |
Washer, plain, over felt washer |
1 | ||
|
H8 | 502490 |
Washer, felt, pressure plate |
1 | ||
|
H9 | 507149 |
Plate, pressureThis item has been superceded by 17H846 - see below |
1 | ||
|
17H846 |
FILTER PLATE 62-67 |
1 |
£17.94 Ex VAT @ 20% |
||
|
H10 | 503191 |
Circlip, retaining bolt, spring, washers and plate in containerThis item has been superceded by 27H2573 - see below |
1 | ||
|
27H2573 |
CLIPRevington TR information: Not currently available |
1 | |||
|
H11 | 507151 |
Ring, sealing container to filter head |
1 | ||
|
H12 | 508773 |
Nut, clamp, centre bolt to filter head |
1 | ||
|
H13 | 505268 |
Washer, sealing clamp nut |
1 | ||
|
H14 | 508774 |
Circlip, retaining clamp nut in filter head |
1 | ||
|
H15 | 505272 |
Washer, sealing, relief valve body |
1 | ||
|
H16 | 508776 |
Body, relief valve |
1 | ||
|
H17 | BL0028 |
Ball, relief valveThis item has been superceded by BL28 - see below |
1 | ||
|
BL28 |
STEELBALL 7/16 INS. |
1 |
£0.43 Ex VAT @ 20% |
||
|
H18 | 059609 |
Spring, over ball |
1 | ||
|
H19 | 059614 |
Screw, adjusting relief valve |
1 | ||
|
H20 | 508777 |
Nut, locking adjusting screw |
1 | ||
|
H21 | 030123 |
Seal, (lead wire) under nut |
1 | ||
|
H22 | 508771 |
Spring, balance valve |
1 | ||
|
H23 | BL0028 |
Ball, balance valveThis item has been superceded by BL28 - see below |
1 | ||
|
BL28 |
STEELBALL 7/16 INS. |
1 |
£0.43 Ex VAT @ 20% |
||
|
H24 | 508772 |
Seat, valve |
1 |
