MODIFIED PARTS - Browse Original Triumph Catalogue Plates

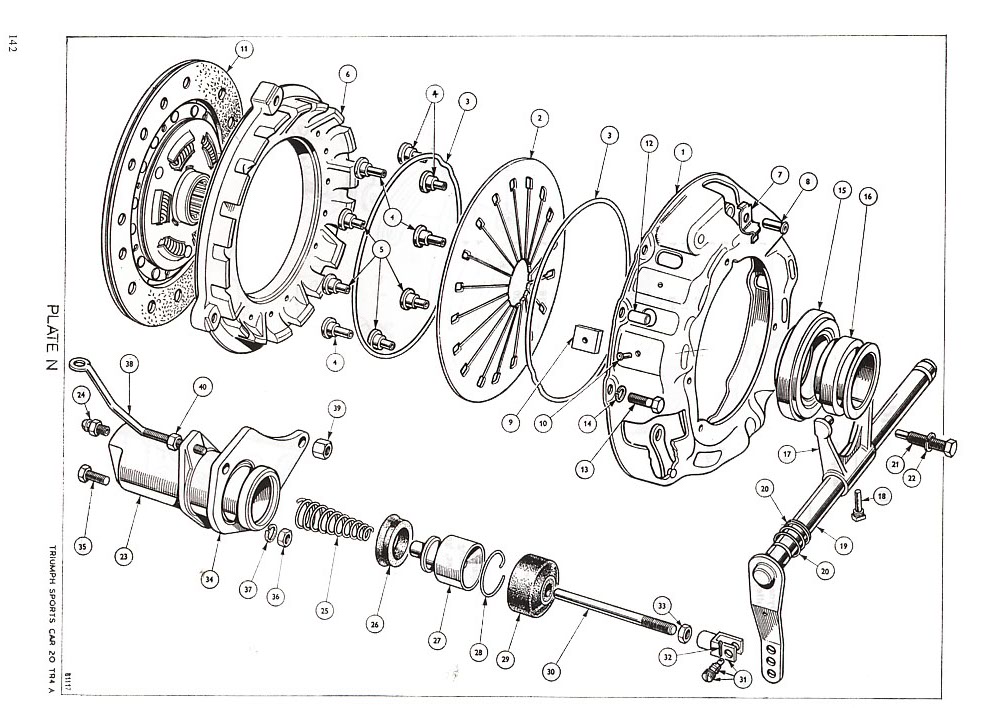

TR4A Plate N - CLUTCH: COVER, PLATE, RELEASE MECHANISM AND SLAVE CYLINDER.
<< Return to Triumph Catalogue Plate ListPlate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
N1A | 212132 |
CLUTCH COVER ASSEMBLYThis item has been superceded by GCC228EX - see below |
1 | |||
GCC228EX |
EXCHANGE CLUTCH COVER TR4A-7 BORG & BECKRevington TR information: Exchange TR4A-7 Diaphragm Clutch Cover suitable for normal and slightly uprated loads where the car is used for lively driving. Pull off pressure 66-80kg. This cover can also be used in TR2-4 where the flywheel has... READ MORE |
1 |
£134.69 Ex VAT @ 20% |
|||
N1 | 514724 |
Cover and straps, sub assembly |
1 | |||
N2 | 514721 |
Spring, diaphragm |
1 | |||
N3 | 514725 |
Ring, diaphragm spring fulcrum |
2 | |||
N4 | 514722 |
Locating pin Diaphragm spring and fulcrum ring to cover |
3 | |||
N5 | 514723 |
Rivet, shouldered Diaphragm spring and fulcrum ring to cover |
6 | |||
N6 | 514736 |
Plate, pressure |
1 | |||
N7 | 514737 |
Clip, retaining diaphragm spring on pressure plate |
3 | |||
N8 | 514735 |
Rivet, clip and strap to pressure plate |
3 | |||
N9 | 514727 |
Weight, balance, clutch cover .25 Grms. Stamped 2 |
as req'd | |||
N9 | 514728 |
Weight, balance, clutch cover 2.13 Grms. 3 |
as req'd | |||
N9 | 514729 |
Weight, balance, clutch cover 4.26 Grms. 4 |
as req'd | |||
N9 | 514730 |
Weight, balance, clutch cover 5.38 Grms. 5 |
as req'd | |||
N9 | 514731 |
Weight, balance, clutch cover 6.51 Grms. 6 |
as req'd | |||
N9 | 514732 |
Weight, balance, clutch cover 7.56 Grms. 7 |
as req'd | |||
N9 | 514733 |
Weight, balance, clutch cover 9.57 Grms. 8 |
as req'd | |||
N9 | 514734 |
Weight, balance, clutch cover 11.57 Grms. 9 |
as req'd | |||
N10 | 514726 |
Rivet, balance weight to cover |
as req'd | |||
N11 | 212526 |
DRIVEN PLATE ASSEMBLYThis item has been superceded by GCP143 - see below |
1 | |||
GCP143 |
CLUTCH PLATE TR4A-6 B&BRevington TR information: Whist this Driven Plate is available new, Revington TR prefer due to varying quality of newly manufactured parts, often having fewer rivets holding them together than were present in the original equipment, to supply an... READ MORE |
1 |
£122.28 Ex VAT @ 20% |
|||
N11A | 514738 |
Facing package |
1 | |||
N12 | DP0407 |
Dowel, locating clutch cover on flywheelThis item has been superceded by DP414 - see below |
3 | |||
DP414 |
DOWEL STOCK CUTTO FIT 1/4" |
3 |
£1.96 Ex VAT @ 20% |
|||
N13 | HU0856 |
Screw, set, clutch cover to flywheelThis item has been superceded by SH505061 - see below |
6 | |||
SH505061 |
SCREW 5/16 UNC X 3/4 INCH |
6 |
£0.90 Ex VAT @ 20% |
|||
N14 | WL0208 |
Washer, spring, on setscrewsThis item has been superceded by WS105090853 - see below |
6 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
6 |
£0.25 Ex VAT @ 20% |
|||
N15 | 142465 |
CLUTCH THROW-OUT BEARINGThis item has been superceded by GRB211HD - see below |
1 | |||
GRB211HD |
BEARING CLUTCH RELEASE H/DUTYRevington TR information: TR4A-6 Release bearing, heavy duty. The introduction of this bearing has been prompted by the recent poor quality of the original style bearing. GRB211HD is a modern bearing which is much more reliable than the original... READ MORE |
1 |
£77.89 Ex VAT @ 20% |
|||
N16 | 141967 |
Sleeve, clutch throw-outThis item has been superceded by 147858PB - see below |
1 | |||
147858PB |
CARRIER RELEASE BEARING PB TR4A-6Revington TR information: TR4A-6 clutch release bearing carrier made from high quality phosphor bronze. A very high quality part with an internal diameter machined to very tight tolerance for a perfect fit. The original TR4A part, of a similar... READ MORE |
1 |
£145.51 Ex VAT @ 20% |
|||
N17 | 106022 |
CLUTCH OPERATING FORKRevington TR information: The operating pins are included in this part number. If just the operating pins are required, these can be bought separately under part number 100164. Revington TR recommend drilling through this fork, through the shaft and... READ MORE |
1 |
£67.82 Ex VAT @ 20% |
||
N18 | 056965 |
Pin, taper, fork to clutch shaftThis item has been superceded by 158777HD - see below |
1 | |||
158777HD |
PIN TAPER CLUTCH HEAVY DUTYRevington TR information: This is a hardened taper pin holding the fork to the cross shaft. This help overcome the frequent failure of this pin. Revington TR recommend drilling through the fork, through the shaft and out the other... READ MORE |
1 |
£17.27 Ex VAT @ 20% |
|||
N18A | 030047 |
Wire, locking, taper pinThis item has been superceded by RTR5285-2M - see below |
1 | |||
RTR5285-2M |
LOCKING WIRE 1.02mm/MRevington TR information: Locking wire stainless steel 1.02mm dia. per meter |
1 |
£1.45 Ex VAT @ 20% |
|||
N19 | 142413 |
CLUTCH OPERATING SHAFTThis item has been superceded by 136354 - see below |
1 | |||
136354 |
CLUTCH SHAFT TR5-TR6Revington TR information: Consider second hand part 136354SH. TR 2, 3, 4 and 4A use a slightly different shaft 108887. Use roll pin RPS230331 to securely pin the fork to the cross shaft at 90° and to one side... READ MORE |
1 |
£44.33 Ex VAT @ 20% |
|||
N20 | 105752 |
Spring, on shaft |
1 |
£4.12 Ex VAT @ 20% |
||
N21 | 102805 |
Bolt, locating shaft in housingRevington TR information: This special bolt has a 0.94" long shank and is used to secure the clutch release mechanism cross-shaft in the bell housing on TR2-4A. Not available new. Use second hand part 102805SH. Alternatively a standard bolt... READ MORE |
1 | |||
N22 | WL0208 |
Washer, spring, on boltThis item has been superceded by WS105090853 - see below |
1 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
1 |
£0.25 Ex VAT @ 20% |
|||
N23 | 114531 |
CLUTCH SLAVE CYLINDER ASSEMBLYThis item has been superceded by 516788 - see below |
1 | |||
516788 |
CYL SLAVE CLUTCH 3G-4A GIR 1"Revington TR information: A repair kit 505704 is available. Slave cylinder only. Push rod not included. |
1 |
£46.86 Ex VAT @ 20% |
|||
N23A | Body, cylinderTriumph Catalogue Remarks: Not serviced |
1 | ||||
N24 | 108756 |
Screw, bleed, cylinder bodyThis item has been superceded by 556508A - see below |
1 | |||
556508A |
BLEED SCREW-IMPERIAL 3/8 X 24 |
1 |
£2.14 Ex VAT @ 20% |
|||
N24A | 105676 |
Cover, dust, over bleed screwThis item has been superceded by SMP100030 - see below |
1 | |||
SMP100030 |
DUST CAP BLEED NIPPLERevington TR information: Bleed nipple cap. |
1 |
£1.30 Ex VAT @ 20% |
|||
N25 | 106084 |
Spring, between piston seal and cylinder body |
1 | |||
N26 | 504849 |
Seal, pistonThis item has been superceded by 505704 - see below |
1 | |||
505704 |
KIT CLUTCH SLAVE TR3A-4A 1"DIAMRevington TR information: This repair kit services original slave cylinder 516788, which is 1" diameter. Some after market cylinders are 7/8" for which we have a kit GRK4009. Please check which kit you require before ordering. Click 'MORE' for... READ MORE |
1 | ||||
N27 | 504848 |
Piston |
1 | |||
N28 | 504850 |
Circlip, piston stop |
1 | |||
N29 | 504851 |
Cover, dust, cylinder body |
1 | |||
N30 | 504852 |
Rod, push |
1 |
£8.86 Ex VAT @ 20% |
||
N31 | 057193 |
FORK-END ASSEMBLY (Push Rod to Clutch Shaft)This item has been superceded by 057194K - see below |
1 | |||
057194K |
FORK ASSEMBLY WITH PIN and spring TR3-3B M/cyl rod & TR2-4 clutchRevington TR information: This fork assembly suits a 5/16" UNF shaft and is used on the TR2-4A clutch slave cylinder shaft and TR3A-B master cylinder shafts. It consists of a fork CF523572 and a pin and spring assembly 216421A... READ MORE |
1 |
£20.06 Ex VAT @ 20% |
|||
N32 | P00035 |
Pin, split, retaining clevis pinThis item has been superceded by PS106121 - see below |
1 | |||
PS106121 |
SPLIT PIN 3/32 X 1-1/2 INCH |
1 |
£0.26 Ex VAT @ 20% |
|||
N33 | JN2108 |
Nut, locking fork-end on push rodThis item has been superceded by NP605061 - see below |
1 | |||
NP605061 |
NUT PLAIN 5/16 UNF X 3/16" |
1 |
£0.46 Ex VAT @ 20% |
|||
N34 | 128042 |
SLAVE CYLINDER SUPPORT BRACKETRevington TR information: consider SH part 128042SH |
1 |
£20.03 Ex VAT @ 20% |
||
N35 | H80809 |
Bolt, slave cylinder to support bracketThis item has been superceded by SH605091 - see below |
1 | |||
SH605091 |
SCREW 5/16 UNF X 1-1/8 INCH |
1 |
£1.22 Ex VAT @ 20% |
|||
N36 | HN2008 |
Nut, securing boltThis item has been superceded by NP605081 - see below |
1 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
1 |
£0.17 Ex VAT @ 20% |
|||
N37 | WL0208 |
Washer, spring, under nutThis item has been superceded by WS105090853 - see below |
1 | |||
WS105090853 |
WASHER SPRING 5/16" ID RECT SECTION |
1 |
£0.25 Ex VAT @ 20% |
|||
N38 | 128043 |
Stay, slave cylinderRevington TR information: Consider original second hand part number 128043SH. . |
1 | |||
N39 | YN2908 |
Nut, nyloc, stay attachmentThis item has been superceded by NY605141 - see below |
1 | |||
NY605141 |
NYLOC 5/16 UNF X 7/16 THICKRevington TR information: Nyloc Nut tall version. This Nyloc nut is used in locations where extra thread depth is desirable. |
1 | ||||
N40 | HN2008 |
Nut, hex, stay attachmentThis item has been superceded by NP605081 - see below |
1 | |||
NP605081 |
NUT PLAIN 5/16 UNF |
1 |
£0.17 Ex VAT @ 20% |
