MODIFIED PARTS - Browse Original Triumph Catalogue Plates

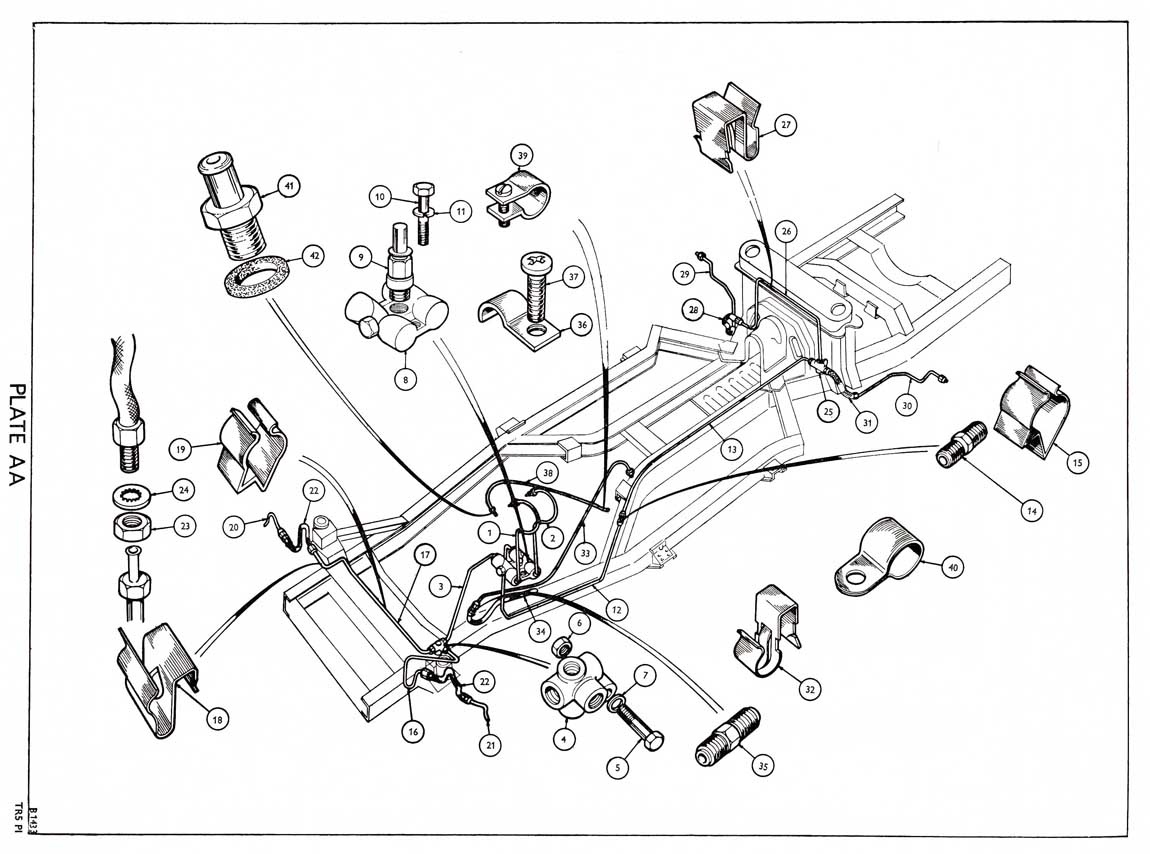

TR5 Plate AA - HYDRAULIC PIPES L.H.S.: BRAKE, CLUTCH AND SERVO PIPES
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
BRAKE PIPES - L.H.S. |
|||||
|
AA1 | 148791 |
Pipe, master cylinder to pressure diff. valve, front |
1 | ||
|
AA2 | 148790 |
Pipe, master cylinder to pressure diff. valve, rear |
1 | ||
|
AM | 148815 |
Pipe, pressure diff. valve to 3 way, front |
1 | ||
|
AM | 136908 |
Three way piece-FrontThis item has been superceded by BTB657 - see below |
1 | ||
|
BTB657 |
UNION 3 WAY 3/8 24UNFRevington TR information: 3 way unit, 3/8 UNF, single flair. All 3 ports are machined to accept a single flair. The mounting boss is behind the stem of the 'T' and has a 1/4" internal diameter mounting hole. The... READ MORE |
1 |
£26.32 Ex VAT @ 20% |
||
|
AA5 | HB0710D |
Bolt Three way piece to mounting bracketThis item has been superceded by BH604101 - see below |
1 | ||
|
BH604101 |
BOLT 1/4 UNF X 1-1/4 INCH |
1 |
£0.65 Ex VAT @ 20% |
||
|
AA6 | TN3207 |
Nut Three way piece to mounting bracketThis item has been superceded by NY604101 - see below |
1 | ||
|
NY604101 |
NUT NYLOC 1/4 UNF X 5/16 |
1 |
£0.56 Ex VAT @ 20% |
||
|
AA7 | WP0007 |
Washer, plain Three way piece to mounting bracketThis item has been superceded by WP10408057 - see below |
1 | ||
|
WP10408057 |
WASHER PLAIN 1/4" x 1/2" x 0.057" |
1 | |||
|
AA8 | 149972 |
Valve assembly, warning, pressure differentialRevington TR information: Switch. No longer available |
1 | ||
|
AA9 | 149971 |
Switch, warning lightThis item has been superceded by AAU1700A - see below |
1 | ||
|
AAU1700A |
SWITCH-B/FAILURE TR |
1 |
£41.98 Ex VAT @ 20% |
||
|
AA10 | HB0709 |
Bolt Securing valve to body gussetThis item has been superceded by BH604091 - see below |
1 | ||
|
BH604091 |
BOLT 1/4 UNF X 1-1/8 INCH |
1 | |||
|
AA11 | WL0207 |
Washer, lock Securing valve to body gussetThis item has been superceded by WS104070643 - see below |
1 | ||
|
WS104070643 |
WASHER SPRING 1/4" RECT SECTION |
1 |
£0.20 Ex VAT @ 20% |
||
|
AA12 | 308348 |
Pipe, pressure diff. to D.E. union, rear |
1 | ||
|
AA13 | 308347 |
Pipe, D.E. union to 3 way, rearRevington TR information: Rear pipe from engine bay union to DU union that feeds the rear brakes. |
1 |
£16.66 Ex VAT @ 20% |
|
|
AA14 | 121782 |
Connector, D.E. unionRevington TR information: 2 way male union 3/8" UNF/ 3/8"UNF 90° cone. Consider second hand part 121782SH |
1 |
£8.12 Ex VAT @ 20% |
|
|
AA15 | 059191 |
Clip, pipeRevington TR information: This clip is fitted on the front cross member of TR2-6 and takes one 3/16" brake pipe in this position. It is used in other positions on TR2-4A. This clip pushes into a suitable hole drilled... READ MORE |
1 |
£1.90 Ex VAT @ 20% |
|
|
AA16 | 147636 |
Pipe, 3 way to L.H. front hoseThis item has been superceded by 309720 - see below |
1 | ||
|
309720 |
BRAKE PIPE LH |
1 |
£20.36 Ex VAT @ 20% |
||
|
AA17 | 308150 |
Pipe, 3 way to R.H. front hoseThis item has been superceded by 309721 - see below |
1 | ||
|
309721 |
BRAKE PIPE RH |
1 |
£28.74 Ex VAT @ 20% |
||
|
AA18 | 137048 |
Clip, pipe to turret supportThis item has been superceded by 11K9181 - see below |
1 | ||
|
11K9181 |
CLIP |
1 |
£0.79 Ex VAT @ 20% |
||
|
AA19 | 059191 |
Clip, R.H. pipe to cross memberRevington TR information: This clip is fitted on the front cross member of TR2-6 and takes one 3/16" brake pipe in this position. It is used in other positions on TR2-4A. This clip pushes into a suitable hole drilled... READ MORE |
1 |
£1.90 Ex VAT @ 20% |
|
|
AA20 | 141590 |
Pipe, caliper to hose bracket, R.H. |
1 |
£31.92 Ex VAT @ 20% |
|
|
AA21 | 141591 |
Pipe, caliper to hose bracket, L.H. |
1 |
£31.92 Ex VAT @ 20% |
|
|
AA22 | 143320 |
Hose, high pressure, front R.H. and L.H.This item has been superceded by GBH176 - see below |
2 | ||
 |
GBH176 |
B/HOSE FR TR4A-6>6Revington TR information: Stainless steel braided version is RTR4062. |
2 |
£15.98 Ex VAT @ 20% |
||
|
AA23 | 516614 |
Nut Securing hoses and pipesThis item has been superceded by NP606071 - see below |
4 | ||
|
NP606071 |
NUT PLAIN 3/8 UNF X 7/32" |
4 |
£0.56 Ex VAT @ 20% |
||
|
AA24 | WN0709 |
Washer, shakeproof Securing hoses and pipesThis item has been superceded by WS106110401 - see below |
4 | ||
|
WS106110401 |
WASHER STAR INT 3/8" |
4 |
£0.16 Ex VAT @ 20% |
||
|
AA25 | 136908 |
Piece, 3 way, rearThis item has been superceded by BTB657 - see below |
1 | ||
|
BTB657 |
UNION 3 WAY 3/8 24UNFRevington TR information: 3 way unit, 3/8 UNF, single flair. All 3 ports are machined to accept a single flair. The mounting boss is behind the stem of the 'T' and has a 1/4" internal diameter mounting hole. The... READ MORE |
1 |
£26.32 Ex VAT @ 20% |
||
|
AA25B | HB0710D |
Bolt Nut 3 way piece to cruciform stiffenerThis item has been superceded by BH604101 - see below |
1 | ||
|
BH604101 |
BOLT 1/4 UNF X 1-1/4 INCH |
1 |
£0.65 Ex VAT @ 20% |
||
|
AA25B | TN3207 |
Nut 3 way piece to cruciform stiffenerThis item has been superceded by NY604101 - see below |
1 | ||
|
NY604101 |
NUT NYLOC 1/4 UNF X 5/16 |
1 |
£0.56 Ex VAT @ 20% |
||
|
AA25C | WP0007 |
Washer 3 way piece to cruciform stiffenerThis item has been superceded by WP10408057 - see below |
1 | ||
|
WP10408057 |
WASHER PLAIN 1/4" x 1/2" x 0.057" |
1 | |||
|
AA26 | 141588 |
Pipe, 3 way to R.H. hoseThis item has been superceded by 309724 - see below |
1 | ||
|
309724 |
BRAKE PIPE 3 WAY UNION TO HOSE TR4A-6 |
1 |
£16.27 Ex VAT @ 20% |
||
|
AA27 | 618386 |
Clip, pipe to cross member |
1 |
£0.80 Ex VAT @ 20% |
|
|
AA28 | 143565 |
Hose, rear R.H.This item has been superceded by GBH177 - see below |
1 | ||
|
GBH177 |
B/HOSE RR RH TR4A-6Revington TR information: Stainless steel braided version is RTR4063. |
1 |
£18.02 Ex VAT @ 20% |
||
|
AA28A | 516614 |
Nut, bulkhead Hose attachmentThis item has been superceded by NP606071 - see below |
3 | ||
|
NP606071 |
NUT PLAIN 3/8 UNF X 7/32" |
3 |
£0.56 Ex VAT @ 20% |
||
|
AA28B | WN0709 |
Washer, shakeproof, internal Hose attachmentThis item has been superceded by WS106110401 - see below |
3 | ||
|
WS106110401 |
WASHER STAR INT 3/8" |
3 |
£0.16 Ex VAT @ 20% |
||
|
AA29 | 143524 |
Pipe, hose to wheel cylinder, R.H.This item has been superceded by 309727 - see below |
1 | ||
|
309727 |
BRAKE PIPE RH TA REAR TR4A-6Revington TR information: 309726 and 309727 are identical pipes, bent in opposite ways |
1 |
£15.56 Ex VAT @ 20% |
||
|
AA30 | 143523 |
Pipe, hose to wheel cylinder, L.H. |
1 | ||
|
AA31 | 143564 |
Hose, rear, L.H.This item has been superceded by GBH178 - see below |
1 | ||
|
GBH178 |
B/HOSE RR LH TR4A-6Revington TR information: Stainless steel braided version is RTR4063. |
1 |
£18.02 Ex VAT @ 20% |
||
|
AA31A | 107072 |
Gasket, copper, on hoseThis item has been superceded by WC10610050A - see below |
2 | ||
|
WC10610050A |
WASHER COPPER 3/8 x 19/32 x 0.050 |
2 |
£1.75 Ex VAT @ 20% |
||
|
AA32 | 615836 |
Clip, pipe to trailing arm |
2 |
£0.85 Ex VAT @ 20% |
|
|
CLUTCH PIPES - L.H.S. |
|||||
|
AA33 | 148816 |
Pipe, clutch master cylinder to D.E. union |
1 |
£30.36 Ex VAT @ 20% |
|
|
AA34 | 140420 |
Hose, nylonRevington TR information: Use second hand 140420SH or Stainless Steel braided version is RTR4051 |
1 | ||
|
AA35 | 143032 |
Connector, D.E. union, pipe to nylon hoseThis item has been superceded by 598693 - see below |
1 | ||
|
598693 |
ADAPTER UNION |
1 |
£21.55 Ex VAT @ 20% |
||
|
AA37 | YZ3303 |
Screw, self tapping Retaining pipeThis item has been superceded by AB606039 - see below |
1 | ||
|
AB606039 |
SCREW No. 6 x 3/8" |
1 |
£0.66 Ex VAT @ 20% |
||
|
SERVO PIPES - L.H.S. |
|||||
|
AA38 | 149330 |
Hose, servo to manifoldThis item has been superceded by CRC2131A - see below |
1 | ||
|
CRC2131A |
VACUUM HOSE 30 inchRevington TR information: 30" long suitable for LHD and RHD |
1 |
£15.49 Ex VAT @ 20% |
||
|
AA39 | 139074 |
Clip, hose attachment |
2 | ||
|
AA40 | 514048 |
Clip, "P"-Vacuum hose to rocker coverThis item has been superceded by PCR1011 - see below |
1 | ||
|
PCR1011 |
PCLIP 5/8"DIA X11/32 |
1 |
£1.62 Ex VAT @ 20% |
||
|
AA41 | 144373 |
Valve, non-return, fitted to manifoldThis item has been superceded by ADU1402 - see below |
1 | ||
 |
ADU1402 |
ONE WAY VALVERevington TR information: Screws straight into the inlet manifold and accepts the hose to the servo and removes annoying fluttering noises. This is a 5/8" UNF thread into the manifold. See also part number 148479, which is a similar... READ MORE |
1 |
£31.37 Ex VAT @ 20% |
||
|
AA42 | WF0513 |
Washer, fibre, on valveThis item has been superceded by WF11016062 - see below |
1 | ||
|
WF11016062 |
WASHER FIBRE 5/8 X 1 INCH |
1 |
£0.54 Ex VAT @ 20% |
