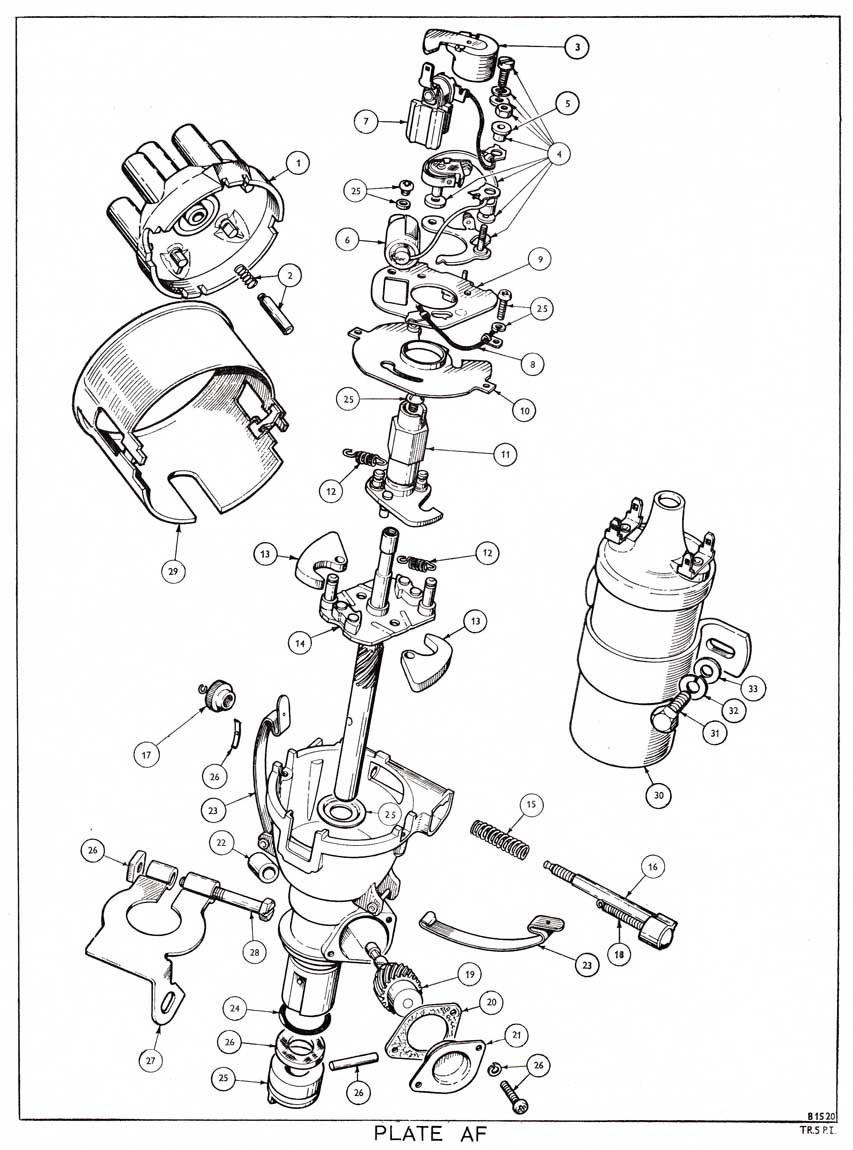

TR5 Plate AF - ELECTRICAL EQUIPMENT: DISTRIBUTOR AND IGNITION COIL

<< Return to Triumph Catalogue Plate List

  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
AF1AA
214459

CLICK FOR
MORE INFO

DISTRIBUTOR

Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41219 Rebuilt distributors are still available on an exchange basis. Please order 214459EX

1

£790.90

Ex VAT @ 20%
£659.08



Available to order
AF1
515856

CLICK FOR
MORE INFO

Cover

This item has been superceded by GDC115 - see below

1
GDC115

CLICK FOR
MORE INFO

DISTRIBUTOR CAP 25D6 6 CYL

Revington TR information: consider high quality part GDC115HQ

1

£11.52

Ex VAT @ 20%
£9.60



AF2
501718

CLICK FOR
MORE INFO

Brush and spring, cap centre

This item has been superceded by 262703A - see below

1
262703A
BRUSH AND SPRING

1

£4.68

Ex VAT @ 20%
£3.90



Available to order
AF3
510024

CLICK FOR
MORE INFO

Arm, rotor

This item has been superceded by GRA102 - see below

1
GRA102

CLICK FOR
MORE INFO

ROTOR ARM TR6 HIGH QUALITY

Revington TR information: High quality rotor arm 6 cylinder. We only sell the high quality unit so we use the original number. This high quality rotor arm does not suffer from the tracking between the rivit and internals that... READ MORE

1

£13.70

Ex VAT @ 20%
£11.42



AF4
503681

CLICK FOR
MORE INFO

Contact set

This item has been superceded by GCS2101 - see below

1
GCS2101

CLICK FOR
MORE INFO

CONTACT SET TR3-6

Revington TR information: Standard set of points. For a higher quality set

1

£4.57

Ex VAT @ 20%
£3.81



AF5
503687

CLICK FOR
MORE INFO

Bush, insulating contact breaker lever

Revington TR information: No longer available

1
No longer available
AF6
509319

CLICK FOR
MORE INFO

Condenser

This item has been superceded by GSC111 - see below

1
GSC111

CLICK FOR
MORE INFO

CONDENSER TR2-6

Revington TR information: For a higher quality product see GSC111HQ.

1

£5.17

Ex VAT @ 20%
£4.31



AF7
511086

CLICK FOR
MORE INFO

Terminal, bush and lead

This item has been superceded by 600329A - see below

1
600329A
LOW TENSION TERMINAL TR4-6 25D

1

£8.32

Ex VAT @ 20%
£6.93



Available to order
AF7A
503688

CLICK FOR
MORE INFO

Washer, insulating terminal

Revington TR information: No longer available

1
No longer available
AF8
503690

CLICK FOR
MORE INFO

Lead, earth

This item has been superceded by 245015 - see below

1
245015
SUNDRIES KIT -DISTRIBUTOR REPAIR

Revington TR information: (NO LONGER AVAILABLE) Distributor repair kit-sundry parts suits most distributors.

1
No longer available
AF9
503684

CLICK FOR
MORE INFO

Plate, contact breaker base

Revington TR information: Base Plate upper, DM2 distributor. We also have second hand parts too and can offer part number 17H5469 as an alternative.

1

£60.88

Ex VAT @ 20%
£50.73



Available to order
AF10
511010

CLICK FOR
MORE INFO

Plate, contact breaker bearing

This item has been superceded by RTC718 - see below

1
RTC718
PLATE

1

£47.27

Ex VAT @ 20%
£39.39



Available to order
AF11
517424

CLICK FOR
MORE INFO

Cam

Revington TR information: No longer available

1
No longer available
AF12
517425

CLICK FOR
MORE INFO

Spring, automatic advance weights

1

£30.47

Ex VAT @ 20%
£25.39



Available to order
AF13
510638

CLICK FOR
MORE INFO

Weight, automatic advance

Revington TR information: No longer available

2
No longer available
AF14
515862

CLICK FOR
MORE INFO

Plate, shaft and action

1
No longer available
AF15
511014

CLICK FOR
MORE INFO

Spring, ratchet micrometer

1

£5.52

Ex VAT @ 20%
£4.60



Available to order
AF16
517426

CLICK FOR
MORE INFO

Adjuster, micrometer

1

£30.60

Ex VAT @ 20%
£25.50



Available to order
AF17
511013
Nut, knurled, micrometer

1
No longer available
AFI8
503693

CLICK FOR
MORE INFO

Spring, return, micrometer

1
No longer available
AF19
515864

CLICK FOR
MORE INFO

Gear, tachometer drive

Revington TR information: Tachometer Drive Gear TR5-6PI. consider also second hand part 515864SH

1

£47.72

Ex VAT @ 20%
£39.77



Available to order
AF20
515866

CLICK FOR
MORE INFO

Gasket, tachometer gear cover

1

£8.08

Ex VAT @ 20%
£6.73



Available to order
AF21
Not serviced
Cover, tachometer gear

1
No longer available
AF22
515867

CLICK FOR
MORE INFO

Bush, bearing, tachometer shaft

This item has been superceded by 511859 - see below

1
511859
NYLON DRIVE

1
No longer available
AF23
507083

CLICK FOR
MORE INFO

Clip, retaining cover

2
No longer available
AF24
513682

CLICK FOR
MORE INFO

O' ring, oil seal

This item has been superceded by 513682A - see below

1
513682A
O RING

1

£1.55

Ex VAT @ 20%
£1.29



AF25
513679

CLICK FOR
MORE INFO

Dog, driving

This item has been superceded by 513679A - see below

1
513679A
DISTRIBUTOR DRIVE

1

£36.97

Ex VAT @ 20%
£30.81



AF26
CN6

CLICK FOR
MORE INFO

Nut Square

Revington TR information: Nut square 1/4" UNF, 0.437" across the flats, (7/16"AF), 1/4" thick. Triumph and general application. Not currently available, the thinner CN1 can be used as an alternative. A full range of cages and nuts is available,... READ MORE

1
No longer available
AF26A
501728

CLICK FOR
MORE INFO

Kit, sundry parts

This item has been superceded by 245015 - see below

1
245015
SUNDRIES KIT -DISTRIBUTOR REPAIR

Revington TR information: (NO LONGER AVAILABLE) Distributor repair kit-sundry parts suits most distributors.

1
No longer available
AF27
508534

CLICK FOR
MORE INFO

Plate, clamping

Revington TR information: Clamp plate securing the TR5-6 distributor to it's pedestal. We have second hand parts too, order part number 508534SH. The clamping parts are available separately as :- bolt BH604121, nut CN6 and washer WS104070643. see... READ MORE

1

£48.78

Ex VAT @ 20%
£40.65



Available to order
AF28
058499

CLICK FOR
MORE INFO

Screw, clamping plate

This item has been superceded by BH604121 - see below

1
BH604121
BOLT 1/4 UNF X 1-1/2"

1

£0.62

Ex VAT @ 20%
£0.52



AF29
149992

CLICK FOR
MORE INFO

Cover, screen

Triumph Catalogue Remarks: France and Denmark only

1

£22.64

Ex VAT @ 20%
£18.87



Available to order
AF30
146112

CLICK FOR
MORE INFO

IGNITION COIL

This item has been superceded by GCL110 - see below

1
GCL110

CLICK FOR
MORE INFO

IGNITION COIL PUSH IN LUCAR CONN

Revington TR information: Non-ballasted ignition coil, push in king lead type suitable for all cars up to 1973 TR6 when a ballasted coil was introduced. We also have second hand coils GCL110SH and Sports Coil RTR8062.

1

£19.97

Ex VAT @ 20%
£16.64



AF30A
105036

CLICK FOR
MORE INFO

Nut, terminal

1

£1.91

Ex VAT @ 20%
£1.59



AF31
HU0804

CLICK FOR
MORE INFO

Screw, set Ignition coil attachment

This item has been superceded by SH605041 - see below

2
SH605041

CLICK FOR
MORE INFO

SCREW 5/16 UNF X 1/2 INCH

2

£0.76

Ex VAT @ 20%
£0.63



AF32
WL0208

CLICK FOR
MORE INFO

Washer, lock Ignition coil attachment

This item has been superceded by WS105090853 - see below

2
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

2

£0.25

Ex VAT @ 20%
£0.21



AF33
WP0008

CLICK FOR
MORE INFO

Washer, plain Ignition coil attachment

This item has been superceded by WP10510075 - see below

2
WP10510075
WASHER PLAIN 5/16" x 5/8" x 0.075"

2

£0.44

Ex VAT @ 20%
£0.37
