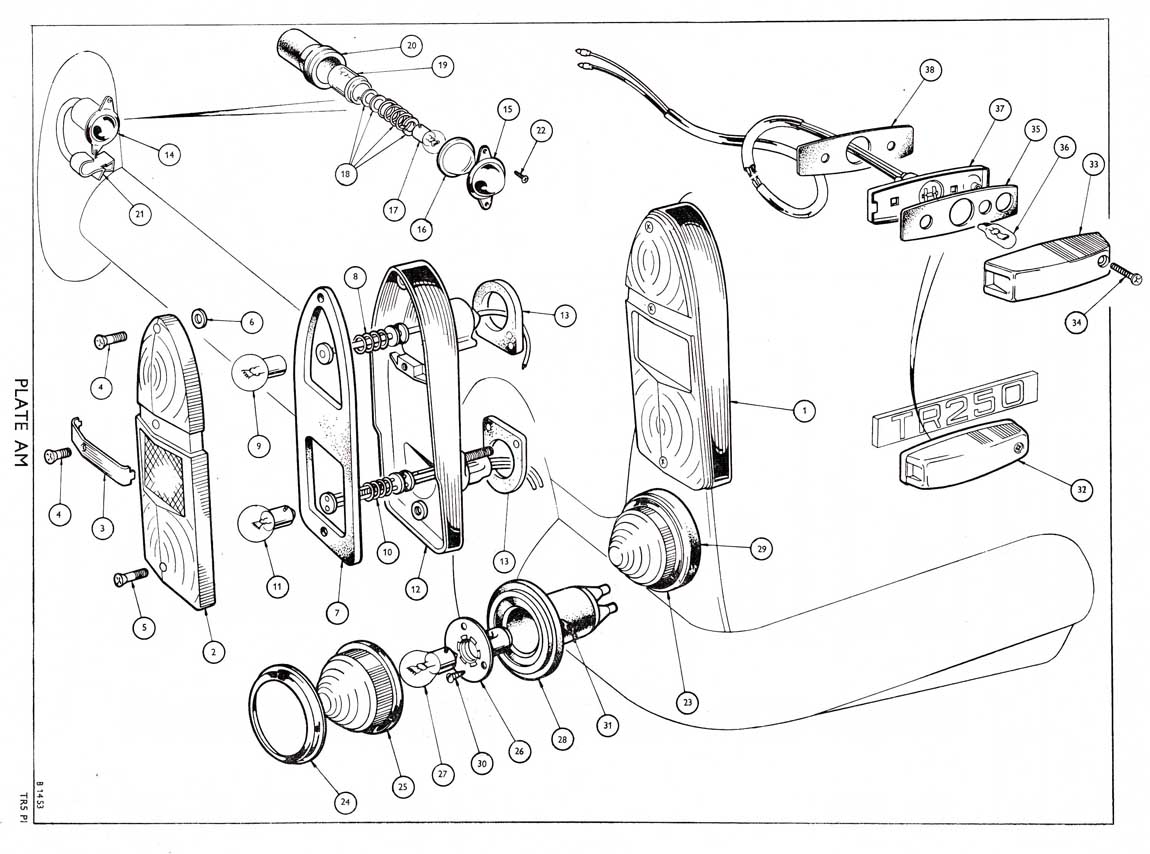

TR5 Plate AM - ELECTRICAL EQUIPMENT: STOP/TAIL FLASHER LAMP, NUMBER PLATE, REVERSE AND REAR WING SIDE MARKER LAMPS

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
AM1	214542 CLICK FOR MORE INFO	STOP/TAIL FLASHER LAMP AND REFLEX ASSEMBLY (AMBER FLASHER LENS) This item has been superceded by 208208 - see below	2
	208208 CLICK FOR MORE INFO	REAR LAMP TR4, 4A, 250, 5 AMBER/RED Revington TR information: TR4-4A use the same rear lamp as TR250-5 but with a minor change to the pattern of the lens. Only one pattern is available now (the later one) and sold under this number. This lamp has... READ MORE	2	£161.00 Ex VAT @ 20% £134.17	Available to order
AM1A	214541 CLICK FOR MORE INFO	STOP/TAIL FLASHER LAMP AND REFLEX ASSEMBLY (RED FLASHER LENS) This item has been superceded by 208207 - see below	2
	208207 CLICK FOR MORE INFO	REAR LAMP TR4, 4A, 250, 5 RED/RED Revington TR information: TR4-4A use the same rear lamp as TR250-5 but with a minor change to the pattern of the lens. Only one pattern is available now (the later one) and sold under this number. This lamp has... READ MORE	2	£249.04 Ex VAT @ 20% £207.53	Available to order
AM2	516040 CLICK FOR MORE INFO	Lens, amber flasher Revington TR information: TR4-4A use the same rear lamp as TR250-5 but with a minor change to the pattern of the lens. Only one pattern of lens is available now (the later one) and sold under this number. This... READ MORE This item has a secondhand part available - see below	2	£21.96 Ex VAT @ 20% £18.30	Available to order
	516040SH	LENS AMBER/RED SECOND HAND	2	£16.66 Ex VAT @ 20% £13.88
AM2A	516061 CLICK FOR MORE INFO	Lens, red flasher Revington TR information: TR4-4A use the same rear lamp as TR250-5 but with a minor change to the pattern of the lens. Only one pattern of lens is available now (the later one) and sold under this number. This... READ MORE This item has a secondhand part available - see below	2	£26.68 Ex VAT @ 20% £22.23
	516061SH	SECOND HAND TR4, 4A, 250 & 5 REAR LENS RED/RED	2	£22.07 Ex VAT @ 20% £18.39
AM3	510903 CLICK FOR MORE INFO	Bezel	2	£1.49 Ex VAT @ 20% £1.24	Available to order
AM4	510904 CLICK FOR MORE INFO	Screw, securing lens (Top and centre)	4	£1.80 Ex VAT @ 20% £1.50	Available to order
AM5	510905 CLICK FOR MORE INFO	Screw, securing lens (Bottom)	2	£1.93 Ex VAT @ 20% £1.61
AM6	503534 CLICK FOR MORE INFO	Washer, retaining screw This item has been superceded by 21G9057 - see below	6
	21G9057	WASHER RUBBER	6		No longer available
AM7	510906 CLICK FOR MORE INFO	Gasket, lens seating Revington TR information: This item has a secondhand part available - see below	2	£5.35 Ex VAT @ 20% £4.46
	510906SH	GASKET SH REAR LENS TR4, 4A, 250, 5	2	£2.22 Ex VAT @ 20% £1.85
AM8	510907 CLICK FOR MORE INFO	Interior, bulbholder, flasher Revington TR information: This item has a secondhand part available - see below	2	£5.81 Ex VAT @ 20% £4.84
	510907SH	Second Hand BULB CONTACT SINGLE	2	£7.18 Ex VAT @ 20% £5.98	Available to order
AM9	502379 CLICK FOR MORE INFO	Bulb, flasher This item has been superceded by GLB382 - see below	2
	GLB382 CLICK FOR MORE INFO	BULB 21W INDICATOR/ REVERSE LIGHT Revington TR information: Amber version is GLB343.	2	£1.09 Ex VAT @ 20% £0.91
AM10	508545 CLICK FOR MORE INFO	Interior, bulbholder, stop/tail This item has been superceded by 37H5459 - see below	2
	37H5459	TWIN TERMINAL KIT	2	£6.59 Ex VAT @ 20% £5.49	Available to order
AM11	502287 CLICK FOR MORE INFO	Bulb, stop/tail This item has been superceded by GLB380 - see below	2
	GLB380 CLICK FOR MORE INFO	BULB 21/5 WATT 12V STOP TAIL Revington TR information: A version of this Stop/tail bulb is available with red glass. Order GLB380R.	2	£0.94 Ex VAT @ 20% £0.78
AM12	Not serviced	Base	2		No longer available
AM13	133364 CLICK FOR MORE INFO	Gasket, lamp seating Revington TR information: This item has a secondhand part available - see below	2	£2.59 Ex VAT @ 20% £2.16	Available to order
	133364SH	RR LAMP GASKET TR4-5 SH	2	£2.12 Ex VAT @ 20% £1.77
AM13A	515061 CLICK FOR MORE INFO	Grommet, cable, flasher This item has been superceded by 513730 - see below	2
	513730 CLICK FOR MORE INFO	DUST GROMMET SINGLE	2	£2.28 Ex VAT @ 20% £1.90
AM13B	516041 CLICK FOR MORE INFO	Grommet, cable, stop/tail This item has been superceded by 513730 - see below	2
	513730 CLICK FOR MORE INFO	DUST GROMMET SINGLE	2	£2.28 Ex VAT @ 20% £1.90
AM13C	HN2005 CLICK FOR MORE INFO	Nut Securing lamp to body This item has been superceded by NP603041 - see below	8
	NP603041	NUT PLAIN 10-32 UNF 3/8 AF	8	£0.18 Ex VAT @ 20% £0.15
AM13D	WN0705 CLICK FOR MORE INFO	Washer, shakeproof Securing lamp to body This item has been superceded by WS103050501 - see below	8
	WS103050501	WASHER STAR INTERNAL 3/16"	8	£0.40 Ex VAT @ 20% £0.33
AM14	128881 CLICK FOR MORE INFO	NUMBER PLATE ILLUMINATION LAMP Triumph Catalogue Remarks: All markets except Germany and Denmark Alternatives Revington TR information: Not available new please order 142002 which is visually the same externally but has a different bulb holder internally using a GLB501, 12V 5W capless bulb. . Consider original second hand part number 128881SH. See... READ MORE This item has a secondhand part available - see below	2	£37.75 Ex VAT @ 20% £31.46
	128881SH	NO PLATE LAMP SH Triumph Catalogue Remarks: All markets except Germany and Denmark Alternatives	2	£18.89 Ex VAT @ 20% £15.74
AM14A	133652 CLICK FOR MORE INFO	NUMBER PLATE ILLUMINATION LAMP Triumph Catalogue Remarks: All markets except Germany and Denmark Alternatives This item has been superceded by 128881 - see below	2
	128881 CLICK FOR MORE INFO	NUMBER PLATE ILLUMINATION LAMP Revington TR information: Not available new please order 142002 which is visually the same externally but has a different bulb holder internally using a GLB501, 12V 5W capless bulb. . Consider original second hand part number 128881SH. See... READ MORE	2	£37.75 Ex VAT @ 20% £31.46
AM15	131465 CLICK FOR MORE INFO	Rim, cowled Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by 131465A - see below	2
	131465A CLICK FOR MORE INFO	CHROME BEZEL NOPLATE Revington TR information: Consider original second hand part number 131465ASH. .	2	£13.34 Ex VAT @ 20% £11.12	Available to order
AM16	510875 CLICK FOR MORE INFO	Glass Triumph Catalogue Remarks: All markets except Germany and Denmark	2	£10.28 Ex VAT @ 20% £8.57
AM17	511029 CLICK FOR MORE INFO	Bulb Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by GLB207 - see below	2
	GLB207 CLICK FOR MORE INFO	BULB 12V-5W NO PLATE	2		No longer available
AM18	510907 CLICK FOR MORE INFO	Interior, bulbholder Triumph Catalogue Remarks: All markets except Germany and Denmark Revington TR information: This item has a secondhand part available - see below	2	£5.81 Ex VAT @ 20% £4.84
	510907SH	Second Hand BULB CONTACT SINGLE Triumph Catalogue Remarks: All markets except Germany and Denmark	2	£7.18 Ex VAT @ 20% £5.98	Available to order
AM19	Not serviced	Bulbholder Triumph Catalogue Remarks: All markets except Germany and Denmark	2		No longer available
AM20	510912 CLICK FOR MORE INFO	Body Triumph Catalogue Remarks: All markets except Germany and Denmark	2		No longer available
AM21	611406 CLICK FOR MORE INFO	Clip, lead to bumper bracket Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by 615836 - see below	2
	615836 CLICK FOR MORE INFO	CLIP BRAKE PIPE TO TRAILING ARM	2	£0.85 Ex VAT @ 20% £0.71	Available to order
AM21A	600395 CLICK FOR MORE INFO	Grommet, lead to bumper bracket Triumph Catalogue Remarks: All markets except Germany and Denmark	2	£2.36 Ex VAT @ 20% £1.97
AM22	509355 CLICK FOR MORE INFO	Screw, self tapping Lamp cowl to overider Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by AB606053 - see below	4
	AB606053	ASHTRAY SCREW MGB	4	£1.00 Ex VAT @ 20% £0.83
AM22A	613023 CLICK FOR MORE INFO	Nut, spire Lamp cowl to overider Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by AK606021 - see below	4
	AK606021	SPRING NUT	4	£1.32 Ex VAT @ 20% £1.10
AM22B	137631 CLICK FOR MORE INFO	Lead, extension, number plate lamp Triumph Catalogue Remarks: All markets except Germany and Denmark This item has been superceded by 142002 - see below	2
	142002 CLICK FOR MORE INFO	NO PLATE LAMP S/FIRE Revington TR information: This part is visually the same externally as TR4 - 5 part 128881 but has a different bulb holder internally using a GLB501, 12V 5W capless bulb.	2	£18.97 Ex VAT @ 20% £15.81
AM22C	128397	REAR NUMBER PLATE LAMP Triumph Catalogue Remarks: Germany and Denmark only	2		No longer available
AM22D	502264 CLICK FOR MORE INFO	Cover Triumph Catalogue Remarks: Germany and Denmark only Revington TR information: 502264 Cover chrome plated brass for 127916 range of number plate illumination lamps. Second hand original parts available too. This item has a secondhand part available - see below	2	£18.60 Ex VAT @ 20% £15.50
	502264SH CLICK FOR MORE INFO	Second Hand COVER Triumph Catalogue Remarks: Germany and Denmark only Revington TR information: Cover Second Hand chrome plated brass for 127916 range of number plate illumination lamps.	2	£10.06 Ex VAT @ 20% £8.38
AM22E	500492 CLICK FOR MORE INFO	Glass Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by 601721A - see below	2
	601721A CLICK FOR MORE INFO	NO.PLATE LAMP LENS Revington TR information: Replacement glass lens for 127916 range of number plate illumination lamps. A plastic E marked lens 601721P is also available	2	£8.64 Ex VAT @ 20% £7.20	Available to order
AM22F	059467 CLICK FOR MORE INFO	Bulb Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by GLB989 - see below	2
	GLB989 CLICK FOR MORE INFO	BULB 12V 5W BAYONET	2	£1.26 Ex VAT @ 20% £1.05
AM22G	508736 CLICK FOR MORE INFO	Nut, dome Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by AJD8012Z - see below	2
	AJD8012Z	LOCKNUT 2BA	2	£0.43 Ex VAT @ 20% £0.36
AM22H	618956 CLICK FOR MORE INFO	Plinth, mounting number plate lamp Triumph Catalogue Remarks: Germany and Denmark only	2		No longer available
AM22J	618957 CLICK FOR MORE INFO	Seal, mounting plinth Triumph Catalogue Remarks: Germany and Denmark only	2		No longer available
AM22K	HN2005 CLICK FOR MORE INFO	Nut Mounting plinth to trunk lid Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by NP603041 - see below	4
	NP603041	NUT PLAIN 10-32 UNF 3/8 AF	4	£0.18 Ex VAT @ 20% £0.15
AM22L	WE0605 CLICK FOR MORE INFO	Washer, shakeproof Mounting plinth to trunk lid Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by WS103050501 - see below	4
	WS103050501	WASHER STAR INTERNAL 3/16"	4	£0.40 Ex VAT @ 20% £0.33
AM22M	144658 CLICK FOR MORE INFO	Cable, R.H. tail lamp junction to R.H. number plate lamp Triumph Catalogue Remarks: Germany and Denmark only	1		No longer available
AM22N	144659 CLICK FOR MORE INFO	Cable, R.H. to L.H. number plate lamp Triumph Catalogue Remarks: Germany and Denmark only	I		No longer available
AM22O	061917 CLICK FOR MORE INFO	Grommet, cable, fitted in trunk lid Triumph Catalogue Remarks: Germany and Denmark only	2	£1.10 Ex VAT @ 20% £0.92	Available to order
AM22P	145891 CLICK FOR MORE INFO	Clip, fir tree, R.H. lead to trunk lid tube Triumph Catalogue Remarks: Germany and Denmark only This item has been superceded by 13H6107 - see below	5
	13H6107 CLICK FOR MORE INFO	CABLE STRAP Revington TR information: This is a fir tree type cable tie. Also consider second hand, see number below.	5	£4.03 Ex VAT @ 20% £3.36
AM22Q	611227 CLICK FOR MORE INFO	Clip, edge, R.H. lead to fuel tank millboard Triumph Catalogue Remarks: Germany and Denmark only	1		No longer available
AM22R	600399 CLICK FOR MORE INFO	Plug, rubber, fitted in boot side panel Triumph Catalogue Remarks: Germany and Denmark only	2	£1.76 Ex VAT @ 20% £1.47
AM23	133204 CLICK FOR MORE INFO	REVERSE LAMP This item has been superceded by 532806 - see below	2
	532806 CLICK FOR MORE INFO	CLEAR SINGLE FILAMENT LAMP BEEHIVE Revington TR information: Clear single filament 'Beehive' lamp complete with glass lens. See also 532806P complete lamp supplied with a plastic lens. Replacement lenses. 37H6928 glass lens only and 37H6928P for plastic lens only. Other similar 'Bee Hive' lamps... READ MORE	2		No longer available
AM24	505884 CLICK FOR MORE INFO	Rim This item has been superceded by 7H5182 - see below	2
	7H5182 CLICK FOR MORE INFO	RIM S/LIGHT RETAINING Revington TR information: Consider original second hand part number 7H5182SH. .	2	£3.00 Ex VAT @ 20% £2.50
AM25	505886 CLICK FOR MORE INFO	Glass This item has been superceded by 37H6928 - see below	2
	37H6928 CLICK FOR MORE INFO	CLEAR BEEHIVE LENS GLASS Revington TR information: Clear glass lens beehive type, Clear lens front of TR3A Other similar 'Bee Hive' lenses are: - Clear plastic 37H6928P Amber glass 37H5520 Amber plastic 37H8130 Red glass ... READ MORE	2	£9.70 Ex VAT @ 20% £8.08	Available to order
AM26	508165 CLICK FOR MORE INFO	Bulbholder and plate This item has been superceded by 37H5528 - see below	2
	37H5528 CLICK FOR MORE INFO	BULB HOLDER 382/207 SINGLE Revington TR information: Part of Beehive lamp. Consider original second hand part number 37H5528SH. .	2	£14.98 Ex VAT @ 20% £12.48
AM26A	501823 CLICK FOR MORE INFO	Interior, bulbholder	2		No longer available
AM27	502379 CLICK FOR MORE INFO	Bulb This item has been superceded by GLB382 - see below	2
	GLB382 CLICK FOR MORE INFO	BULB 21W INDICATOR/ REVERSE LIGHT Revington TR information: Amber version is GLB343.	2	£1.09 Ex VAT @ 20% £0.91
AM28	505883 CLICK FOR MORE INFO	Body This item has been superceded by 508162 - see below	2
	508162	INDICATOR LAMP BOOT 594 SHALLOW	2	£3.46 Ex VAT @ 20% £2.88
AM29	148928 CLICK FOR MORE INFO	Plinth, reverse lamp R.H.	1		No longer available
AM29A	148929 CLICK FOR MORE INFO	Plinth, reverse lamp L.H.	1		No longer available
AM30	YZ3308 CLICK FOR MORE INFO	Screw Securing reverse This item has been superceded by AB606082 - see below	6
	AB606082	SCREW FOR REVERSE LN	6	£0.46 Ex VAT @ 20% £0.38	Available to order
AM31	FJ2442/4 CLICK FOR MORE INFO	Nut, spire f lamps to body This item has been superceded by AK606021 - see below	6
	AK606021	SPRING NUT	6	£1.32 Ex VAT @ 20% £1.10
AM32	142923 CLICK FOR MORE INFO	REAR SIDE MARKER LAMP (RED LENS) Triumph Catalogue Remarks: All markets except Germany Revington TR information: Consider Second hand part 142923SH. This item has a secondhand part available - see below	2	£28.74 Ex VAT @ 20% £23.95
	142923SH	REPEATER LAMP RED TR5 SECOND HAND Triumph Catalogue Remarks: All markets except Germany	2	£26.15 Ex VAT @ 20% £21.79	Available to order
AM33	517335 CLICK FOR MORE INFO	Lens Triumph Catalogue Remarks: All markets except Germany	2	£9.76 Ex VAT @ 20% £8.13	Available to order
AM34	515059 CLICK FOR MORE INFO	Screw, securing lens Triumph Catalogue Remarks: All markets except Germany This item has been superceded by PMP208 - see below	2
	PMP208	SCREW 1/2	2	£1.03 Ex VAT @ 20% £0.86	Available to order
AM35	517336 CLICK FOR MORE INFO	Gasket, lens seating Triumph Catalogue Remarks: All markets except Germany	2	£2.18 Ex VAT @ 20% £1.82	Available to order
AM36	514797 CLICK FOR MORE INFO	Bulb Triumph Catalogue Remarks: All markets except Germany This item has been superceded by GLB501 - see below	2
	GLB501 CLICK FOR MORE INFO	12V-5W CAPLESS BULB Revington TR information: Bulb 5 watt. Side, tail lamps or instrument. Capless w2.1 x 9.5d. Alternatives are GLB297 2w, GLB510 2.2w, GLB512 2.6w GLB504 3W.	2	£1.08 Ex VAT @ 20% £0.90
AM37	517337 CLICK FOR MORE INFO	Bulbholder with leads Triumph Catalogue Remarks: All markets except Germany This item has been superceded by 153004HOLDER - see below	2
	153004HOLDER	BULB HOLDER, RUBBER	2	£151.39 Ex VAT @ 20% £126.16	Available to order
AM38	142925 CLICK FOR MORE INFO	Gasket, lamp seating Triumph Catalogue Remarks: All markets except Germany	2	£3.34 Ex VAT @ 20% £2.78
AM38A	YA0304 CLICK FOR MORE INFO	Screw, self tapping Securing rear side marker lamps Triumph Catalogue Remarks: All markets except Germany This item has been superceded by AB606043 - see below	4
	AB606043	SELF TAPPER PAN no. 6 x 1/2"	4	£0.73 Ex VAT @ 20% £0.61
AM38B	FC2803/4 CLICK FOR MORE INFO	Nut, fix Securing rear side marker lamps Triumph Catalogue Remarks: All markets except Germany	4		No longer available
