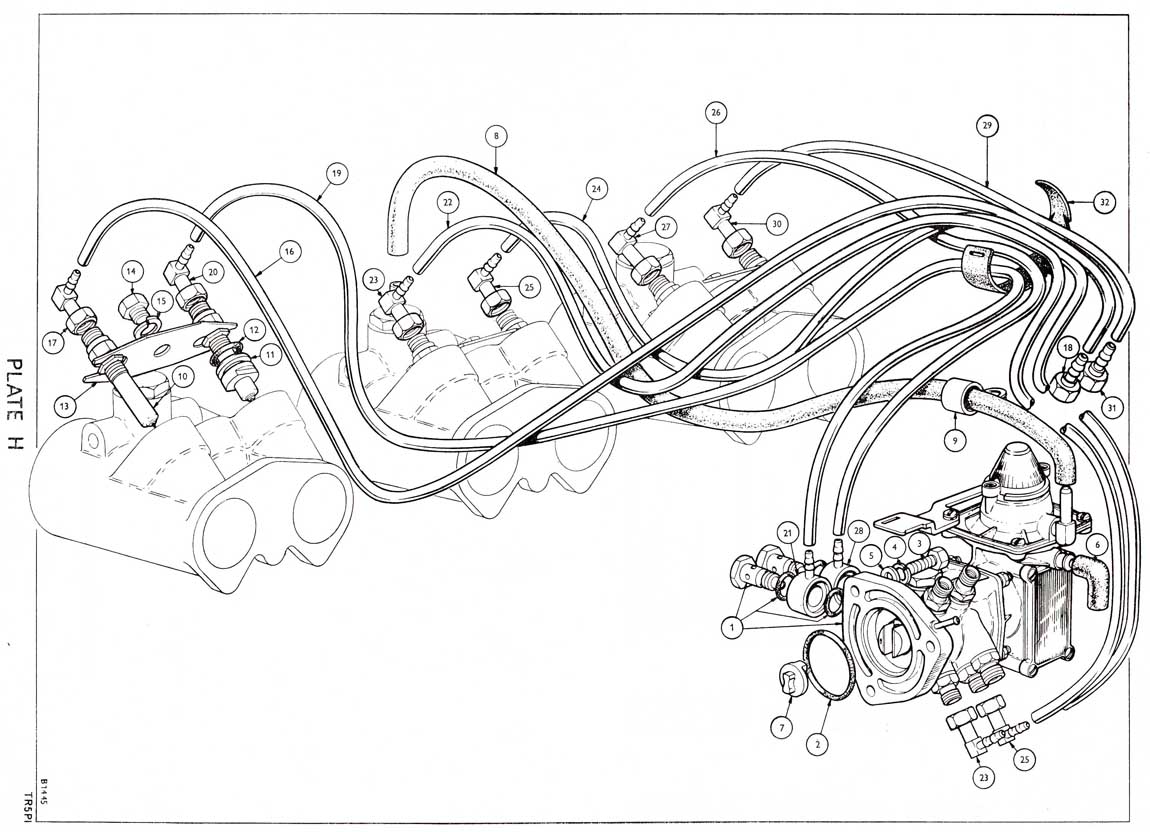

TR5 Plate H - ENGINE: METERING UNIT, INJECTORS AND INJECTOR PIPES

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
H1	308205 CLICK FOR MORE INFO	METERING PUMP UNIT- Push on type Triumph Catalogue Remarks: None Air bleed type Revington TR information: Fuel Metering Unit suitable only for early TR5's with no air bleed valve and idle screws to adjust tick over. As new metering units are not available please use exchange unit 308205EX. A full explanation of... READ MORE	1		No longer available
H1A	309154 CLICK FOR MORE INFO	METERING PUMP UNIT- Push on type return Triumph Catalogue Remarks: Fitted up to engine No. CP52533. Air bleed type (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: Fuel Metering Unit suitable for late TR5's with an air bleed valve to adjust tick over and all CP commission numbered TR6PI with a push on return fuel pipe. As new metering units are not available... READ MORE This item has a secondhand part available - see below	1		No longer available
	309154SH CLICK FOR MORE INFO	Second Hand METERING UNIT (ALL) Triumph Catalogue Remarks: Fitted up to engine No. CP52533. Air bleed type (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: All second hand metering units irrespective of type are kept under this number. Please specify push on or screw on return. Please be aware that Revington TR can give no guarantee of calibration or suitability for... READ MORE	1	£195.77 Ex VAT @ 20% £163.14	Available to order
H1B	312070 CLICK FOR MORE INFO	METERING PUMP UNIT- Push on type return Triumph Catalogue Remarks: Fitted from engine No. CP52534 to CP53160. Air bleed type (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: TR6 fitted from CP52534 to CP53160. New metering units are not available. Use exchange unit 309154EX Push On return or 312529EX Screw On return Metering Units offered on an exchange basis: - 308205EX Metering Unit TR5, Non... READ MORE	1		No longer available
H1C	312097 CLICK FOR MORE INFO	METERING PUMP UNIT- Screw on type return Triumph Catalogue Remarks: Fitted from engine No. CP53161 to CP75314. Air bleed type (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: TR6 fitted from CP53161 to CP75314. New metering units are not available. Use exchange unit 309154EX Push On return or 312529EX Screw On return Metering Units offered on an exchange basis: - 308205EX Metering Unit TR5, Non... READ MORE	1		No longer available
H1D	312529 CLICK FOR MORE INFO	METERING PUMP UNIT- Screw on type return Triumph Catalogue Remarks: Fitted from engine No. CP75315 to CR1HE. Air bleed type (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: Fuel Metering Unit suitable for all late CP commission numbered TR6PI with a screw on return fuel pipe. As new metering units are not available please use exchange unit 312359EX. Earlier cars use a push on... READ MORE	1		No longer available
		METERING PUMP UNIT Parts
H1C	RTR4097 CLICK FOR MORE INFO	Control Spring Set 2 x Silver Springs Triumph Catalogue Remarks: Non Air bleed type Metering Unit Revington TR information: 2 Silver springs - TR5 non-air bleed For other applications/calibrations try:- RTR4098 2 x Red springs - TR5-6 CP 150BHP RTR4099 3 X black springs TR6 CR124BHP RTR4100 2 X BLUE SPRINGS 2.5PI This item has a secondhand part available - see below	1		No longer available
	RTR4097SH	Second Hand SPRING PACK Silver Triumph Catalogue Remarks: Non Air bleed type Metering Unit	1	£62.66 Ex VAT @ 20% £52.22
H1D	RTR4098 CLICK FOR MORE INFO	Control Spring Set 2 x Red Springs Triumph Catalogue Remarks: Air bleed type Metering Unit (not TR5, actually TR6CP but many cars will be fitted with this MU) Revington TR information: Pack of 2 Red springs, one large and one small, suitable for TR5-6 CP 150BHP and other cars which have been modified with none standard cams having a vacuum (which the metering unit relies on to... READ MORE This item has a secondhand part available - see below	1	£85.96 Ex VAT @ 20% £71.63
	RTR4098SH	Second Hand SPRING PACK RED Triumph Catalogue Remarks: Air bleed type Metering Unit (not TR5, actually TR6CP but many cars will be fitted with this MU)	1	£50.66 Ex VAT @ 20% £42.22	Available to order
H1E	519857 CLICK FOR MORE INFO	DIAPHRAGM - Vacuum Triumph Catalogue Remarks: Between spring chamber and the Datum track chamber Revington TR information: Vacuum diaphragm.	1	£45.58 Ex VAT @ 20% £37.98
H1F	519858 CLICK FOR MORE INFO	BEARING, Spherical Revington TR information: Swivel unit, Metering unit. This part is shown in the attached Lucas diagram as supplied with the cross pin with the swivel manufactured from Nylon. These are given to excessive wear which leads to erratic running.... READ MORE	1	£61.45 Ex VAT @ 20% £51.21
H1G	519870 CLICK FOR MORE INFO	DIAPHRAGM - Seal distributor control Triumph Catalogue Remarks: Between the metering section and the distribution section of the Metering Unit Revington TR information: Diaphragm, fuel sealing, Metering Unit distribution section to metering section. With the introduction of E10 petrol containing 10% ethanol it is vital that fuel system components are compatible with this modern fuel. Our diaphragms are... READ MORE	1	£61.64 Ex VAT @ 20% £51.37
H1H	RTR4077 CLICK FOR MORE INFO	SEAL Bung (doughnut) Triumph Catalogue Remarks: Sealing outlet unions to sleeve Revington TR information: Bung seal in sleeve, sealing outlet unions. 6 required	6	£7.67 Ex VAT @ 20% £6.39
H1I	518630 CLICK FOR MORE INFO	BOLT Banjo Triumph Catalogue Remarks: Securing outlet pipes 2 & 5 Including Non Return Valve Revington TR information: Banjo bolt. Also available exchange 518630EX and second hand 518630SH This item has a secondhand part available - see below	2	£81.06 Ex VAT @ 20% £67.55	Available to order
	518630SH CLICK FOR MORE INFO	Second Hand BANJO BOLT Triumph Catalogue Remarks: Securing outlet pipes 2 & 5 Including Non Return Valve Revington TR information: Banjo bolt. Also available new 518630 and exchange 518630EX	2	£20.17 Ex VAT @ 20% £16.81
H1J	159386 CLICK FOR MORE INFO	SEAL 'O' ring Triumph Catalogue Remarks: Outlet connection 2 & 5 (Banjo Bolt) Revington TR information: 4 off required for outlets to cylinders 2 & 5. Material is Viton, suitable for leaded/unleaded fuel.	4	£2.47 Ex VAT @ 20% £2.06
H1K	518629 CLICK FOR MORE INFO	OUTLET UNION 1,6,3,4 Triumph Catalogue Remarks: Including Non Return Valve Revington TR information: Metering unit Outlet Union for numbers one, three, four and six outlet pipes. This is the early type used up to engine number CP75314 and uses a Dowty type seal. As new parts are currently unavailable... READ MORE This item has a secondhand part available - see below	4	£131.77 Ex VAT @ 20% £109.81	Available to order
	518629SH CLICK FOR MORE INFO	Second Hand OUTLET UNION 1,6,3,4 Triumph Catalogue Remarks: Including Non Return Valve Revington TR information: Metering unit Outlet Union for numbers one, three, four and six outlet pipes, second hand. This is the early type used up to engine number CP75314 and uses a Dowty type seal. As new parts are... READ MORE	4	£50.41 Ex VAT @ 20% £42.01
H1L	RTR4327 CLICK FOR MORE INFO	SEAL Dowty, outlet unions 1,6,3,4 to MU body Triumph Catalogue Remarks: Fitted up to Engine number CP75314 Revington TR information: Dowty seal no.s 1, 3, 4, 6, outlet. Later type uses O Ring 159486	4	£3.00 Ex VAT @ 20% £2.50
H1M	159486 CLICK FOR MORE INFO	SEAL 'O' Ring, outlet unions 1,6,3,4 to MU body Triumph Catalogue Remarks: Fitted from to Engine number CP75315 Revington TR information: Earlier units use Dowty type sealing washers RTR4327	4	£4.06 Ex VAT @ 20% £3.38	Available to order
H1N	516917 CLICK FOR MORE INFO	O' Ring kit This item has been superceded by 516917K - see below	1
	516917K CLICK FOR MORE INFO	SEAL KIT M/UNIT Revington TR information: The 4 'O' rings needed to attach pipes 2 and 5 are part number 518493	1	£98.99 Ex VAT @ 20% £82.49	Available to order
H1O	149041 CLICK FOR MORE INFO	Clip securing Choke Cable outer Triumph Catalogue Remarks: on Metering Unit	1	£2.12 Ex VAT @ 20% £1.77
H2	149486 CLICK FOR MORE INFO	'O' Ring, pump to pedestal	1	£2.94 Ex VAT @ 20% £2.45
H3	HU0707 CLICK FOR MORE INFO	Screw, set Metering pump to pedestal This item has been superceded by SH604071 - see below	3
	SH604071 CLICK FOR MORE INFO	SCREW 1/4 UNF X 7/8 INCH	3	£1.02 Ex VAT @ 20% £0.85
H4	WL0207 CLICK FOR MORE INFO	Washer, lock Metering pump to pedestal This item has been superceded by WS104070643 - see below	3
	WS104070643	WASHER SPRING 1/4" RECT SECTION	3	£0.20 Ex VAT @ 20% £0.17
H5	WP0007 CLICK FOR MORE INFO	Washer, plain Metering pump to pedestal This item has been superceded by WP10408057 - see below	3
	WP10408057	WASHER PLAIN 1/4" x 1/2" x 0.057"	3		No longer available
H6	148946 CLICK FOR MORE INFO	Elbow, rubber, control to air inlet balance tube	1		No longer available
H7	149595 CLICK FOR MORE INFO	Coupling, pump Revington TR information: Coupling TR5 am=nd 6 Lucas PI metering unit to distributor pedestal. Our couplings are genuine Lucas parts, also known as a drive dog. Beware of aftermarket parts that melt in modern petrol. This item has a secondhand part available - see below	1	£75.07 Ex VAT @ 20% £62.56
	149595SH	COUPLING M/METERING TO PEDESTAL	1	£42.74 Ex VAT @ 20% £35.62
H8	149609 CLICK FOR MORE INFO	Hose, metering, control to inlet manifold adaptor	1	£10.01 Ex VAT @ 20% £8.34	Available to order
H9	514098 CLICK FOR MORE INFO	Clip, hose attachment This item has been superceded by PCR1011 - see below	1
	PCR1011	PCLIP 5/8"DIA X11/32	1		No longer available
H10	149512 CLICK FOR MORE INFO	INJECTOR NOZZLE ASSEMBLY (Inlet Manifold) Revington TR information: TR5-6 Injector screw in new. It is good practice to replace the seal around the outside of the plastic ferrule when an injector is changed, order part number 149511. We can supply new injectors in matched... READ MORE	6	£129.04 Ex VAT @ 20% £107.53
H11	516922 CLICK FOR MORE INFO	Block, heat insulating c/w 'O' ring Nozzle to manifold Revington TR information: Nylon adaptor injector to manifold, push in type. We also keep second hand parts 516922SH. See also 516922S, screw in type. Usually has the seal fitted. This item has a secondhand part available - see below	6	£11.95 Ex VAT @ 20% £9.96
	516922SH CLICK FOR MORE INFO	Second Hand NYLON SLEEVE PUSH ON Revington TR information: We also have Screw type scond hand . See 516922SSH below	6	£5.30 Ex VAT @ 20% £4.42	Available to order
H12	149511 CLICK FOR MORE INFO	'O' Ring Nozzle to manifold	6	£1.19 Ex VAT @ 20% £0.99	Available to order
H13	149308 CLICK FOR MORE INFO	Plate, clamping, injectors Securing injectors Revington TR information: Standard mild steel injector retaining plate. This plate secures two injectors and is retained with a 5/16UNC screw between the two injectors. This plate is not available new in its original form. Please purchase second hand... READ MORE This item has a secondhand part available - see below	3		No longer available
	149308SH	Second Hand INJECTOR PLATE TR5-6	3	£7.02 Ex VAT @ 20% £5.85
H14	HU0853 CLICK FOR MORE INFO	Screw, set Securing injectors This item has been superceded by SH505041 - see below	3
	SH505041 CLICK FOR MORE INFO	SCREW 5/16 UNC X 1/2" Revington TR information: See RTR4096 below for stainless bolt and retaining plate kit for injectors.	3	£0.62 Ex VAT @ 20% £0.52
H15	WL0208 CLICK FOR MORE INFO	Washer, plain Securing injectors This item has been superceded by WS105090853 - see below	3
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	3	£0.25 Ex VAT @ 20% £0.21
		INJECTOR PIPES
H16	517305 CLICK FOR MORE INFO	Tube, 30¼" long No. 1 injector pipe Triumph Catalogue Remarks: Sold in yards Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
H17	517307 CLICK FOR MORE INFO	Elbow No. 1 injector pipe Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	1		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H18	517306 CLICK FOR MORE INFO	Nipple and nut No. 1 injector pipe Revington TR information: Straight Nipple and Nut, 1&6 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out... READ MORE This item has a secondhand part available - see below	1		No longer available
	517306SH CLICK FOR MORE INFO	Second Hand NUT+NIPPLE Revington TR information: Straight Nipple and Nut, 1&6 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however, whilst... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H19	517305 CLICK FOR MORE INFO	Tube, 31" long No. 2 injector pipe Triumph Catalogue Remarks: Sold in yards Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
H20	517307 CLICK FOR MORE INFO	Elbow No. 2 injector pipe Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	1		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H21	517308 CLICK FOR MORE INFO	Banjo No. 2 injector pipe Revington TR information: Banjo Union, 2&5 at the Metering Unit. Not available new. Use second hand part 517308SH TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below... READ MORE This item has a secondhand part available - see below	1		No longer available
	517308SH CLICK FOR MORE INFO	Second Hand BANJO TO METERING UNIT Revington TR information: Banjo Union, 2&5 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however, whilst we can... READ MORE	1	£8.47 Ex VAT @ 20% £7.06	Available to order
H22	517305 CLICK FOR MORE INFO	Tube, 30" long No. 3 injector pipe Triumph Catalogue Remarks: Sold in yards Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
H23	517307 CLICK FOR MORE INFO	Elbow No. 3 injector pipe Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	2		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	2	£4.04 Ex VAT @ 20% £3.37
H24	517305 CLICK FOR MORE INFO	Tube, 29⅛" long No. 4 injector Triumph Catalogue Remarks: Sold in yards Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
H25	517307 CLICK FOR MORE INFO	Elbow pipe No. 4 injector Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	2		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	2	£4.04 Ex VAT @ 20% £3.37
H26	517305 CLICK FOR MORE INFO	Tube, 21¾" long No. 5 injector pipe Triumph Catalogue Remarks: Sold in yards Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
H27	517307 CLICK FOR MORE INFO	Elbow No. 5 injector pipe Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	1		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H28	517308 CLICK FOR MORE INFO	Banjo No. 5 injector pipe Revington TR information: Banjo Union, 2&5 at the Metering Unit. Not available new. Use second hand part 517308SH TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below... READ MORE This item has a secondhand part available - see below	1		No longer available
	517308SH CLICK FOR MORE INFO	Second Hand BANJO TO METERING UNIT Revington TR information: Banjo Union, 2&5 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however, whilst we can... READ MORE	1	£8.47 Ex VAT @ 20% £7.06	Available to order
H29	517305 CLICK FOR MORE INFO	Tube, 20¼" long No. 6 injector pipe Triumph Catalogue Remarks: Sold in yards. Revington TR information: Black Nylon injector feed pipe. Was sold in yards by Triumph. We sell by the meter. 5 meters will service one car. Note this is the nylon pipe only with no end fittings. Revington TR strongly... READ MORE	1	£10.24 Ex VAT @ 20% £8.53
		Note:- 5 yards of Tube No. 517305 will service one engine. Triumph Catalogue Remarks: However Braided Hose set RTR4107 is a better solution
H30	517307 CLICK FOR MORE INFO	Elbow No. 6 injector pipe Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set... READ MORE This item has a secondhand part available - see below	1		No longer available
	517307SH CLICK FOR MORE INFO	Second Hand ELBOW Revington TR information: Elbow to all injectors plus 3&4 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however,... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H31	517306 CLICK FOR MORE INFO	Nipple and nut No. 6 injector pipe Revington TR information: Straight Nipple and Nut, 1&6 at the Metering Unit. Not available new, use second hand part TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out... READ MORE This item has a secondhand part available - see below	1		No longer available
	517306SH CLICK FOR MORE INFO	Second Hand NUT+NIPPLE Revington TR information: Straight Nipple and Nut, 1&6 at the Metering Unit TR5-6 injector feed pipes were available in a variety of forms during the life of the TR5-6 and 2.5PI Set out below is the whole picture however, whilst... READ MORE	1	£4.04 Ex VAT @ 20% £3.37
H32	145891 CLICK FOR MORE INFO	Clip, firtree, securing injector pipes This item has been superceded by 13H6107 - see below	3
	13H6107 CLICK FOR MORE INFO	CABLE STRAP Revington TR information: This is a fir tree type cable tie. Also consider second hand, see number below.	3	£4.03 Ex VAT @ 20% £3.36
