Chassis and bodywork

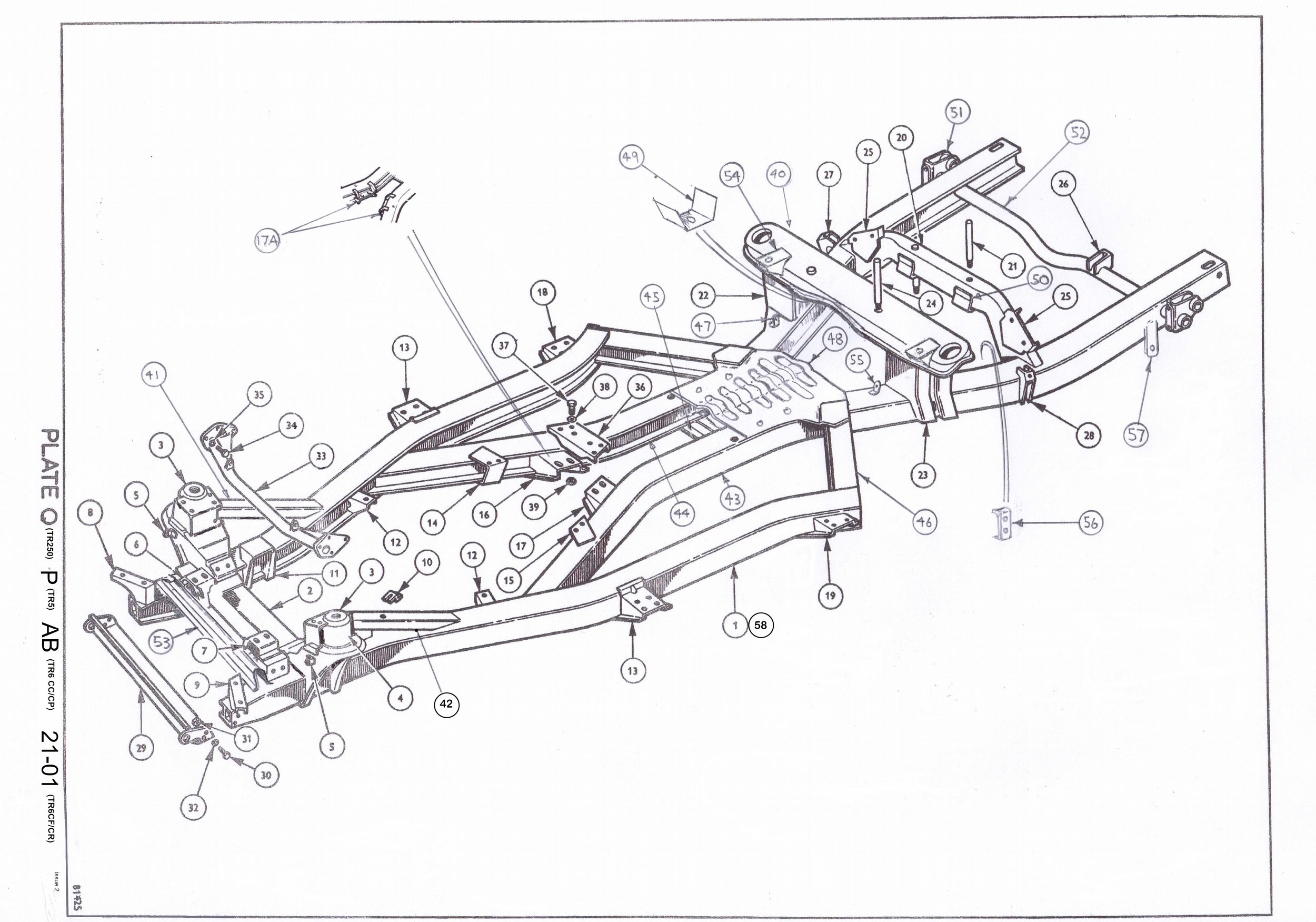

TR5 Plate P - CHASSIS FRAME AND RADIATOR PROTECTION SHIELD

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
P1	402547 CLICK FOR MORE INFO	CHASSIS FRAME ASSEMBLY Revington TR information: TR250, TR5, TR6 CC spec. and TR6 CP spec. remanufactured Chassis Frame. Our chassis frames are constructed in specially made jigs that have been assemble for the sole purpose of manufacturing new chassis exclusively for RevingtonTR.... READ MORE	1		No longer available
P2	139354 CLICK FOR MORE INFO	Crossmember, front assembly between turrets Revington TR information: No longer available	1		No longer available
P3	307797 CLICK FOR MORE INFO	Turret, assembly, front suspension R.H. Revington TR information: No longer available	1		No longer available
P4	307796 CLICK FOR MORE INFO	Turret, assembly, front suspension L.H. Revington TR information: This item has a secondhand part available - see below	1		No longer available
	307796SH	TURRET LH ASSY F Suspension TR250, 5, 6 second hand	1	£379.50 Ex VAT @ 20% £316.25
P5	140677 CLICK FOR MORE INFO	Bracket, front brake hose, on turret assembly	2		No longer available
P6	214259 CLICK FOR MORE INFO	Bracket, mounting, rack and pinion L.H.	1		No longer available
P7	147702 CLICK FOR MORE INFO	Bracket, mounting rack and pinion R.H.	1	£30.36 Ex VAT @ 20% £25.30	Available to order
P8	144634 CLICK FOR MORE INFO	Bracket, mounting, assembly, body and radiator R.H.	1		No longer available
P9	144633 CLICK FOR MORE INFO	Bracket, mounting, assembly body and radiator L.H.	1		No longer available
P10	114210 CLICK FOR MORE INFO	Bracket, 4 way connection support	1		No longer available
P11	139580 CLICK FOR MORE INFO	Bracket, support, lower inner fulcrum Revington TR information: 4 required per car. When fitting this bracket it should be strengthened by kit RTR7017K	4	£52.88 Ex VAT @ 20% £44.07
P12	140089 CLICK FOR MORE INFO	Bracket, side member, body mounting Revington TR information: Body Mounting Bracket welded tot he chassis and accommodates the forward floor fastener. TR4A-6 chassis. Price per bracket. We also offer second hand original brackets 10089SH that are serviceable and have been removed from chassis with rotten... READ MORE This item has a secondhand part available - see below	2	£59.74 Ex VAT @ 20% £49.78	Available to order
	140089SH	MNTG BRACKET front of floor to chassis TR4A-6 second hand	2	£30.36 Ex VAT @ 20% £25.30
P13	211354 CLICK FOR MORE INFO	Bracket, front, body mounting Revington TR information: This bracket is the front bracket of the four that attach the floor to the chassis We also offer second hand original brackets 211354SH that are serviceable and have been removed from chassis with rotten... READ MORE This item has a secondhand part available - see below	2		No longer available
	211354SH	BRACKET CHASSIS FRONT BODY MOUNTING TR4A-6 Second Hand	2	£45.54 Ex VAT @ 20% £37.95
P14	139448 CLICK FOR MORE INFO	Bracket, scuttle mounting R.H. Revington TR information: Mounting bracket right hand supporting H frame, TR4A-6 chassis. We also offer second hand original brackets 139447SH and 139448SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the... READ MORE This item has a secondhand part available - see below	1	£63.76 Ex VAT @ 20% £53.13	Available to order
	139448SH	MNTG BRACKET H frame TR4A-6 RH second hand	1	£31.88 Ex VAT @ 20% £26.57
P15	139447 CLICK FOR MORE INFO	Bracket, scuttle mounting L.H. Revington TR information: Mounting bracket left hand supporting H frame, TR4A-6 chassis. We also offer second hand original brackets 139447SH and 139448SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the... READ MORE This item has a secondhand part available - see below	1	£79.49 Ex VAT @ 20% £66.24	Available to order
	139447SH	MNTG BRACKET H frame TR4A-6 LH second hand	1	£30.36 Ex VAT @ 20% £25.30
P16	139224 CLICK FOR MORE INFO	Bracket, rear engine mounting R.H. Revington TR information: use 139224SH This right hand bracket, welded to the chassis rail, TR4A-6CP/CC, supports the gearbox and A type overdrive if fitted. We also offer second hand original brackets 139223SH and 139224SH that are serviceable and have... READ MORE This item has a secondhand part available - see below	1		No longer available
	139224SH CLICK FOR MORE INFO	A TYPE TR4A-6CC/CP GEARBOX MOUNTING RH Chassis part second hand	1	£47.63 Ex VAT @ 20% £39.69
P17	139223 CLICK FOR MORE INFO	Bracket, rear engine mounting L.H. Revington TR information: use 139223.4SH. This left hand bracket, welded to the chassis rail, TR4A-6, supports the gearbox and A type overdrive if fitted. We also offer second hand original brackets 139223SH and 139224SH that are serviceable and have... READ MORE This item has a secondhand part available - see below	1	£93.88 Ex VAT @ 20% £78.23
	139223SH CLICK FOR MORE INFO	A TYPE TR4A-6CC/CP GEARBOX MOUNTING LH second hand	1	£47.63 Ex VAT @ 20% £39.69
P17A	160114 CLICK FOR MORE INFO	Bracket, rear engine mounting Triumph Catalogue Remarks: Not TR5. TR6CF and CR only Revington TR information: Bracket on chassis supporting 'J' type overdrive of CF and CR TR6	2	£60.83 Ex VAT @ 20% £50.69
P18	147898 CLICK FOR MORE INFO	Bracket, rear sill, body mounting R.H. Revington TR information: This item has a secondhand part available - see below	1	£103.49 Ex VAT @ 20% £86.24
	147898SH	TR4A-6 BRACKET CHASSIS RH Rear second hand	1	£45.54 Ex VAT @ 20% £37.95
P19	147897 CLICK FOR MORE INFO	Bracket, rear sill, body mounting L.H. Revington TR information: Bracket, welded to chassis, left hand rear body attachment. We also offer second hand original brackets 147897SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the concourse original look. This item has a secondhand part available - see below	1	£103.49 Ex VAT @ 20% £86.24	Available to order
	147897SH	TR4A-6 BRACKET CHASSIS LH rear second hand	1	£45.54 Ex VAT @ 20% £37.95
P20	214031 CLICK FOR MORE INFO	Crossmember assembly, rear axle and dampers Revington TR information: This chassis Bridge (cross member) carries the rear axle (differential) and supports the rear dampers on TR4AIRS to TR6. This reproduction part is very similar to the original, it is a good fit and it is... READ MORE	1	£462.37 Ex VAT @ 20% £385.31	Available to order
Q20A	RTR7004-1 CLICK FOR MORE INFO	Crossmember complete assembly, rear axle and dampers Triumph Catalogue Remarks: Consisting of 1x Q20, 2 x Q21, 2 x Q25 and 2 x Q50. Revington TR information: TR250,5 and 6, Rear bridge assembly (comprising 1 x 214031 cross member, 2 support 141793 for the rear dampers, differential support brackets 140051 and pins 147671). This assembly is NOT suitable for TR4AIRS as the... READ MORE	1	£494.11 Ex VAT @ 20% £411.76	Available to order
P20B	612235 CLICK FOR MORE INFO	Grommet, on rear axle crossmember This item has been superceded by 612976 - see below	1
	612976 CLICK FOR MORE INFO	PLUG SCREEN FRAME	1	£2.11 Ex VAT @ 20% £1.76
P21	147400 CLICK FOR MORE INFO	Pin, support bracket, rear axle mounting (rear) This item has been superceded by 147671 - see below	2
	147671 CLICK FOR MORE INFO	Bolt, rear suspension crossmember front axle support Revington TR information: Pin, Support, Rear axle (differential) Mounting TR4AIRS, 250, 5, 6. This pin is located in both the front cross member and rear cross members. When the pin is installed in the front cross member it protrudes... READ MORE	2	£26.16 Ex VAT @ 20% £21.80	Available to order
P22	307107 CLICK FOR MORE INFO	Bracket, support rear crossmember R.H. Revington TR information: Support between the chassis legs and the front differential cross member. The left hand part is 307106. The complete assembly is available as RTR7003 and we also keep this assembly second had as RTR7003SH for those... READ MORE	1	£104.76 Ex VAT @ 20% £87.30	Available to order
P23	307106 CLICK FOR MORE INFO	Bracket, support rear crossmember L.H. Revington TR information: Support between the chassis legs and the front differential cross member. The right hand part is 307107. The complete assembly is available as RTR7003 and we also keep this assembly second had as RTR7003SH for those... READ MORE	1	£104.76 Ex VAT @ 20% £87.30	Available to order
P23A	214107 CLICK FOR MORE INFO	CROSSMEMBER assembly, rear suspension Revington TR information: Front bridge supporting the rear springs and differential, TR4AIRS to TR6. This part is supplied as the cross member only, without the rear floor supports RTR7044, which need to be ordered separately. The bridge cross member... READ MORE	1	£481.42 Ex VAT @ 20% £401.18	Available to order
P24	147671 CLICK FOR MORE INFO	Bolt, rear suspension crossmember front axle support Revington TR information: Pin, Support, Rear axle (differential) Mounting TR4AIRS, 250, 5, 6. This pin is located in both the front cross member and rear cross members. When the pin is installed in the front cross member it protrudes... READ MORE	2	£26.16 Ex VAT @ 20% £21.80	Available to order
P25	147947 CLICK FOR MORE INFO	Bracket assembly, mounting rear damper Revington TR information: Bracket welded to the rear chassis cross member of TR4A-6 cars to support the lever arm dampers. If the metal around the damper supports is poor, consider complete assembly RTR7004 (TR4AIRS) or RTR7004-1 (TR250,5, 6) We... READ MORE	2	£77.02 Ex VAT @ 20% £64.18	Available to order
P26	142449 CLICK FOR MORE INFO	Bracket, mounting exhaust	2	£16.80 Ex VAT @ 20% £14.00	Available to order
P27	140195 CLICK FOR MORE INFO	Bracket, rebound assembly R.H.	1	£22.08 Ex VAT @ 20% £18.40	Available to order
P28	140194 CLICK FOR MORE INFO	Bracket, rebound assembly L.H	1	£22.08 Ex VAT @ 20% £18.40	Available to order
P29	213021 CLICK FOR MORE INFO	RADIATOR PROTECTION SHIELD Revington TR information: Consider also second hand part 213021SH or second hand part powder coated 213021SHPC This item has a secondhand part available - see below	1	£98.44 Ex VAT @ 20% £82.03
	213021SH CLICK FOR MORE INFO	Second Hand SHIELD RADIATOR TR250,5,6	1	£78.22 Ex VAT @ 20% £65.18	Available to order
P30	HU0906 CLICK FOR MORE INFO	Bolt Securing shield This item has been superceded by SH606061 - see below	2
	SH606061	SCREW 3/8 UNF X 3/4 INCH	2	£1.08 Ex VAT @ 20% £0.90
P31	HN2009 CLICK FOR MORE INFO	Nut Securing shield This item has been superceded by NP606111 - see below	2
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	2	£0.14 Ex VAT @ 20% £0.12
P32	WL0209 CLICK FOR MORE INFO	Washer, lock Securing shield This item has been superceded by WS106111243 - see below	2
	WS106111243	WASHER SPRING 3/8" RECT SECTION	2	£0.37 Ex VAT @ 20% £0.31
P33	213327 CLICK FOR MORE INFO	Cross tube assembly, top Revington TR information: Not available new, use second hand part 213327SH, powder coated second hand part 213327HPC or later TR6 part 219115. This item has a secondhand part available - see below	1		No longer available
	213327SH	SECOND HAND CROSS TUBE TR250,5,6	1	£136.52 Ex VAT @ 20% £113.77	Available to order
P34	HU0907 CLICK FOR MORE INFO	Screw, set Cross tube to chassis frame This item has been superceded by SH606081 - see below	6
	SH606081	SCREW 3/8 UNF X 1 INCH	6	£0.61 Ex VAT @ 20% £0.51
P35	WL0209 CLICK FOR MORE INFO	Washer, lock Cross tube to chassis frame This item has been superceded by WS106111243 - see below	6
	WS106111243	WASHER SPRING 3/8" RECT SECTION	6	£0.37 Ex VAT @ 20% £0.31
P36	211361 CLICK FOR MORE INFO	Crossmember, engine mounting, rear Revington TR information: This gearbox support plate fits onto the chassis, is secured with 4 screws and supports the rubber mounting which then supports the gearbox. This part is fitted to all TR4A-CP/CCTR6 with or without overdrive (A type).... READ MORE This item has a secondhand part available - see below	1	£81.73 Ex VAT @ 20% £68.11
	211361SH	Second Hand GEARBOX SUPPORT PLATE	1	£37.27 Ex VAT @ 20% £31.06
P37	HU0905 CLICK FOR MORE INFO	Screw, set Crossmember to mounting brackets This item has been superceded by SH606051 - see below	4
	SH606051	SCREW 3/8 UNF X 5/8 INCH	4	£1.30 Ex VAT @ 20% £1.08
P38	WL0209 CLICK FOR MORE INFO	Washer, lock Crossmember to mounting brackets This item has been superceded by WS106111243 - see below	4
	WS106111243	WASHER SPRING 3/8" RECT SECTION	4	£0.37 Ex VAT @ 20% £0.31
P39	HN2009 CLICK FOR MORE INFO	Nut Crossmember to mounting brackets This item has been superceded by NP606111 - see below	4
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	4	£0.14 Ex VAT @ 20% £0.12
P40	214107 CLICK FOR MORE INFO	Crossmember top assembly only, rear suspension Revington TR information: Front bridge supporting the rear springs and differential, TR4AIRS to TR6. This part is supplied as the cross member only, without the rear floor supports RTR7044, which need to be ordered separately. The bridge cross member... READ MORE	1	£481.42 Ex VAT @ 20% £401.18	Available to order
P40A	RTR7003 CLICK FOR MORE INFO	Crossmember assembly rear suspension and axle Triumph Catalogue Remarks: Consisting of 1x Q40, 1 x Q22, 1 x Q23, 2 x Q24 and 2 x Q49. Brackets Q54 are NOT included Revington TR information: TR4AIRS-6. Front bridge assembly (comprising 1 x 214107 cross member, 1 each support 307107, 307106 from chassis to cross member, differential support brackets 140009 and pins 147671). This is a fully assembled component, fully welded and... READ MORE This item has a secondhand part available - see below	1	£761.27 Ex VAT @ 20% £634.39	Available to order
	RTR7003SH CLICK FOR MORE INFO	BRIDGE DIFF MOUNT assembly FWD TR4A-6 Second hand Triumph Catalogue Remarks: Consisting of 1x Q40, 1 x Q22, 1 x Q23, 2 x Q24 and 2 x Q49. Brackets Q54 are NOT included Revington TR information: TR4AIRS-6. Front bridge assembly second hand (comprising 1 x 214107 cross member, 1 each support 307107, 307106 from chassis to cross member, differential support brackets 140009 and pins 147671). This second hand original bridge RTR7003SH is... READ MORE	1	£379.50 Ex VAT @ 20% £316.25
P41	211402 CLICK FOR MORE INFO	Side Brace sub assembly, right hand engine bay support This item has been superceded by RTR7150-4A6 - see below	1
	RTR7150-4A6	TURRET SUPPORT STRUT TR4A/5/6 Revington TR information: TR4A-6 Support strut Turret to chassis box section. Two required per car	1	£86.94 Ex VAT @ 20% £72.45	Available to order
P42	211401 CLICK FOR MORE INFO	Side Brace sub assembly, left hand engine bay support This item has been superceded by RTR7150-4A6 - see below	1
	RTR7150-4A6	TURRET SUPPORT STRUT TR4A/5/6 Revington TR information: TR4A-6 Support strut Turret to chassis box section. Two required per car	1	£86.94 Ex VAT @ 20% £72.45	Available to order
P43	211589 CLICK FOR MORE INFO	Side Member Rear left	1		No longer available
P44	211590 CLICK FOR MORE INFO	Side Member Rear right	1		No longer available
P45	211650 CLICK FOR MORE INFO	bottom Brest Plate This item has been superceded by RTR7022 - see below	1
	RTR7022	BREAST PLATE BOTTOM TR4A-6 Revington TR information: TR4A-6 Chassis bottom breast plate - Flat with flutes.	1	£42.19 Ex VAT @ 20% £35.16	Available to order
P46	211346 CLICK FOR MORE INFO	Outrigger left hand, Trailing arm attachment This item has been superceded by RTR7030 - see below	1
	RTR7030 CLICK FOR MORE INFO	LEG CHASSIS TA ATTACH TR4A-6 Revington TR information: TR4A-6 chassis leg trailing Arm attachment including bolt hole strengthening tubes 18 3/16" long	1	£81.60 Ex VAT @ 20% £68.00	Available to order
P46A	211347 CLICK FOR MORE INFO	Outrigger right hand, Trailing arm attachment This item has been superceded by RTR7030 - see below	1
	RTR7030 CLICK FOR MORE INFO	LEG CHASSIS TA ATTACH TR4A-6 Revington TR information: TR4A-6 chassis leg trailing Arm attachment including bolt hole strengthening tubes 18 3/16" long	1	£81.60 Ex VAT @ 20% £68.00	Available to order
P47	147987 CLICK FOR MORE INFO	Bracket brake tube right hand rear	1		No longer available
P51	148002 CLICK FOR MORE INFO	Bracket, support rear bumper side and live axle spring Revington TR information: This bracket supports the rear bumper on TR4A, 250 and 6 cars and in addition supports the rear of the leaf springs on none IRS TR4A's. We also offer second hand original brackets 148002 that are... READ MORE This item has a secondhand part available - see below	2	£53.41 Ex VAT @ 20% £44.51	Available to order
	148002SH	REAR BUMPER BRACKET TR4A, 250, 5 second hand	2	£45.54 Ex VAT @ 20% £37.95
P56	149944 CLICK FOR MORE INFO	Bracket T piece and PRV mount Triumph Catalogue Remarks: Only needed on TR5 and early TR6 when T piece and PRV are on the chassis	1		No longer available
P52	212133 CLICK FOR MORE INFO	Cross tube rear Triumph Catalogue Remarks: 1035mm long This item has been superceded by RTR7031 - see below	1
	RTR7031 CLICK FOR MORE INFO	TUBE CHASSIS REAR TR2-6 31.75 x 1035mm Revington TR information: TR2-6 chassis Cross Tube rear, (smaller of the two on TR2-4) with an outside diameter of 1¼” (31.75mm). This tube is supplied at least 1035mm long (the correct length for TR4A-6) and fits at the rear... READ MORE	1	£70.09 Ex VAT @ 20% £58.41	Available to order
P55	142935 CLICK FOR MORE INFO	Bracket brake tube left hand rear	1		No longer available
P49	140009 CLICK FOR MORE INFO	Bracket supporting front of diff Revington TR information: Bracket welded under the front cross member on TR4AIRS, 250, 5 and 6 to support the front of the differential assembly. When changing these brackets you will most likely need pin 147671 too. When replacing this... READ MORE	2		No longer available
P50	140051 CLICK FOR MORE INFO	Bracket supporting rear of diff Revington TR information: Bracket welded under the rear cross member on TR4AIRS, 250, 5 and 6 to support the rear of the differential assembly. When changing these brackets you will most likely need pin 147671 too. When replacing this... READ MORE	2		No longer available
P53	214167 CLICK FOR MORE INFO	Front Cross Brace under rack supports	1		No longer available
P48	214253 CLICK FOR MORE INFO	Top Brest Plate This item has been superceded by RTR7018 - see below	1
	RTR7018	BREAST PLATE TOP TR250-6 Revington TR information: TR4A-6 top breast plate - with flutes and raised centre section.	1	£37.30 Ex VAT @ 20% £31.08
P58	RTR7068 CLICK FOR MORE INFO	Front Chassis leg Left & Right Revington TR information: TR4A-6 Chassis side leg Left Hand and Right Hand. This chassis leg is the same for both sides of the car, hence one part number. No fittings are attached, it is jus the bare leg.... READ MORE	2	£709.39 Ex VAT @ 20% £591.16	Available to order
P54	RTR7242 CLICK FOR MORE INFO	Bracket on crossmember supporting body Revington TR information: Bracket on bridge supporting body TR5-6. Can be used on TR4A too.	2	£33.04 Ex VAT @ 20% £27.53

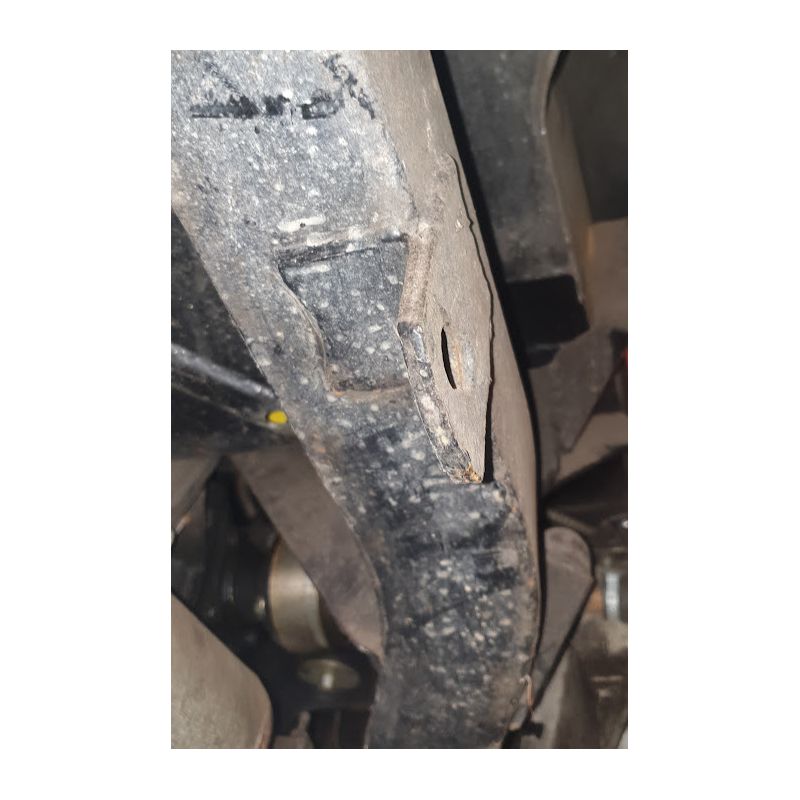

P57	UKC2096 CLICK FOR MORE INFO	Anchor point rear chassis left hand Triumph Catalogue Remarks: CF and CR TR6 only Revington TR information: This rear Anchor Point consists of a straight part (the anchor point), and a 90 deg. angled stiffening bracket	1		No longer available
P57A	UKC2097 CLICK FOR MORE INFO	Anchor point rear chassis right hand Triumph Catalogue Remarks: CF and CR TR6 only Revington TR information: This rear Anchor Point consists of a straight part (the anchor point), and a 90 deg. angled stiffening bracket	1		No longer available
