Electrical systems, Instruments etc.

TR6 CC Plate AX - ELECTRICAL EQUIPMENT: Distributor and Coil

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart

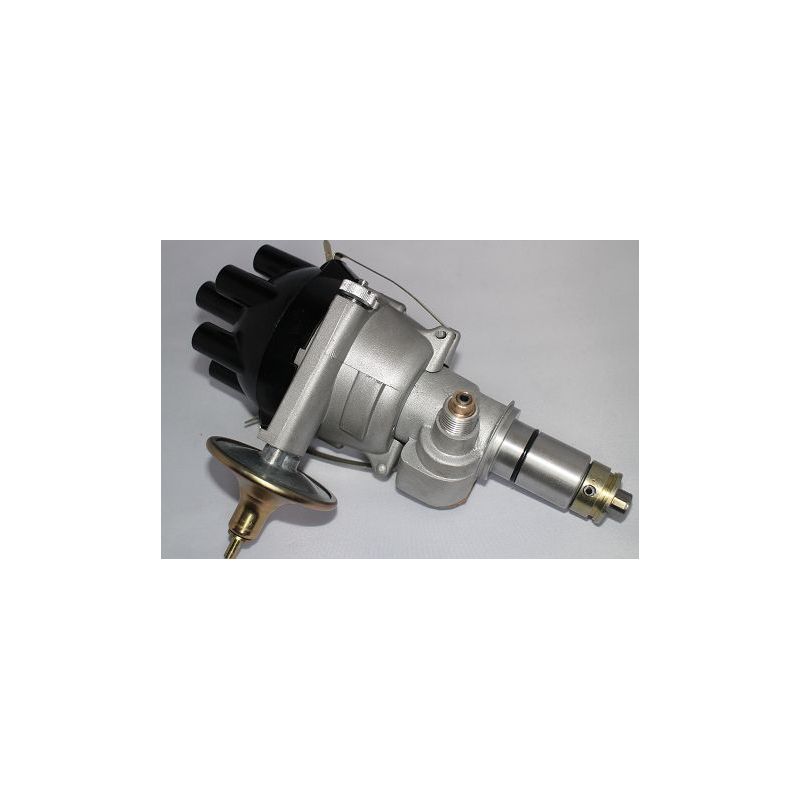

AX1AA	308460 CLICK FOR MORE INFO	DISTRIBUTOR Triumph Catalogue Remarks: Fitted up to ............ Carburettor model only Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41202. Rebuilt distributors are still available on an exchange basis. Please order 308460EX	1	£625.21 Ex VAT @ 20% £521.01	Available to order
AX1AB	217521 CLICK FOR MORE INFO	DISTRIBUTOR Triumph Catalogue Remarks: Fitted from ............ up to Eng No. CC75,000 Carb models only Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41352. Rebuilt distributors are still available on an exchange basis. Please order 217521EX	1	£431.35 Ex VAT @ 20% £359.46	Available to order
AX1AC	218100 CLICK FOR MORE INFO	DISTRIBUTOR Triumph Catalogue Remarks: Fitted from Eng No. CC75,001 Carb models only Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41385. Rebuilt distributors are still available on an exchange basis. Please order 218100EX	1	£790.90 Ex VAT @ 20% £659.08
AX1AD	214459 CLICK FOR MORE INFO	DISTRIBUTOR Triumph Catalogue Remarks: Fitted up to Eng No. CR1 P.I. models only Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41219 Rebuilt distributors are still available on an exchange basis. Please order 214459EX	1	£790.90 Ex VAT @ 20% £659.08	Available to order
AX1AE	219243 CLICK FOR MORE INFO	DISTRIBUTOR Triumph Catalogue Remarks: Fitted from Eng No. CR1 P.I. models only Revington TR information: New distributor. Manufactured in the UK. No exchange required. Cross reference to Lucas number 41501. The distributor is shown with a vacuum advance unit assembled. This is how they come even though the vacuum unit is... READ MORE	1	£790.90 Ex VAT @ 20% £659.08	Available to order
AX1AF	606895 CLICK FOR MORE INFO	BUSH IN BODY	1	£103.98 Ex VAT @ 20% £86.65
AX1	515856 CLICK FOR MORE INFO	COVER This item has been superceded by GDC115 - see below	1

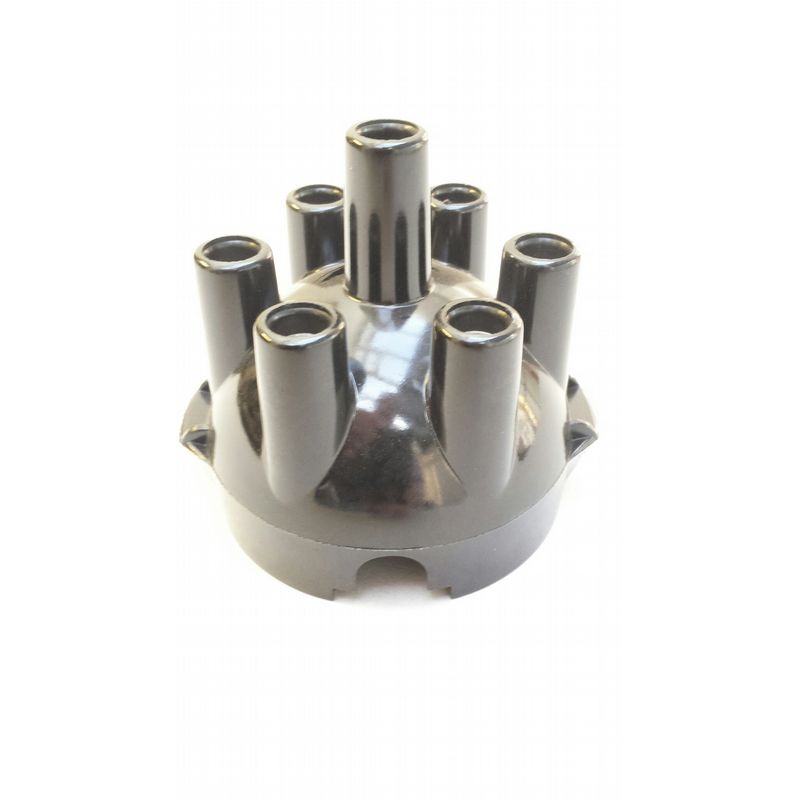

	GDC115 CLICK FOR MORE INFO	DISTRIBUTOR CAP 25D6 6 CYL Revington TR information: consider high quality part GDC115HQ	1	£11.52 Ex VAT @ 20% £9.60
AX2	501718 CLICK FOR MORE INFO	BRUSH and spring, cap centre This item has been superceded by 262703A - see below	1
	262703A	BRUSH AND SPRING	1	£4.68 Ex VAT @ 20% £3.90	Available to order
AX3	510024 CLICK FOR MORE INFO	ARM, rotor This item has been superceded by GRA102 - see below	1
	GRA102 CLICK FOR MORE INFO	ROTOR ARM TR6 HIGH QUALITY Revington TR information: High quality rotor arm 6 cylinder. We only sell the high quality unit so we use the original number. This high quality rotor arm does not suffer from the tracking between the rivit and internals that... READ MORE	1	£13.70 Ex VAT @ 20% £11.42
AX4	503681 CLICK FOR MORE INFO	CONTACT set. Triumph Catalogue Remarks: Fitted up to Carb No. CC50,525 and CP50,674 This item has been superceded by GCS2101 - see below	1
	GCS2101 CLICK FOR MORE INFO	CONTACT SET TR3-6 Revington TR information: Standard set of points. For a higher quality set	1	£4.57 Ex VAT @ 20% £3.81
AX4A	GCS101 CLICK FOR MORE INFO	CONTACT set. Quickfit Triumph Catalogue Remarks: Fitted from Carb No. CC50,526 and CP50,675 This item has been superceded by GCS2101 - see below	1
	GCS2101 CLICK FOR MORE INFO	CONTACT SET TR3-6 Revington TR information: Standard set of points. For a higher quality set	1	£4.57 Ex VAT @ 20% £3.81
AX5	503687 CLICK FOR MORE INFO	BUSH, insulating contact breaker lever Revington TR information: No longer available	1		No longer available
AX6	509319 CLICK FOR MORE INFO	CONDENSER This item has been superceded by GSC111 - see below	1
	GSC111 CLICK FOR MORE INFO	CONDENSER TR2-6 Revington TR information: For a higher quality product see GSC111HQ.	1	£5.17 Ex VAT @ 20% £4.31
AX7	511086 CLICK FOR MORE INFO	TERMINAL, bush and lead This item has been superceded by 600329A - see below	1
	600329A	LOW TENSION TERMINAL TR4-6 25D	1	£8.32 Ex VAT @ 20% £6.93	Available to order
AX7A	RTC0175	TERMINAL, bush and lead Triumph Catalogue Remarks: Fitted from Eng. No. ............P.I. Only	1		No longer available
AX7B	503688 CLICK FOR MORE INFO	WASHER, insulating terminal Revington TR information: No longer available	1		No longer available
AX8	503690 CLICK FOR MORE INFO	LEAD, earth This item has been superceded by 245015 - see below	1
	245015	SUNDRIES KIT -DISTRIBUTOR REPAIR Revington TR information: (NO LONGER AVAILABLE) Distributor repair kit-sundry parts suits most distributors.	1		No longer available
AX9	503684 CLICK FOR MORE INFO	PLATE, contact breaker base Revington TR information: Base Plate upper, DM2 distributor. We also have second hand parts too and can offer part number 17H5469 as an alternative.	1	£60.88 Ex VAT @ 20% £50.73	Available to order
AX9A	520152	PLATE, contact breaker base Triumph Catalogue Remarks: Fitted from Eng. No. ............P.I. Only	1		No longer available
AX10	511010 CLICK FOR MORE INFO	PLATE, contact breaker bearing This item has been superceded by RTC718 - see below	1
	RTC718	PLATE	1	£47.27 Ex VAT @ 20% £39.39	Available to order
AX11	517424 CLICK FOR MORE INFO	CAM Triumph Catalogue Remarks: PI. model only Revington TR information: No longer available	1		No longer available
AX11A	517424 CLICK FOR MORE INFO	CAM Triumph Catalogue Remarks: Fitted from Eng No. CR1 Revington TR information: No longer available	1		No longer available
AX12	517425 CLICK FOR MORE INFO	SPRING, automatic advance weights Triumph Catalogue Remarks: PI. model only	1	£30.47 Ex VAT @ 20% £25.39	Available to order
AX13	510638 CLICK FOR MORE INFO	WEIGHT, automatic advance Revington TR information: No longer available	2		No longer available
AX13A	517176	CAM	1		No longer available
AX13B	513681	SPRING, automatic advance weights Triumph Catalogue Remarks: Carburettor model only	1		No longer available
AX13C	521025	SPRING, automatic advance weights Triumph Catalogue Remarks: Carburettor model only	1		No longer available
AX13D	RTC0288	SPRING, set automatic advance Triumph Catalogue Remarks: Fitted from Eng. No. CR1 P.I. Only	1		No longer available
AX13E	517177	WEIGHT, automatic advance	1		No longer available
AX14	515862 CLICK FOR MORE INFO	PLATE, shaft and action	1		No longer available
AX15	511014 CLICK FOR MORE INFO	SPRING, ratchet micrometer Triumph Catalogue Remarks: PI. model only	1	£5.52 Ex VAT @ 20% £4.60	Available to order
AX16	517426 CLICK FOR MORE INFO	ADJUSTER, micrometer Triumph Catalogue Remarks: PI. model only	1	£30.60 Ex VAT @ 20% £25.50	Available to order
AX17	511013	NUT, knurled micrometer Triumph Catalogue Remarks: PI. model only	1		No longer available
AX18	503693 CLICK FOR MORE INFO	SPRING, return, micrometer Triumph Catalogue Remarks: PI. model only	1		No longer available
AX18A	515859 CLICK FOR MORE INFO	VACUUM UNIT, advance	1	£41.29 Ex VAT @ 20% £34.41	Available to order
AX18B	521026	VACUUM UNIT, advance Triumph Catalogue Remarks: Carburettor model only	1		No longer available
AX18C	517178	VACUUM UNIT, retard Triumph Catalogue Remarks: Carburettor model only	1		No longer available
AX18E	520940 CLICK FOR MORE INFO	TACHO GEAR KIT Triumph Catalogue Remarks: Fitted from Eng. No. CR1 P.I. Only Revington TR information: Tachometer drive kit TR5-6PI distributor. This drive kit consisted of the gear, end plate, gasket plus securing screw and washer. As these parts are now not available as a kit, they must be ordered separately. The... READ MORE	1		No longer available
AX19	515864 CLICK FOR MORE INFO	GEAR, tachometer drive Revington TR information: Tachometer Drive Gear TR5-6PI. consider also second hand part 515864SH	1	£47.72 Ex VAT @ 20% £39.77	Available to order
AX20	515866 CLICK FOR MORE INFO	GASKET, tachometer gear cover	1	£8.08 Ex VAT @ 20% £6.73	Available to order
AX21	RTR8268 CLICK FOR MORE INFO	COVER, tachometer gear Triumph Catalogue Remarks: Not serviced, new, only second hand available	1		No longer available
AX22	515867 CLICK FOR MORE INFO	BUSH, bearing, tachometer shaft This item has been superceded by 511859 - see below
	511859	NYLON DRIVE			No longer available
AX23	507083 CLICK FOR MORE INFO	CLIP, retaining cover	2		No longer available
AX24	513682 CLICK FOR MORE INFO	0' RING, oil seal This item has been superceded by 513682A - see below	1
	513682A	O RING	1	£1.55 Ex VAT @ 20% £1.29
AX25	513679 CLICK FOR MORE INFO	DOG, driving This item has been superceded by 513679A - see below	1
	513679A	DISTRIBUTOR DRIVE	1	£36.97 Ex VAT @ 20% £30.81
AX25A	518867	DOG, driving Triumph Catalogue Remarks: Fitted from Eng. No. CR1 P.I. Only	1		No longer available
AX26	CN6 CLICK FOR MORE INFO	Nut square Revington TR information: Nut square 1/4" UNF, 0.437" across the flats, (7/16"AF), 1/4" thick. Triumph and general application. Not currently available, the thinner CN1 can be used as an alternative. A full range of cages and nuts is available,... READ MORE	1		No longer available
AX26A	501728 CLICK FOR MORE INFO	KIT, sundry parts This item has been superceded by 245015 - see below	1
	245015	SUNDRIES KIT -DISTRIBUTOR REPAIR Revington TR information: (NO LONGER AVAILABLE) Distributor repair kit-sundry parts suits most distributors.	1		No longer available
AX27	508534 CLICK FOR MORE INFO	PLATE, clamping Triumph Catalogue Remarks: PI. model only Revington TR information: Clamp plate securing the TR5-6 distributor to it's pedestal. We have second hand parts too, order part number 508534SH. The clamping parts are available separately as :- bolt BH604121, nut CN6 and washer WS104070643. see... READ MORE	1	£48.78 Ex VAT @ 20% £40.65	Available to order
AX27A	059766 CLICK FOR MORE INFO	PLATE, clamping Triumph Catalogue Remarks: Carburettor model only Revington TR information: This plate assembly clamps the distributor to the pedestal. Suitable for all none PI 6 cylinder cars. Not available new, please use second hand part 059766SH The clamping parts are available separately as :- bolt BH604121... READ MORE	1		No longer available
AX28	058499 CLICK FOR MORE INFO	SCREW, clamping plate This item has been superceded by BH604121 - see below	1
	BH604121	BOLT 1/4 UNF X 1-1/2"	1	£0.62 Ex VAT @ 20% £0.52
AX28A	519935 CLICK FOR MORE INFO	SCREW, clamping plate Revington TR information: Not available new but we may have a second hand one - please ask.	1		No longer available
AX28B	RTC0289	SCREW, clamping Triumph Catalogue Remarks: Fitted from Comm. No. CR1	1		No longer available
AX29	149992 CLICK FOR MORE INFO	COVER, screen Triumph Catalogue Remarks: France and Denmark P.I. model only	1	£22.64 Ex VAT @ 20% £18.87	Available to order
AX30	146112 CLICK FOR MORE INFO	IGNITION COIL Triumph Catalogue Remarks: Fitted up to Comm. No. CF1 This item has been superceded by GCL110 - see below	1
	GCL110 CLICK FOR MORE INFO	IGNITION COIL PUSH IN LUCAR CONN Revington TR information: Non-ballasted ignition coil, push in king lead type suitable for all cars up to 1973 TR6 when a ballasted coil was introduced. We also have second hand coils GCL110SH and Sports Coil RTR8062.	1	£19.97 Ex VAT @ 20% £16.64
AX30A	158830	IGNITION COIL 6volt 15P6 Triumph Catalogue Remarks: Fitted up to Comm. No. CF1 Alternative to 219100	1		No longer available
AX30B	146112 CLICK FOR MORE INFO	IGNITION COIL 12volt AC Delco Type Triumph Catalogue Remarks: Fitted up to Comm. No. CF1 Alternative to 158830 This item has been superceded by GCL110 - see below	1
	GCL110 CLICK FOR MORE INFO	IGNITION COIL PUSH IN LUCAR CONN Revington TR information: Non-ballasted ignition coil, push in king lead type suitable for all cars up to 1973 TR6 when a ballasted coil was introduced. We also have second hand coils GCL110SH and Sports Coil RTR8062.	1	£19.97 Ex VAT @ 20% £16.64
AX30C	105036 CLICK FOR MORE INFO	NUT, terminal	1	£1.91 Ex VAT @ 20% £1.59
AX31	HU0804 CLICK FOR MORE INFO	SCREW, set - Ignition coil attachment This item has been superceded by SH605041 - see below	2
	SH605041 CLICK FOR MORE INFO	SCREW 5/16 UNF X 1/2 INCH	2	£0.76 Ex VAT @ 20% £0.63
AX32	WL0208 CLICK FOR MORE INFO	WASHER, lock - Ignition coil attachment This item has been superceded by WS105090853 - see below	2
	WS105090853	WASHER SPRING 5/16" ID RECT SECTION	2	£0.25 Ex VAT @ 20% £0.21
AX33	WP0008 CLICK FOR MORE INFO	WASHER, plain - Ignition coil attachment This item has been superceded by WP10510075 - see below	2
	WP10510075	WASHER PLAIN 5/16" x 5/8" x 0.075"	2	£0.44 Ex VAT @ 20% £0.37
AX33A	154597	LEAD, earth Bonnet hinge bolt to body Triumph Catalogue Remarks: Denmark only	1		No longer available
