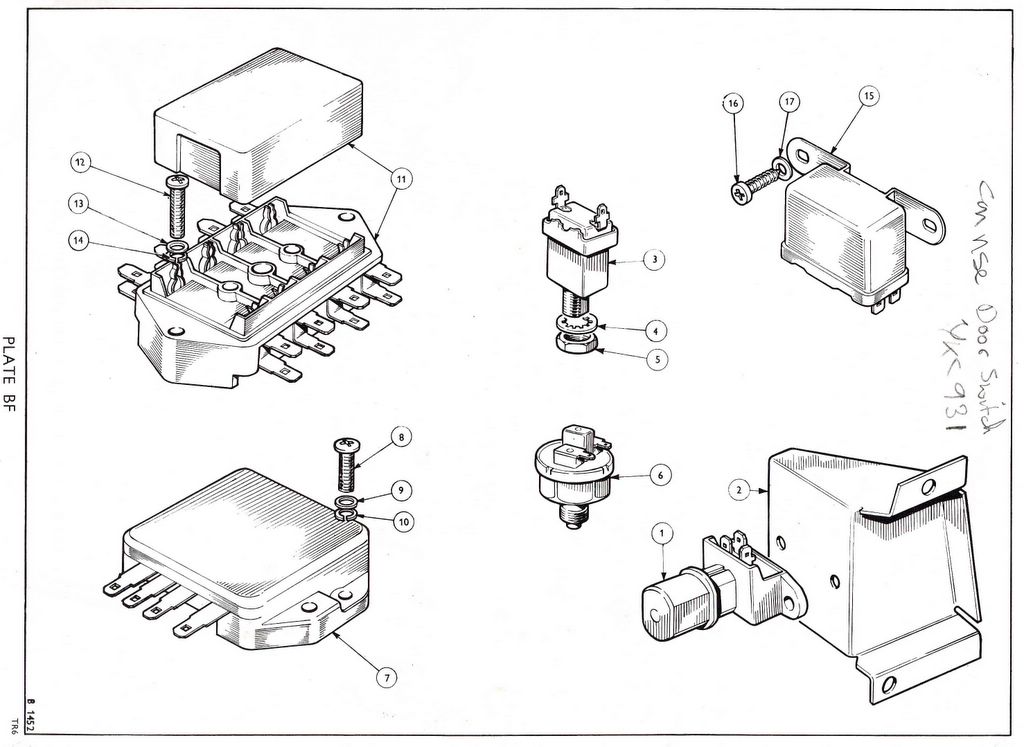

TR6 CC Plate BF - ELECTRICAL EQUIPMENT: Foot Dip, Pedal Switches, Fuse & Control Box
<< Return to Triumph Catalogue Plate List
Also in this listing
Foot Dipping Switch, Stop Lamp Switch, Reverse Lamp Switch, Control Box, Fuse Box, Ignition Relay| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
BF1 | 137630 |
FOOT DIPPING SWITCH |
1 | ||
|
BF2 | 609384 |
BRACKET, dipswitch supportRevington TR information: Dip switch bracket TR2 Left hand drive (LHD). No longer available, please use Second Hand part 609384SH There were two different styles of bracket for both LHD and Right Hand Drive ( RHD) cars dictated by... READ MORE |
1 | ||
|
BF2A | 506731 |
SCREW, self tapping - Dipswitch to bracketTriumph Catalogue Remarks: Fitted up to Comm. No. CF1 R.H. steering |
2 | ||
|
BF2B | 505260 |
NUT, fix - Dipswitch to bracketTriumph Catalogue Remarks: Fitted up to Comm. No. CF1 R.H. steering |
2 | ||
|
BF2C | YJ2504 |
SCREW, self tapping - Dipswitch to bracketTriumph Catalogue Remarks: L.H. steering |
2 | ||
|
BF2D | FN2045/4 |
NUT, fix - Dipswitch to bracketTriumph Catalogue Remarks: L.H. steering |
2 | ||
|
BF2E | HU0705P |
SCREW, set - Fixing bracket to bulkhead |
2 | ||
|
BF2F | WL0207 |
WASHER, lock - Fixing bracket to bulkhead |
2 | ||
|
BF2G | HU0505 |
SCREW, set - Blanking holes in bulkhead centre panel |
2 | ||
|
BF2H | WP0138 |
WASHER, plain - Blanking holes in bulkhead centre panel |
2 | ||
 |
BF3 | 134529 |
STOP LAMP SWITCHRevington TR information: Standard Brake light switch suitable for TR4A right through to TR8, plastic construction Some of the current supply is of appalling quality, they literally fall to pieces and can do so within a matter of... READ MORE |
1 |
£9.65 Ex VAT @ 20% |
|
|
BF4 | WN0711 |
WASHER, shakeproof - Stop lamp switch to pedal mounting box |
1 | ||
|
BF5 | JN2111 |
NUT, jam - Stop lamp switch to pedal mounting box |
1 | ||
|
BF6 | 127380 |
REVERSE LAMP SWITCHTriumph Catalogue Remarks: Fitted up to …….. |
1 | ||
|
BF6A | UKC0930 |
REVERSE LAMP SWITCHTriumph Catalogue Remarks: Fitted from ........ |
1 | ||
|
BF7 | 148416 |
CONTROL BOX |
1 | ||
|
BF8 | PX0505 |
SCREW, set - Securing control box to valance |
2 | ||
|
BF9 | WP0005 |
WASHER, plain - Securing control box to valance |
2 | ||
|
BF10 | WL0205 |
WASHER, lock - Securing control box to valance |
2 | ||
|
BF11 | 148570 |
FUSE BOX |
1 | ||
|
BF11A | 058465 |
FUSE, 35Triumph Catalogue Remarks: 2 fitted, 2 spare |
4 | ||
|
BF12 | PX0512 |
SCREW, set - Fuse box attachment |
2 | ||
|
BF13 | WP0005 |
WASHER, plain - Fuse box attachment |
2 | ||
|
BF14 | WL0205 |
WASHER, lock - Fuse box attachment |
2 | ||
|
BF15 | 142169 |
IGNITION RELAY |
1 | ||
|
BF16 | YZ3503 |
SCREW, set - Relay to wheelarch closing panel |
2 | ||
|
BF17 | WP0005 |
WASHER, plain - Relay to wheelarch closing panel |
2 |
