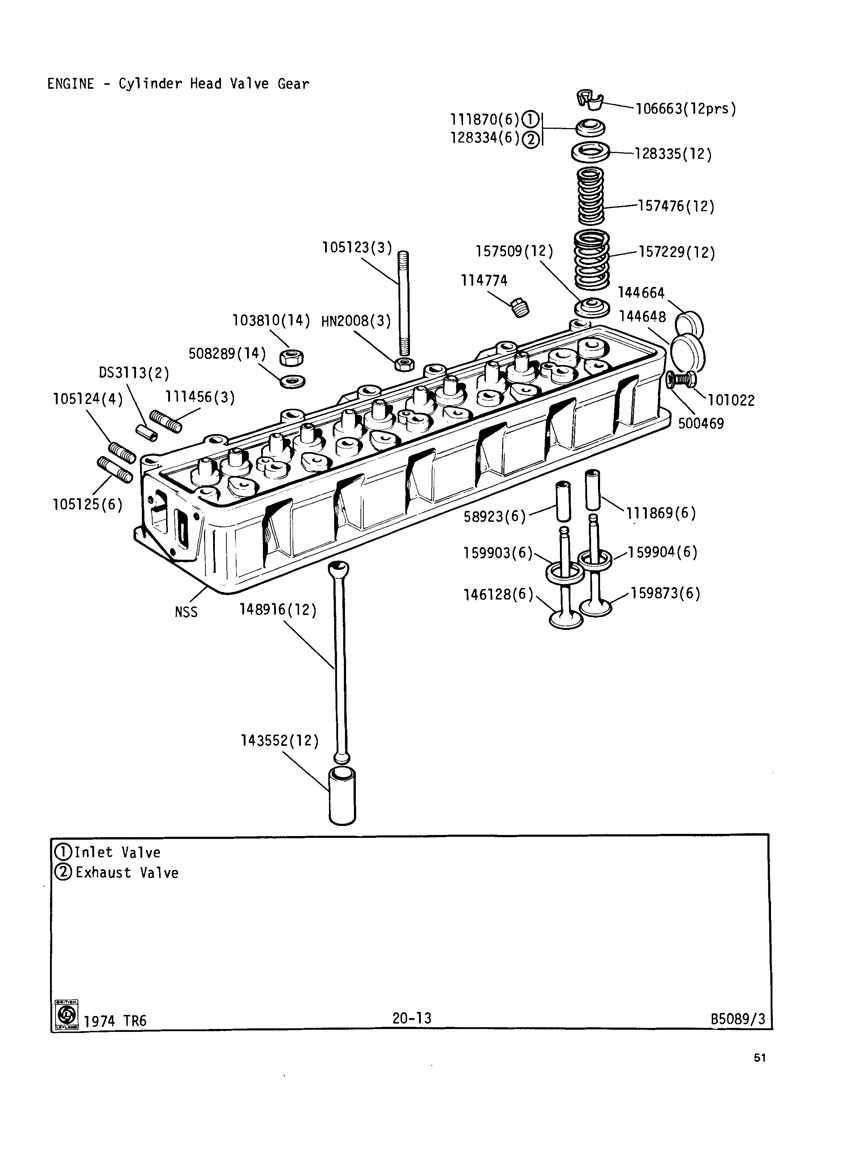

TR6 CF Plate 20-13 - ENGINE (CARB MODELS)
<< Return to Triumph Catalogue Plate List
Also in this listing
Cylinder Head Valve Gear, Camshaft Followers, Push Rods, Core Plugs and Studs| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
20-13 | 143552 |
VALVE TAPPETRevington TR information: Consider using our improved cam follower RTR1298. |
12 |
£12.35 Ex VAT @ 20% |
|
|
20-13 | 148916 |
PUSH RODRevington TR information: Standard TR250, TR6carb and CRTR6 push rod.
NOTE: Only two lengths of push rod were used in TR 6 cylinder engines although longer ones were used in saloon cars with lower compression.
Part number 149513 is used in... READ MORE |
12 | ||
|
148916SH |
Second Hand ROD TR250/6CARBRevington TR information: Second Hand Standard TR250, TR6carb and CRTR6 push rod. NOTE: Only two lengths of push rod were used in TR 6 cylinder engines although longer ones were used in saloon cars with lower compression. Part number 149513 is... READ MORE |
12 |
£5.11 Ex VAT @ 20% |
||
|
20-13 | 058923 |
GUIDERevington TR information: Standard steel inlet Valve Guide fitted to TR2-6 inclusive. Also used in the exhaust position on TR4 from CT27411 and all TR4A. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an... READ MORE |
6 |
£1.84 Ex VAT @ 20% |
|
|
20-13 | 159903 |
INSERT VALVE SEAT INLET |
6 |
£6.73 Ex VAT @ 20% |
|
|
20-13 | 146128 |
VALVE INLETRevington TR information: head dia 36.51mm . RTR1129 is our stainless steel gas flowed version. |
6 |
£13.28 Ex VAT @ 20% |
|
|
20-13 | 111869 |
VALVE GUIDERevington TR information: Standard steel exhaust Valve Guide fitted to TR250, 5 and 6. Suitable for valves having a shaft diameter of 5/16" (7.94mm), the guide has an outside diameter of 0.5025" (12.76mm). The guide is 2.25" long The... READ MORE |
6 |
£5.28 Ex VAT @ 20% |
|
|
20-13 | 159904 |
INSERT VALUE SEAT EXHAUST |
6 |
£9.66 Ex VAT @ 20% |
|
|
20-13 | 159873 |
EXHAUST CALVE |
6 |
£15.10 Ex VAT @ 20% |
|
|
20-13 | 500469 |
WASHERThis item has been superceded by WC10508038 - see below |
1 | ||
|
WC10508038 |
WASHER COPPER 5/16 I/D X 1/2 O/D X 0.040" |
1 | |||
|
20-13 | 101022 |
SCREW SETThis item has been superceded by SH605041 - see below |
1 | ||
|
SH605041 |
SCREW 5/16 UNF X 1/2 INCH |
1 |
£0.76 Ex VAT @ 20% |
||
|
20-13 | 144648 |
PLUG CORE |
1 |
£2.29 Ex VAT @ 20% |
|
|
20-13 | 144664 |
PLUG |
1 | ||
|
20-13 | 157229 |
VALVE SPRINGRevington TR information: This valve spring is suitable for TR6PI and carb engine numbers CC75000 to 75737 and CP75001 to 77718 when used without an inner spring and TR6PI and carb CR1 and CF1 onwards when used with inner... READ MORE |
12 |
£3.84 Ex VAT @ 20% |
|
|
20-13 | 157476 |
INNER VALVE SPRINGRevington TR information: This inner valve spring is suitable for TR6PI and carb CR1 and CF1 onwards when used with outer valve spring 157229 on all valves. Consider spring sets RTR1176 and RTR1177 |
12 |
£3.29 Ex VAT @ 20% |
|
|
20-13 | 128335 |
VALVE OUTER COLLARRevington TR information: These exhaust valve spring upper outer collars (caps) were used on all versions of TR250, TR5 and TR6. Consider second hand part 128335SH or inlet version 111870 or aluminium version RTR1180. See part number RTR1180 for... READ MORE |
12 |
£4.14 Ex VAT @ 20% |
|
|
128335SH |
Second Hand EX/VALVE CAP OUTER |
12 |
£1.90 Ex VAT @ 20% |
||
|
20-13 | 106663 |
CONE SPLITRevington TR information: There are two collet halves per valve. This part number is for two halves therfore 2 pieces are supplied and priced as 1 collet = 2 halves. Note - Some suppliers sell just 1 half. |
12 |
£4.03 Ex VAT @ 20% |
|
|
106663SH |
Second Hand VALVE COLLET 4 CYL. |
12 |
£5.11 Ex VAT @ 20% |
||
|
20-13 | 111870 |
COLLAK VALVERevington TR information: These inlet valve spring upper collars (caps) were used on all versions of TR250, TR5-TR6. RTR prefer to supply second hand part 111870SH or aluminium version RTR1180 which are guaranteed to be dimensionaly correct. See part... READ MORE |
6 |
£5.17 Ex VAT @ 20% |
|
|
111870SH |
Second Hand INLET VALVE CAP 6 CYLRevington TR information: Second Hand inlet valve spring upper collars (caps) used on all versions of TR250, TR5-TR6. RTR prefer to supply this second hand part 111870SH or aluminium version RTR1180 which are guaranteed to be dimensionaly correct. See... READ MORE |
6 |
£4.58 Ex VAT @ 20% |
||
|
20-13 | 128334 |
VALVE INNER COLLARRevington TR information: These exhaust valve spring upper inner collars (caps) were used on all versions of TR250, TR5 and TR6. These collars are not available new; use second hand part 128334SH or inlet version 111870 or aluminium... READ MORE |
6 | ||
|
128334SH |
EX/VALVE CAP INNER |
6 |
£3.29 Ex VAT @ 20% |
||
|
20-13 | 157509 |
SPRING COLLAR LOWER 7mm THICKRevington TR information: TR6PI and carb cars CR1 and CF1 onwards. This collar is 7mm thick with an outside diameter of 19mm and supports the inner valve spring only. a thinner collar 149717 is also available as are second... READ MORE |
12 |
£4.38 Ex VAT @ 20% |
|
|
157509SH |
Second Hand SPRING COLLAR LOWER 7mm THICK |
12 |
£3.56 Ex VAT @ 20% |
||
|
20-13 | 114774 |
PLUGRevington TR information: The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using a magnetic drain... READ MORE |
1 |
£5.87 Ex VAT @ 20% |
|
|
114774SH |
Second Hand DRAIN Plug ENG/AXLE SQ TR2-6Revington TR information: Second hand Plug. The original square headed taper plug 114774 is used as an axle filler, drain plug and as a blank in the cooling system when a heater is not fitted. Revington TR recommend using... READ MORE |
1 |
£3.52 Ex VAT @ 20% |
||
|
20-13 | 105123 |
STUDThis item has been superceded by ST605331 - see below |
3 | ||
|
ST605331 |
STUD 5/16 X 4-1/8" UNF+ UNF |
3 |
£6.41 Ex VAT @ 20% |
||
|
20-13 | HN2008 |
NUT PLAIN 5/16 UNFThis item has been superceded by NP605081 - see below |
3 | ||
|
NP605081 |
NUT PLAIN 5/16 UNF |
3 |
£0.17 Ex VAT @ 20% |
||
|
20-13 | 103810 |
NUT CYL HEAD ATTACHMENTRevington TR information: TR250, 5 and 6 standard nut. 7/16"UNF 11/16" AF. For high compression engines use our deeper nut part number NP607162 |
14 |
£4.73 Ex VAT @ 20% |
|
|
103810SH |
CYLINDER HEAD NUTRevington TR information: TR5-6 standard nut. 7/16"UNF 11/16" AF. For very high compression engines use our deeper nut part number NP607162 |
14 |
£1.45 Ex VAT @ 20% |
||
|
20-13 | 508289 |
WASHER SPECIAL |
14 |
£0.94 Ex VAT @ 20% |
|
|
20-13 | 111456 |
STUDThis item has been superceded by ST605141 - see below |
3 | ||
|
ST605141 |
STUD 5/16 X 1-3/4" UNF+ UNF |
3 |
£3.46 Ex VAT @ 20% |
||
|
20-13 | DS3113 |
ROLL PIN 5/16 X 3/4 INCHThis item has been superceded by RPS2012 - see below |
2 | ||
|
RPS2012 |
ROLLPIN 5/16 x 3/4 |
2 |
£4.14 Ex VAT @ 20% |
||
|
20-13 | 105124 |
STUDThis item has been superceded by ST606111 - see below |
4 | ||
|
ST606111 |
STUD 3/8 X 1-3/8" UNF+ UNF |
4 |
£1.55 Ex VAT @ 20% |
||
|
20-13 | 105125 |
STUDThis item has been superceded by ST606141 - see below |
6 | ||
|
ST606141 |
STUD 3/8 X 1-3/4" UNF+ UNF |
6 |
£1.96 Ex VAT @ 20% |
