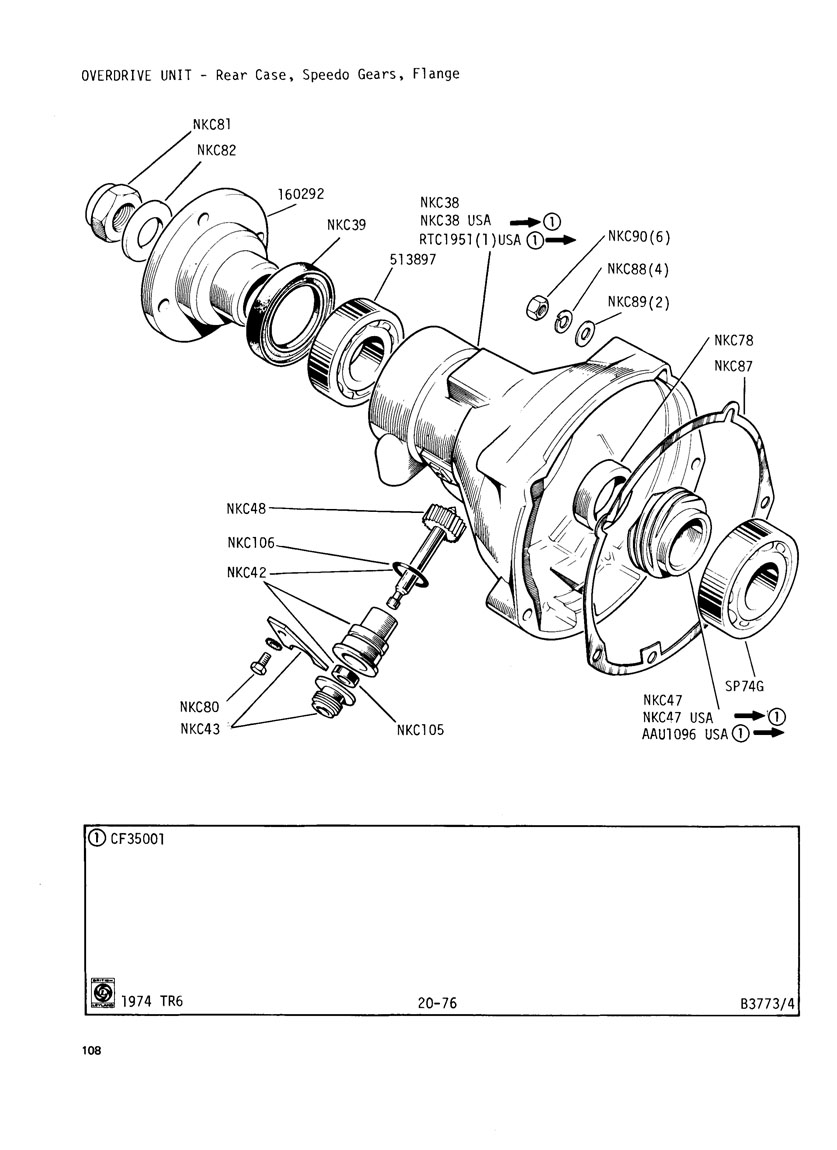

TR6 CF Plate 20-76 - 'J' TYPE OVERDRIVE UNIT

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

Also in this listing

Rear Case, Speedometer Gears, Bearings, Seal and Flange

> Close plate

> Open plate in new window

> Print Plate

Also in this listing

Rear Case, Speedometer Gears, Bearings, Seal and Flange
  Plate No. Part No. Description and Comments No Per Unit Price Add to Cart
20-76
160292

CLICK FOR
MORE INFO
FLANGE REAR J TYPE ROUND

Revington TR information: Round Overdrive output flange. TR 6 'J' type overdrive gearboxes. Note: A type overdrive output flanges 058948 and 518109 and Diff flanges 107947, 138105 and 160275 are not interchangeable with 'J' type overdrive flanges.
This item has a secondhand part available - see below

 1

£169.26

Ex VAT @ 20%
£141.05


Available to order
160292SH
Second Hand FLANGE REAR J TYPE ROUND

 1

£76.48

Ex VAT @ 20%
£63.73


Available to order
20-76
513897

CLICK FOR
MORE INFO
BEARING BALL

This item has been superceded by SP75G - see below

 1
SP75G

CLICK FOR
MORE INFO
BEARING 4SYNC O/D RR ANN

Revington TR information: Remove circlip when using in a Lockheed axle application.

 1

£18.70

Ex VAT @ 20%
£15.58


20-76
AAU1096

CLICK FOR
MORE INFO
DRIVING GEAR

Triumph Catalogue Remarks: USA from CF35001
Revington TR information: scroll 'J' type overdrive for speedometer gear 7 starts TR2-4A Gearboxes without overdrive and overdrives used a brass bearing and a steel gear with 15 teeth 107747 Brass Bearing Housing 058969 Steel Gear 15 tooth TR5-6 Gearboxes without... READ MORE

 1

£71.96

Ex VAT @ 20%
£59.97


Available to order
20-76
NKC38

CLICK FOR
MORE INFO
REAR CASE

Triumph Catalogue Remarks: all markets and USA up to CF35001

 1
No longer available
20-76
NKC39

CLICK FOR
MORE INFO
OIL SEAL

This item has been superceded by NKC39A - see below

 1
NKC39A
SEAL O/D REAR J TYPE OVERDRIVE

 1

£6.77

Ex VAT @ 20%
£5.64


20-76
NKC42

CLICK FOR
MORE INFO
SPEEDO BEARING KIT

Revington TR information: Housing speedometer drive 'J' type overdrive TR2-4A Gearboxes without overdrive and overdrives used a brass bearing and a steel gear with 15 teeth 107747 Brass Bearing Housing 058969 Steel Gear 15 tooth TR5-6 Gearboxes without overdrive and... READ MORE
This item has a secondhand part available - see below

 1

£42.10

Ex VAT @ 20%
£35.08


NKC42SH
Second Hand HOUSING SPEEDO 'J'

 1

£23.99

Ex VAT @ 20%
£19.99


20-76
NKC43

CLICK FOR
MORE INFO
CONNECTOR

 1

£24.62

Ex VAT @ 20%
£20.52


Available to order
20-76
NKC47

CLICK FOR
MORE INFO
GEAR SPEEDO DRIVE

Triumph Catalogue Remarks: all markets and USA up to CF35001
Revington TR information: Scroll 'J' type overdrive for speedometer gear. 8 starts

1

£46.92

Ex VAT @ 20%
£39.10


Available to order
20-76
NKC48

CLICK FOR
MORE INFO
GEAR SPEEDO PINION

Revington TR information: Gear Speedometer drive 'J' type TR6 20 tooth, Grey plastic (reproductions are often white) TR2-4A Gearboxes without overdrive and overdrives used a brass bearing and a steel gear with 15 teeth 107747 Brass Bearing Housing 058969 Steel... READ MORE
This item has a secondhand part available - see below

 1

£42.35

Ex VAT @ 20%
£35.29


Available to order
NKC48SH

CLICK FOR
MORE INFO
Second hand GEAR 20 TOOTH

Revington TR information: Second Hand Gear Speedometer drive 'J' type TR6 20 tooth, Grey plastic (reproductions are often white) TR2-4A Gearboxes without overdrive and overdrives used a brass bearing and a steel gear with 15 teeth 107747 Brass Bearing Housing 058969... READ MORE

 1

£22.61

Ex VAT @ 20%
£18.84


Available to order
20-76
NKC78

CLICK FOR
MORE INFO
SPACER OUTPUT SHAFT

 1

£21.34

Ex VAT @ 20%
£17.78


Available to order
20-76
NKC80

CLICK FOR
MORE INFO
SCREW

This item has been superceded by SH604051 - see below

 1
SH604051
SCREW 1/4 UNF X 5/8 INCH

 1

£0.62

Ex VAT @ 20%
£0.52


20-76
NKC81

CLICK FOR
MORE INFO
NUT COUPLING FLANGE

This item has been superceded by NS612181 - see below

 1
NS612181
NUT PHILIDAS 3/4"UNF THIN

 1

£8.77

Ex VAT @ 20%
£7.31


20-76
NKC82

CLICK FOR
MORE INFO
WASHER COUPLING FLANGE

This item has been superceded by NKC82A - see below

 1
NKC82A
WASHER D/FLANGE J OD

 1

£1.49

Ex VAT @ 20%
£1.24


Available to order
20-76
NKC87

CLICK FOR
MORE INFO
GASKET

 1

£3.80

Ex VAT @ 20%
£3.17


20-76
NKC88

CLICK FOR
MORE INFO
WASHER SPRING

This item has been superceded by WS105090853 - see below

 4
WS105090853
WASHER SPRING 5/16" ID RECT SECTION

 4

£0.25

Ex VAT @ 20%
£0.21


20-76
NKC89

CLICK FOR
MORE INFO
WASHER COPPER

 2

£0.59

Ex VAT @ 20%
£0.49


Available to order
20-76
NKC90

CLICK FOR
MORE INFO
BUT

This item has been superceded by NP605081 - see below

 6
NP605081
NUT PLAIN 5/16 UNF

 6

£0.17

Ex VAT @ 20%
£0.14


20-76
NKC105

CLICK FOR
MORE INFO
OIL SEAL

This item has been superceded by NKC105A - see below

 1
NKC105A
OIL SEAL SPEEDO

 1

£9.44

Ex VAT @ 20%
£7.87


20-76
NKC106

CLICK FOR
MORE INFO
O RING

 1

£1.56

Ex VAT @ 20%
£1.30


Available to order
20-76
RTC1951

CLICK FOR
MORE INFO
CASING REAR

Triumph Catalogue Remarks: USA from CF35001

 1
No longer available
20-76
SP74G

CLICK FOR
MORE INFO
LENS AMBER AMBER TR6 NO RIM LH

 1

£33.52

Ex VAT @ 20%
£27.93


Available to order
