TR6 CF Plate 21-01 - CHASSIS

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

> Close plate

> Open plate in new window

> Print Plate

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
1	PKC21 CLICK FOR MORE INFO	CHASSIS FRAME Triumph Catalogue Remarks: FROM COMM. NO. CR6020 Revington TR information: TR6 CR/CF Remanufactured Chassis Frame, sold on an exchange basis, untreated, using a combination of new and original second hand parts where they are in good enough condition, typically rear hump, rack supports and turrets, taken... READ MORE	1	£11018.27 Ex VAT @ 20% £9181.89	Available to order
1A	PKC54 CLICK FOR MORE INFO	CHASSIS FRAME Triumph Catalogue Remarks: UP TO COMM. NO. CF21501 This item has been superceded by PKC21 - see below	1
	PKC21 CLICK FOR MORE INFO	CHASSIS FRAME Revington TR information: TR6 CR/CF Remanufactured Chassis Frame, sold on an exchange basis, untreated, using a combination of new and original second hand parts where they are in good enough condition, typically rear hump, rack supports and turrets, taken... READ MORE	1	£11018.27 Ex VAT @ 20% £9181.89	Available to order
2	139354 CLICK FOR MORE INFO	Crossmember, front assembly between turrets Revington TR information: No longer available	1		No longer available
3	307797 CLICK FOR MORE INFO	TURRET, assembly, front suspension - R.H. Revington TR information: No longer available	1		No longer available
4	307796 CLICK FOR MORE INFO	TURRET, assembly, front suspension - L.H.	1		No longer available
5	140677 CLICK FOR MORE INFO	BRACKET, front brake hose, on turret assembly	2		No longer available
6	214259 CLICK FOR MORE INFO	BRACKET, mounting, rack and pinion - L.H.	1		No longer available
7	147702 CLICK FOR MORE INFO	BRACKET, mounting, rack and pinion - R.H.	1	£30.36 Ex VAT @ 20% £25.30	Available to order
8	144634 CLICK FOR MORE INFO	BRACKET, mounting, assembly, body and radiator - RH.	1		No longer available
9	144633 CLICK FOR MORE INFO	BRACKET, mounting, assembly, body and radiator - L.H.	1		No longer available
10	114210 CLICK FOR MORE INFO	BRACKET, 4 way connection support	1		No longer available
11	139580 CLICK FOR MORE INFO	BRACKET, support, lower inner fulcrum Revington TR information: 4 required per car. When fitting this bracket it should be strengthened by kit RTR7017K	4	£52.88 Ex VAT @ 20% £44.07
11A	155846 CLICK FOR MORE INFO	STIFFENER, L.H. - Welded to rear face of front and rear lower fulcrum bracket Triumph Catalogue Remarks: Forms part of front suspension strengthening kit RTR7017K This item has been superceded by 88155846 - see below	2
	88155846	STIFFENER large, rear of LH front & rear mount TR4A-6 Chassis	2	£21.95 Ex VAT @ 20% £18.29
11B	155847 CLICK FOR MORE INFO	STIFFENER, R.H. - Welded to rear face of front and rear fulcrum bracket Triumph Catalogue Remarks: Forms part of front suspension strengthening kit RTR7017K This item has been superceded by 88155847 - see below	2
	88155847 CLICK FOR MORE INFO	STIFFENER large, rear of RH front & rear mount TR4A-6 Chassis	2	£21.95 Ex VAT @ 20% £18.29
11C	155531 CLICK FOR MORE INFO	STIFFENER, L.H. - Welded to front face of rear fulcrum bracket Triumph Catalogue Remarks: Forms part of front suspension strengthening kit RTR7017K This item has been superceded by 88155531 - see below	1

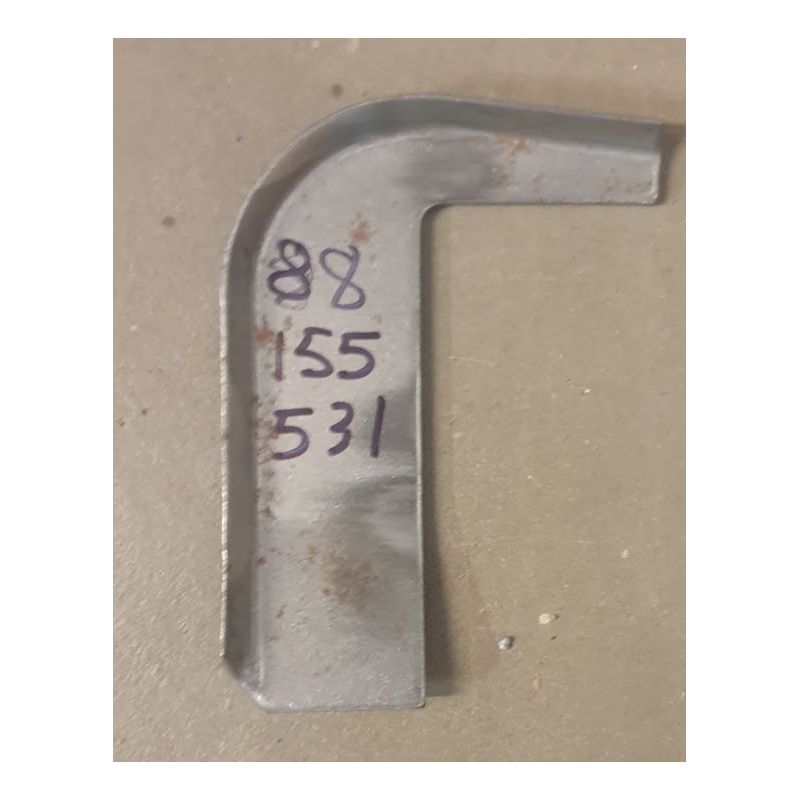

	88155531 CLICK FOR MORE INFO	STIFFENER small, front of LH front & rear mount TR4A-6 Chassis	1	£21.95 Ex VAT @ 20% £18.29
11D	155532 CLICK FOR MORE INFO	STIFFENER, R.H. - Welded to front face of rear fulcrum bracket Triumph Catalogue Remarks: Forms part of front suspension strengthening kit RTR7017K This item has been superceded by 88155532 - see below	1
	88155532 CLICK FOR MORE INFO	STIFFENER small, front of RH front & rear mount TR4A-6 Chassis	1	£21.95 Ex VAT @ 20% £18.29
12	140089 CLICK FOR MORE INFO	BRACKET, side member, body mounting Revington TR information: Body Mounting Bracket welded tot he chassis and accommodates the forward floor fastener. TR4A-6 chassis. Price per bracket. We also offer second hand original brackets 10089SH that are serviceable and have been removed from chassis with rotten... READ MORE	2	£59.74 Ex VAT @ 20% £49.78	Available to order
13	211354 CLICK FOR MORE INFO	BRACKET, front, body mounting Revington TR information: This bracket is the front bracket of the four that attach the floor to the chassis We also offer second hand original brackets 211354SH that are serviceable and have been removed from chassis with rotten... READ MORE	2	£102.56 Ex VAT @ 20% £85.47	Available to order
14	139448 CLICK FOR MORE INFO	BRACKET, scuttle mounting - R.H. Revington TR information: Mounting bracket right hand supporting H frame, TR4A-6 chassis. We also offer second hand original brackets 139447SH and 139448SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the... READ MORE	1	£63.76 Ex VAT @ 20% £53.13	Available to order
15	139447 CLICK FOR MORE INFO	BRACKET, scuttle mounting - L.H. Revington TR information: Mounting bracket left hand supporting H frame, TR4A-6 chassis. We also offer second hand original brackets 139447SH and 139448SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the... READ MORE	1	£79.49 Ex VAT @ 20% £66.24	Available to order
16	139224 CLICK FOR MORE INFO	BRACKET, rear engine mounting - R.H. Triumph Catalogue Remarks: TR250, 5 and 6CC/CP only Revington TR information: use 139224SH This right hand bracket, welded to the chassis rail, TR4A-6CP/CC, supports the gearbox and A type overdrive if fitted. We also offer second hand original brackets 139223SH and 139224SH that are serviceable and have... READ MORE	1		No longer available
17	139223 CLICK FOR MORE INFO	BRACKET, rear engine mounting - L.H. Triumph Catalogue Remarks: TR250, 5 and 6CC/CP only Revington TR information: use 139223.4SH. This left hand bracket, welded to the chassis rail, TR4A-6, supports the gearbox and A type overdrive if fitted. We also offer second hand original brackets 139223SH and 139224SH that are serviceable and have... READ MORE	1	£93.88 Ex VAT @ 20% £78.23
17A	160114 CLICK FOR MORE INFO	Bracket, rear engine mounting Triumph Catalogue Remarks: TR6CF and CR only Revington TR information: Bracket on chassis supporting 'J' type overdrive of CF and CR TR6	2	£60.83 Ex VAT @ 20% £50.69
18	147898 CLICK FOR MORE INFO	BRACKET, rear sill, body mounting - R.H.	1	£103.49 Ex VAT @ 20% £86.24
19	147897 CLICK FOR MORE INFO	BRACKET, rear sill, body mounting - L.H. Revington TR information: Bracket, welded to chassis, left hand rear body attachment. We also offer second hand original brackets 147897SH that are serviceable and have been removed from chassis with rotten main rails. Ideal for the concourse original look.	1	£103.49 Ex VAT @ 20% £86.24	Available to order
20	214031 CLICK FOR MORE INFO	CROSSMEMBER assembly, rear axle Revington TR information: This chassis Bridge (cross member) carries the rear axle (differential) and supports the rear dampers on TR4AIRS to TR6. This reproduction part is very similar to the original, it is a good fit and it is... READ MORE	1	£462.37 Ex VAT @ 20% £385.31	Available to order
20A	RTR7004-1 CLICK FOR MORE INFO	Crossmember complete assembly, rear axle and dampers Triumph Catalogue Remarks: Consisting of 1x item20, 2 x item21, 2 x item25 and 2 x item50. Revington TR information: TR250,5 and 6, Rear bridge assembly (comprising 1 x 214031 cross member, 2 support 141793 for the rear dampers, differential support brackets 140051 and pins 147671). This assembly is NOT suitable for TR4AIRS as the... READ MORE	1	£494.11 Ex VAT @ 20% £411.76	Available to order
20B	612235 CLICK FOR MORE INFO	GROMMET, on rear axle crossmember This item has been superceded by 612976 - see below	1
	612976 CLICK FOR MORE INFO	PLUG SCREEN FRAME	1	£2.11 Ex VAT @ 20% £1.76
21	147400 CLICK FOR MORE INFO	BOLT, support bracket, rear axle mounting This item has been superceded by 147671 - see below	2
	147671 CLICK FOR MORE INFO	Bolt, rear suspension crossmember front axle support Revington TR information: Pin, Support, Rear axle (differential) Mounting TR4AIRS, 250, 5, 6. This pin is located in both the front cross member and rear cross members. When the pin is installed in the front cross member it protrudes... READ MORE	2	£26.16 Ex VAT @ 20% £21.80	Available to order
22	307107 CLICK FOR MORE INFO	BRACKET, support rear crossmember - R.H. Revington TR information: Support between the chassis legs and the front differential cross member. The left hand part is 307106. The complete assembly is available as RTR7003 and we also keep this assembly second had as RTR7003SH for those... READ MORE	1	£104.76 Ex VAT @ 20% £87.30	Available to order
23	307106 CLICK FOR MORE INFO	BRACKET, support rear crossmember - L.H. Revington TR information: Support between the chassis legs and the front differential cross member. The right hand part is 307107. The complete assembly is available as RTR7003 and we also keep this assembly second had as RTR7003SH for those... READ MORE	1	£104.76 Ex VAT @ 20% £87.30	Available to order
24	147671 CLICK FOR MORE INFO	Bolt, rear suspension crossmember front axle support Revington TR information: Pin, Support, Rear axle (differential) Mounting TR4AIRS, 250, 5, 6. This pin is located in both the front cross member and rear cross members. When the pin is installed in the front cross member it protrudes... READ MORE	2	£26.16 Ex VAT @ 20% £21.80	Available to order
25	147947 CLICK FOR MORE INFO	Bracket assembly, mounting rear damper Revington TR information: Bracket welded to the rear chassis cross member of TR4A-6 cars to support the lever arm dampers. If the metal around the damper supports is poor, consider complete assembly RTR7004 (TR4AIRS) or RTR7004-1 (TR250,5, 6) We... READ MORE	2	£77.02 Ex VAT @ 20% £64.18	Available to order
26	142449 CLICK FOR MORE INFO	BRACKET, mounting exhaust	1	£16.80 Ex VAT @ 20% £14.00	Available to order
27	140195 CLICK FOR MORE INFO	BRACKET, rebound, assembly - R.H.	1	£22.08 Ex VAT @ 20% £18.40	Available to order
28	140194 CLICK FOR MORE INFO	BRACKET, rebound, assembly - L.H.	1	£22.08 Ex VAT @ 20% £18.40	Available to order
29	213021 CLICK FOR MORE INFO	RADIATOR PROTECTION SHIELD Triumph Catalogue Remarks: All CR cars and USA up to CF27000 Revington TR information: Consider also second hand part 213021SH or second hand part powder coated 213021SHPC	1	£98.44 Ex VAT @ 20% £82.03
29A	TKC1972	RADIATOR PROTECTION SHIELD Triumph Catalogue Remarks: USA from CF27001	1		No longer available
30	HU0906 CLICK FOR MORE INFO	BOLT - Securing shield This item has been superceded by SH606061 - see below	2
	SH606061	SCREW 3/8 UNF X 3/4 INCH	2	£1.08 Ex VAT @ 20% £0.90
31	HN2009 CLICK FOR MORE INFO	NUT - Securing shield . This item has been superceded by NP606111 - see below	2
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	2	£0.14 Ex VAT @ 20% £0.12
32	WL0209 CLICK FOR MORE INFO	WASHER, lock - Securing shield This item has been superceded by WS106111243 - see below	2
	WS106111243	WASHER SPRING 3/8" RECT SECTION	2	£0.37 Ex VAT @ 20% £0.31
33	219115 CLICK FOR MORE INFO	CROSS TUBE assembly, top Triumph Catalogue Remarks: Fitted from Comm No. CF1 to CF35000 USA and CR1 onwardsl . Revington TR information: Fitted from commission number CF1 onwards. Consider second hand part 219115SH or second hand part powder coated black 219115SHPC.	1	£281.72 Ex VAT @ 20% £234.77	Available to order
33A	TKC2147	CROSS TUBE assembly, top Triumph Catalogue Remarks: Fitted from Comm No. CF35001 USA only	1		No longer available
34	HU0907 CLICK FOR MORE INFO	SCREW, set - Cross tube to chassis frame This item has been superceded by SH606081 - see below	6
	SH606081	SCREW 3/8 UNF X 1 INCH	6	£0.61 Ex VAT @ 20% £0.51
35	WL0209 CLICK FOR MORE INFO	WASHER, lock - Cross tube to chassis frame This item has been superceded by WS106111243 - see below	6
	WS106111243	WASHER SPRING 3/8" RECT SECTION	6	£0.37 Ex VAT @ 20% £0.31
36	211361 CLICK FOR MORE INFO	CROSSMEMBER, engine mounting, rear Triumph Catalogue Remarks: Fitted up to CF/CR1 A type overdrive version Revington TR information: This gearbox support plate fits onto the chassis, is secured with 4 screws and supports the rubber mounting which then supports the gearbox. This part is fitted to all TR4A-CP/CCTR6 with or without overdrive (A type).... READ MORE	1	£81.73 Ex VAT @ 20% £68.11
36A	218275 CLICK FOR MORE INFO	CROSSMEMBER, ASSEMBLY engine mounting rear Triumph Catalogue Remarks: Fitted from Comm No. CF/CR1 J type overdrive version Revington TR information: Consider second hand part 218275SH and powder coated part.	1	£112.69 Ex VAT @ 20% £93.91	Available to order
37	HU0905 CLICK FOR MORE INFO	SCREW, set - Crossmember to mounting brackets This item has been superceded by SH606051 - see below	4
	SH606051	SCREW 3/8 UNF X 5/8 INCH	4	£1.30 Ex VAT @ 20% £1.08
37A	WP0009 CLICK FOR MORE INFO	WASHER, plain - Crossmember to mounting brackets Triumph Catalogue Remarks: Fitted from Comm No. CF1 This item has been superceded by WP10613050 - see below	4
	WP10613050	WASHER PLAIN 3/8 X 13/16 INCH NLA use 7/8"	4		No longer available
37B	160120 CLICK FOR MORE INFO	SPACER Triumph Catalogue Remarks: Fitted from Comm No. CF1 Revington TR information: No Longer Available use WP106121191	2		No longer available
37C	HU0908 CLICK FOR MORE INFO	SCEW, set Triumph Catalogue Remarks: Fitted from Comm No. CF1 This item has been superceded by SH606081 - see below	4
	SH606081	SCREW 3/8 UNF X 1 INCH	4	£0.61 Ex VAT @ 20% £0.51
38	WL0209 CLICK FOR MORE INFO	WASHER, lock - Crossmember to mounting brackets This item has been superceded by WS106111243 - see below	4
	WS106111243	WASHER SPRING 3/8" RECT SECTION	4	£0.37 Ex VAT @ 20% £0.31
39	HN2009 CLICK FOR MORE INFO	NUT - Crossmember to mounting brackets Triumph Catalogue Remarks: Fitted from Comm No. CF1 This item has been superceded by NP606111 - see below	4
	NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	4	£0.14 Ex VAT @ 20% £0.12
40	214107 CLICK FOR MORE INFO	Crossmember top assembly only, rear suspension Revington TR information: Front bridge supporting the rear springs and differential, TR4AIRS to TR6. This part is supplied as the cross member only, without the rear floor supports RTR7044, which need to be ordered separately. The bridge cross member... READ MORE	1	£481.42 Ex VAT @ 20% £401.18	Available to order
40A	RTR7003 CLICK FOR MORE INFO	Crossmember complete assembly rear suspension and axle Triumph Catalogue Remarks: Consisting of 1x item40, 1 x item22, 1 x item23, 2 x item24 and 2 x item49. Brackets item54 are NOT included Revington TR information: TR4AIRS-6. Front bridge assembly (comprising 1 x 214107 cross member, 1 each support 307107, 307106 from chassis to cross member, differential support brackets 140009 and pins 147671). This is a fully assembled component, fully welded and... READ MORE	1	£761.27 Ex VAT @ 20% £634.39	Available to order
41	211402 CLICK FOR MORE INFO	Side Brace sub assembly, right hand engine bay support This item has been superceded by RTR7150-4A6 - see below	1
	RTR7150-4A6	TURRET SUPPORT STRUT TR4A/5/6 Revington TR information: TR4A-6 Support strut Turret to chassis box section. Two required per car	1	£86.94 Ex VAT @ 20% £72.45	Available to order
42	211401 CLICK FOR MORE INFO	Side Brace sub assembly, left hand engine bay support This item has been superceded by RTR7150-4A6 - see below	1
	RTR7150-4A6	TURRET SUPPORT STRUT TR4A/5/6 Revington TR information: TR4A-6 Support strut Turret to chassis box section. Two required per car	1	£86.94 Ex VAT @ 20% £72.45	Available to order
43	211589 CLICK FOR MORE INFO	Side Member Rear left	1		No longer available
44	211590 CLICK FOR MORE INFO	Side Member Rear right	1		No longer available
45	211650 CLICK FOR MORE INFO	bottom Brest Plate This item has been superceded by RTR7022 - see below	1
	RTR7022	BREAST PLATE BOTTOM TR4A-6 Revington TR information: TR4A-6 Chassis bottom breast plate - Flat with flutes.	1	£42.19 Ex VAT @ 20% £35.16	Available to order
46	211346 CLICK FOR MORE INFO	Outrigger left hand, Trailing arm attachment This item has been superceded by RTR7030 - see below	1
	RTR7030 CLICK FOR MORE INFO	LEG CHASSIS TA ATTACH TR4A-6 Revington TR information: TR4A-6 chassis leg trailing Arm attachment including bolt hole strengthening tubes 18 3/16" long	1	£81.60 Ex VAT @ 20% £68.00	Available to order
46A	211347 CLICK FOR MORE INFO	Outrigger right hand, Trailing arm attachment This item has been superceded by RTR7030 - see below	1
	RTR7030 CLICK FOR MORE INFO	LEG CHASSIS TA ATTACH TR4A-6 Revington TR information: TR4A-6 chassis leg trailing Arm attachment including bolt hole strengthening tubes 18 3/16" long	1	£81.60 Ex VAT @ 20% £68.00	Available to order
47	147987 CLICK FOR MORE INFO	Bracket brake tube right hand rear	1		No longer available
48	214253 CLICK FOR MORE INFO	Top Brest Plate This item has been superceded by RTR7018 - see below	1
	RTR7018	BREAST PLATE TOP TR250-6 Revington TR information: TR4A-6 top breast plate - with flutes and raised centre section.	1	£37.30 Ex VAT @ 20% £31.08
49	140009 CLICK FOR MORE INFO	Bracket supporting front of diff Revington TR information: Bracket welded under the front cross member on TR4AIRS, 250, 5 and 6 to support the front of the differential assembly. When changing these brackets you will most likely need pin 147671 too. When replacing this... READ MORE	2		No longer available
50	145001	BRACKET, rear, rear axle mounting	2		No longer available
51	148002 CLICK FOR MORE INFO	Bracket, support rear bumper side and live axle spring Revington TR information: This bracket supports the rear bumper on TR4A, 250 and 6 cars and in addition supports the rear of the leaf springs on none IRS TR4A's. We also offer second hand original brackets 148002 that are... READ MORE	2	£53.41 Ex VAT @ 20% £44.51	Available to order
52	212133 CLICK FOR MORE INFO	Cross tube rear Triumph Catalogue Remarks: 1035mm long This item has been superceded by RTR7031 - see below	1
	RTR7031 CLICK FOR MORE INFO	TUBE CHASSIS REAR TR2-6 31.75 x 1035mm Revington TR information: TR2-6 chassis Cross Tube rear, (smaller of the two on TR2-4) with an outside diameter of 1¼” (31.75mm). This tube is supplied at least 1035mm long (the correct length for TR4A-6) and fits at the rear... READ MORE	1	£70.09 Ex VAT @ 20% £58.41	Available to order
53	214167 CLICK FOR MORE INFO	Front Cross Brace under rack supports	1		No longer available
54	RTR7242 CLICK FOR MORE INFO	Bracket on crossmember supporting body Revington TR information: Bracket on bridge supporting body TR5-6. Can be used on TR4A too.	2	£33.04 Ex VAT @ 20% £27.53
55	142935 CLICK FOR MORE INFO	Bracket brake tube left hand rear	1		No longer available
56	149944 CLICK FOR MORE INFO	Bracket T piece and PRV mount Triumph Catalogue Remarks: Not CF/CR. Only needed on TR5 and early TR6 when T piece and PRV are on the chassis	1		No longer available
57	UKC2096 CLICK FOR MORE INFO	Anchor point rear chassis left hand Triumph Catalogue Remarks: CF and CR TR6 only Revington TR information: This rear Anchor Point consists of a straight part (the anchor point), and a 90 deg. angled stiffening bracket	1		No longer available
57A	UKC2097 CLICK FOR MORE INFO	Anchor point rear chassis right hand Triumph Catalogue Remarks: CF and CR TR6 only Revington TR information: This rear Anchor Point consists of a straight part (the anchor point), and a 90 deg. angled stiffening bracket	1		No longer available
58	RTR7068 CLICK FOR MORE INFO	Front Chassis leg Left & Right Revington TR information: TR4A-6 Chassis side leg Left Hand and Right Hand. This chassis leg is the same for both sides of the car, hence one part number. No fittings are attached, it is jus the bare leg.... READ MORE	2	£709.39 Ex VAT @ 20% £591.16	Available to order
