Suspension and steering

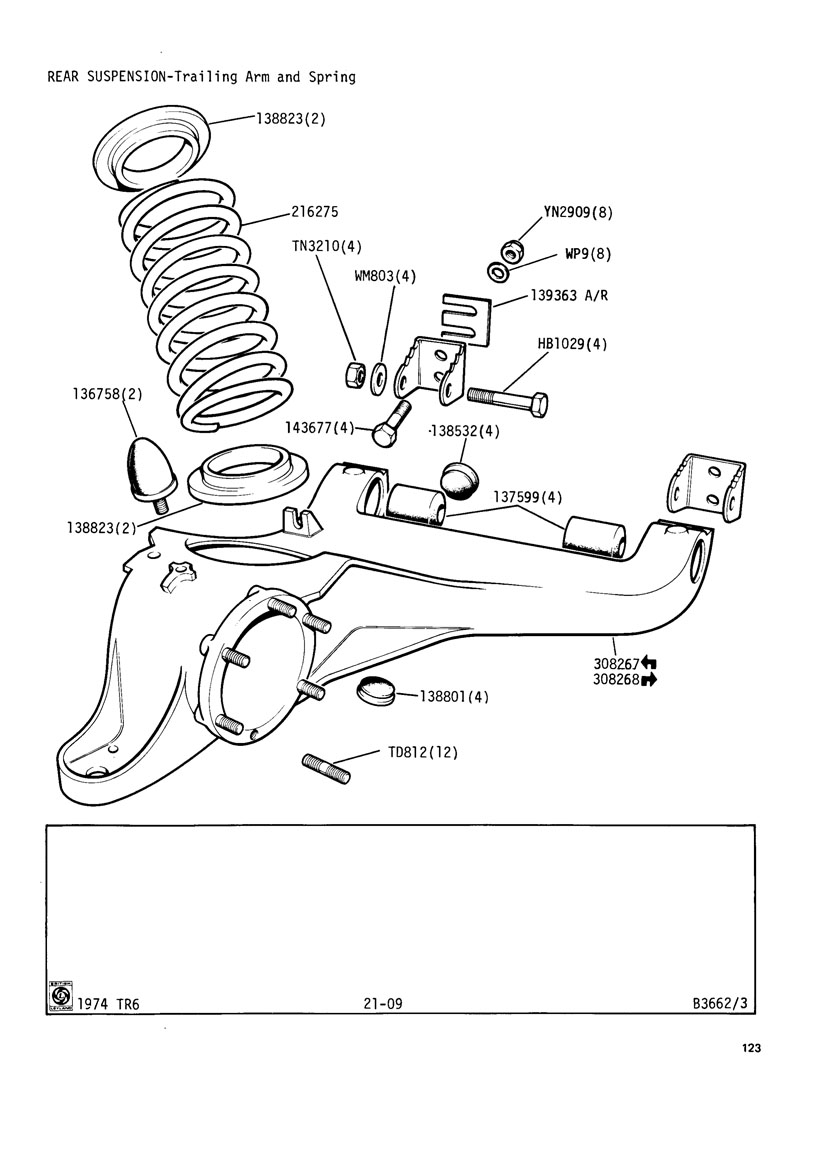

TR6 CF Plate 21-09 - REAR SUSPENSION

<< Return to Triumph Catalogue Plate List

> Open plate

> Open plate in new window

> Print Plate

Also in this listing

Trailing Arm, Spring, mounting brackets and bump stops

> Close plate

> Open plate in new window

> Print Plate

Also in this listing

Trailing Arm, Spring, mounting brackets and bump stops

Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
21-09	136758 CLICK FOR MORE INFO	BUFFER Revington TR information: 1.625" from back of plate to tip of bump stop rubber. There are various bump and rebound stops used on IRS cars The following guide might be useful: - 140290: large bump stop fitted to TR4A body 136758:... READ MORE This item has a secondhand part available - see below	2	£6.36 Ex VAT @ 20% £5.30
	136758SH CLICK FOR MORE INFO	Second Hand BUMP STOP Revington TR information: There are various bump and rebound stops used on IRS cars The following guide might be useful: - 140290: large bump stop fitted to TR4A body 136758: 1.626" tall. Re	2	£3.30 Ex VAT @ 20% £2.75
21-09	137599 CLICK FOR MORE INFO	BUSH Revington TR information: Superpro Polyurethane offer an improved kit please see SPF0077K below	4	£12.62 Ex VAT @ 20% £10.52
21-09	138532 CLICK FOR MORE INFO	PLUG BLANKING Revington TR information: This item has a secondhand part available - see below	4	£1.62 Ex VAT @ 20% £1.35	Available to order
	138532SH	TRAILING ARM PLUG second hand	4	£1.57 Ex VAT @ 20% £1.31
21-09	138801 CLICK FOR MORE INFO	PLUG BLANKING Revington TR information: This item has a secondhand part available - see below	4	£5.00 Ex VAT @ 20% £4.17	Available to order
	138801SH	TRAILING ARM PLUG SH	4	£1.56 Ex VAT @ 20% £1.30
21-09	138823 CLICK FOR MORE INFO	INSULATOR UPPER Revington TR information: Road spring Insulator rear TR4AIRS to 6. Consider SuperPro Polyurethane improved kit, which will last much longer than standard rubber and provide a quieter ride. A 5mm thicker insulator is available too, which can be used... READ MORE This item has a secondhand part available - see below	4	£5.76 Ex VAT @ 20% £4.80
	138823SH	SPRING PACKING Second hand	4	£3.28 Ex VAT @ 20% £2.73
21-09	139363 CLICK FOR MORE INFO	SHIM Revington TR information: Shim trailing arm mounting TR4A, 250, 5 and 6. Consider using second hand part 139363SH ans we have plenty of serviceable original parts or stainless steel part 139363SS. This item has a secondhand part available - see below	A/R	£2.36 Ex VAT @ 20% £1.97	Available to order
	139363SH	Second Hand SHIM T/ARM MOUNT	A/R	£3.06 Ex VAT @ 20% £2.55
21-09	141399 CLICK FOR MORE INFO	Bracket inner, trailing arm support Triumph Catalogue Remarks: identified by one notch Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6, they are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part way through TR6... READ MORE This item has a secondhand part available - see below	2	£36.49 Ex VAT @ 20% £30.41
	141399SH CLICK FOR MORE INFO	Second Hand TRAILING ARM BRACKET 1 NOTCH Triumph Catalogue Remarks: identified by one notch Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6 as shown below. They are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part... READ MORE	2	£16.19 Ex VAT @ 20% £13.49
21-09	155502 CLICK FOR MORE INFO	Bracket oyuter, trailing arm support Triumph Catalogue Remarks: identified by three notches Revington TR information: There are 3 types of trailing arm brackets used on TR4A-IRS, 250, 5 and 6, they are identified with 1notch, 2 notches and 3 notches. The bracket arrangement was the same until part way through TR6... READ MORE	2	£36.49 Ex VAT @ 20% £30.41
21-09	143677 CLICK FOR MORE INFO	BOLT This item has been superceded by BH606281 - see below	4
	BH606281	BOLT 3/8 UNF X 3-1/2 INCH	4	£2.14 Ex VAT @ 20% £1.78
21-09	216275 CLICK FOR MORE INFO	REAR ROAD SPRING (COIL) This item has been superceded by 216275PR - see below	1
	216275PR	SPRING Pair STD RR TR4A-6 Revington TR information: 354lb/in 11.5" Long	1	£95.22 Ex VAT @ 20% £79.35
21-09	308267 CLICK FOR MORE INFO	TRAILING ARM ASSY LH Revington TR information: Cast Aluminum Trailing arm left hand TR5-6. Not available new, consider second hand part 308267SH or second hand powder coated part 308267SHPC. This item has a secondhand part available - see below	1		No longer available
	308267SH CLICK FOR MORE INFO	Second Hand TRAILING ARM TR5-6 LH Revington TR information: This second hand left hand TR5-6 trialing arm may or may not have bushes and may or may not have threads that need attention. in other words, the part, being second hand is what it is,... READ MORE	1	£332.69 Ex VAT @ 20% £277.24	Available to order
21-09	308268 CLICK FOR MORE INFO	TRAILING ARM ASSY RH Revington TR information: Cast Aluminum Trailing arm right hand TR5-6. Not available new, consider second hand part 308268SH or second hand powder coated part 308268SHPC. This item has a secondhand part available - see below	1		No longer available
	308268SH CLICK FOR MORE INFO	Second Hand TRAILING ARM RH TR5-6 S.HAND Revington TR information: This second hand right hand TR5-6 trialing arm may or may not have bushes and may or may not have threads that need attention. in other words, the part, being second hand is what it is,... READ MORE	1	£379.50 Ex VAT @ 20% £316.25	Available to order
21-09	WP9 CLICK FOR MORE INFO	WASHER HARD 3/8" This item has been superceded by WP106121191 - see below	8
	WP106121191	WASHER PLAIN 3/8" x 3/4" x 0.119" HARDENED	8	£1.48 Ex VAT @ 20% £1.23
21-09	YN2909 CLICK FOR MORE INFO	NUT NYLOC 3/8UNF X 15/32 thick This item has been superceded by NY606151 - see below	8
	NY606151 CLICK FOR MORE INFO	NUT NYLOC 3/8UNF X 15/32 thick	8	£0.71 Ex VAT @ 20% £0.59
21-09	HB1029 CLICK FOR MORE INFO	BOLT 7/16 UNF X 3-3/4 INCH This item has been superceded by BH607301 - see below	4
	BH607301	BOLT 7/16 UNF X 3-3/4 INCH	4	£3.46 Ex VAT @ 20% £2.88
21-09	TD812 CLICK FOR MORE INFO	SCREW This item has been superceded by ST605121 - see below	12
	ST605121 CLICK FOR MORE INFO	STUD 5/16 X 1-1/2" UNF+ UNF	12	£1.92 Ex VAT @ 20% £1.60
21-09	TN3210 CLICK FOR MORE INFO	OLIVE 5/16 INCH TUBE This item has been superceded by NY607141 - see below	4
	NY607141 CLICK FOR MORE INFO	NYLOC 7/16 UNF X 7/16"(.4375") TALL 11/16"AF Revington TR information: Consider also All Steel Locking nut NV607141 which has the advantage of being reuseable.	4	£1.19 Ex VAT @ 20% £0.99
21-09	WM803 CLICK FOR MORE INFO	WASHER PLAIN 7/16 X 1 INCH OD This item has been superceded by WP10716092 - see below	4
	WP10716092	WASHER PLAIN 7/16 X 1 INCH OD	4	£1.14 Ex VAT @ 20% £0.95
