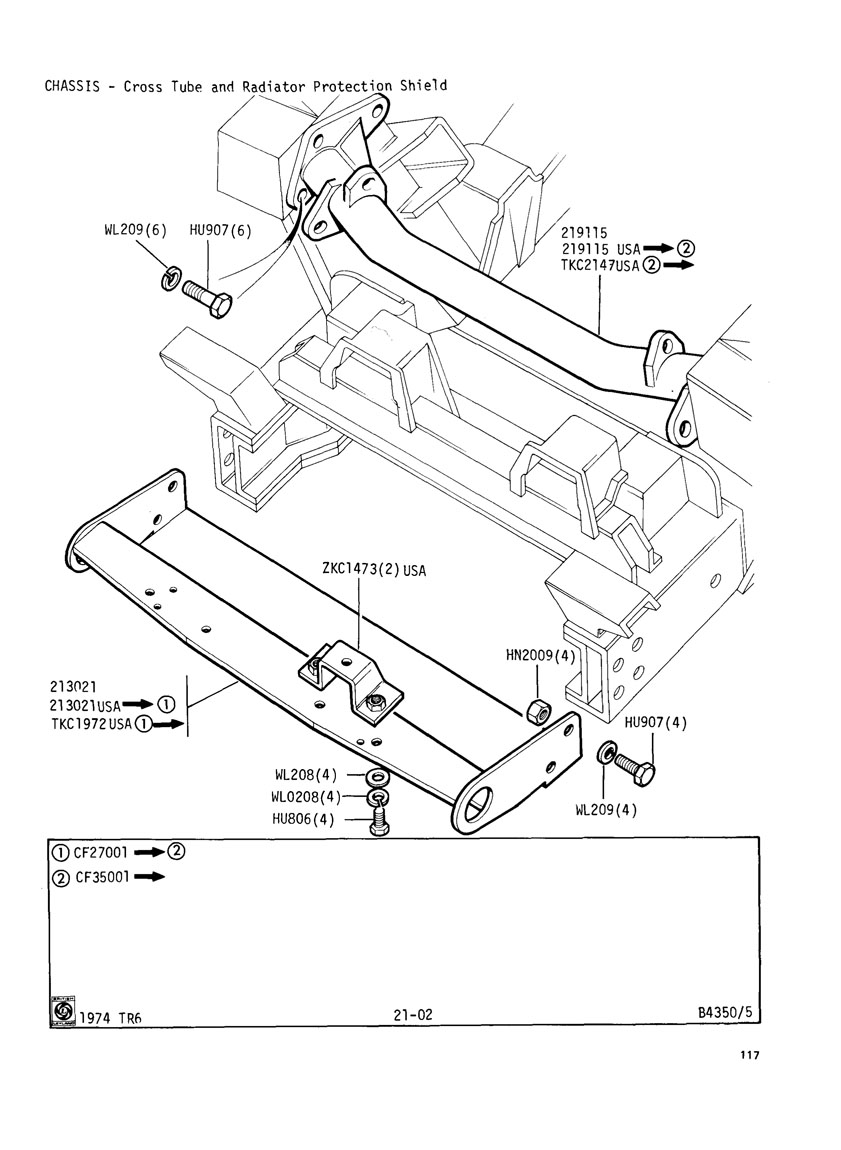

TR6 CR Plate 21-02 - CHASSIS

<< Return to Triumph Catalogue Plate List

> Open plate in new window

Also in this listing

Cross Tube and Radiator Protection Shield

> Open plate in new window

Also in this listing

Cross Tube and Radiator Protection Shield

	Plate No.	Part No.	Description and Comments	No Per Unit	Price	Add to Cart
	21-02	213021 CLICK FOR MORE INFO	RADIATOR PROTECTION SHIELD Triumph Catalogue Remarks: ALL CARS PLUS USA UP TO CF27001 Revington TR information: Consider also second hand part 213021SH or second hand part powder coated 213021SHPC	1	£98.44 Ex VAT @ 20% £82.03
	21-02	219115 CLICK FOR MORE INFO	CROSS TUBE ASSY TOP Triumph Catalogue Remarks: ALL CARS PLUS USA UP TO CF35001 Revington TR information: Fitted from commission number CF1 onwards. Consider second hand part 219115SH or second hand part powder coated black 219115SHPC.	1	£281.72 Ex VAT @ 20% £234.77	Available to order
	21-02	HN2009 CLICK FOR MORE INFO	NUT PLAIN 3/8 UNF X 11/32" (STD) This item has been superceded by NP606111 - see below	4
		NP606111	NUT PLAIN 3/8 UNF X 11/32" (STD)	4	£0.14 Ex VAT @ 20% £0.12
	21-02	HU806 CLICK FOR MORE INFO	SCREW 5/16 UNF X 3/4 INCH This item has been superceded by SH605061 - see below	4
		SH605061 CLICK FOR MORE INFO	SCREW 5/16 UNF X 3/4 INCH	4	£0.54 Ex VAT @ 20% £0.45
	21-02	HU907 CLICK FOR MORE INFO	SCREW 3/8 UNF X 7/8 INCH This item has been superceded by SH606071 - see below	10
		SH606071	SCREW 3/8 UNF X 7/8 INCH	10	£0.52 Ex VAT @ 20% £0.43
	21-02	TKC1972	RADIATOR PROTECTION SHIELD USA Triumph Catalogue Remarks: USA ONLY FROM CF27001 ONWARDS	1		No longer available
	21-02	TKC2147	CROSS TUBE ASSY TOP Triumph Catalogue Remarks: USA FROM TO CF35001	1		No longer available
	21-02	WL0208 CLICK FOR MORE INFO	WASHER SPRING 5/16 1NCH This item has been superceded by WS105090853 - see below	4
		WS105090853	WASHER SPRING 5/16" ID RECT SECTION	4	£0.25 Ex VAT @ 20% £0.21
	21-02	WL208 CLICK FOR MORE INFO	WASHER SPRING 5/16" ID RECT SECTION This item has been superceded by WS105090853 - see below	4
		WS105090853	WASHER SPRING 5/16" ID RECT SECTION	4	£0.25 Ex VAT @ 20% £0.21
	21-02	WL209 CLICK FOR MORE INFO	WASHER SPRING 3/8" RECT SECTION This item has been superceded by WS106111243 - see below	10
		WS106111243	WASHER SPRING 3/8" RECT SECTION	10	£0.37 Ex VAT @ 20% £0.31
	21-02	ZKC1473	BRACKET	2		No longer available
