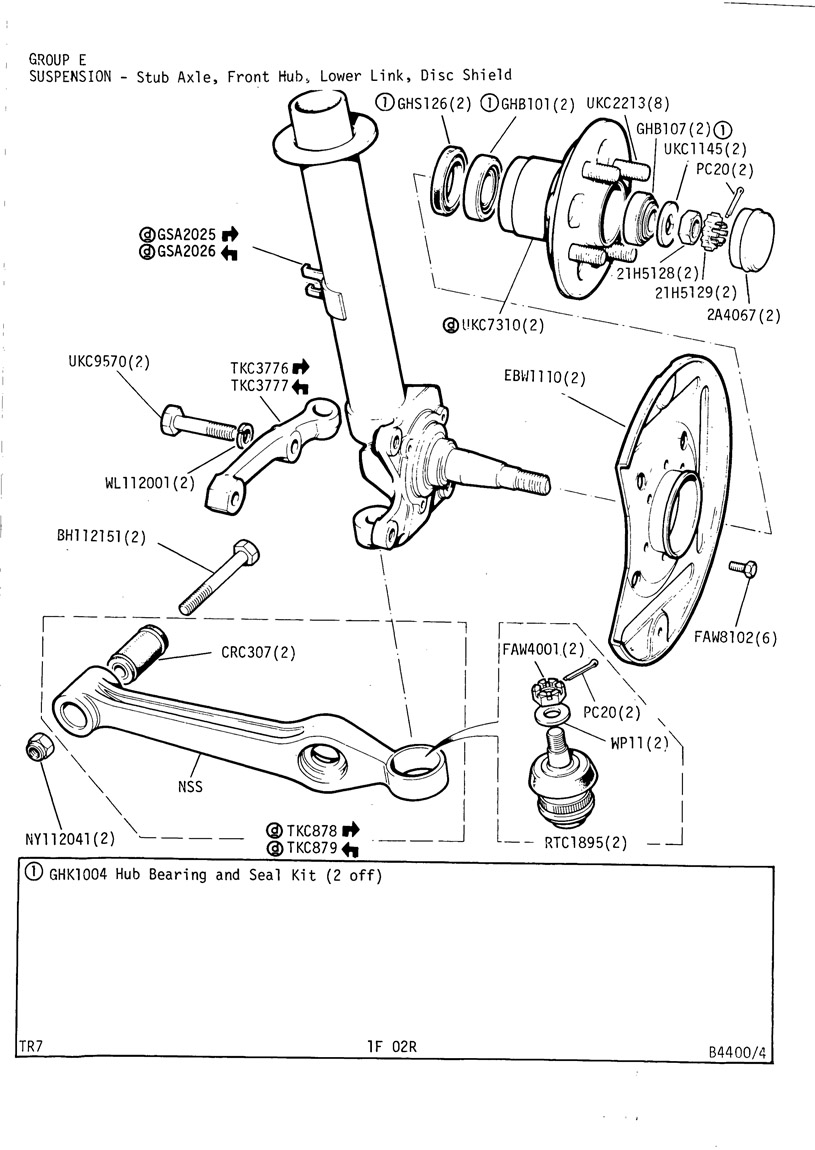

TR7 Plate 1F-02R - SUSPENSION - Stub Axle, Front Hub, Lower Link, Disc Shield
<< Return to Triumph Catalogue Plate ListPlate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
---|---|---|---|---|---|---|
1F 02R | NY112041 |
NUT |
2 |
£1.55 Ex VAT @ 20% |
||
1F 02R | TKC878 |
LOWER LINK ASSEMBLY RH |
1 |
£127.32 Ex VAT @ 20% |
||
1F 02R | TKC879 |
LOWER LINK ASSEMBLY LH |
1 |
£131.92 Ex VAT @ 20% |
||
1F 02R | CRC307 |
LINK BUSHRevington TR information: Consider using Superpro version SPF0139K. |
2 |
£21.50 Ex VAT @ 20% |
||
1F 02R | RTC1895 |
FALL JOINT KITThis item has been superceded by GSJ154 - see below |
2 | |||
GSJ154 |
SWIVEL JOINT LWR TR7 |
2 | ||||
1F 02R | WP11 |
WASHERThis item has been superceded by WP10818093 - see below |
2 | |||
WP10818093 |
WASHER PLAIN 1/2 X 1-1/8 INCH OD |
2 |
£0.58 Ex VAT @ 20% |
|||
1F 02R | PC20 |
COTTER PINThis item has been superceded by PS108121 - see below |
2 | |||
PS108121 |
PIN SPLIT 1/8" x 1-1/2" long |
2 |
£0.44 Ex VAT @ 20% |
|||
1F 02R | FAW4001 |
NUT |
2 | |||
1F 02R | FAW8102 |
SCREWThis item has been superceded by SH106121 - see below |
6 | |||
SH106121 |
SCREW M6 X 12MM |
6 |
£0.58 Ex VAT @ 20% |
|||
1F 02R | BH112151 |
BOLTRevington TR information: Pitch 1.75mm |
2 |
£4.03 Ex VAT @ 20% |
||
1F 02R | WL112001 |
WASHER |
2 |
£1.30 Ex VAT @ 20% |
||
1F 02R | UKC9570 |
BOLT TIE ROD LEVER TO STUB AXLE |
2 | |||
1F 02R | TKC3776 |
TIE ROD LEVER RH |
1 |
£110.32 Ex VAT @ 20% |
||
1F 02R | TKC3777 |
TIE ROD LEVER LH |
1 |
£82.78 Ex VAT @ 20% |
||
1F 02R | GSA2025 |
STRUT LEG RIGHT HAND |
1 | |||
1F 02R | GSA2026 |
FRONT STRUT |
1 | |||
1F 02R | EBW1110 |
DISC SHIELDThis item has been superceded by RKC802 - see below |
2 | |||
RKC802 |
DUST SHIELD TR7 |
2 | ||||
1F 02R | UKC7310 |
FRONT HUB ASSY |
2 |
£254.26 Ex VAT @ 20% |
||
1F 02R | GHS126 |
HUB OIL SEAL-HUB TO STUB AXLERevington TR information: can use kit GHK1004 |
2 |
£7.18 Ex VAT @ 20% |
||
1F 02R | GHB101 |
INNER BEARING-HUB 10 STUB AXLERevington TR information: Also fits GT6 and Dolomite inner front hub |
2 |
£19.01 Ex VAT @ 20% |
||
1F 02R | UKC2213 |
STUD |
8 |
£8.86 Ex VAT @ 20% |
||
1F 02R | GHB107 |
OUTER BEARING-HUB TO STUB AXLE |
2 |
£31.18 Ex VAT @ 20% |
||
1F 02R | UKC1145 |
C WASHER |
2 | |||
1F 02R | PC20 |
COTTER PINThis item has been superceded by PS108121 - see below |
2 | |||
PS108121 |
PIN SPLIT 1/8" x 1-1/2" long |
2 |
£0.44 Ex VAT @ 20% |
|||
1F 02R | 21H5128 |
PLAIN NUT-HUB TO STUB AXLEThis item has been superceded by NP609161 - see below |
2 | |||
NP609161 |
NUT PLAIN 9/16"UNF 1/2" TALL |
2 |
£3.28 Ex VAT @ 20% |
|||
1F 02R | 21H5129 |
NUT RETAINERRevington TR information: NLA |
2 | |||
1F 02R | 2A4067 |
GREASE CAP |
2 |
£11.16 Ex VAT @ 20% |
