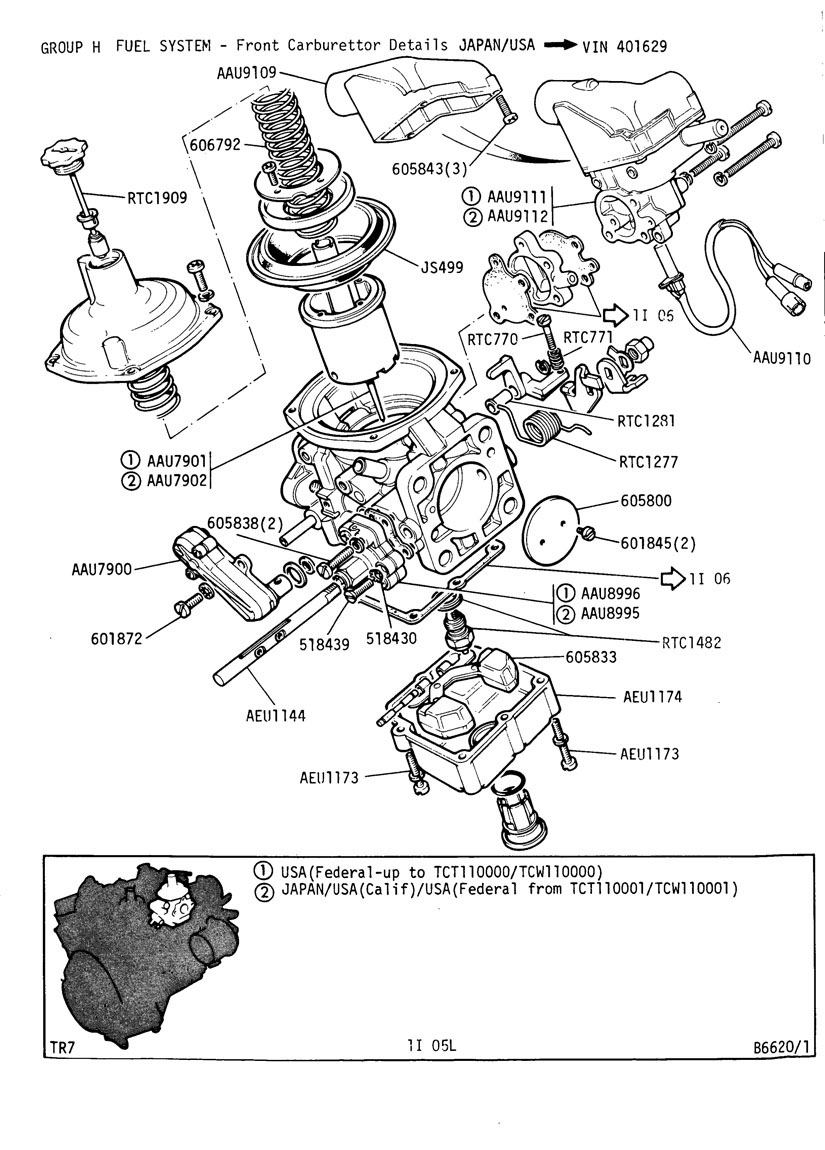

TR7 Plate 1I-05L - FUEL SYSTEM - Front Carburettor Details JAPAN/USA up to VIN401629
<< Return to Triumph Catalogue Plate List
| Plate No. | Part No. | Description and Comments | No Per Unit | Price | Add to Cart | |
|---|---|---|---|---|---|---|
 |
1I 05L | AEU1173 |
SCREW AND WASHER-CARB FLOATCHAMBER |
2 | ||
|
1I 05L | AEU1174 |
FLOATCHAMBER-CARBURETTOR |
1 | ||
|
1I 05L | 605833 |
CARE FLOAT AND ARMThis item has been superceded by 605833A - see below |
1 | ||
|
605833A |
FLOAT STROMBERG CARB |
1 |
£35.99 Ex VAT @ 20% |
||
|
1I 05L | RTC1482 |
VALVE PACK |
1 |
£25.01 Ex VAT @ 20% |
|
|
1I 05L | AAU8996 |
BY PASS VALVE |
1 | ||
|
1I 05L | AAU8995 |
BY PASS VALVE |
1 | ||
|
1I 05L | 601845 |
SCREW |
2 | ||
|
1I 05L | 605800 |
BUTTERFLYThis item has been superceded by 605800A - see below |
1 | ||
|
605800A |
175 THROTTLE DISC |
1 |
£13.12 Ex VAT @ 20% |
||
|
1I 05L | RTC1277 |
THROTTLE RETURN SPRING |
1 |
£4.33 Ex VAT @ 20% |
|
|
1I 05L | RTC1281 |
LINER |
1 | ||
|
1I 05L | 518430 |
SHAKEPROOF WASHER |
1 | ||
|
1I 05L | 518439 |
SCREW |
1 | ||
|
1I 05L | AEU1144 |
THROTTLE SPINDLE-FRONT CARE |
1 | ||
|
1I 05L | 605838 |
SCREW AND WASHER ASSY |
2 |
£2.30 Ex VAT @ 20% |
|
|
1I 05L | AAU7900 |
TEMPERATURE COMPENSATOR |
1 |
£106.36 Ex VAT @ 20% |
|
|
1I 05L | 601872 |
SCREW |
1 | ||
|
1I 05L | AAU7901 |
METERING NEEDLE |
1 | ||
|
1I 05L | AAU7902 |
METERING NEEDLE |
1 | ||
|
1I 05L | RTC770 |
SCREWRevington TR information: No Longer Available |
1 |
£0.49 Ex VAT @ 20% |
|
|
1I 05L | RTC771 |
SPRING |
1 | ||
|
1I 05L | AAU9110 |
CARBURETTOR HEATER |
1 | ||
|
1I 05L | AAU9111 |
CARBURETTOR STARTERRevington TR information: No longer available |
1 | ||
|
1I 05L | AAU9112 |
CARBURETTOR STARTERRevington TR information: No Longer Available |
1 | ||
|
1I 05L | JS499 |
DIAPHRAGM |
1 | ||
|
1I 05L | 605843 |
SCREW |
3 | ||
|
1I 05L | AAU9109 |
CARBURETTOR STARTER COVER |
1 | ||
|
1I 05L | 606792 |
AIR VALVE RETURN SPRING |
1 | ||
|
1I 05L | RTC1909 |
DAMPER |
1 |
£23.22 Ex VAT @ 20% |
